CNMAWAY TB40 LED Strobe Signal Warning Light – 12V / 24V / 220V | IP44 Rated
The CNMAWAY TB40 (Model N-3051) is a compact, high-brightness LED strobe indicator light built for industrial and commercial signaling applications. Whether you need a reliable visual alert on a production line, small machinery, or an outdoor installation, this flashing warning light delivers clear, eye-catching strobing illumination in a rugged, weather-resistant housing.
Made in China.
Key Features
- High-Brightness LED: Powered by a 14mil 3528 LED chip for vivid, long-lasting illumination with a luminous flux under 60 lm — ideal for close-range signaling.
- Strobe Mode: Continuous flashing operation instantly draws attention to machinery status, process alerts, or safety zones.
- Multi-Voltage Compatible: Available in AC 220V, AC/DC 12V, and AC/DC 24V versions — simply specify your required voltage when ordering.
- Bolt-Type, No Buzzer: Silent visual-only alert mounted via a circular chassis bolt — easy to integrate without noise disruption.
- IP44 Weather Protection: Protected against solid particles (≥1mm) and water splashing from any direction — suitable for indoor and sheltered outdoor use.
- Durable Construction: ABS lamp holder and polycarbonate (PC) lamp shade provide impact resistance and long service life.
- CE Certified: Meets European safety and electromagnetic compatibility standards.

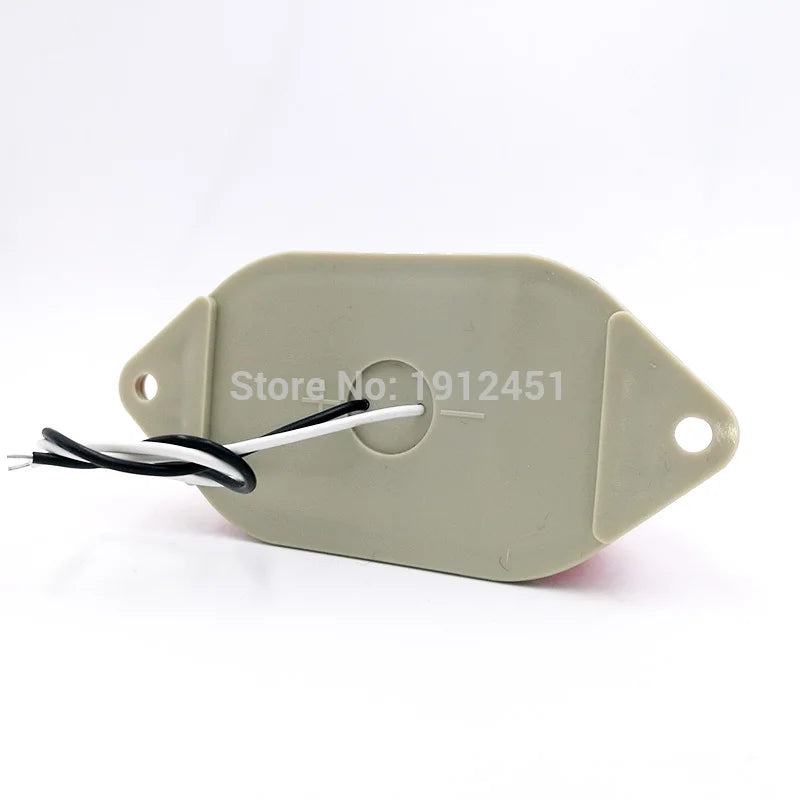

- Simple Wiring: AC voltage — no polarity concern. DC voltage — black wire is Negative.
- Voltage Customization: Need a different voltage? Leave a message at checkout and we'll accommodate your requirement.
Specifications
| Model | TB40 N-3051 |
| Brand | CNMAWAY |
| Voltage Options | AC 220V | AC/DC 12V | AC/DC 24V |
| LED Type | 14mil 3528 LED |
| Flash Mode | Strobe |
| Installation | Circular chassis (bolt type) |
| Materials | ABS holder, PC lamp shade |
| Protection Rating | IP44 |
| Certification | CE |
| Buzzer | No (visual only) |
| Origin | Made in China |
Typical Applications
- Small mechanical equipment and machinery status indicators
- Automated assembly lines and conveyor systems
- Security and access control systems
- Outdoor sheltered installations and enclosures
- Workshop and industrial facility alerting
You May Also Like
Looking for more tools and workshop essentials? Check out our Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool and the Electromagnetic Induction Tester – Coil & Circuit Fault Detector for your workshop toolkit.
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What voltage options are available for the CNMAWAY TB40 N-3051 strobe warning light?
A: The TB40 N-3051 strobe indicator light is available in three voltage configurations: AC 220V, AC/DC 12V, and AC/DC 24V. If you require a different voltage, simply leave a message at the time of ordering and the voltage can be customized to your specification.
Q: Does this LED warning light include a buzzer?
A: No — the TB40 N-3051 is a bolt-type, visual-only strobe light with no buzzer. It provides a silent flashing alert, making it ideal for environments where noise is not desired. If you require an audible alarm as well, buzzer-equipped and magnetic variants (N-3051J, N-3051T, N3051TJ) are also available.
Q: Is the TB40 strobe light suitable for outdoor use?
A: Yes. The TB40 N-3051 carries an IP44 protection rating, meaning it is protected against solid objects larger than 1mm and water splashing from any direction. This makes it suitable for sheltered outdoor installations, though it should not be exposed to direct heavy rain or full submersion.
Q: How do I wire the TB40 N-3051 LED indicator light?
A: Wiring is straightforward. For AC voltage models (220V), there is no positive or negative polarity — wire color does not matter. For DC voltage models (12V or 24V), the black wire is the Negative (–) connection. Always ensure the supply voltage matches the model you ordered before connecting.
