CNMAWAY HB961 Intelligent 6-Digit Reversible Raster Counter
The CNMAWAY HB961 (HP961) Intelligent Raster Counter is a versatile, CE-certified 6-digit reversible meter designed for industrial and DIY electrical applications. Supporting a wide voltage range of 12V, 24V, and 85–260V AC/DC, this programmable counter handles two independent output groups, making it ideal for automation, production line counting, machinery monitoring, and more.
Key Features

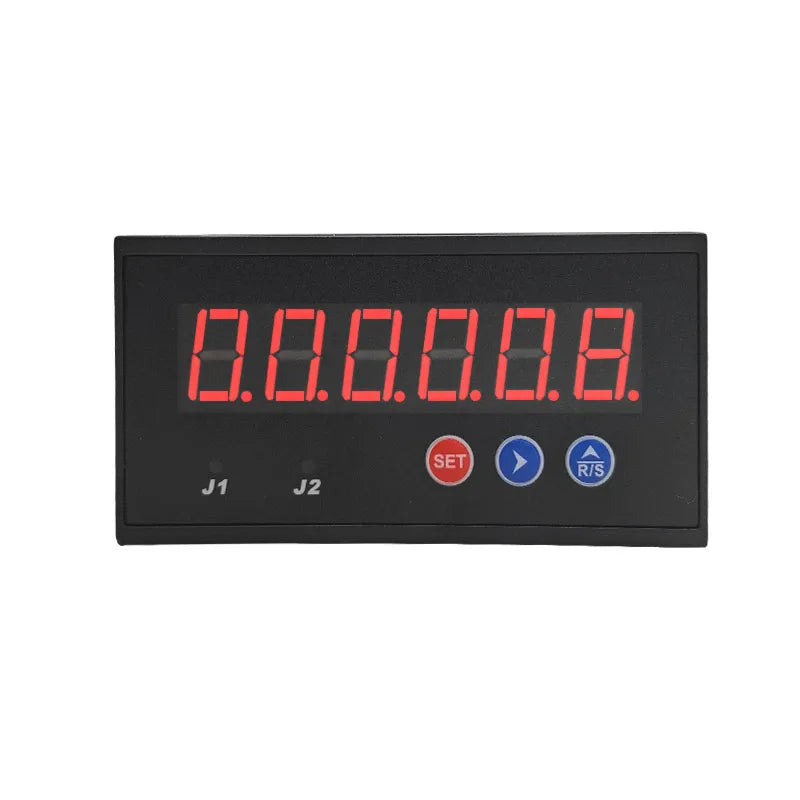

- 6-Digit Display — Large, easy-to-read digit readout for precise counting up to 999,999
- Reversible / Up-Down Counting — Switch between count-up and count-down modes to suit your application
- Wide Voltage Compatibility — Works at 12V DC, 24V DC, and 85–260V AC, covering virtually all standard power supplies
- 2 Group Relay Output — Dual independent output groups allow flexible control of machinery or automation triggers
- Intelligent Raster (Optical) Input — Accurately reads signals from optical/raster sensors for high-speed, high-precision counting
- CE Certified — Meets European conformity standards for safety and electromagnetic compatibility
- Easy Panel Mounting — Standard cut-out dimensions for quick integration into control panels or enclosures
- No Battery Required — Powered directly from your supply; no backup battery needed for basic operation
Specifications
| Model | HB961 / HP961 |
| Display | 6-Digit |
| Count Mode | Reversible (Up / Down) |
| Supply Voltage | 12V DC / 24V DC / 85–260V AC |
| Output Groups | 2 Group Relay Output |
| Input Type | Raster (Optical) Sensor |
| Certification | CE |
| Battery | Not Required |
| Country of Origin | Made in Mainland China |
Who Is This For?
This counter is perfect for engineers, electricians, automation technicians, and serious DIY enthusiasts who need reliable, programmable counting in production lines, conveyor systems, packaging equipment, CNC machines, or any setting requiring precise event counting with dual relay control.
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What voltage options does the HB961 intelligent raster counter support?
A: The CNMAWAY HB961 supports three power supply options: 12V DC, 24V DC, and a wide AC range of 85–260V, making it compatible with the vast majority of industrial and commercial power systems worldwide.
Q: What is the difference between the HB961 and HP961 model numbers?
A: HB961 and HP961 refer to the same intelligent 6-digit reversible raster counter unit — the two designations are used interchangeably by the manufacturer CNMAWAY and represent the same product with identical specifications.
Q: Can this counter count both up and down?
A: Yes. The HB961 features a fully reversible counting function, allowing you to configure it for count-up or count-down operation depending on your application requirements — ideal for batch control, inventory tracking, or process automation.
Q: How many relay outputs does the HB961 have, and how are they used?
A: The HB961 provides 2 independent relay output groups. Each output can be set to trigger at a specific count value, allowing you to control two separate machines, alarms, or processes from a single counter unit.
