CKCTINNER YH Series Dual Output SSR + Relay Digital Temperature Controller

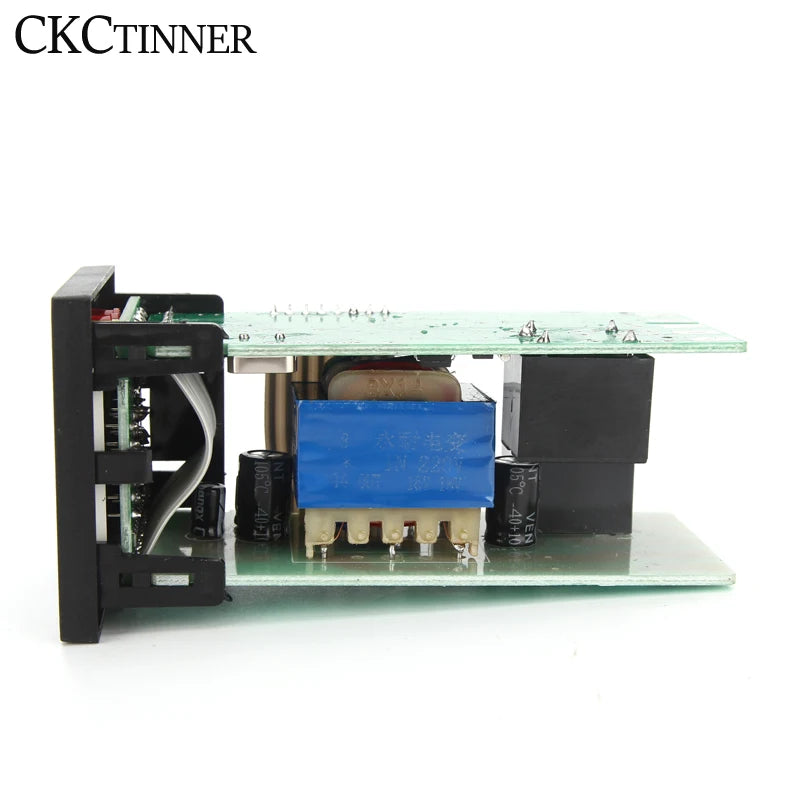

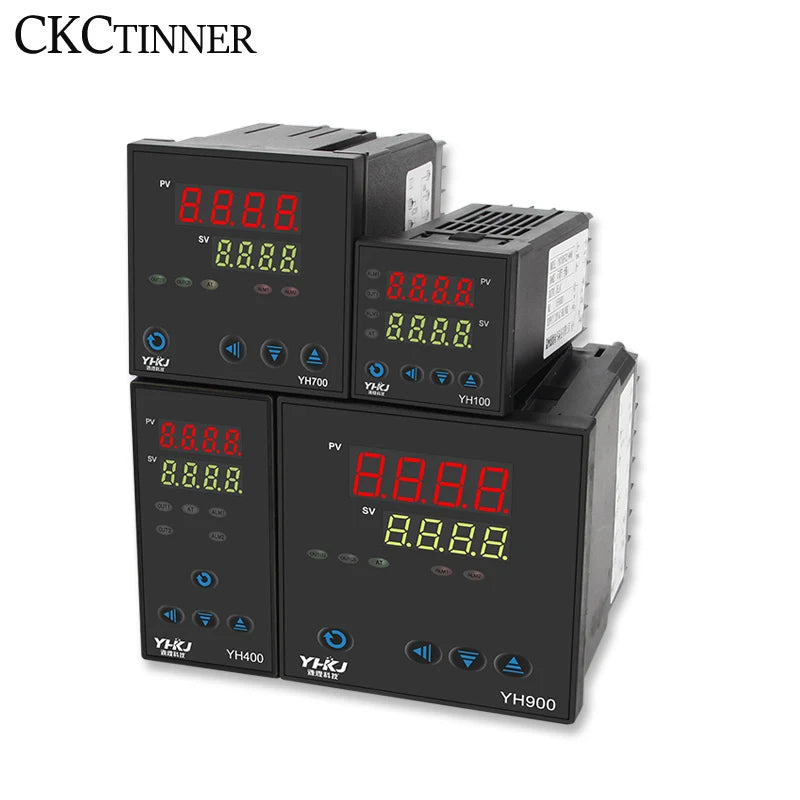

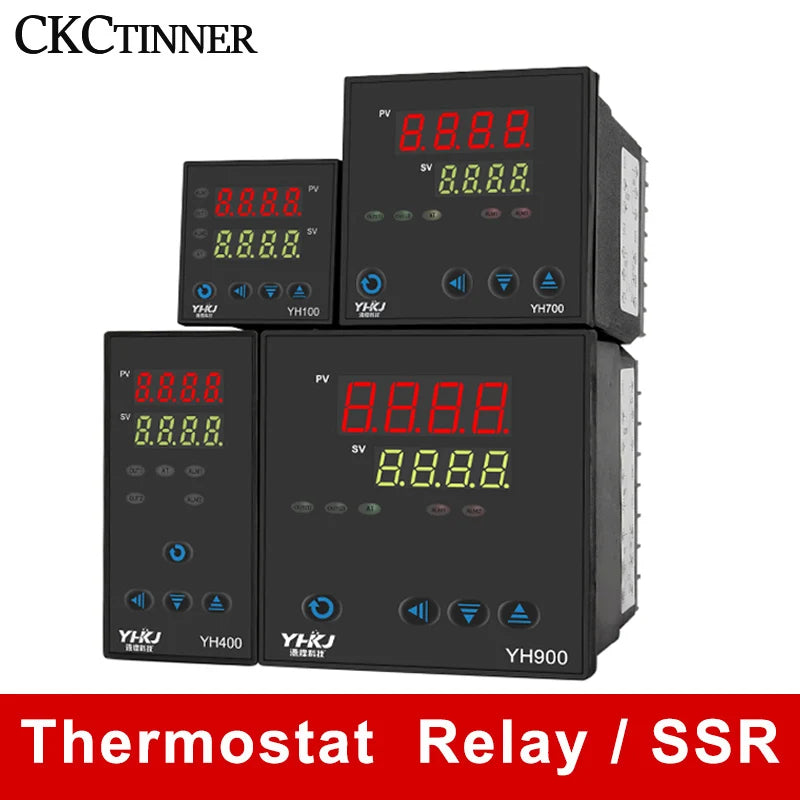

Take precise control of your industrial and automation processes with the CKCTINNER YH Series Intelligent Temperature Controller. Available in four panel sizes (YH-100, YH-400, YH-700, YH-900), this CE-certified unit combines a dual output design — electromagnetic relay plus solid-state relay (SSR) — with a bright 4-digit, 8-segment LED display for instant, accurate readings at a glance. Whether you're managing a kiln, oven, incubator, HVAC system, or any industrial thermal process, the YH Series delivers the flexibility and reliability professionals demand.
Made in Mainland China.
Key Features
- Universal Input Compatibility: Accepts thermocouples (K, J, R, S, B, E, N, T, W5Re/W26Re, PLII), RTD sensors (Pt100, JPt100), voltage inputs (0–5V, 1–5V), and current inputs (0–20mA, 4–20mA) — one controller for virtually any sensor setup.
- Dual Output: Simultaneous electromagnetic relay + SSR outputs for maximum process flexibility and redundancy.
- PID & ON/OFF Control: Choose intelligent PID auto-tuning for tight, stable temperature regulation or simple ON/OFF switching for straightforward applications.
- High Measurement Accuracy: ±0.5% FS ±1°C ensures your process stays precisely on target.

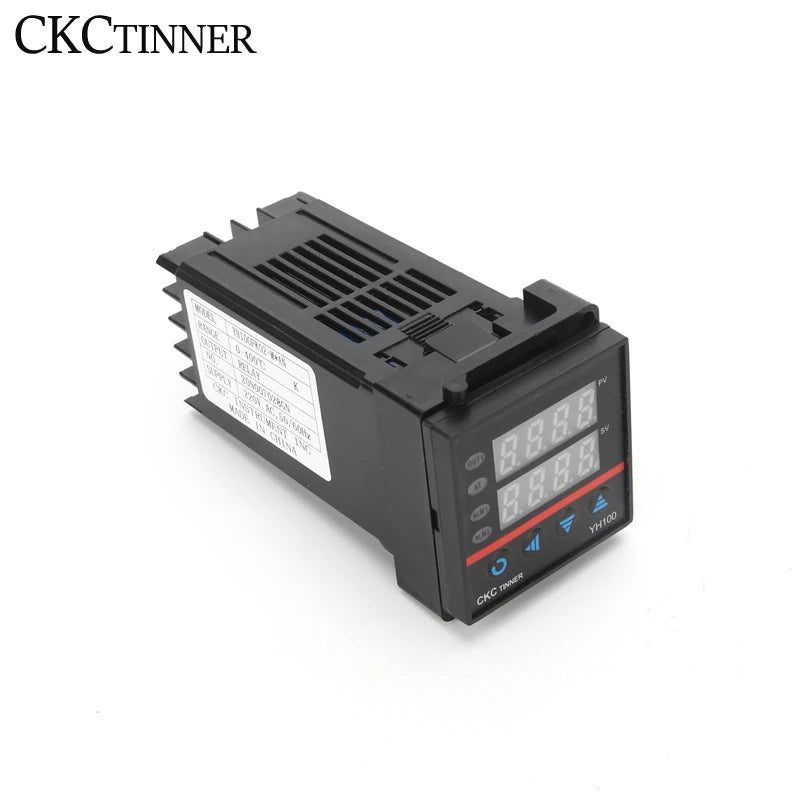

- 4-Size Panel Range: From compact YH-100 (48×48×75 mm) to full-size YH-900 (96×96×75 mm) — fits standard DIN panel cutouts.
- Comprehensive Alarm Functions: 12 configurable alarm forms including deviation high/low, band, process high/low, and hold-action variants for thorough process protection.
- Easy Touch-Switch Programming: Intuitive front-panel touch buttons make parameter setup straightforward without complex tooling.
- Wide Supply Voltage: AC 220V 50/60 Hz; low power consumption (under 10 VA at AC220V).
- CE Certified: Meets European conformity standards for industrial electrical equipment.
Model Dimensions at a Glance

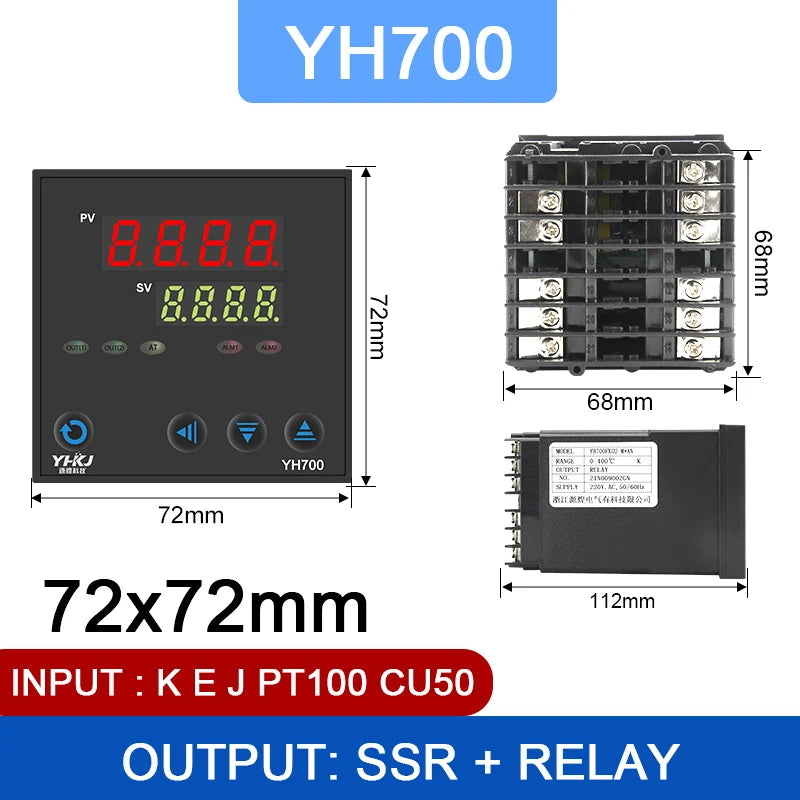

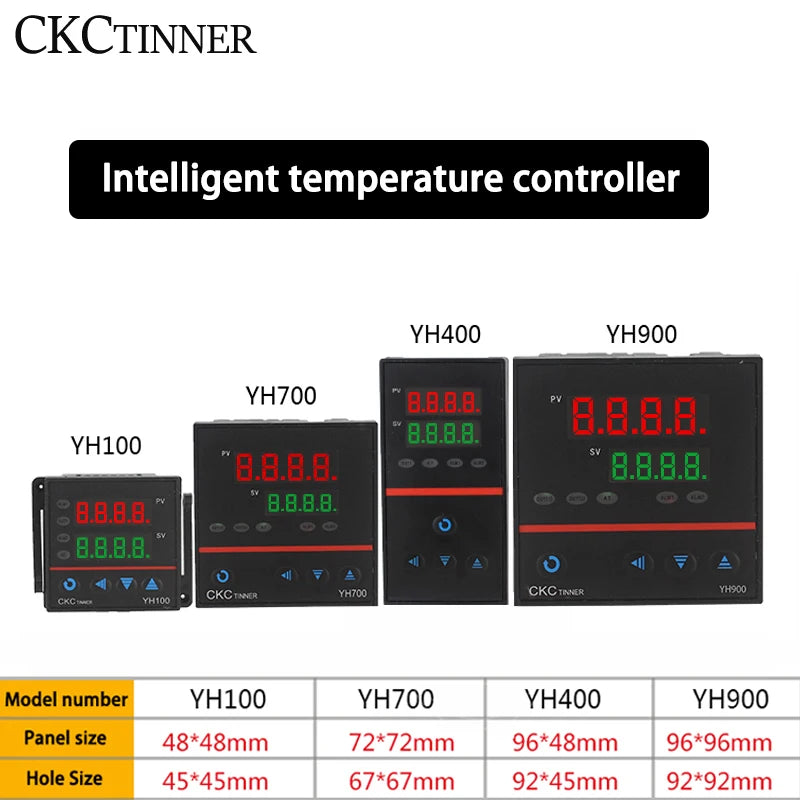

| Model | External Dimensions (mm) | Panel Cutout (mm) |
|---|---|---|
| YH-100 | 48 × 48 × 75 | 45 ±0.5 × 45 ±0.5 |
| YH-400 | 48 × 96 × 75 | 45 ±0.5 × 92 ±0.5 |
| YH-700 | 72 × 72 × 75 | 68 ±0.5 × 68 ±0.5 |
| YH-900 | 96 × 96 × 75 | 92 ±0.5 × 92 ±0.5 |
Full Specifications
| Supply Voltage | AC 220V 50/60 Hz |
| Accuracy | ±0.5% FS ±1°C |
| Control Method | PID or ON/OFF |
| Output Types | Electromagnetic Relay + SSR (Dual Output) |

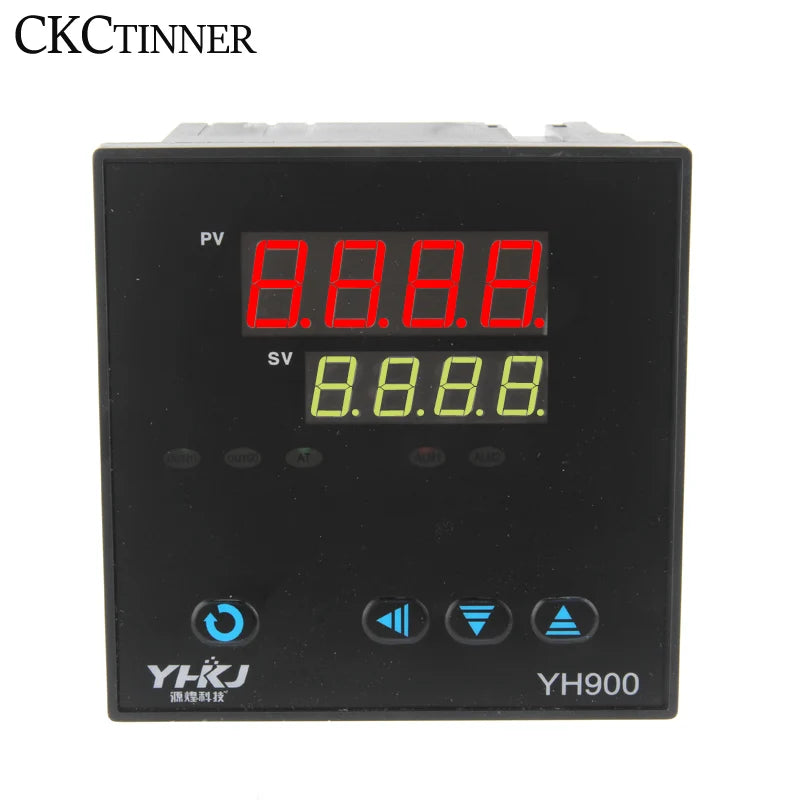

| Display | 8-segment 4-digit LED + LED indication |
| Setting Method | Touch switch |
| Operating Temperature | 0–50°C (32–122°F) |
| Operating Humidity | 30–85% RH, non-condensing |
| Power Consumption | AC220V: <10 VA; AC24V: <5 VA; DC24V: <160 mA |
| Certification | CE |
| Mounting Style | Panel mount (standing or wall hanging) |
What's in the Box?
- 1 × CKCTINNER YH Series Temperature Controller (selected model)
- Mounting hardware
Looking for other precision tools and control instruments? Check out the Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar or the Electromagnetic Induction Tester – Coil & Circuit Fault Detector to round out your workshop toolkit.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What sensor types are compatible with the CKCTINNER YH Series temperature controller?
A: The YH Series supports a wide range of universal inputs, including thermocouples (K, J, R, S, B, E, N, T, W5Re/W26Re, PLII), RTD sensors (Pt100 and JPt100), voltage signals (0–5V, 1–5V), and current signals (0–20mA, 4–20mA). This makes it suitable for virtually any industrial temperature sensing application.
Q: What is the difference between the YH-100, YH-400, YH-700, and YH-900 models?
A: The models differ in their physical panel dimensions and cutout sizes. The YH-100 (48×48 mm) is the most compact, the YH-400 (48×96 mm) offers a rectangular format, the YH-700 (72×72 mm) is a mid-size square, and the YH-900 (96×96 mm) is the largest, fitting standard full-size DIN panel cutouts. All share the same core specification, dual output design, and feature set.
Q: Does this temperature controller support PID auto-tuning?
A: Yes. The CKCTINNER YH Series supports both PID (Proportional-Integral-Derivative) auto-tuning for precise, stable temperature regulation and simple ON/OFF switching mode for straightforward applications. PID mode is ideal when tight control and minimal overshoot are required in industrial processes.
Q: What voltage does this controller require, and what is its power consumption?
A: The standard model operates on AC 220V at 50/60 Hz and consumes less than 10 VA. Lower-voltage variants (AC 24V <5 VA; DC 24V <160 mA) are also referenced in the specifications. No external battery is required.
