CKCTINNER REX-CH Dual Relay PID Temperature Controller LCD

$72.37 $90.00

Color CH402-MM-AN CH102-MM-AN CH902-MM-AN CH702-MM-AN

CKCTINNER REX-CH Series Dual Relay PID Intelligent Temperature Controller

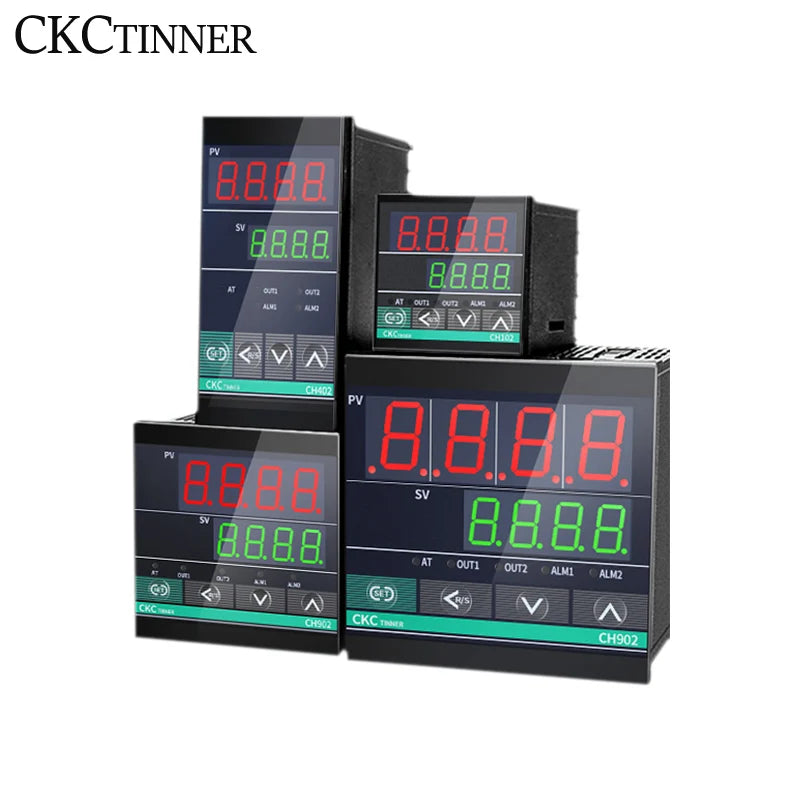

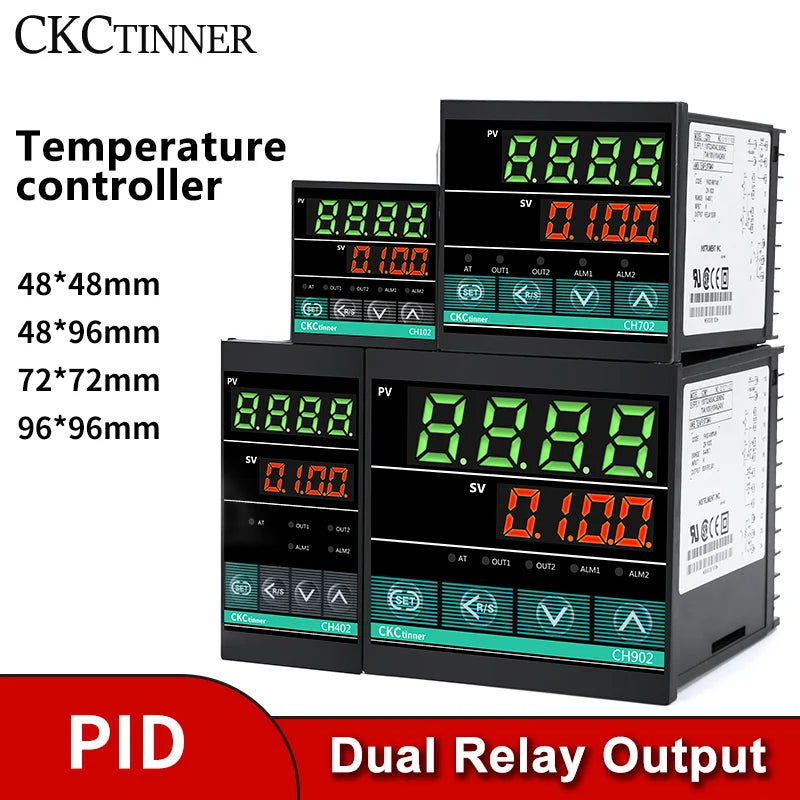

Take precise control of your industrial and commercial temperature management with the CKCTINNER REX-CH Series PID Intelligent Temperature Controller. Available in five panel sizes (CH102, CH402, CH502, CH702, CH902), this versatile unit features a bright LCD digital display, dual relay outputs, and a wide-range universal input — making it the go-to solution for OEMs, engineers, and industrial operators who demand accuracy and reliability.

Made in Mainland China.

Key Features

Dual Relay Outputs: Two independent electromagnetic relay outputs for flexible control and alarm configurations.
PID & ON/OFF Control: Choose between intelligent PID auto-tuning or simple ON/OFF switching to suit your application.
Universal Input Compatibility: Accepts thermocouple types K, J, R, S, B, E, N, T, W5Re/W26Re, PLII; RTD Pt100 & JPt100; voltage 0–5V, 1–5V; current 0–20mA, 4–20mA.
High Accuracy: ±0.5%FS ±1°C ensures tight process control.
Wide Power Supply Range: Operates on 100–240VAC, making it suitable for global use.
2 Configurable Alarms: 12 alarm modes including deviation high/low, band, process high/low, and hold-action variants.

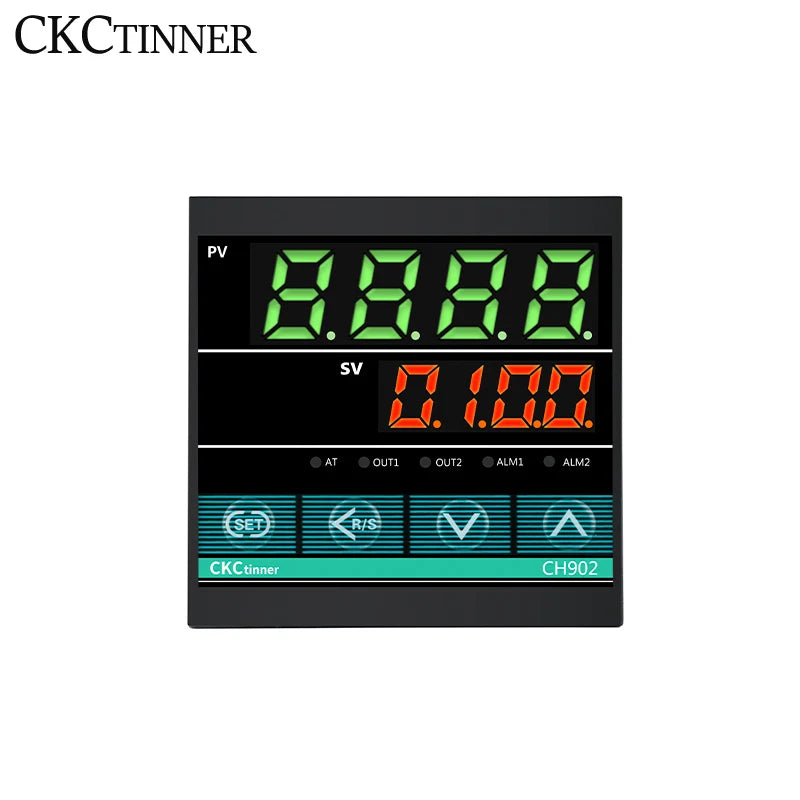

Clear 4-Digit Display: 8-segment, 4-digit LED display with indicator lights for instant status monitoring.
CE Certified: Meets European safety and electromagnetic compatibility standards.

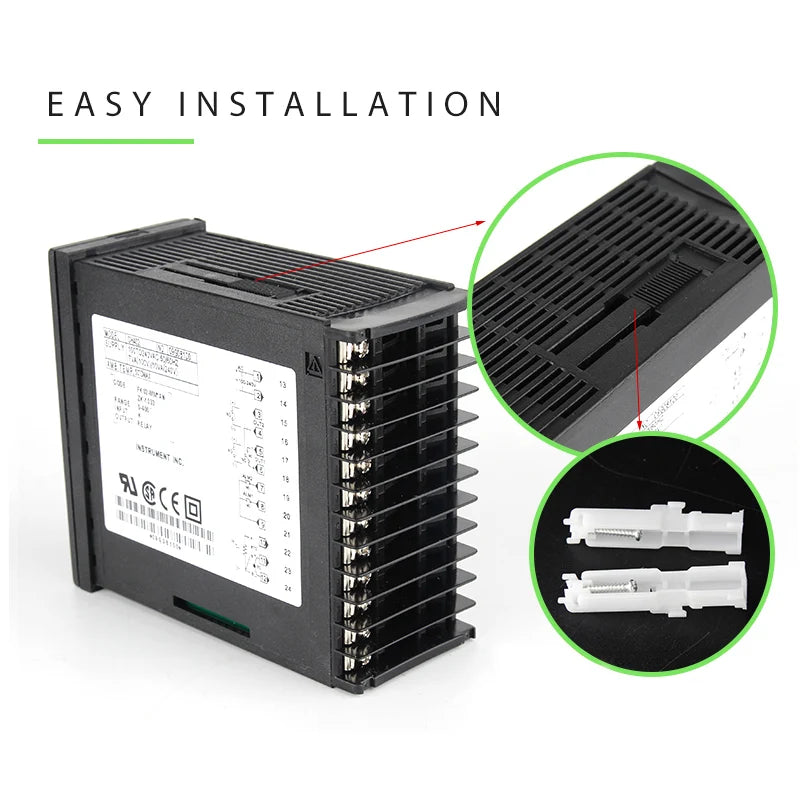

Touch Switch Setting: Easy front-panel programming via touch switches — no tools required.

Model Dimensions

Model	External Dimensions	Panel Cut-Out
REX-CH102	48 × 48 × 75 mm	45±0.5 × 45±0.5 mm

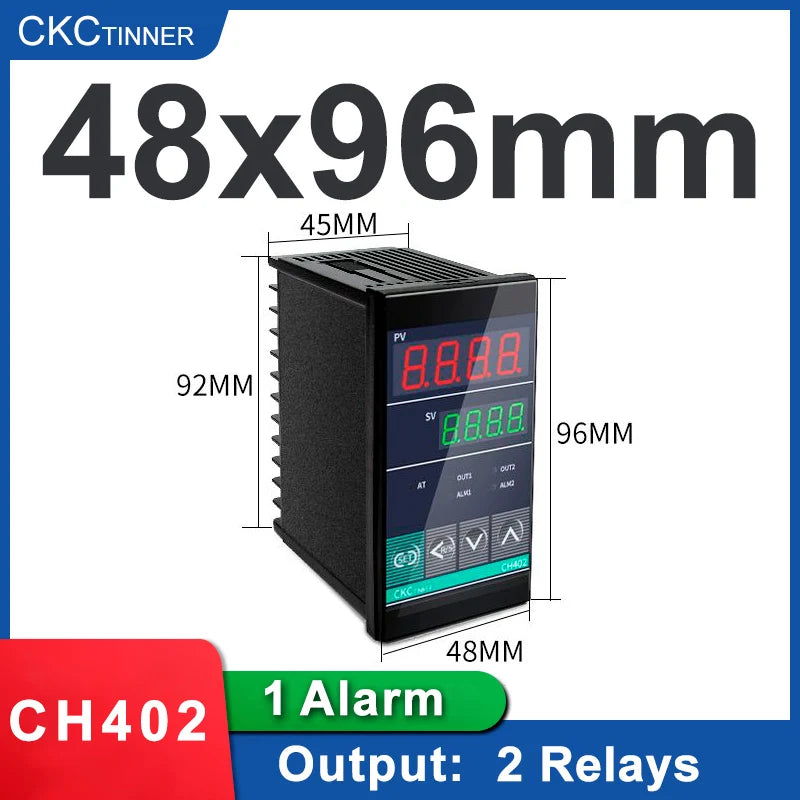

REX-CH402	48 × 96 × 75 mm	45±0.5 × 92±0.5 mm
REX-CH502	96 × 48 × 75 mm	92±0.5 × 45±0.5 mm
REX-CH702	72 × 72 × 75 mm	68±0.5 × 68±0.5 mm
REX-CH902	96 × 96 × 75 mm	92±0.5 × 92±0.5 mm

Full Technical Specifications

Accuracy	±0.5%FS ±1°C
Supply Voltage	100–240VAC
Power Consumption	AC100–240V: under 10VA; AC24V: under 5VA; DC24V: under 160mA
Output Type	2× Electromagnetic Relay
Control Method	PID or ON/OFF
Alarm Quantity	2 Alarms
Display	8-segment 4-digit LED + LED indicators
Operating Temperature	0–50°C (32–122°F)
Operating Humidity	30–85% RH, non-condensing
Certification	CE
Country of Origin	Mainland China

Frequently Asked Questions

Q: What panel sizes are available for the REX-CH Series PID Temperature Controller?

A: The REX-CH Series is available in five panel sizes: CH102 (48×48 mm), CH402 (48×96 mm), CH502 (96×48 mm), CH702 (72×72 mm), and CH902 (96×96 mm). All models share the same 75 mm depth and the same dual relay output architecture, so you can choose the size that best fits your control panel cut-out.

Q: What sensor input types does this PID temperature controller support?

A: The REX-CH Series accepts a wide variety of input signals including thermocouples (K, J, R, S, B, E, N, T, W5Re/W26Re, PLII), RTDs (Pt100, JPt100), voltage inputs (0–5V, 1–5V), and current inputs (0–20mA, 4–20mA). This universal input capability makes it suitable for a broad range of industrial and laboratory applications.

Q: Can this temperature controller be used with a 110V or 240V power supply?

A: Yes. The CKCTINNER REX-CH Series PID Temperature Controller supports a universal power supply range of 100–240VAC, so it works seamlessly in both North American (110V) and European/international (220–240V) electrical systems without any modification.

Q: What is the difference between PID and ON/OFF control modes?

A: In PID mode, the controller continuously calculates and adjusts the output to maintain the setpoint with minimal overshoot and oscillation — ideal for processes requiring tight, stable temperature regulation. ON/OFF mode simply switches the output fully on or off when the temperature crosses the setpoint, which suits simpler applications where exact precision is less critical.
