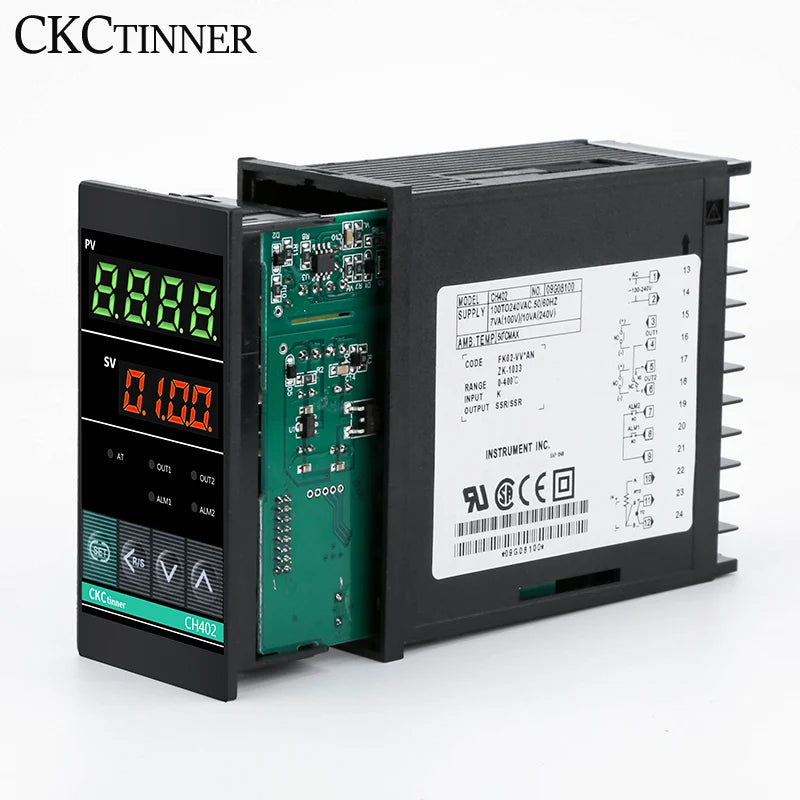

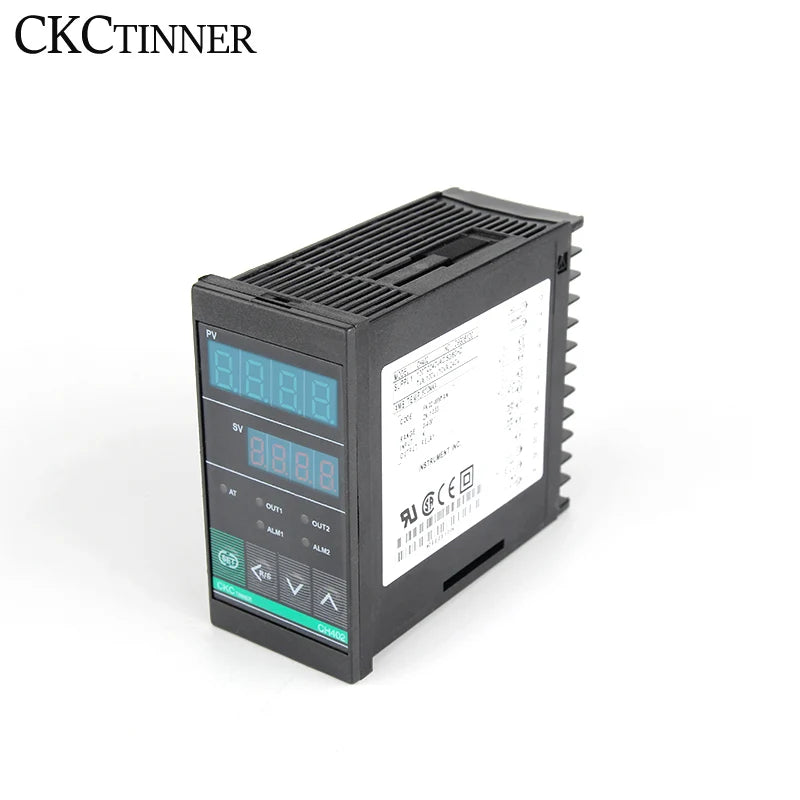

CKCTINNER REX-CH Series LCD PID Temperature Controller with Dual Output SSR & Relay
Take precise command of your industrial or DIY temperature processes with the CKCTINNER REX-CH Series Intelligent PID Temperature Controller. Available in four panel sizes (CH102, CH402, CH702, CH902), this CE-certified unit combines a dual output — electromagnetic relay and SSR — with a bright 4-digit LCD display and a versatile 2-alarm system for complete, hands-off process control.
Why Choose the REX-CH Series?
- Dual Output: Electromagnetic relay + SSR output gives you flexible control options for heating or cooling applications.
- Intelligent PID or ON/OFF Control: Auto-tune PID algorithm ensures accurate, stable temperature regulation; switch to simple ON/OFF mode when needed.
- Wide Input Compatibility: Supports thermocouples (K, J, R, S, B, E, N, T, W5Re/W26Re, PLII), RTD (Pt100, JPt100), voltage (0–5V, 1–5V), and current (0–20mA, 4–20mA) — works with virtually any industrial sensor.
- 2 Independent Alarms: Choose from 12 alarm modes including deviation high/low, band, process high/low, and hold-action variants for comprehensive process protection.
- High Accuracy: ±0.5% FS ±1°C measurement accuracy for consistent, reliable results.
- Universal Power Supply: Operates on 100–240VAC — plug in anywhere worldwide.
- Clear LCD Display: 8-segment, 4-digit readout with LED indication for at-a-glance monitoring.
- Intuitive Touch-Switch Setting: Easy parameter entry without tools or complicated menus.
- Multiple Panel Sizes: Choose the model that fits your panel cutout perfectly.
- Made in Mainland China.

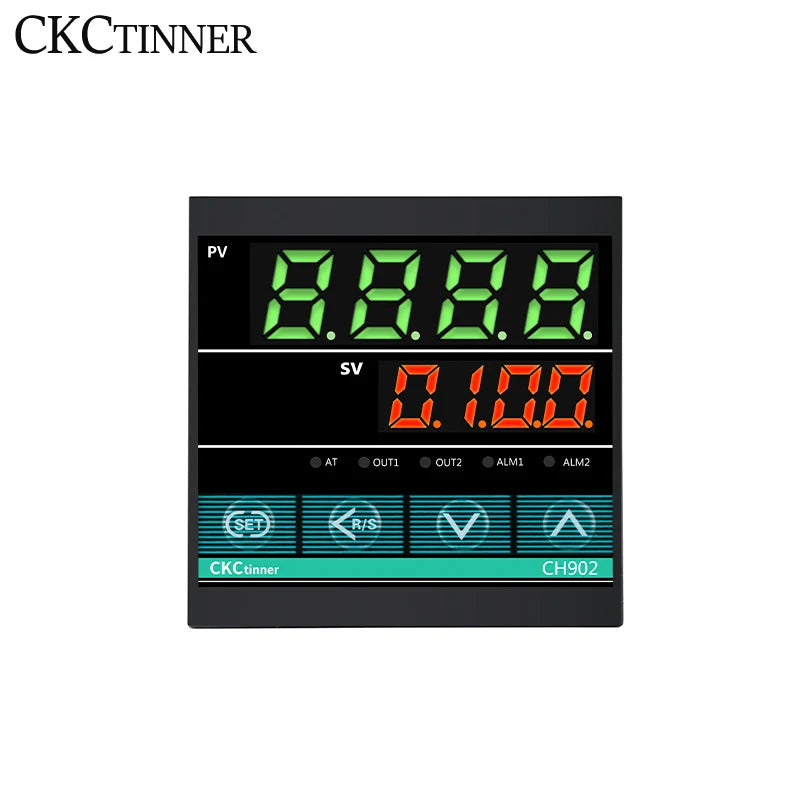

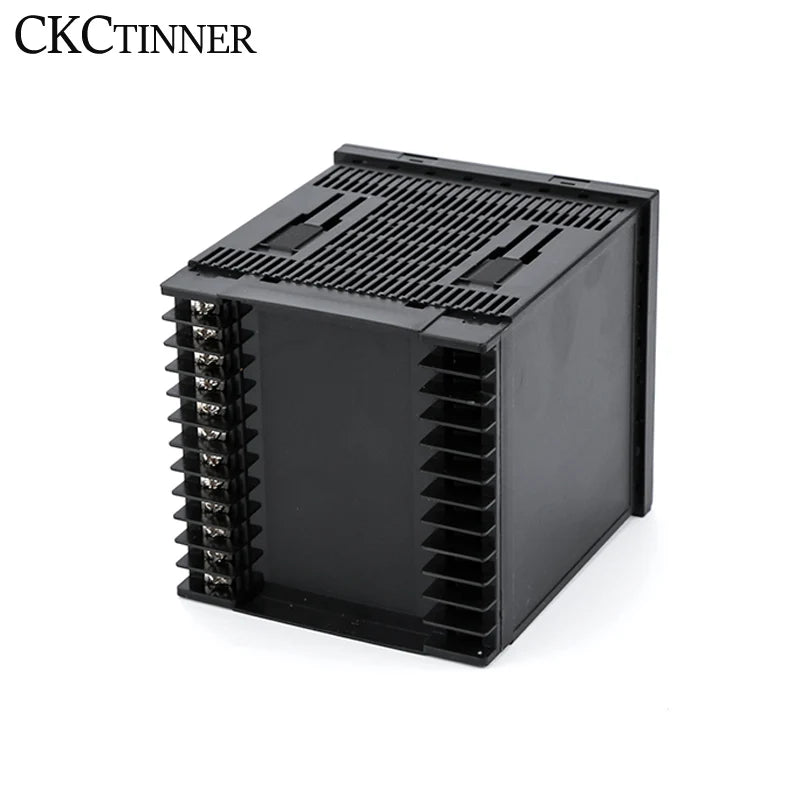

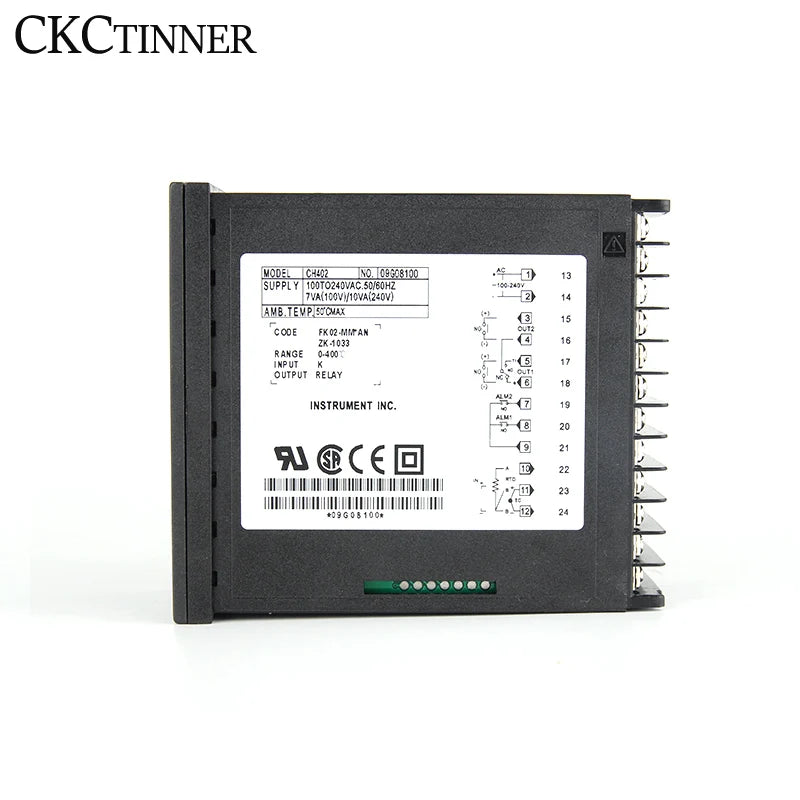

Model Numbers & Dimensions

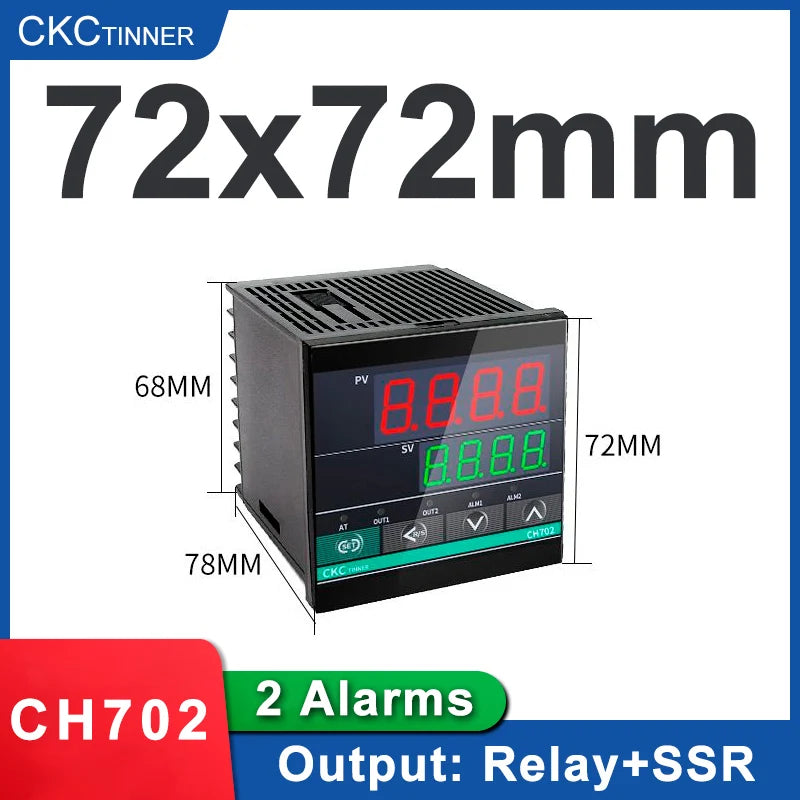

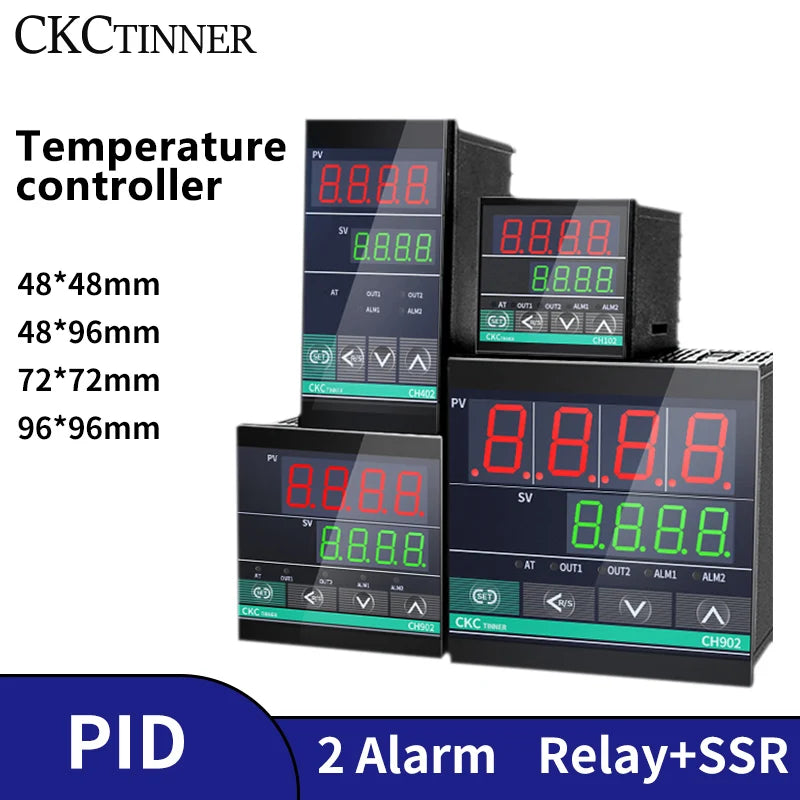

| Model Number | External Dimensions | Panel Cutout |
|---|---|---|
| REX-CH102 | 48 × 48 × 75 mm | 45 ±0.5 × 45 ±0.5 mm |
| REX-CH402 | 48 × 96 × 75 mm | 45 ±0.5 × 92 ±0.5 mm |
| REX-CH702 | 72 × 72 × 75 mm | 68 ±0.5 × 68 ±0.5 mm |
| REX-CH902 | 96 × 96 × 75 mm | 92 ±0.5 × 92 ±0.5 mm |
Full Technical Specifications
| Accuracy | ±0.5% FS ±1°C |
| Supply Voltage | 100–240VAC |
| Power Consumption | AC100–240V: <10VA | AC24V: <5VA | DC24V: <160mA |
| Input Types | Thermocouple: K, J, R, S, B, E, N, T, W5Re/W26Re, PLII; RTD: Pt100, JPt100; Voltage: 0–5V, 1–5V; Current: 0–20mA, 4–20mA |
| Output Types | Electromagnetic Relay + SSR |
| Control Method | PID or ON/OFF |
| Setting Method | Touch Switch |
| Display | 8-segment 4-digit LCD + LED indication |
| Alarms | 2 independent alarms; 12 alarm modes |
| Max Measuring Temperature | 120°C and above |
| Operating Temperature | 0–50°C (32–122°F) |
| Operating Humidity | 30–85% RH, non-condensing |
| Certification | CE |
| Country of Origin | Made in Mainland China |
Common Applications
- Industrial furnaces, ovens, and kilns
- Plastic injection molding and extrusion
- Incubators and laboratory equipment
- HVAC systems and building automation
- Brewing, fermentation, and food processing
- Greenhouse and agriculture environment control
