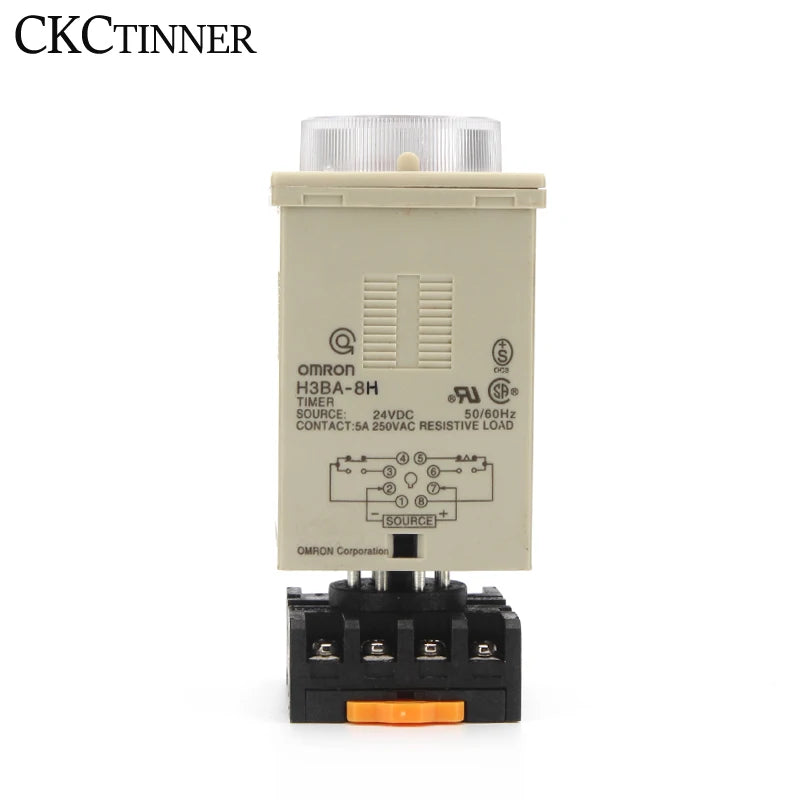

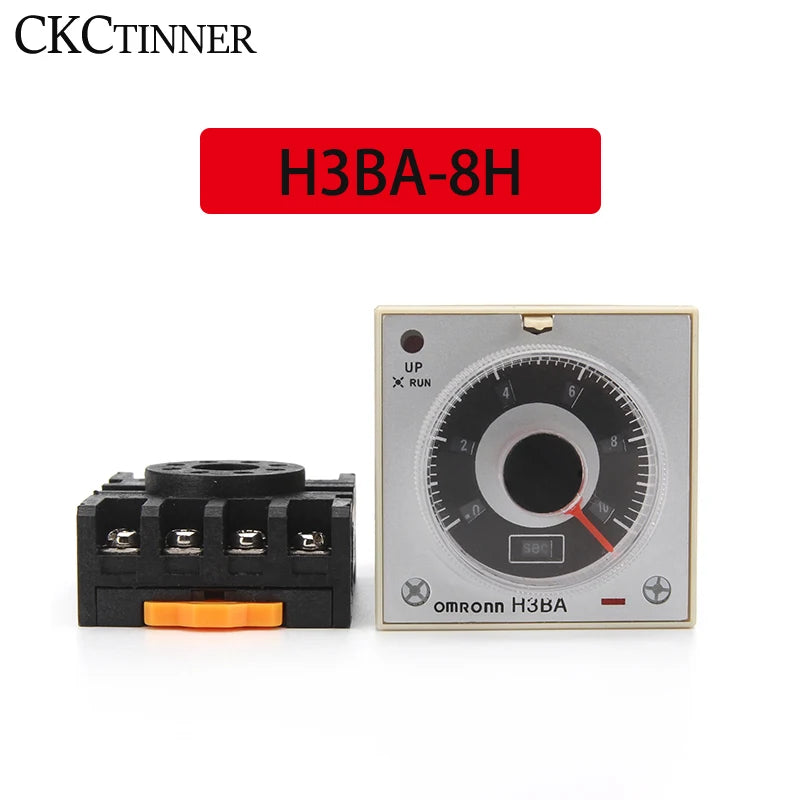

CKCTINNER H3BA-8H Multifunctional Timer Relay – Precision Timing for Industrial & DIY Applications
The CKCTINNER H3BA-8H is a high-performance multifunctional timer relay engineered using advanced large-scale integrated circuits. With an impressively wide delay range of 0.5 seconds to 100 hours, this 8-pin relay is ideal for automation panels, industrial control systems, and DIY electrical projects. It combines one set of delay contacts with one set of instantaneous action contacts in a compact 48×48×94 mm housing — offering versatility rarely found at this price point.
Key Features
- Wide Delay Range: 0.5S to 100H — adaptable to a huge variety of timing applications
- High Precision & Reliability: Built with large-scale integrated circuits for accurate, repeatable timing
- Dual Contact Sets: 1 set of delay contacts + 1 set of instantaneous action contacts
- Contact Capacity: AC 250V / 5A resistive — suitable for robust switching tasks
- Multi-Voltage Compatible: DC 24V, 48V | AC 24V, 48V, 110V, 220V, 380V (50/60Hz)
- Power-On Delay Mode: Triggers timing sequence immediately upon power-up

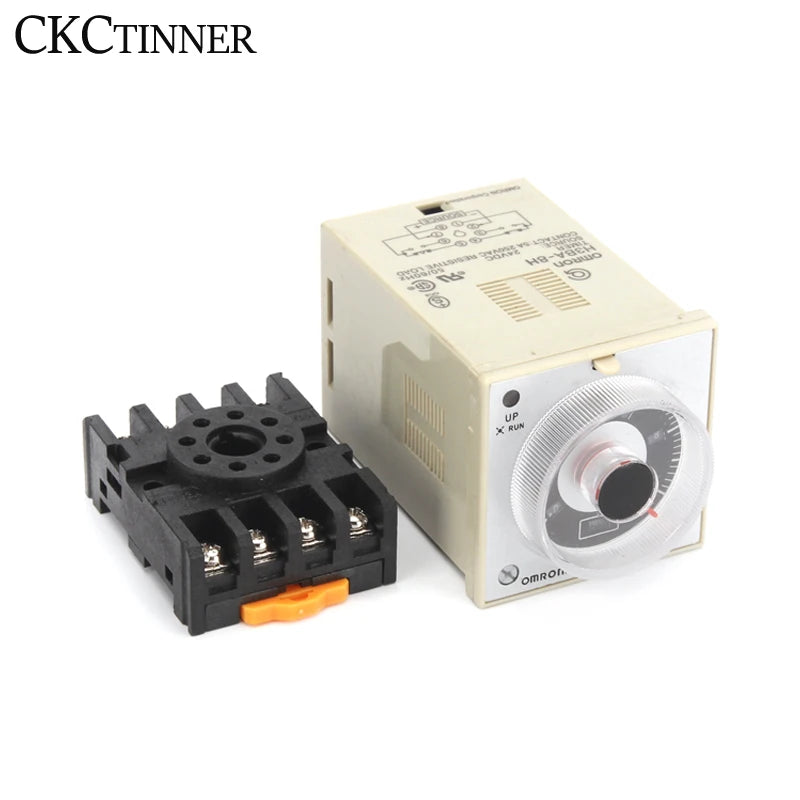

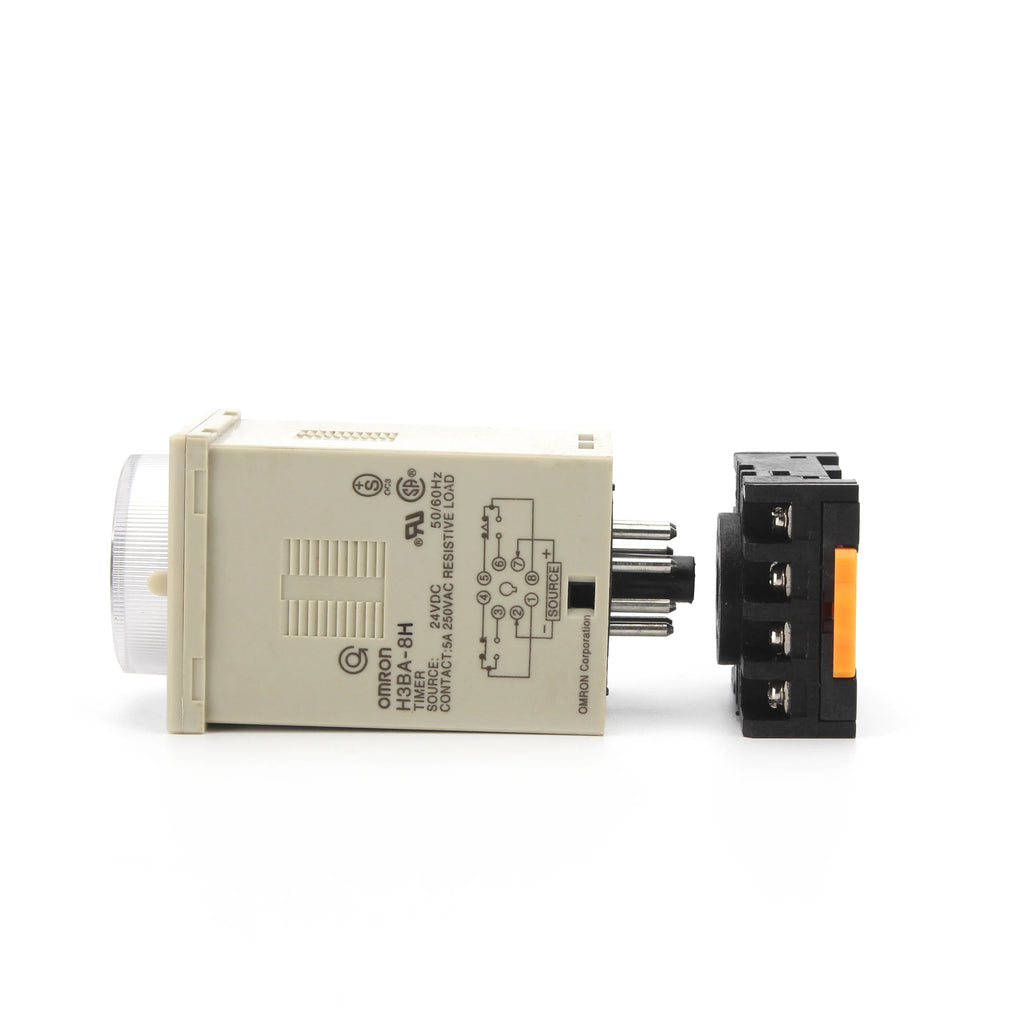

- 8-Pin Base Included: Plug-and-play installation with the supplied relay base
- CE Certified: Meets European safety and quality standards
- Long Service Life: Durable construction designed for continuous industrial use
- No Battery Required: Powered directly by your circuit supply
Technical Specifications
| Model | H3BA-8H |
| Dimensions | 48 × 48 × 94 mm |
| Working Mode | Power-on delay |
| Delay Range | 0.5S – 100H |
| Rated Voltage (DC) | 24V, 48V |

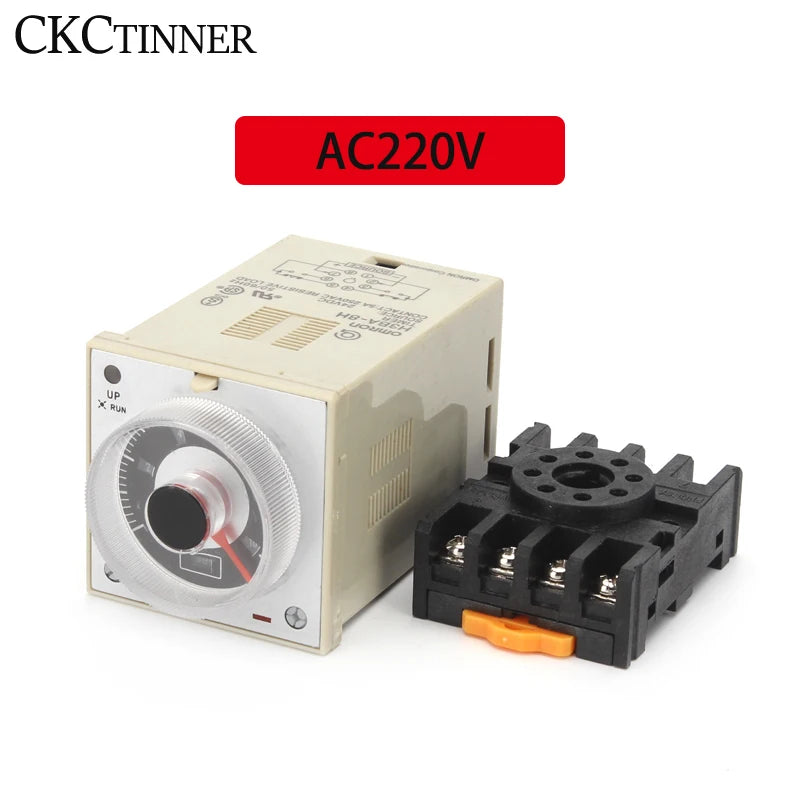

| Rated Voltage (AC) | 24V, 48V, 110V, 220V, 380V — 50/60Hz |

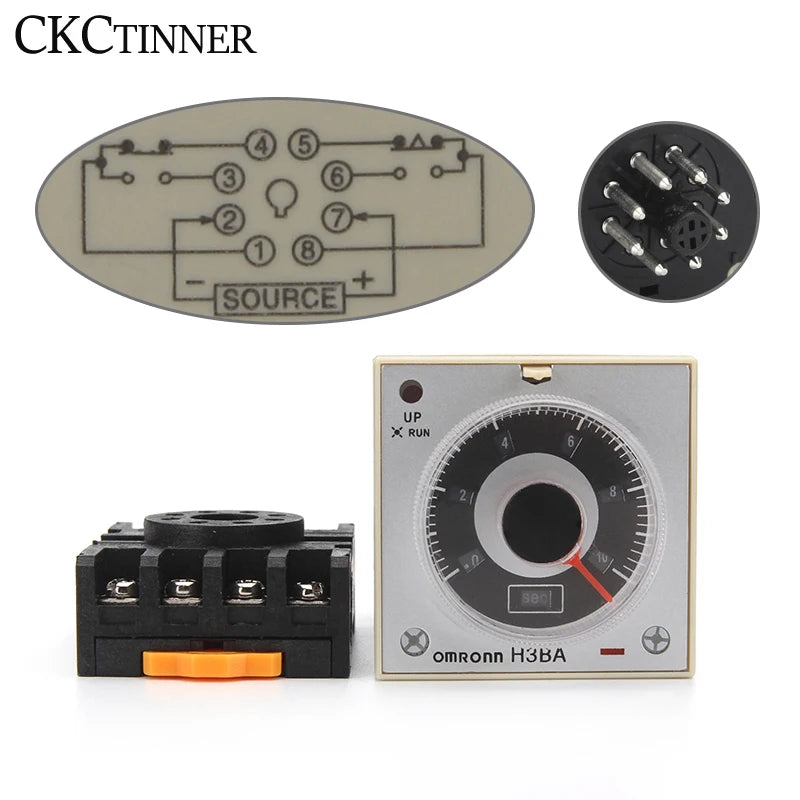

| Contacts | 1 × Delay | 1 × Instantaneous |
| Contact Capacity | AC 250V / 5A (resistive) |
| Certification | CE |

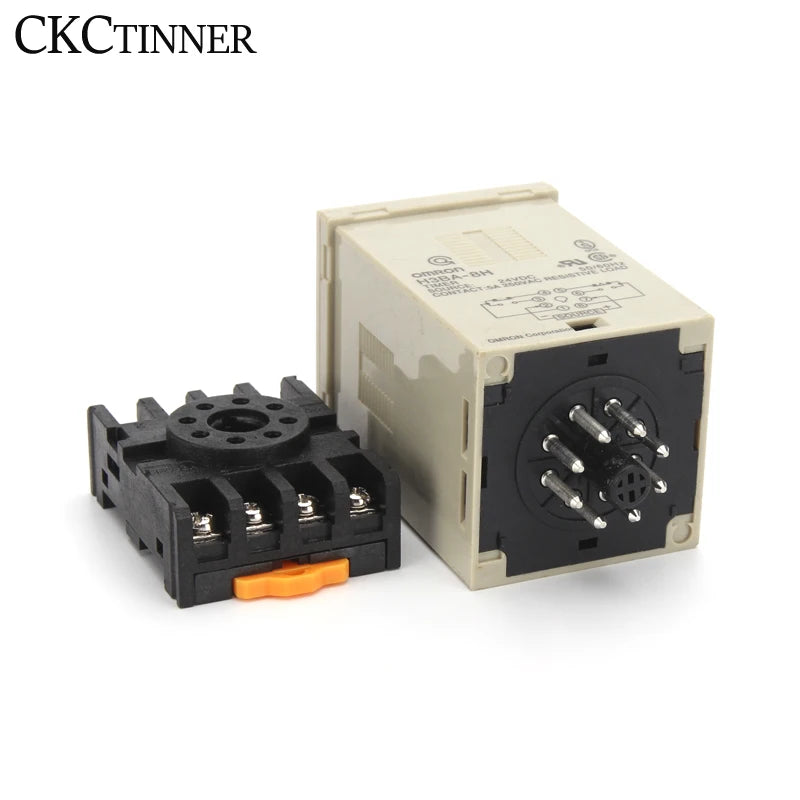

| Pin Count | 8 PIN |
| Battery | Not required |
Who Is This For?
The H3BA-8H is the go-to timer relay for electricians, automation engineers, panel builders, and experienced DIY hobbyists who need a reliable, multi-voltage timing solution. Whether you're controlling motors, lighting circuits, HVAC systems, or industrial machinery, this relay delivers consistent timing performance across the board.
Made in Mainland China.
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What voltage options does the H3BA-8H timer relay support?
A: The CKCTINNER H3BA-8H timer relay supports both DC and AC voltages. DC options include 24V and 48V, while AC options include 24V, 48V, 110V, 220V, and 380V at 50/60Hz — making it compatible with a wide range of global electrical systems.
Q: Does the H3BA-8H timer relay come with a base?
A: Yes, the H3BA-8H 8-pin timer relay is sold with its matching relay base included, allowing for easy plug-and-play installation without additional hardware purchases.
Q: What is the delay range of the H3BA-8H timer relay?
A: The H3BA-8H offers an exceptionally wide delay range from 0.5 seconds all the way up to 100 hours, making it suitable for both short-burst and long-duration timing applications in industrial and automation control systems.
Q: Is the H3BA-8H timer relay CE certified?
A: Yes, the CKCTINNER H3BA-8H timer relay is CE certified, confirming it meets the required European safety and electromagnetic compatibility standards for electrical components.
