Take precise command of your industrial or laboratory temperature processes with the CKCTINNER CHB Series PID Temperature Controller. Engineered for accuracy and versatility, this CE-certified unit accepts a wide range of sensor inputs and delivers rock-solid temperature regulation via advanced PID or ON/OFF control logic — all from an easy-to-read 4-digit digital display.
Made in Mainland China.
Why Choose the CHB Series?
- Universal Sensor Input: Compatible with thermocouples (K, J, R, S, B, E, N, T, W5Re/W26Re, PLII), RTDs (Pt100, JPt100), voltage (0–5V, 1–5V), and current (0–20mA, 4–20mA) — one controller for virtually any sensing application.
- High Precision: ±0.5%FS ±1°C accuracy ensures tight, dependable temperature control across all setpoints.
- Flexible Supply Voltage: Operates across 48–240V AC/DC, making it suitable for a broad range of industrial power environments.
- Dual Control Methods: Choose between intelligent PID auto-tuning for smooth, stable control, or simple ON/OFF switching for straightforward applications.
- Dual Output: Electromagnetic relay + SSR output for maximum compatibility with actuators and heating/cooling elements.
- Comprehensive Alarm System: Up to 12 configurable alarm modes (deviation low/high, band, process high/low, hold actions, and more) to keep your process safe and monitored.
- Intuitive Touch-Switch Interface: 8-segment, 4-digit LED display with touch-button programming — easy to configure without specialist tools.

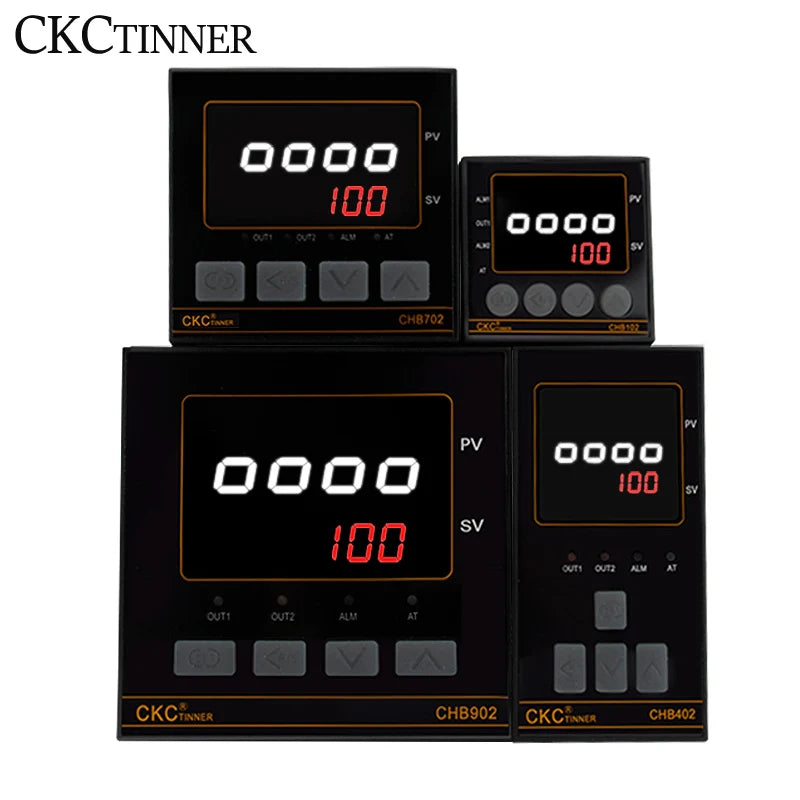

- Embedded Panel-Mount Style: Compact form factor available in multiple DIN sizes (48×48, 48×96, 96×48, 72×72, 96×96 mm) to suit standard control panel cutouts.
Full Specifications
| Model Series | CHB (REX-CH102 / CH402 / CH502 / CH702 / CH902) |
| Accuracy | ±0.5%FS ±1°C |
| Supply Voltage | 48–240V AC/DC |
| Power Consumption | AC100–240V: <10VA | AC24V: <5VA | DC24V: <160mA |
| Input Types | Thermocouple: K, J, R, S, B, E, N, T, W5Re/W26Re, PLII; RTD: Pt100, JPt100; Voltage: 0–5V, 1–5V; Current: 0–20mA, 4–20mA |
| Output Types | Electromagnetic Relay + SSR |
| Control Method | PID or ON/OFF |
| Display | 8-segment 4-digit LED + LED indicators |
| Setting Method | Touch switch |
| Alarm Quantity | 1 (2 available by customization) |
| Operating Temperature | 0–50°C (32–122°F) |
| Operating Humidity | 30–85% RH, non-condensing |
| Certification | CE |
| Country of Origin | Mainland China |
Available Panel-Mount Sizes
| Model | External Dimensions | Cutout Dimensions |
|---|---|---|

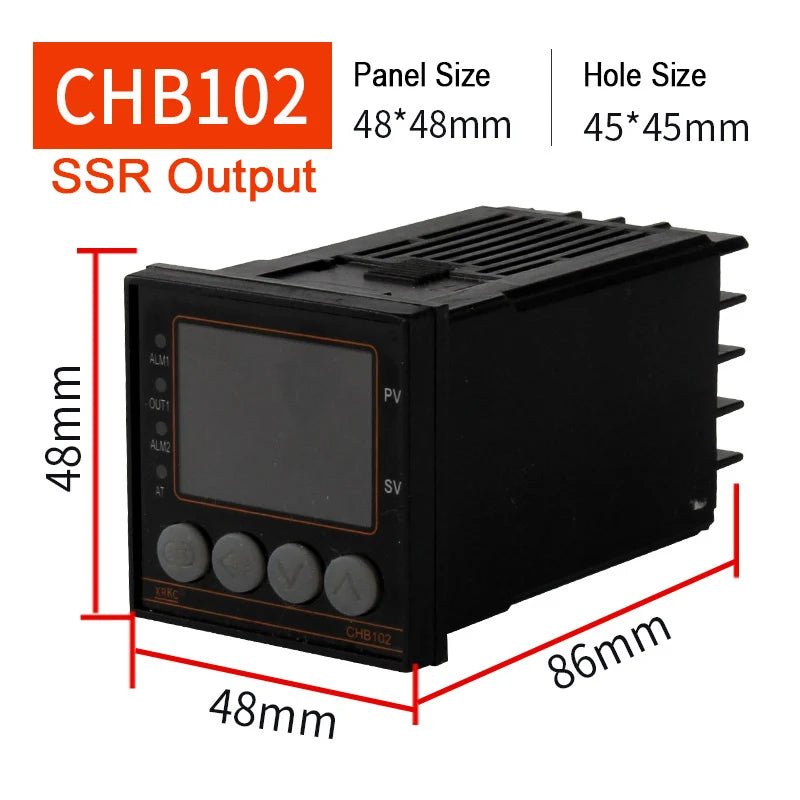

| REX-CH102 | 48 × 48 × 75 mm | 45 ±0.5 × 45 ±0.5 mm |
| REX-CH402 | 48 × 96 × 75 mm | 45 ±0.5 × 92 ±0.5 mm |
| REX-CH502 | 96 × 48 × 75 mm | 92 ±0.5 × 45 ±0.5 mm |
| REX-CH702 | 72 × 72 × 75 mm | 68 ±0.5 × 68 ±0.5 mm |

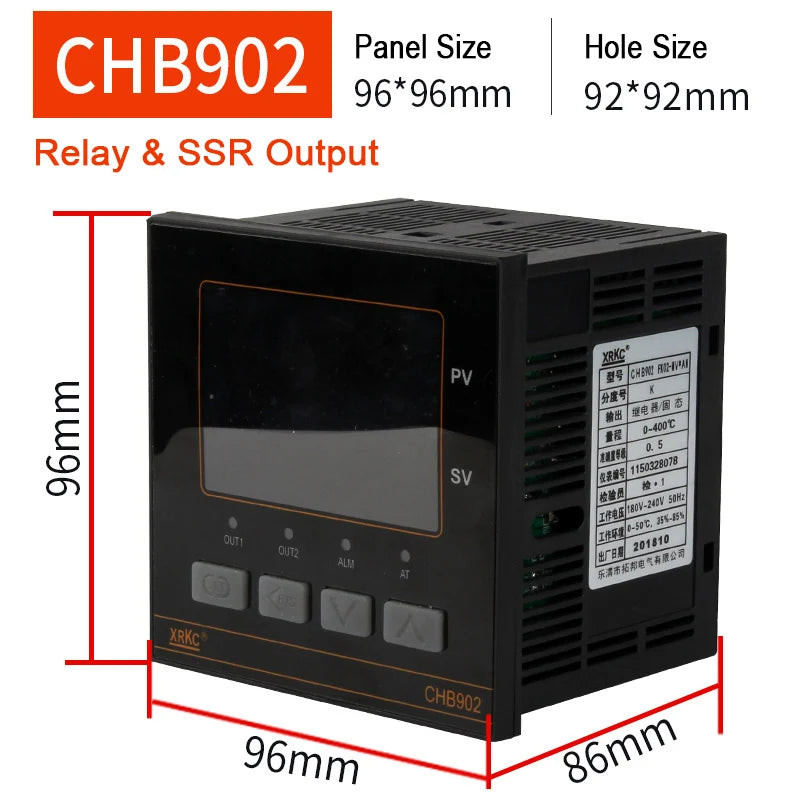

| REX-CH902 | 96 × 96 × 75 mm | 92 ±0.5 × 92 ±0.5 mm |
Ideal Applications
- Industrial ovens, furnaces, and kilns
- Plastics processing and injection moulding
- Food processing and packaging lines
- Laboratory and research equipment
- HVAC systems and building automation panels
- Aquaculture and greenhouse climate control
