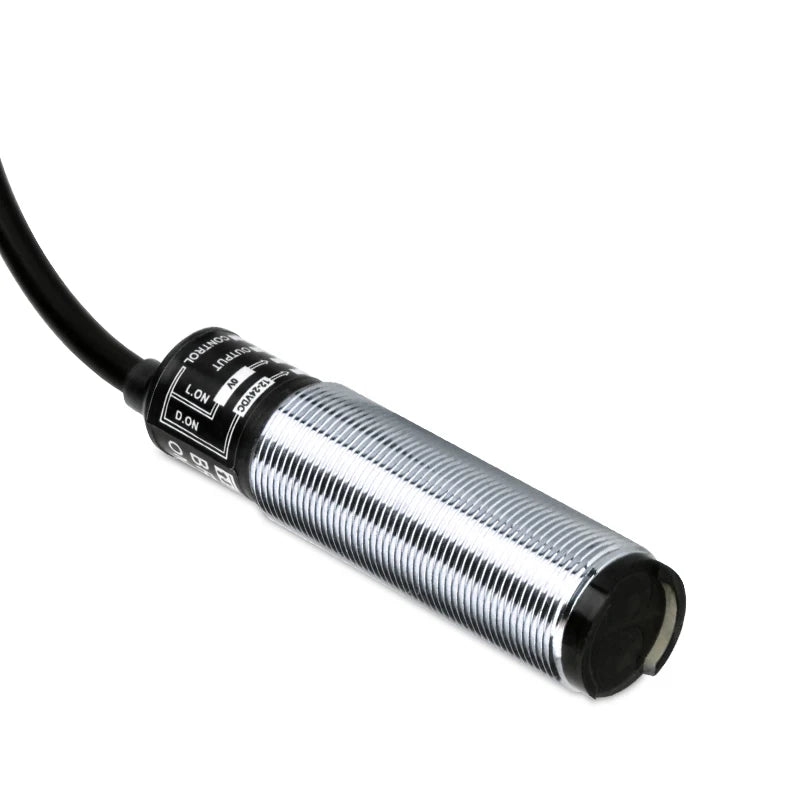

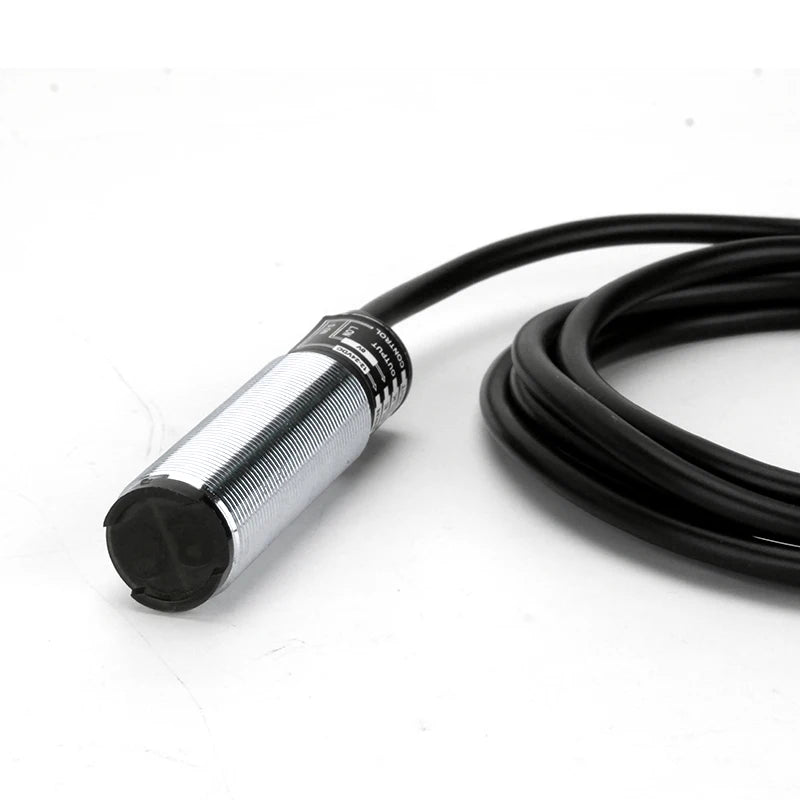

CKCTINNER BR Series M18 Photoelectric Infrared Diffuse Reflection Sensor
Meet the CKCTINNER BR Series M18 Photoelectric Switch — a compact, reliable infrared diffuse reflection sensor engineered for precise object detection. With a detection range of 1–40 cm, this sensor is ideal for automation projects, conveyor systems, industrial machinery, robotics, and DIY electronics setups where accurate, non-contact sensing is essential.
Its M18 threaded barrel design makes mounting straightforward and secure, while the plastic housing keeps the unit lightweight without sacrificing durability. CE and CCC certified for your peace of mind.
Made in Mainland China.
Key Features
- Infrared Diffuse Reflection Technology — Detects objects without requiring a reflector or receiver on the opposite side; the emitter and receiver are housed in one unit.
- Detection Distance: 1–40 cm — Versatile sensing range suitable for a wide variety of applications.
- M18 Threaded Barrel — Standard M18 form factor for easy panel or bracket mounting.
- Certifications: CE & CCC — Meets international and Chinese safety and electromagnetic compliance standards.
- Plastic Housing — Lightweight and corrosion-resistant body for long service life.
- No High-Concern Chemicals — Safe materials for use in a wide range of environments.
- Broad Compatibility — Works with PLCs, microcontrollers, and automation control boards.
Specifications
| Brand | CKCTINNER |
| Model | BR Series |
| Sensor Type | Photoelectric Switch – Infrared Diffuse Reflection |
| Mounting Thread | M18 |
| Detection Range | 1–40 cm |
| Material | Plastic |
| Certifications | CE, CCC |
| Origin | Mainland China |
Perfect For
- Industrial automation & conveyor line object detection
- Robotics and DIY electronics projects
- Packaging machinery and assembly lines
- Level detection and counting applications
- Smart home and maker/hobbyist builds
Related Products You May Like
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What is a diffuse reflection photoelectric sensor and how does it work?
A: A diffuse reflection photoelectric sensor emits an infrared light beam and detects objects when that beam is reflected back by the object itself — no separate reflector or receiver is needed. The BR Series M18 sensor combines the emitter and receiver in a single M18 barrel housing, making installation simple and compact. When an object enters the 1–40 cm detection zone, the sensor triggers its output signal.
Q: What devices can I connect the CKCTINNER BR Series sensor to?
A: The BR Series photoelectric switch is compatible with most standard industrial control systems including PLCs (Programmable Logic Controllers), Arduino and Raspberry Pi microcontrollers, relay modules, and other automation control boards. Always verify the supply voltage and output type (NPN/PNP) of your chosen variant matches your system's requirements before connecting.
Q: What does the M18 designation mean?
A: M18 refers to the metric thread diameter of the sensor's barrel — 18 mm. This is a standard industrial sensor form factor, meaning you can mount it easily in pre-drilled M18 holes or standard sensor brackets found in most automation and industrial equipment setups.
Q: Is this sensor suitable for outdoor use?
A: The BR Series sensor is housed in a durable plastic body and carries CE and CCC certifications. For outdoor use, please verify the IP (Ingress Protection) rating of your specific unit to confirm it provides adequate protection against dust and moisture for your intended environment.
