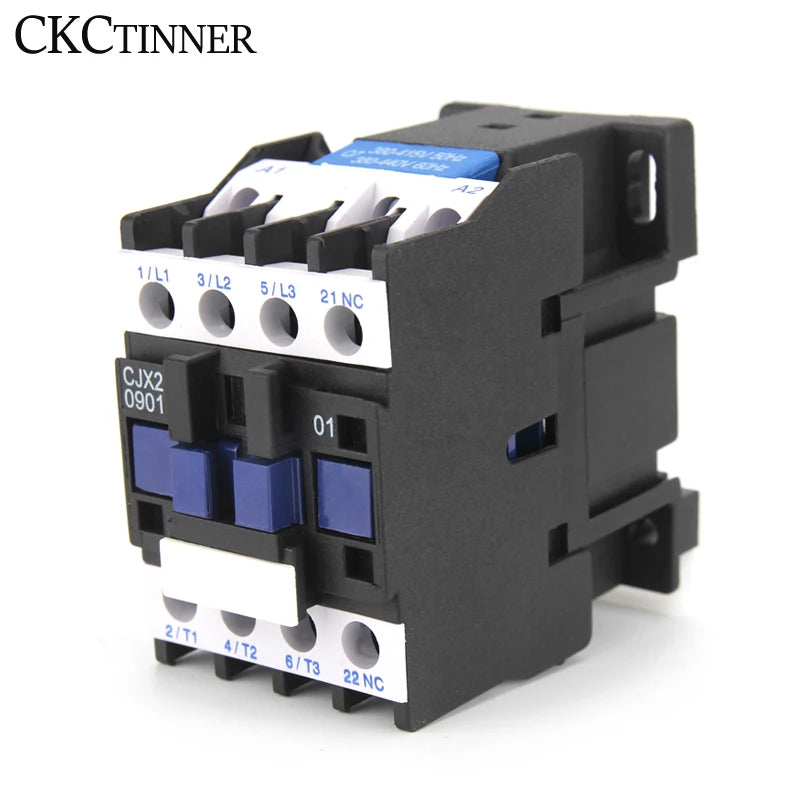

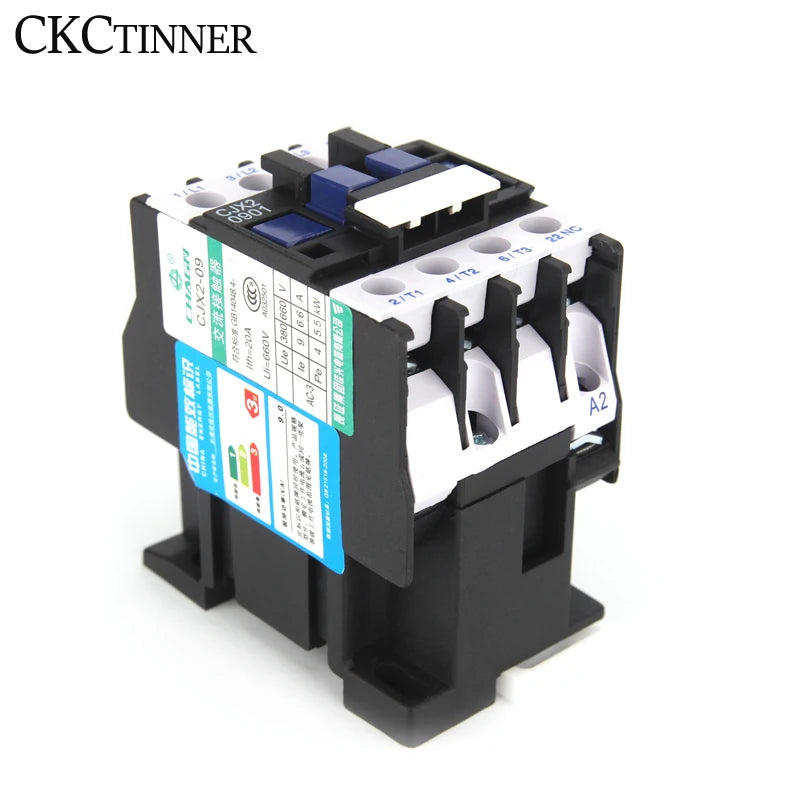

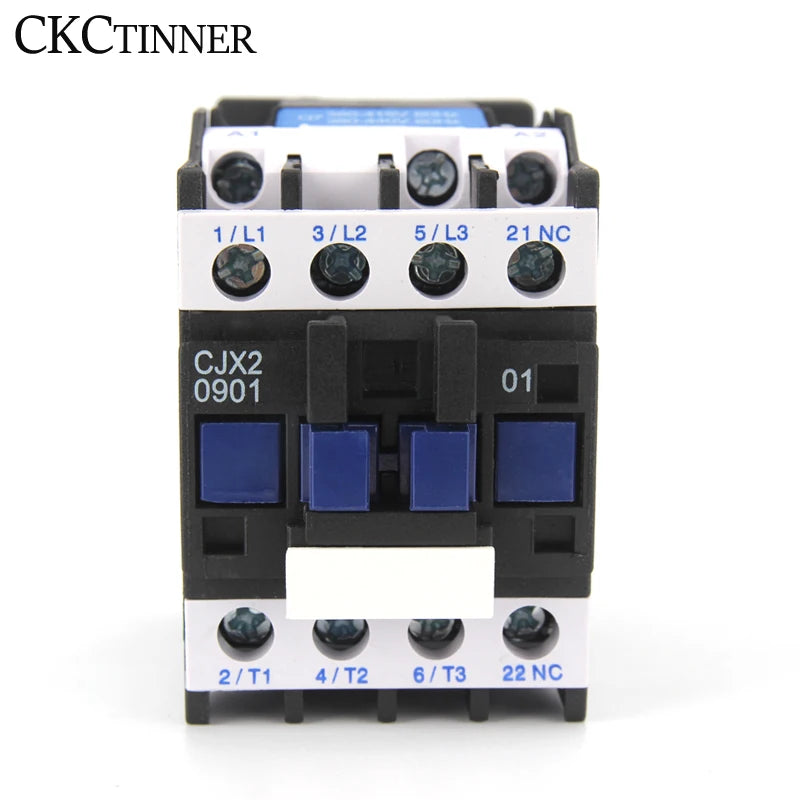

CJX2-0910 / CJX2-0901 9A AC Contactor – 3-Pole + 1NO, DIN Rail Mounted

The CJX2 Series 9A AC Contactor is a reliable, CE-certified electromagnetic switching device designed for long-distance circuit making and breaking, as well as frequent starting and control of AC motors. Compatible with coil voltages from 24V to 380V AC and frequencies of 50/60 Hz, this contactor suits a wide range of industrial and commercial electrical panels.

Key Specifications

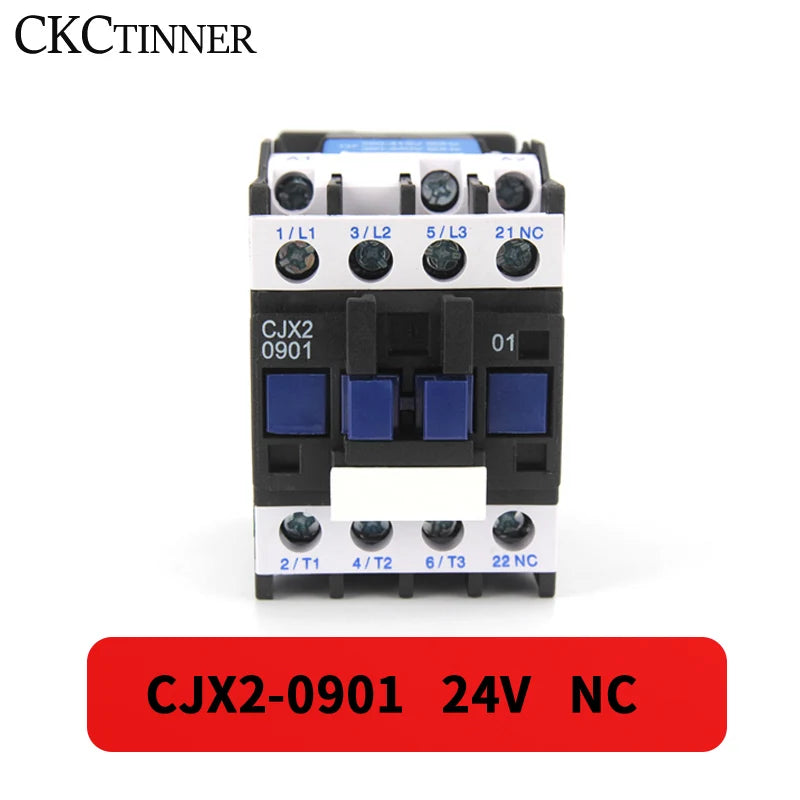

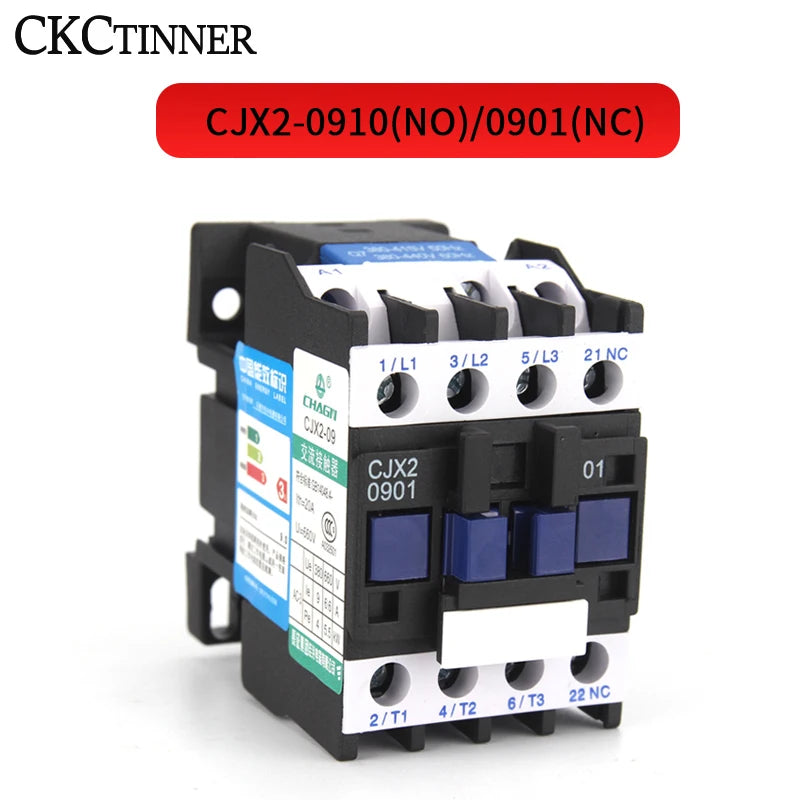

  • Model Numbers: CJX2-0910 (3P+1NO) / CJX2-0901 (3P+1NC)
  • Rated Main Circuit Current: 9A
  • Conventional Thermal Current (Ith): 32A
  • Pole Configuration: 3 Main Poles + 1 Auxiliary Contact (NO or NC)
  • Rated Coil Voltage: AC 24V, 36V, 110V, 220V, 380V
  • Frequency: 50 / 60 Hz

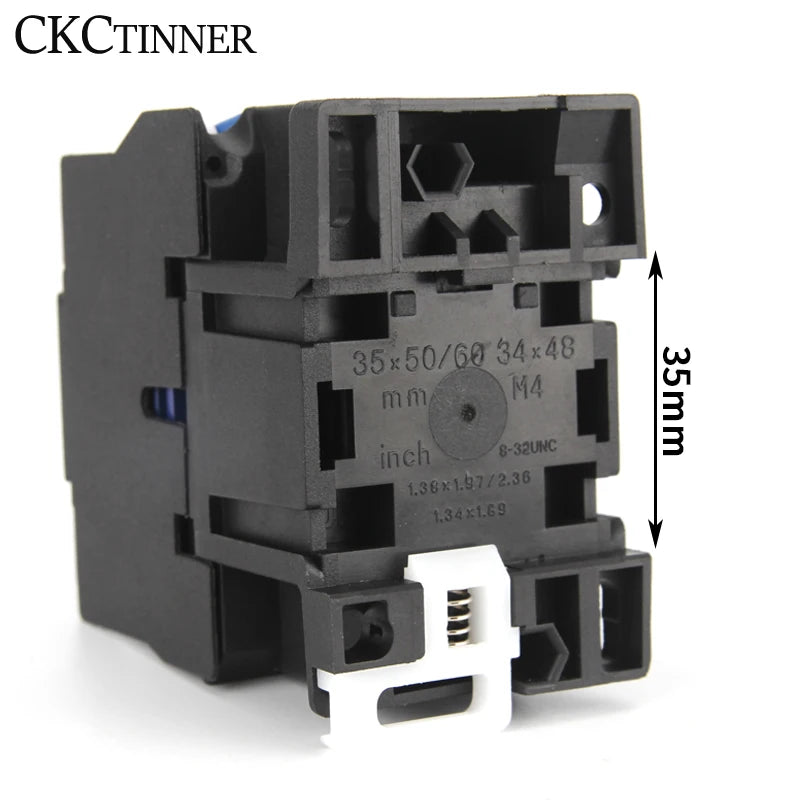

  • Mounting: 35mm DIN Rail

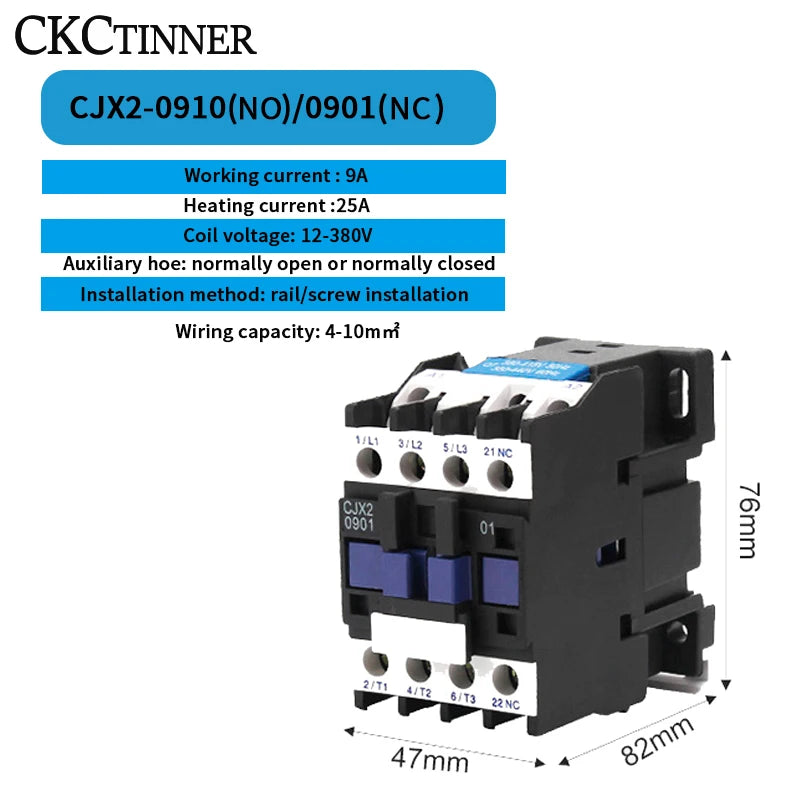

  • Overall Dimensions: 47 × 82 × 76 mm
  • Material: High-grade plastic housing with quality electrical components
  • Color: Black
  • Certification: CE
  • Country of Origin: Made in Mainland China

Why Choose the CJX2 AC Contactor?

  • ✅ Wide Voltage Range – Supports coil voltages from 24V to 380V, making it adaptable to diverse electrical systems worldwide.
  • ✅ DIN Rail Compatibility – Snaps securely onto standard 35mm DIN rails for fast, tool-minimal panel installation.
  • ✅ Dual Contact Options – Available in CJX2-0910 (Normally Open auxiliary) and CJX2-0901 (Normally Closed auxiliary) configurations.
  • ✅ Built for Motor Control – Engineered for frequent starting, stopping, and reversing of AC motors in industrial environments.
  • ✅ CE Certified – Meets European conformity standards for safety and electromagnetic compatibility.
  • ✅ Compact & Robust – Space-saving 47×82×76mm footprint fits easily into standard electrical enclosures.

Typical Applications

  • AC motor starting and stopping control
  • Industrial automation and control panels
  • Lighting and heating circuit switching
  • HVAC systems and pump control
  • Machine tool and conveyor drive control

You May Also Like

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What is the difference between the CJX2-0910 and CJX2-0901 AC contactor models?

A: The CJX2-0910 features a 3-pole main circuit with 1 Normally Open (NO) auxiliary contact, while the CJX2-0901 features a 3-pole main circuit with 1 Normally Closed (NC) auxiliary contact. Choose the model based on your control circuit logic requirements.

Q: What coil voltages are available for this AC contactor?

A: This contactor is available in coil voltage ratings of AC 24V, 36V, 110V, 220V, and 380V at 50/60 Hz. Be sure to select the coil voltage that matches your control circuit supply voltage when ordering.

Q: How is this AC contactor mounted in an electrical panel?

A: The CJX2 series contactor mounts directly onto a standard 35mm DIN rail, making installation in industrial control panels, distribution boards, and enclosures quick and straightforward without the need for additional mounting hardware.

Q: Is this AC contactor suitable for frequent motor starting applications?

A: Yes. The CJX2 series is specifically designed for frequent starting, stopping, and switching of AC motors and electrical circuits. Its robust construction and 32A conventional thermal current rating make it well-suited for demanding, high-cycle applications.
