CJMCU-1201 ADUM1201 Magnetic Isolator Board Module SPI SOIC-8
CJMCU-1201 ADUM1201 Magnetic Isolator Board Module SPI SOIC-8
CJMCU-1201 ADUM1201ARZ Magnetic Isolator Board Module – SPI Interface
Upgrade your electronics projects with the CJMCU-1201 ADUM1201 Magnetic Isolator Board Module — a compact, high-performance digital isolator designed to replace traditional optocouplers. Built around the ADUM1201ARZ chip in an SOIC-8 SMD package, this module delivers fast, reliable signal isolation for SPI interfaces, microcontroller communication lines, and computer-based applications.
Made in Mainland China.
Key Features
- Replaces Optocouplers: Magnetic isolation technology offers superior speed, lower power consumption, and greater reliability compared to traditional optocoupler designs.
- Wide Supply Voltage Range: Operates from 2.7V to 5.5V, making it compatible with a broad range of microcontrollers and logic systems including 3.3V and 5V platforms.
- SPI Interface Compatible: Ideal for use in SPI communication lines, signal isolation barriers, and digital data transmission circuits.
- SOIC-8 SMD Package (CJMCU-1201 Breakout Board): Mounted on a convenient breakout board for easy prototyping and integration into your project.
- Wide Operating Temperature: Rated for -40°C to +85°C, suitable for both indoor and outdoor electronics applications.
- No High-Concern Chemicals: Clean, safe construction — no hazardous substances of concern.
- New Condition: Every module ships brand new, tested, and ready for integration.
Specifications
- Chip: ADUM1201 / ADUM1201ARZ

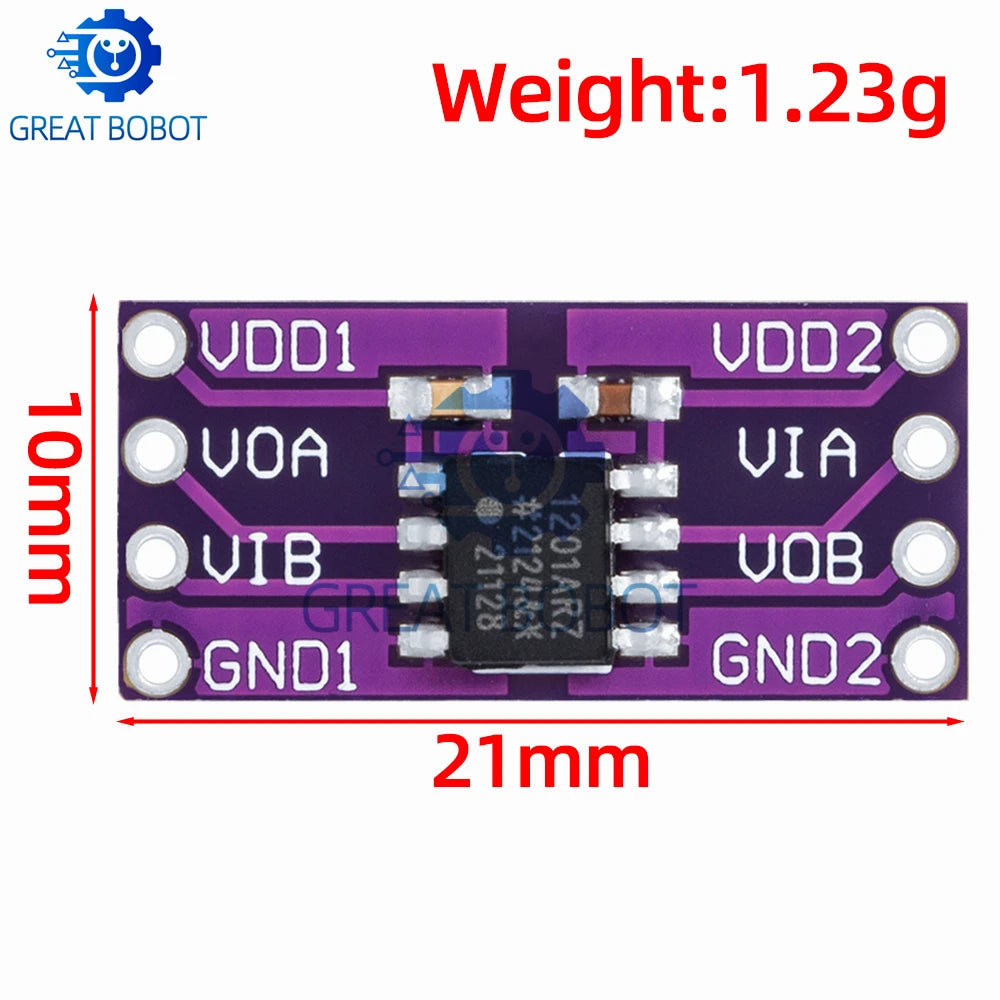

- Package: SOIC-8 (SMD breakout board)
- Supply Voltage: 2.7V – 5.5V
- Operating Temperature: -40°C to +85°C
- Interface: SPI
- Application: Computer / Microcontroller / Digital Signal Isolation
- Origin: Mainland China
Who Is This For?
This isolator module is perfect for electronics hobbyists, embedded systems engineers, and DIY makers who need clean signal isolation between logic domains. Whether you're building Arduino or Raspberry Pi projects, industrial control systems, or noise-sensitive communication circuits, the ADUM1201 isolator board is a dependable and easy-to-use solution.
Looking for other electronics and DIY tools? Check out our Electromagnetic Induction Tester – Coil & Circuit Fault Detector or browse our Air Compressor Pressure Gauge – DIY Tool for more workshop essentials.
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What does the CJMCU-1201 ADUM1201 magnetic isolator board do?
A: The CJMCU-1201 ADUM1201 isolator board uses magnetic (inductive) isolation technology to electrically separate two sections of a circuit while still allowing digital signals to pass between them. It is commonly used to protect microcontrollers and sensitive components from voltage spikes, ground loops, and noise on SPI communication lines — effectively replacing older optocoupler-based isolation solutions with a faster, lower-power alternative.
Q: What voltage levels is the ADUM1201ARZ module compatible with?
A: The module supports a supply voltage range of 2.7V to 5.5V, making it fully compatible with both 3.3V systems (such as most ARM-based microcontrollers and ESP32/ESP8266 boards) and 5V systems (such as standard Arduino boards). This wide range makes it highly versatile for mixed-voltage designs.
Q: Can this module be used as a direct optocoupler replacement?
A: Yes — the ADUM1201ARZ is specifically designed to replace traditional optocouplers in digital signal isolation applications. Compared to optocouplers, it offers higher data rates, lower propagation delay, lower power consumption, and does not degrade in performance over time due to LED aging. It is an excellent drop-in upgrade for SPI interface isolation in existing designs.
Q: Is this a fully assembled breakout board or just the IC chip?
A: This is a fully assembled CJMCU-1201 breakout board with the ADUM1201ARZ chip already mounted in its SOIC-8 SMD package. The breakout board design makes it easy to use in prototyping environments such as breadboards or custom PCBs without the need for specialized SMD soldering equipment.
