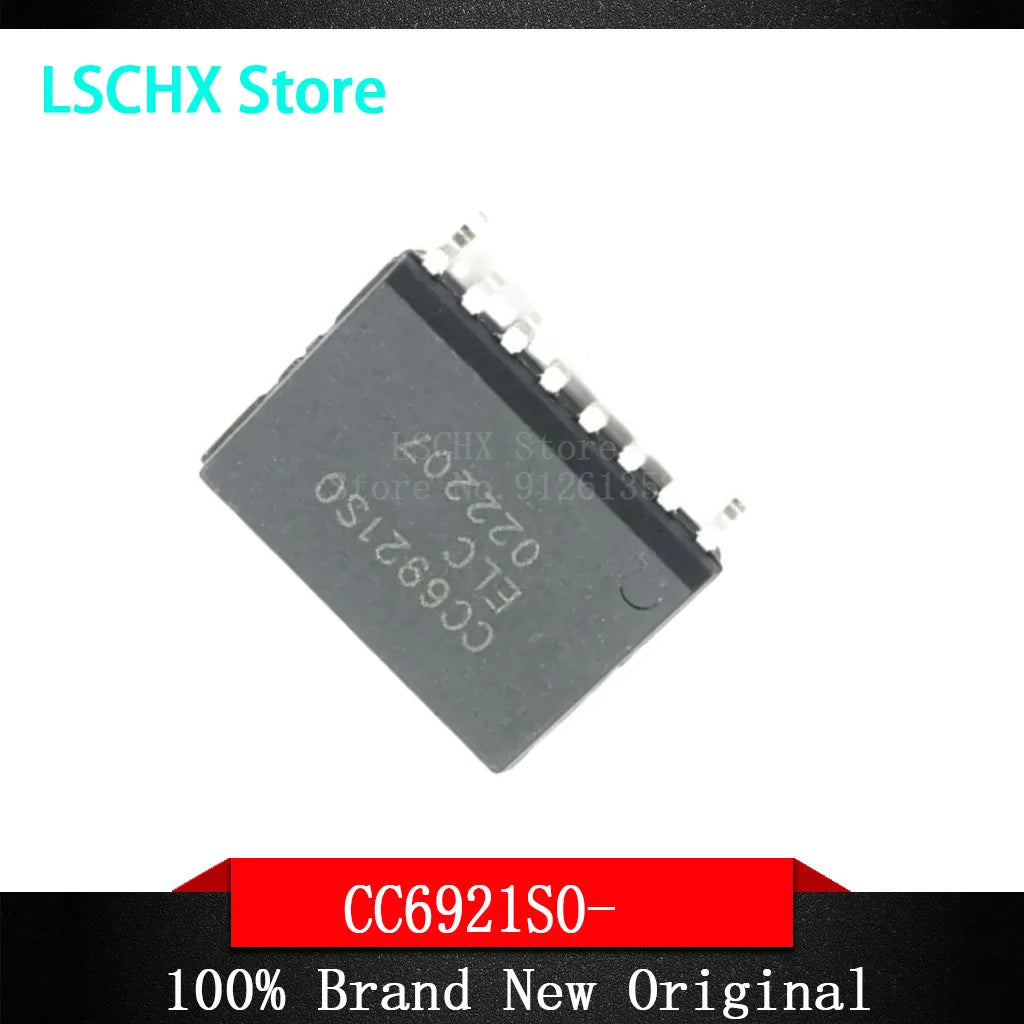

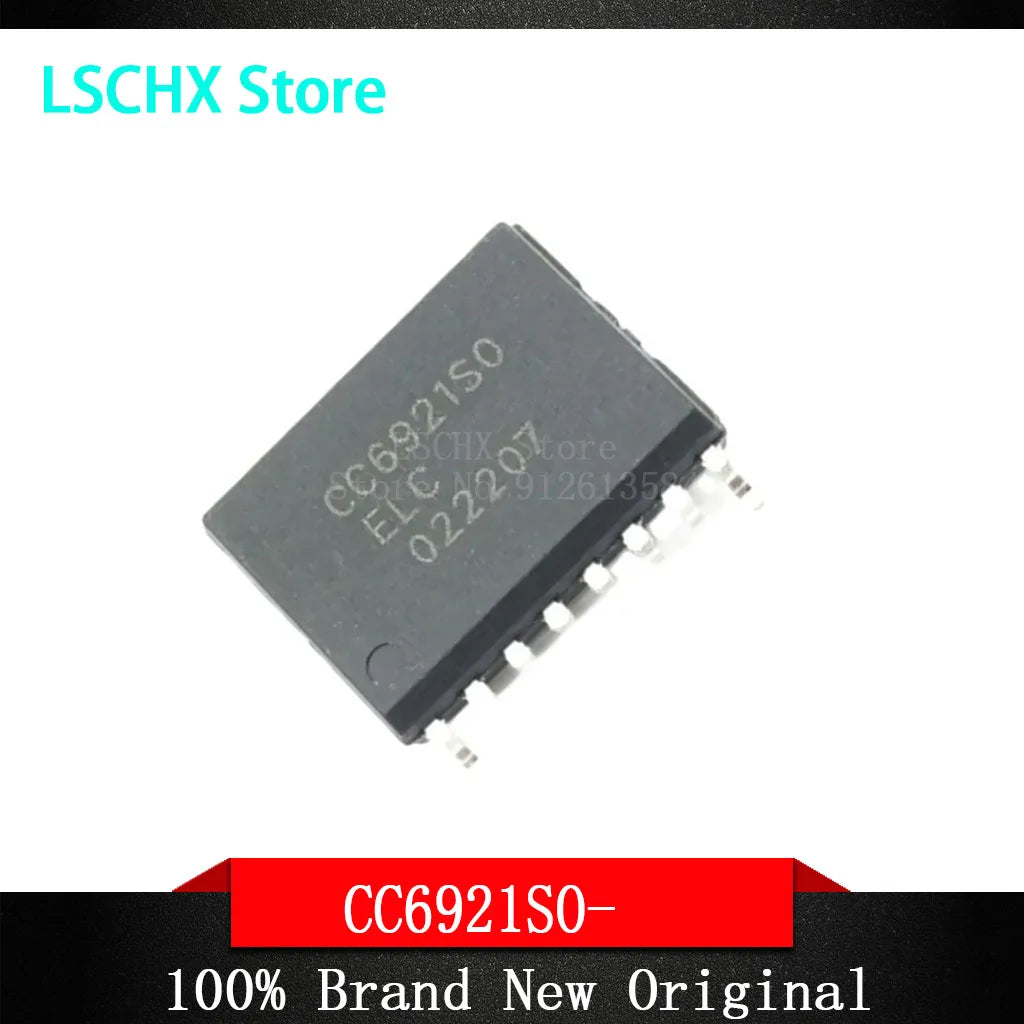

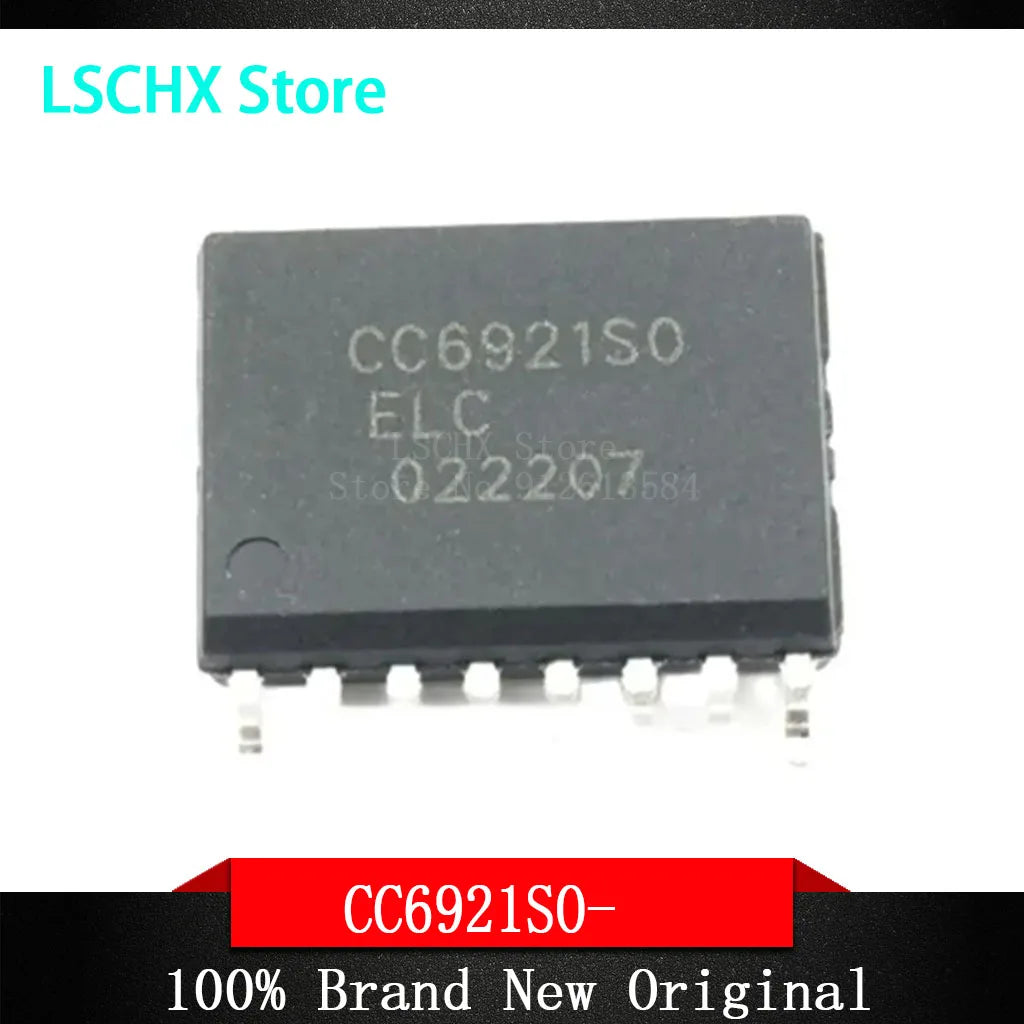

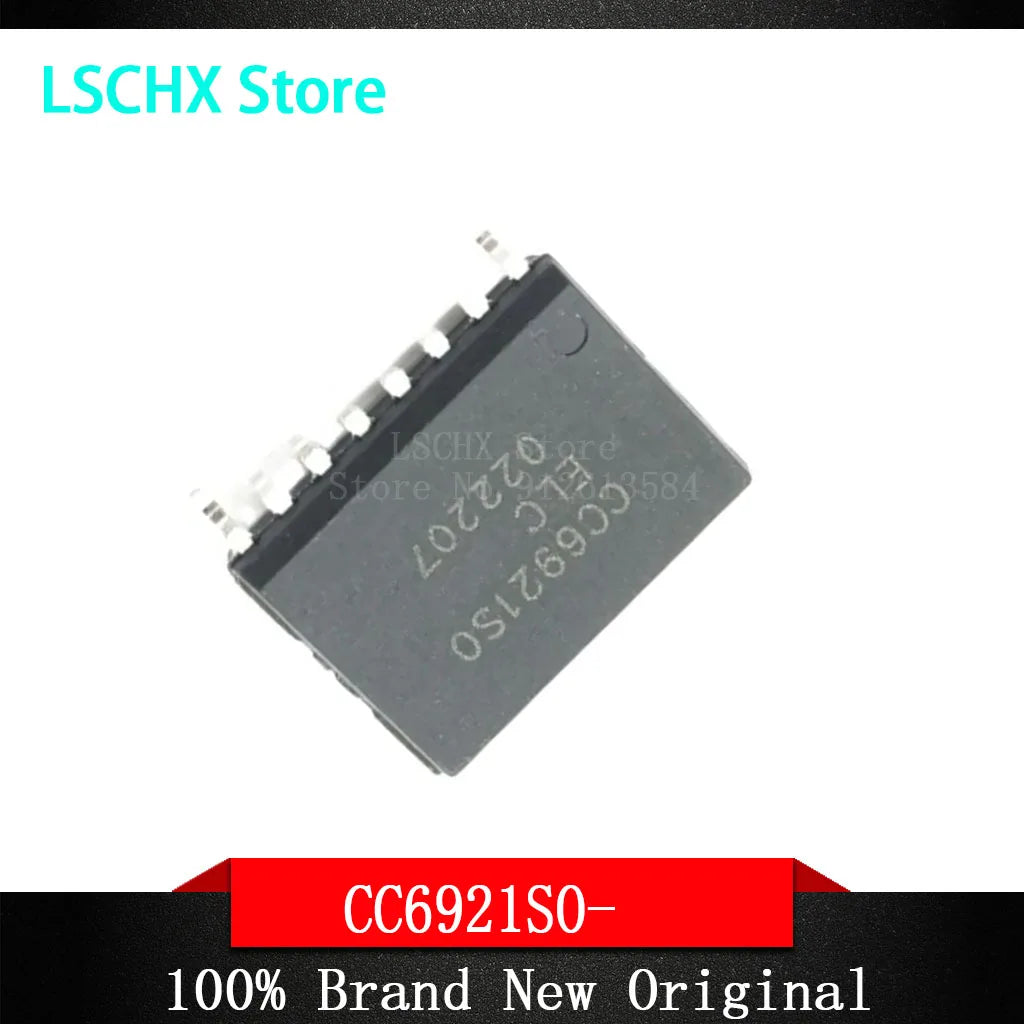

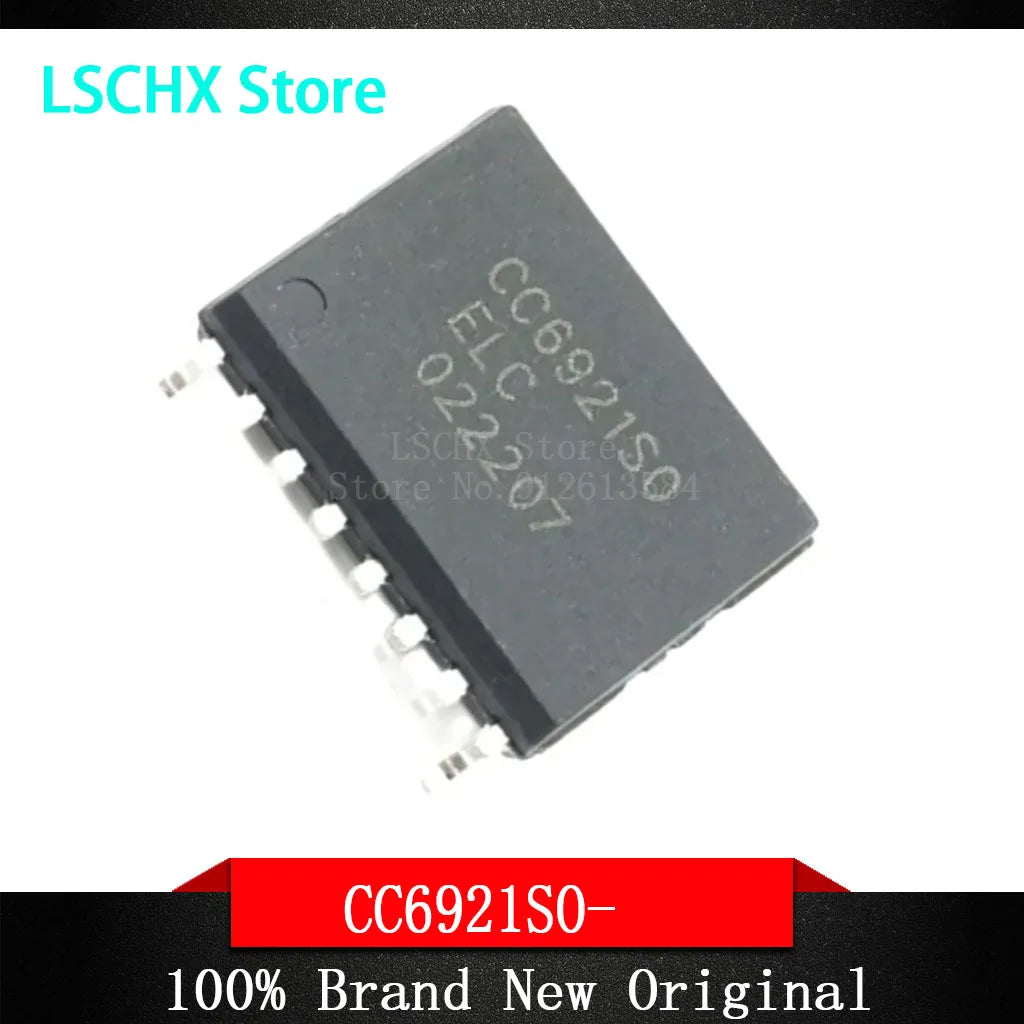

5-Pack CC6921SO Hall Effect Current Sensor – SOP-16 Package, 5A to 100A
Get precision current measurement in a compact, surface-mount package with this 5-piece set of CC6921SO Hall Effect Current Sensors. Available in a wide range of current ratings — 5A, 10A, 20A, 30A, 40A, 50A, 65A, 75A, and 100A — these SOP-16-W ICs are engineered for high-performance, contactless AC and DC current sensing in a variety of electronic applications.
Whether you're designing motor drive systems, battery management circuits, inverters, or industrial power monitors, the CC6921SO delivers reliable, accurate output with low power consumption and excellent noise immunity. The Hall effect technology enables galvanic isolation between the current path and signal output, making it ideal for both high-voltage and sensitive low-voltage environments.
Key Features
- Wide Current Range: Available in 5A, 10A, 20A, 30A, 40A, 50A, 65A, 75A, and 100A variants to suit diverse designs
- SOP-16-W Package: Industry-standard wide-body surface-mount footprint for easy PCB integration
- Hall Effect Technology: Contactless sensing provides galvanic isolation and eliminates resistive power losses
- High Performance: Excellent linearity, fast response time, and strong temperature stability
- General Purpose Use: Suitable for motor drives, inverters, battery management, industrial automation, and more
- Pack of 5: Ideal for prototyping, small-batch production, or keeping spares on hand
- Made in Mainland China
Specifications
- Model: CC6921SO
- Rated Current Options: 5A / 10A / 20A / 30A / 40A / 50A / 65A / 75A / 100A
- Package: SOP-16-W (Wide Body)
- Sensing Method: Hall Effect (Contactless)
- Use Case: General Purpose Current Sensing
- Quantity: 5 pieces per order
- Customized: Yes (select your preferred current rating)
Applications
- Motor drive and control systems
- Solar inverters and UPS systems
- Battery management systems (BMS)
- Industrial automation and power monitoring
- Switched-mode power supplies (SMPS)
- EV charging and power electronics
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What current ratings are available for the CC6921SO Hall Effect Current Sensor?
A: The CC6921SO is available in the following current ratings: 5A, 10A, 20A, 30A, 40A, 50A, 65A, 75A, and 100A. Please select your required rating when placing your order. Each pack contains 5 pieces of the same selected rating.
Q: What is the SOP-16-W package and is it compatible with standard PCB designs?
A: SOP-16-W stands for Small Outline Package with 16 pins and a wide-body footprint. It is an internationally recognized surface-mount package widely used in PCB designs, making the CC6921SO easy to integrate into existing and new circuit board layouts.
Q: How does Hall Effect current sensing work and why is it beneficial?
A: Hall Effect current sensing works by detecting the magnetic field generated by current flowing through a conductor, without making direct electrical contact with the current path. This provides galvanic isolation between the high-current side and the signal output, improving safety and reducing signal interference — ideal for sensitive or high-voltage applications.
Q: How many sensors are included in each order?
A: Each order includes 5 pieces of the CC6921SO Hall Effect Current Sensor in your chosen current rating, making it perfect for prototyping batches, production runs, or having backup components on hand.
