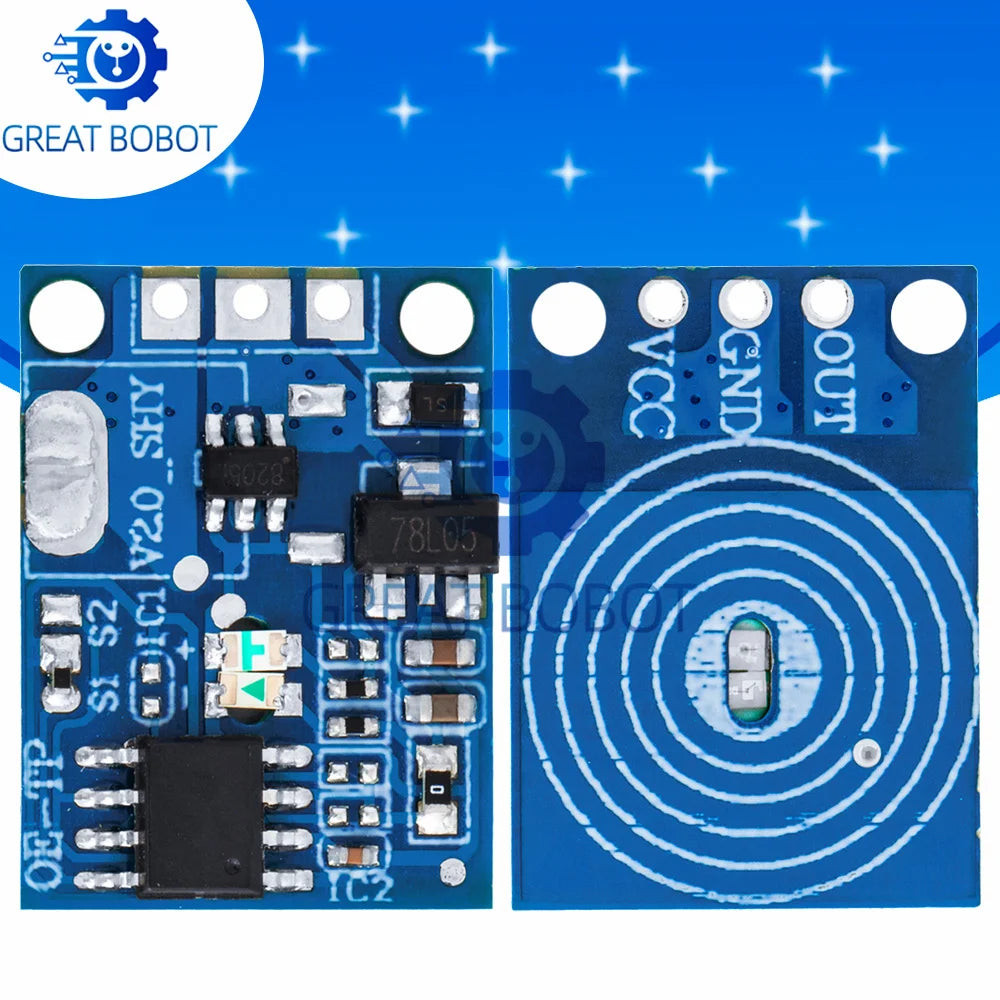

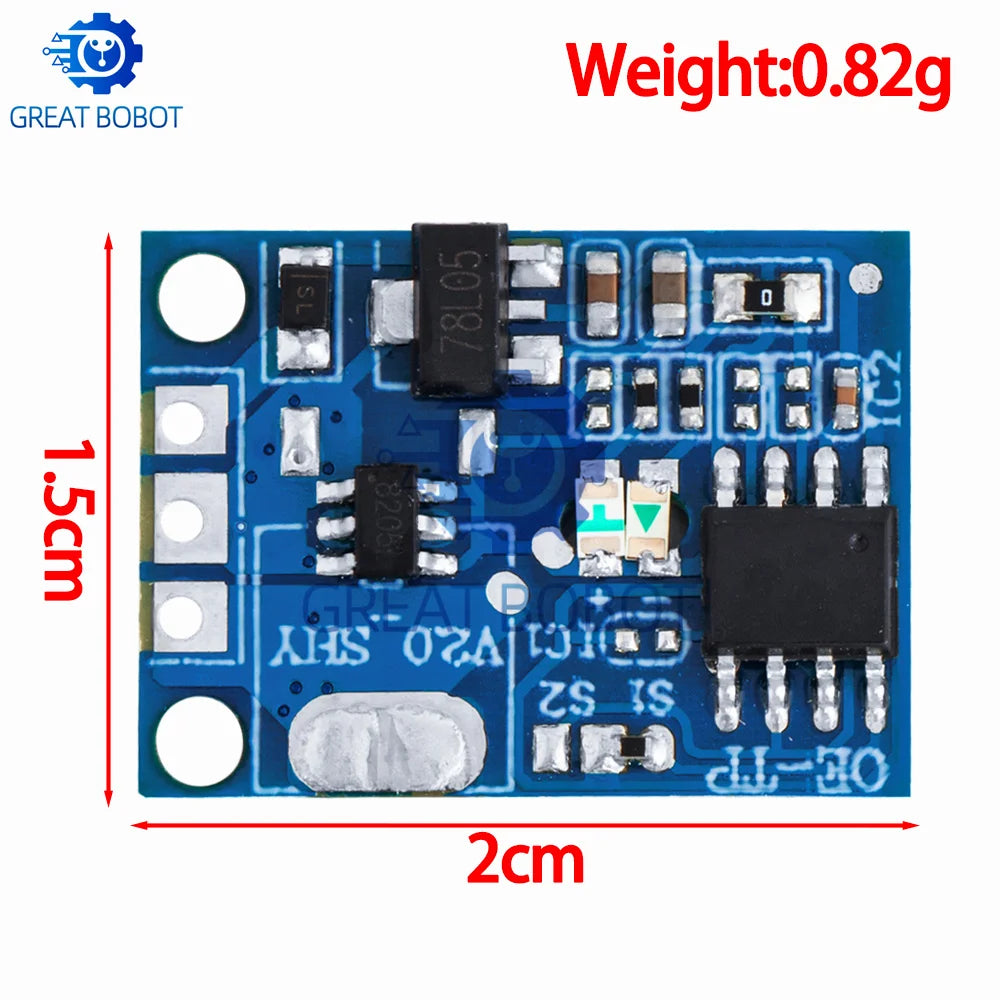

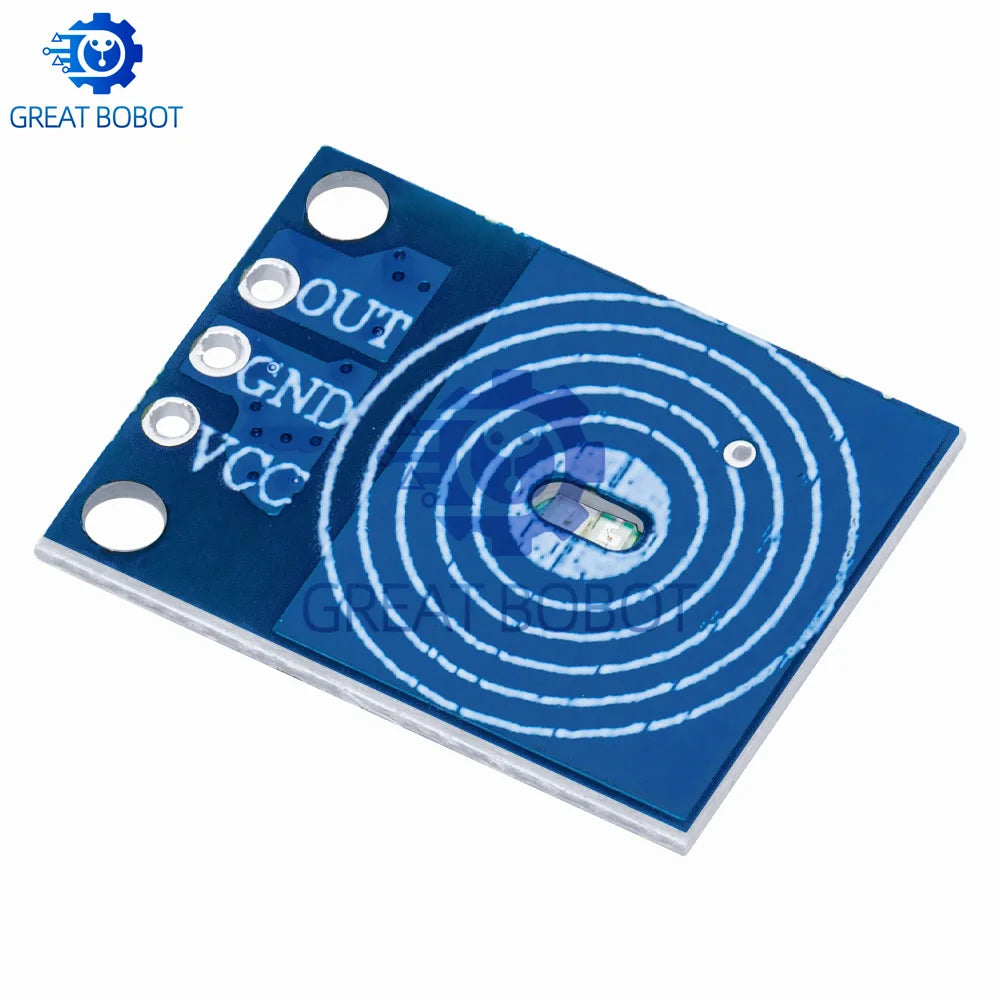

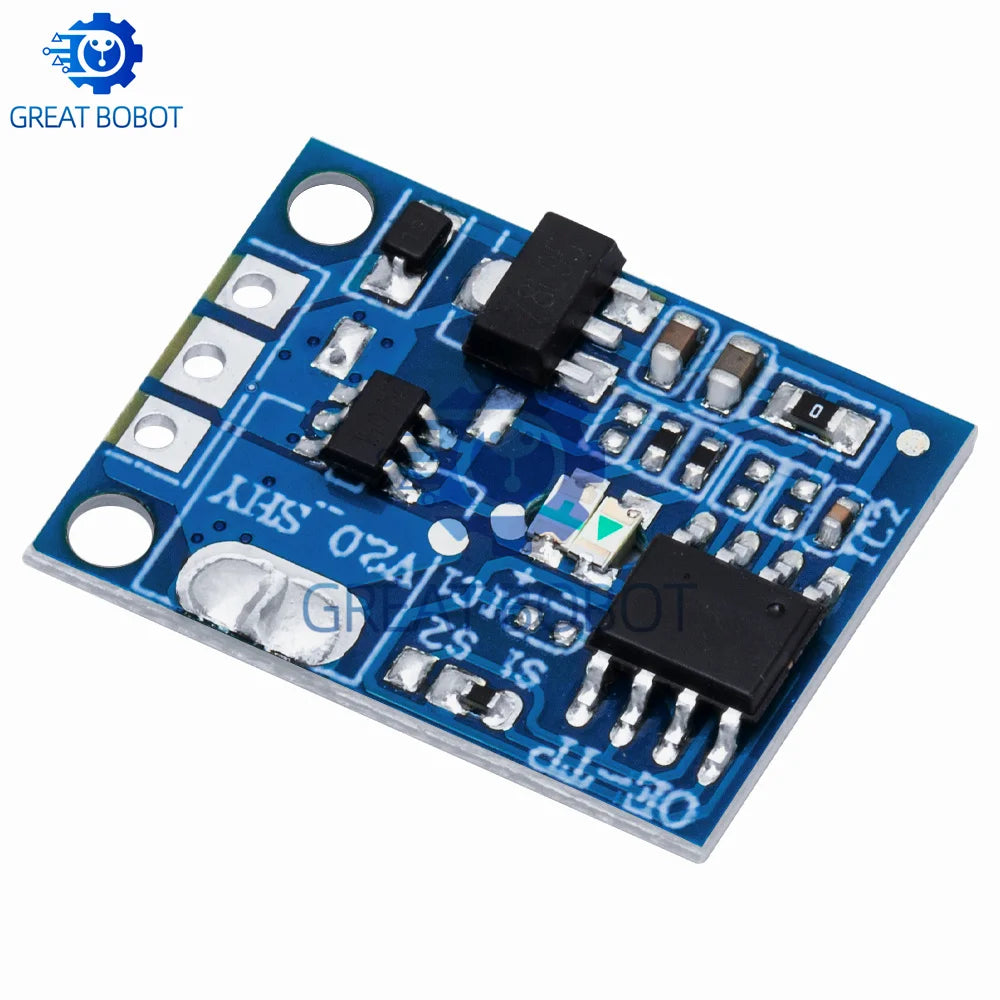

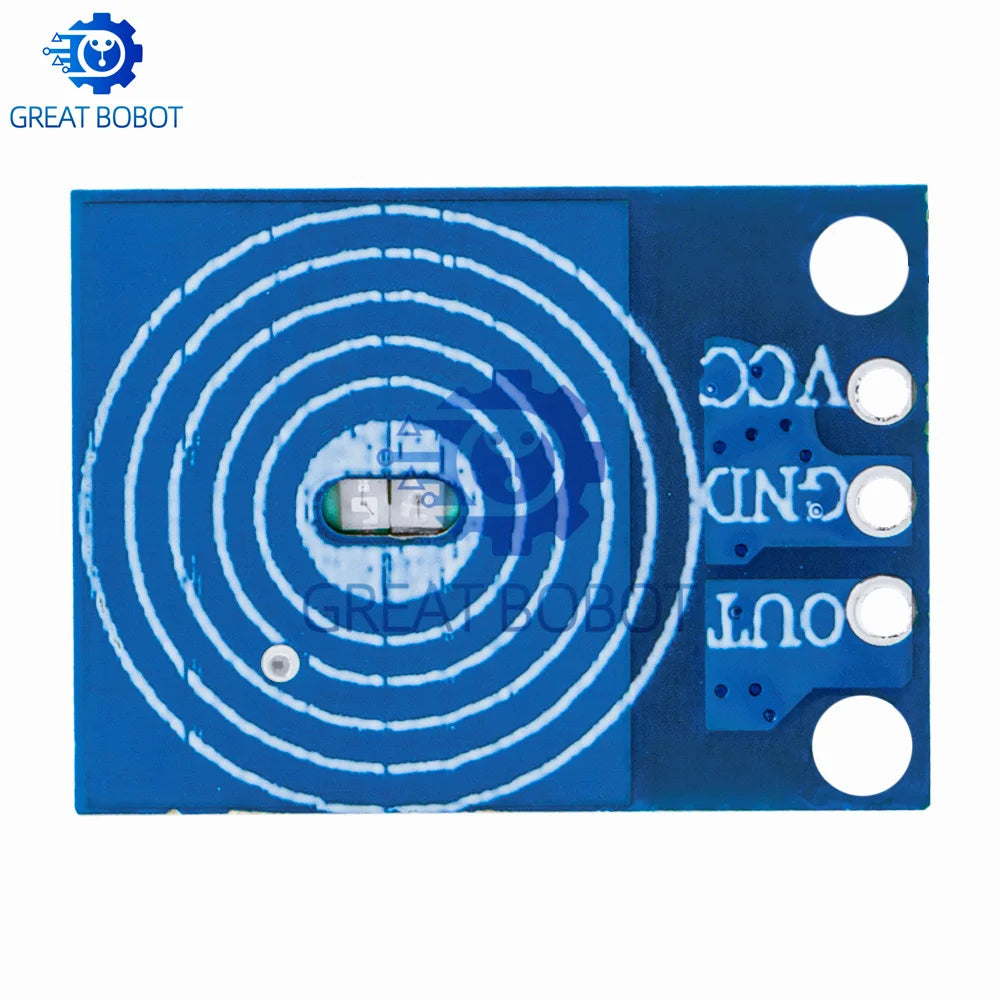

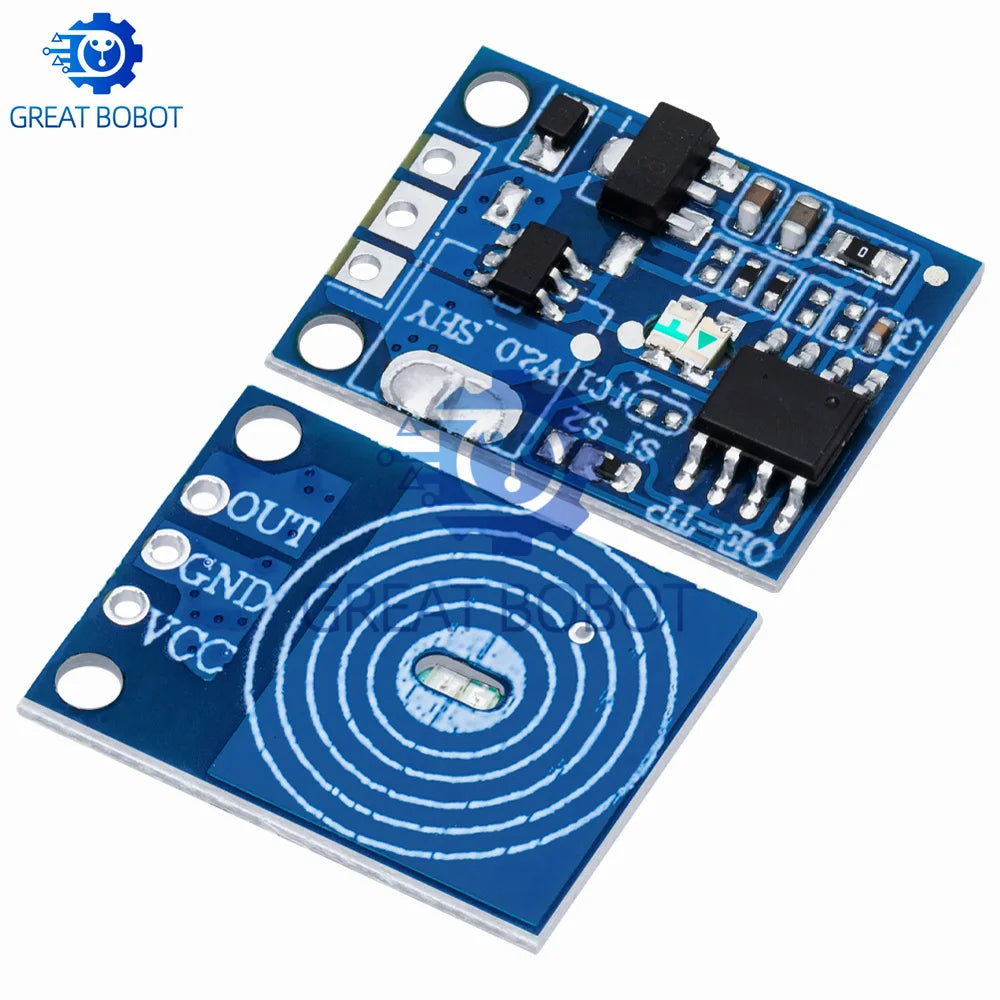

Capacitive Touch Dimmer Switch Module – Stepless LED Dimming, 10A, DC 5–20V
Take control of your lighting with this compact capacitive touch switch module. Featuring a smooth, no-pole (stepless) dimming function, this digital touch sensor lets you adjust LED brightness from zero to full with a simple touch — no mechanical click, no wear, no fuss. Ideal for DIY electronics projects, smart home builds, computer setups, and custom lighting installations.
Key Features
- Capacitive Touch Control: Sensitive, responsive touch detection — no physical button required.
- Stepless (No-Pole) Dimming: Smoothly adjust LED brightness from 0% to 100% without fixed steps.
- High Current Rating: Supports up to 10A load — suitable for LED strips, panels, and more.
- Wide Voltage Range: Operates on DC 5V–20V (12V power supply recommended for best performance).
- Wide Operating Temperature: Reliable from -40°C to +85°C — suitable for demanding environments.
- SMD Package: Compact surface-mount design for easy integration into custom PCBs or enclosures.
- No High-Concern Chemicals: Clean, safe electronic construction.
- Customizable: Available for custom configurations to suit your specific project needs.
Technical Specifications
| Supply Voltage | DC 5V–20V (12V recommended) |
| Max Load Current | 10A |
| Operating Temperature | -40°C to +85°C |
| Package Type | SMD |
| Dimming Mode | Stepless / No-Pole |
| Control Type | Capacitive Touch |
| Condition | New |
Ideal For
- LED strip and panel dimming systems
- DIY smart home or home automation projects
- Computer and workstation custom lighting
- Maker and electronics prototyping
- Desk lamp or under-cabinet light control
Made in Mainland China.
Related Products You May Like
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Clip-On Car Fan LED Display 199 Speeds | USB & Type-C
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What voltage should I use with this capacitive touch dimmer switch module?
A: The module supports a wide input range of DC 5V to 20V. A 12V DC power supply is recommended for optimal and stable dimming performance with most LED strips and panels.
Q: Can this touch switch module handle high-power LED strips?
A: Yes. With a maximum load current rating of 10A, this module can drive most LED strip lights and panels. Always ensure your power supply and wiring match the load requirements of your specific LEDs.
Q: How does the stepless (no-pole) dimming work?
A: Stepless dimming means the brightness adjusts smoothly and continuously — there are no fixed brightness levels or steps. A brief touch toggles on/off, while a long press or held touch gradually increases or decreases brightness, giving you precise control over your lighting output.
Q: Is this module suitable for outdoor or harsh-environment use?
A: The module is rated for operating temperatures from -40°C to +85°C, making it capable of handling a broad range of environments. However, the module itself is not waterproof, so appropriate housing or enclosures should be used for outdoor installations.
