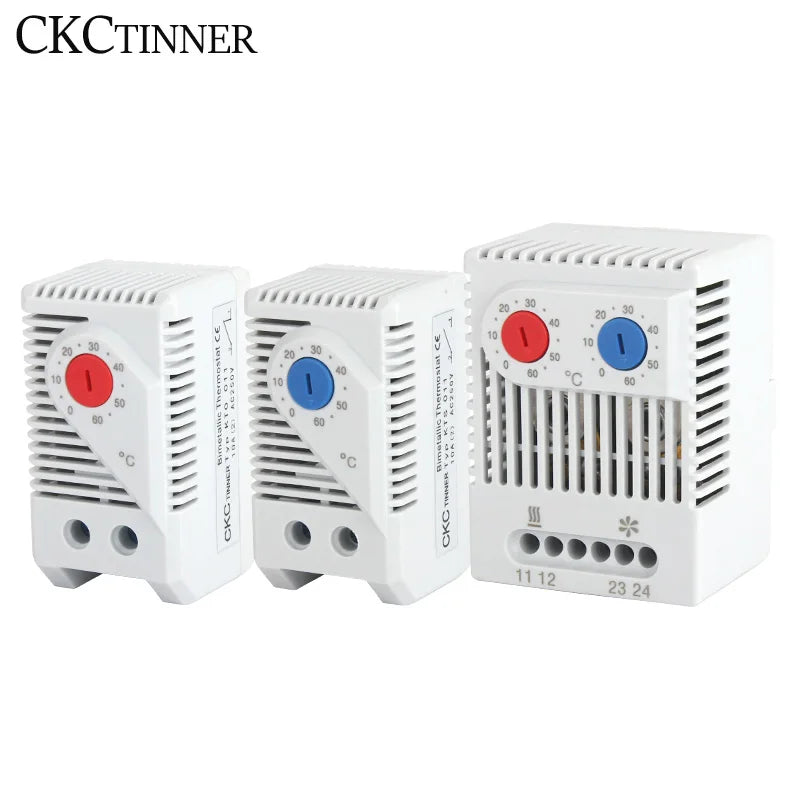

CKCTINNER Cabinet Mini Thermostat – KTO011 / KTS011 / ZRO011

Keep your electrical cabinet, enclosure, or control panel at the perfect operating temperature with this compact mechanical thermostat. The CKCTINNER KTO011/KTS011/ZRO011 offers reliable snap-action switching, an easy-to-read adjustable dial, and a 35mm DIN rail clip for tool-free installation — making it ideal for industrial and home automation setups alike. Made in Mainland China.

Key Specifications

Temperature Control Range: 0°C to 60°C (32°F to 140°F)
Switch Temperature Difference: 7K (±4K tolerance)
Sensor Element: Thermostatic bimetal
Contact Type: Snap-action contact
Service Life: >100,000 cycles
Connection: 2-pole terminal, clamping torque 0.5 Nm max. — rigid wire 2.5 mm²; stranded wire (with wire end ferrule) 1.5 mm²
Mounting: Clip for 35mm DIN rail, EN60715 (or exit filter EF 118 Series)
Casing: UL94 V-0 rated flame-retardant plastic, light grey
Operating / Storage Temperature: -45°C to +80°C (-49°F to +176°F)
Operating / Storage Humidity: Max. 90% RH (non-condensing)
Protection Rating: IP20
Certification: CE
Contact Type Options: Normally Open (NO) or Normally Closed (NC)

Features & Benefits

Durable, Eco-Friendly Housing: High-quality UL94 V-0 rated flame-retardant plastic casing — safe, sturdy, and built to last.
Wide Control Range: 0°C–60°C makes it perfectly suited for managing heaters, filter fans, cooling equipment, and other signal devices in cabinets, enclosures, and panels.
Simple Dial Adjustment: Large-scale readable display with an adjustable button (available in red or blue) for fast and convenient temperature setting.
Tool-Free DIN Rail Installation: Standard 35mm DIN rail clip with 4-foot holders lets you snap the thermostat in and out in seconds.
Secure Wiring: Bottom-mounted circuit interfaces provide sturdy and reliable wire connections, reducing the risk of loose contacts.
Long Service Life: Rated for over 100,000 operating cycles, ensuring dependable long-term performance.

Typical Applications

Electrical control cabinets & distribution boards
Filter fans & heater control
Industrial automation enclosures
HVAC and cooling system management
Home automation panels

Related Products You May Like

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What is the difference between the KTO011 (Normally Open) and KTS011 (Normally Closed) thermostat models?

A: The KTO011 is a Normally Open (NO) thermostat — the circuit remains open (off) at ambient temperature and closes (activates) when the set temperature is reached. The KTS011 is a Normally Closed (NC) thermostat — the circuit is closed (on) at ambient temperature and opens (deactivates) when the set temperature is reached. Choose NO for activating cooling fans or alarms at high temperatures, and NC for activating heaters that should run until a target temperature is met.

Q: How do I mount this mini thermostat in my electrical cabinet?

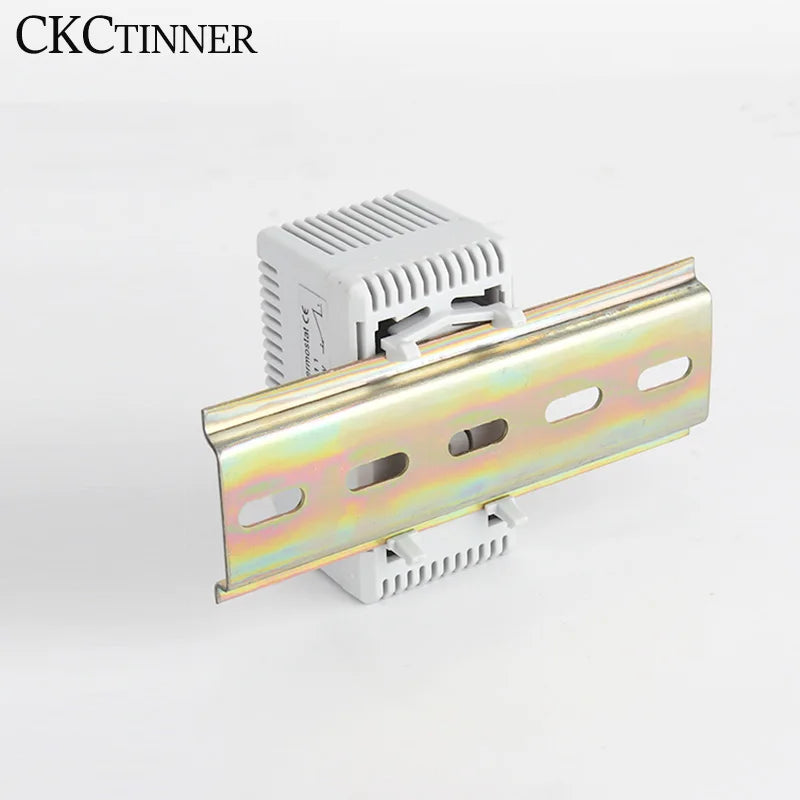

A: This thermostat features a standard 35mm DIN rail clip (EN60715 compatible) with 4-foot holders. Simply clip it onto your DIN rail inside the cabinet — no additional tools or hardware required. For wiring, use the 2-pole terminal at the bottom, supporting rigid wire up to 2.5 mm² or stranded wire (with ferrule) up to 1.5 mm², and tighten to a maximum clamping torque of 0.5 Nm.

Q: What temperature range can this mechanical thermostat control?

A: The KTO011/KTS011/ZRO011 cabinet thermostat has an adjustable control range of 0°C to 60°C (32°F to 140°F), with a switch temperature differential of 7K (±4K tolerance). The unit itself can be safely stored and operated in environments ranging from -45°C to +80°C (-49°F to +176°F).

Q: Is this thermostat certified for safety and what is its protection rating?

A: Yes, this thermostat is CE certified and features an IP20 protection rating. Its casing is made from UL94 V-0 rated flame-retardant plastic, ensuring it meets international safety standards for electrical enclosure use.
