Say goodbye to misaligned handles and tedious measuring tape setups. This Cabinet Handle Hole Locator is a precision-engineered drill guide jig that makes installing knobs, pulls, and handles on cabinet doors and drawer fronts fast, accurate, and repeatable — every single time. Whether you're a seasoned carpenter or a weekend woodworking enthusiast, this tool delivers a flawlessly professional finish with zero guesswork.
Key Features
- Premium 6061 Aluminum Alloy Construction: Sandblasted for a smooth finish, this tool is built to withstand repeated use without warping or wearing down — a true workshop workhorse.
- Pinpoint Accurate Positioning: Ensures perfectly aligned drill holes for handles, pulls, and knobs every time, giving your cabinetry a clean, professional look.
- Adjustable Double-Hole Drilling: Supports adjustable spacing of 64 / 96 / 128 / 160 mm with a 4 mm punch size, accommodating the most common standard handle sizes on the market.
- No Measuring Required: Simply set the jig, clamp, and drill. Quick to set up and consistent across multiple installations — ideal for batch cabinet projects.
- Wide Compatibility: Works on kitchen drawer handles, cabinet doors, wardrobe panels, shelf hinges, frame-style and recessed drawer fronts, and more.
- Compact & Portable: At just 24.5 × 8 × 5 cm, it slips easily into a tool bag and goes wherever your project takes you.
Specifications
| Material | 6061 Aluminum Alloy (Sandblasted Finish) |
| Dimensions | 24.5 × 8 × 5 cm |
| Color | Red |

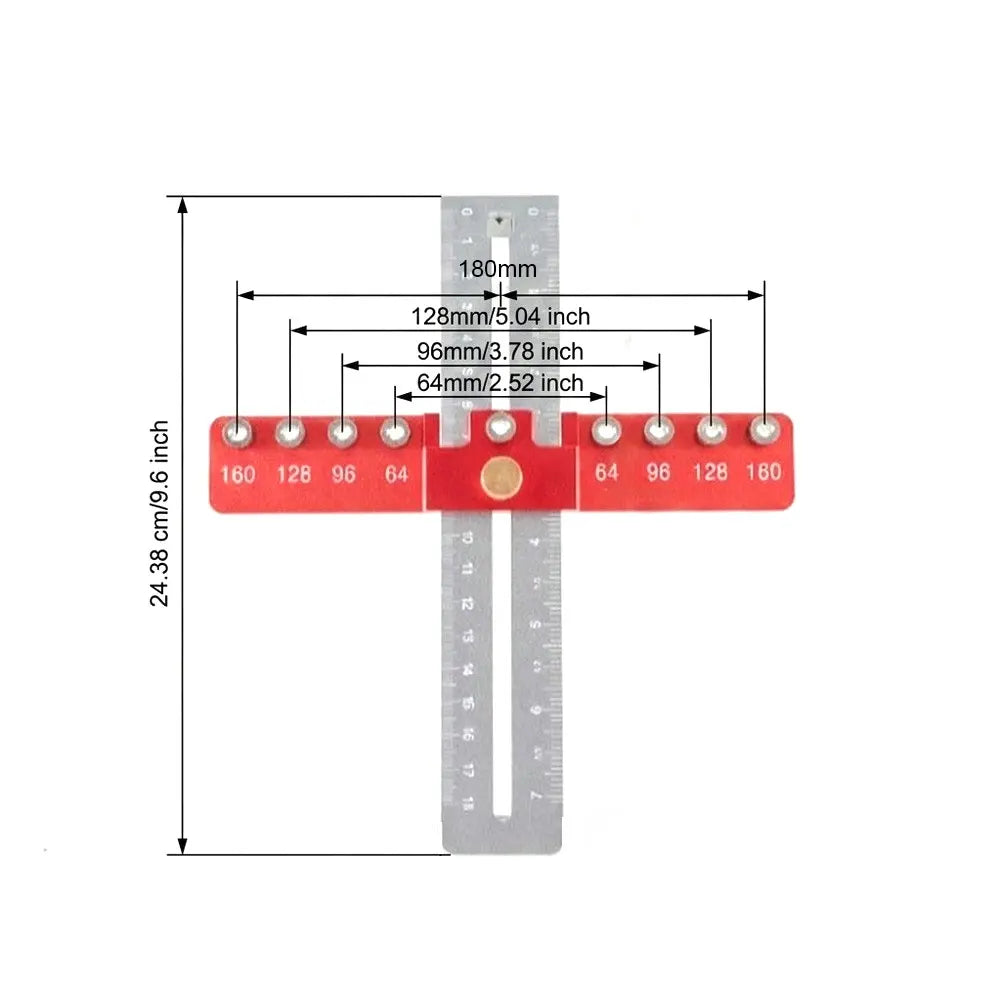

| Hole Spacing | 64 / 96 / 128 / 160 mm (adjustable) |
| Punch Size | 4 mm |
| Country of Origin | Made in Mainland China |
Package Contents
- 1 × Aluminum Alloy Hole Locator / Mounting Jig
Perfect For
- Kitchen cabinet handle installation
- Wardrobe and closet door panels
- Drawer front handle mounting
- Woodworking professionals and DIY enthusiasts
- Architects and interior fit-out teams
Note: Actual color may vary slightly from images due to monitor settings and lighting. Please allow ±1–2 mm for manual measurement deviation.
