Cabinet Handle Drilling Template – Precise Hole Positioning Every Time
Take the guesswork out of cabinet hardware installation with this versatile Cabinet Handle Drilling Template. Whether you're fitting drawer knobs, door handles, or window hardware, this aluminum positioning jig delivers accurate, repeatable results on every project. Made in Mainland China.
Key Features

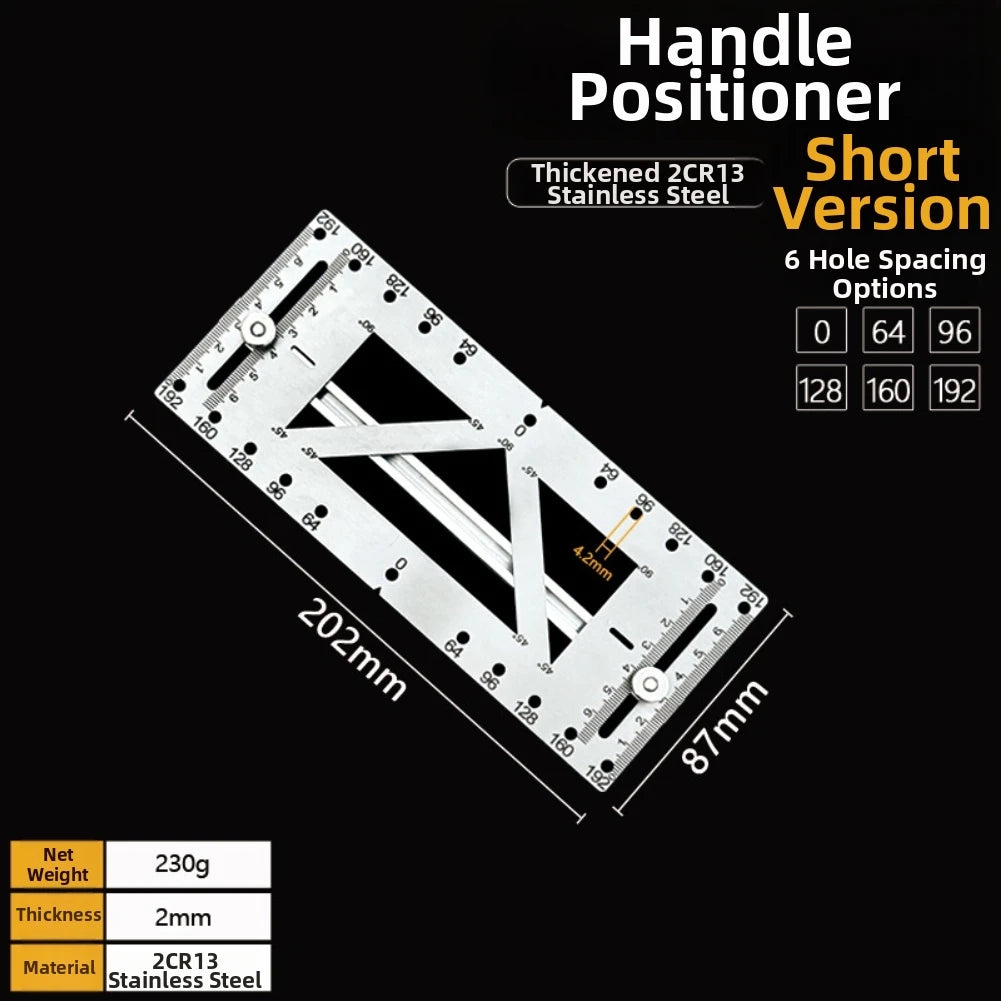

- 6 Spacing Options: Choose from 6 precise hole spacing configurations to suit a wide range of handle and knob styles — no more measuring from scratch each time.

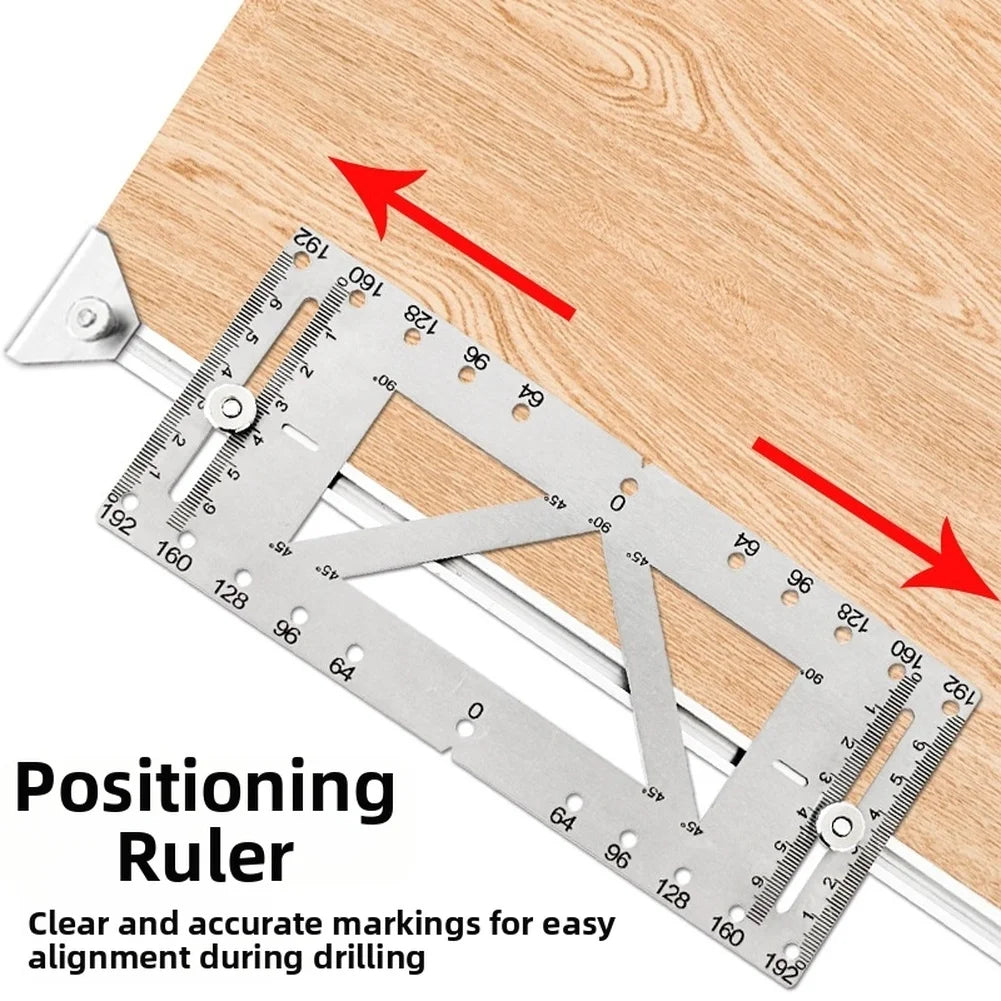

- Clear Etched Markings: Millimeter-level graduated scales are deeply etched into the surface for easy, accurate reading and long-lasting legibility.
- Dual Metric & Inch Scales: Works with both measurement systems, making this jig ideal for any workshop or DIY setup.

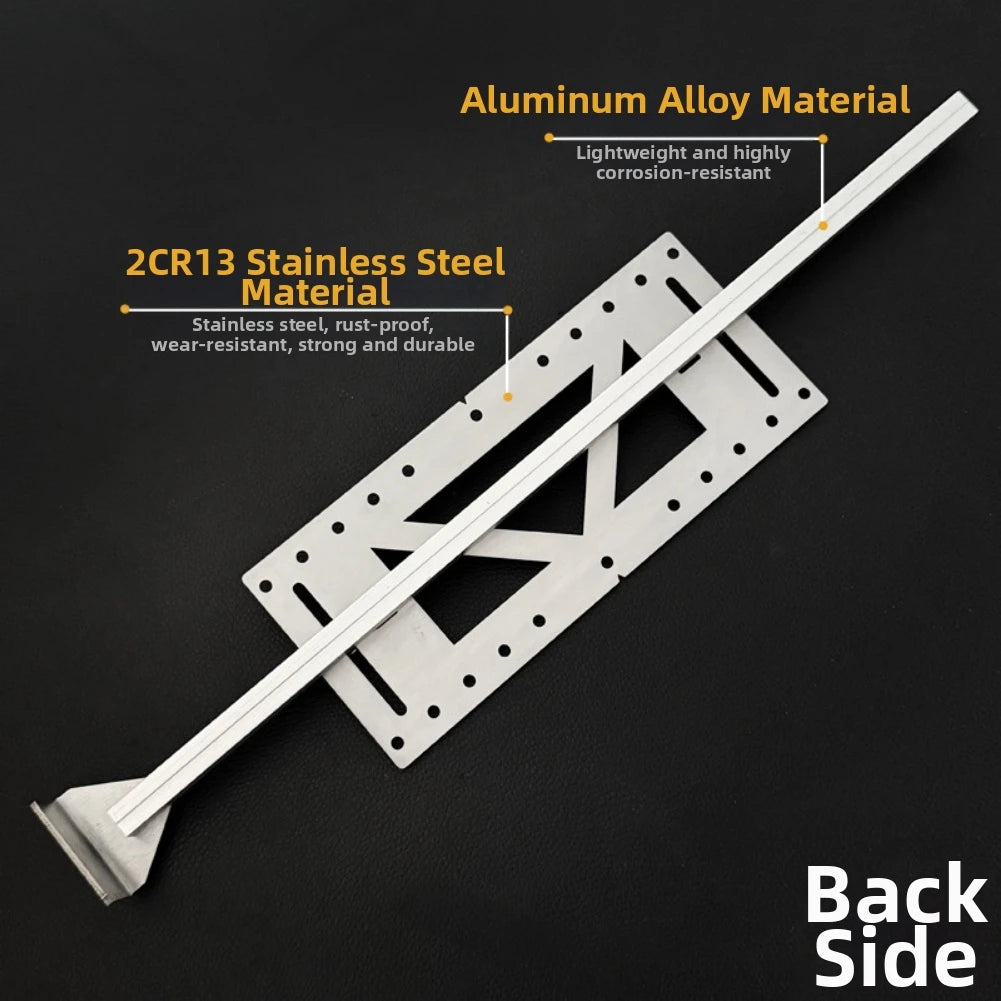

- Lightweight Aluminum Build: Durable yet lightweight metal construction ensures the template stays flat, sturdy, and easy to handle during repeated use.
- Versatile Application: Perfect for cabinets, drawers, doors, and windows — anywhere consistent handle or knob positioning is needed.

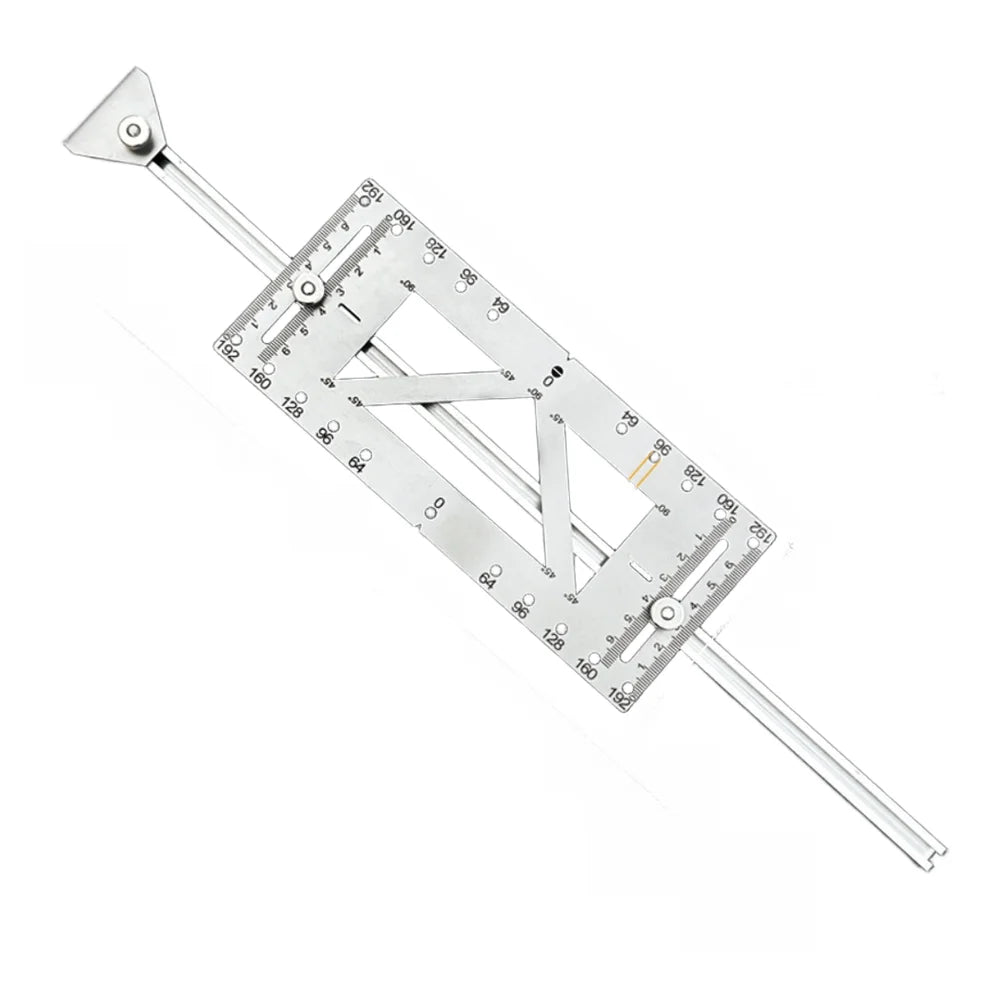

- Two Size Options: Available as a short locator (20.2 × 8.7 × 0.2 cm) or a long locator (41.3 × 20.2 × 8.7 cm) to suit different project scales.
Specifications
| Material | Aluminum (Metal) |
| Color | Silver |
| Short Locator Size | 20.2 × 8.7 × 0.2 cm |
| Long Locator Size | 41.3 × 20.2 × 8.7 cm |
| Hole Spacing Options | 6 settings |
| Scale Type | Metric & Inch |
| Country of Origin | Mainland China |
Package Contents
- Package 1: 1 × Short Hole Positioning Locator
- Package 2: 1 × Long Hole Positioning Locator
Related Tools You May Like
- Garden Pruner Shears – Secateurs for Bonsai & Fruit Trees
- 18 Pc Basswood Carving Blocks – Whittling Wood Kit for Carvers
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
Note: Screen brightness and lighting conditions may cause slight color variation from photos. Please allow minor measurement tolerances.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What types of cabinet handles can this drilling template be used for?
A: This cabinet handle drilling template is compatible with a wide variety of handle and knob styles, including bar handles, cup pulls, and standard round knobs. With 6 adjustable hole spacing options, it accommodates the most common center-to-center distances used in kitchen cabinets, bathroom vanities, and furniture drawers.
Q: Does this hole positioning jig support both metric and inch measurements?
A: Yes! The template features dual-scale etched markings in both millimeters (metric) and inches, making it versatile for use in any workshop — whether you work with metric hardware or imperial standards.
Q: Is the template suitable for beginners doing DIY woodworking projects?
A: Absolutely. The clear etched graduations, lightweight aluminum body, and straightforward positioning design make this jig user-friendly for beginners and seasoned woodworkers alike. Simply align the template, mark your drill points, and drill with confidence — no complex setup required.
Q: What is included in the package?
A: Depending on the package selected, you receive either one short hole positioning locator (20.2 × 8.7 × 0.2 cm) or one long hole positioning locator (41.3 × 20.2 × 8.7 cm). Please check the listing option before purchasing to select the size that best suits your project.
