Cabinet Handle Drill Template – Metric & Inch Hole Jig

$48.72 $60.34

Cabinet Handle Drill Template – Metric & Inch Hole Positioning Jig

Take the guesswork out of cabinet and drawer hardware installation with this precision-engineered Cabinet Handle Drilling Template. Made from lightweight aluminum, this positioning fixture features clearly etched millimeter-level graduations and 6 versatile hole spacing options — so every handle, knob, and pull goes in perfectly aligned, every time.

Whether you're a seasoned woodworker or a keen DIY enthusiast, this template delivers professional-grade accuracy for kitchen cabinets, bathroom vanities, wardrobe drawers, window frames, and more.

Key Features

6 Precise Hole Spacing Options: Accommodates a wide range of cabinet handle and drawer knob mounting configurations.

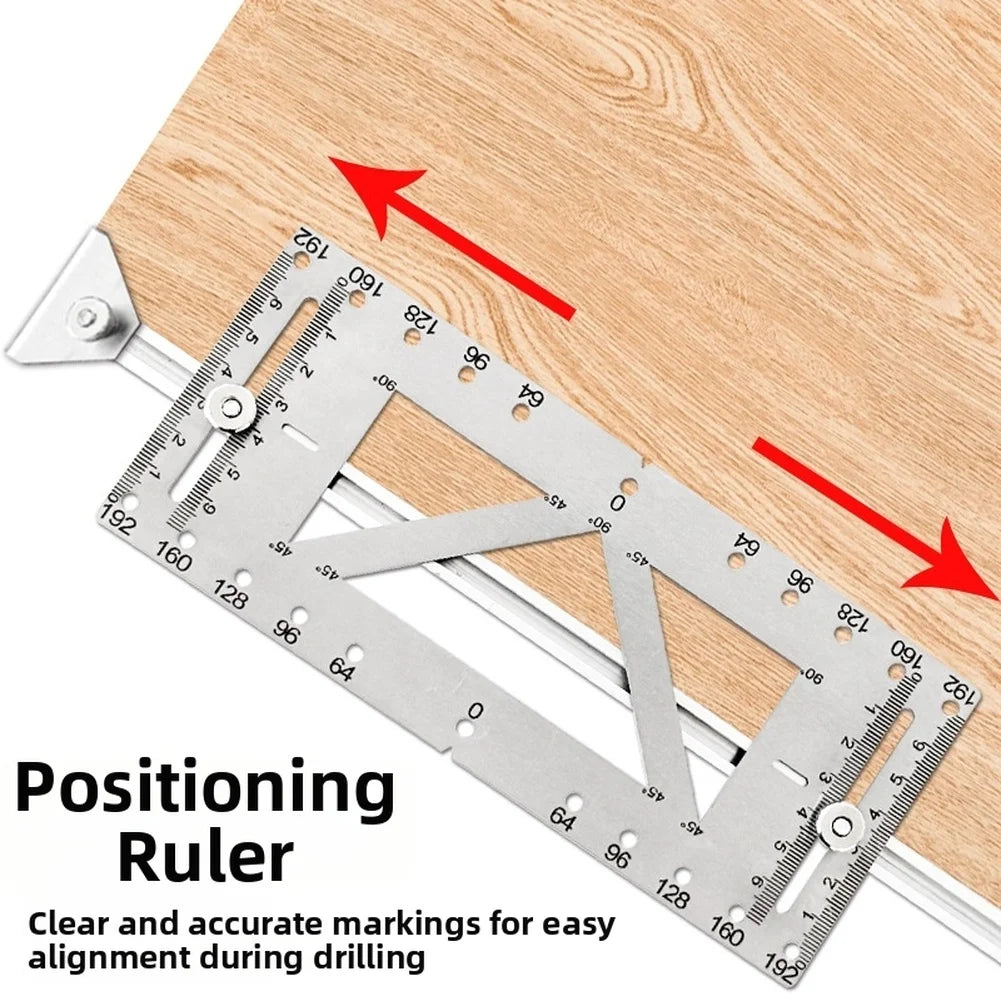

Dual Metric & Inch Scales: Clearly etched markings allow quick, accurate positioning in both measurement systems.
Lightweight Aluminum Construction: Durable yet easy to handle — ideal for repeated daily use on the job or at home.
Versatile Application: Perfect for cabinet doors, drawer fronts, window handles, and furniture hardware installation.
Two Size Options Available: Short locator (20.2 × 8.7 × 0.2 cm) or Long locator (41.3 × 20.2 × 8.7 cm) — choose the size that suits your project.

Specifications

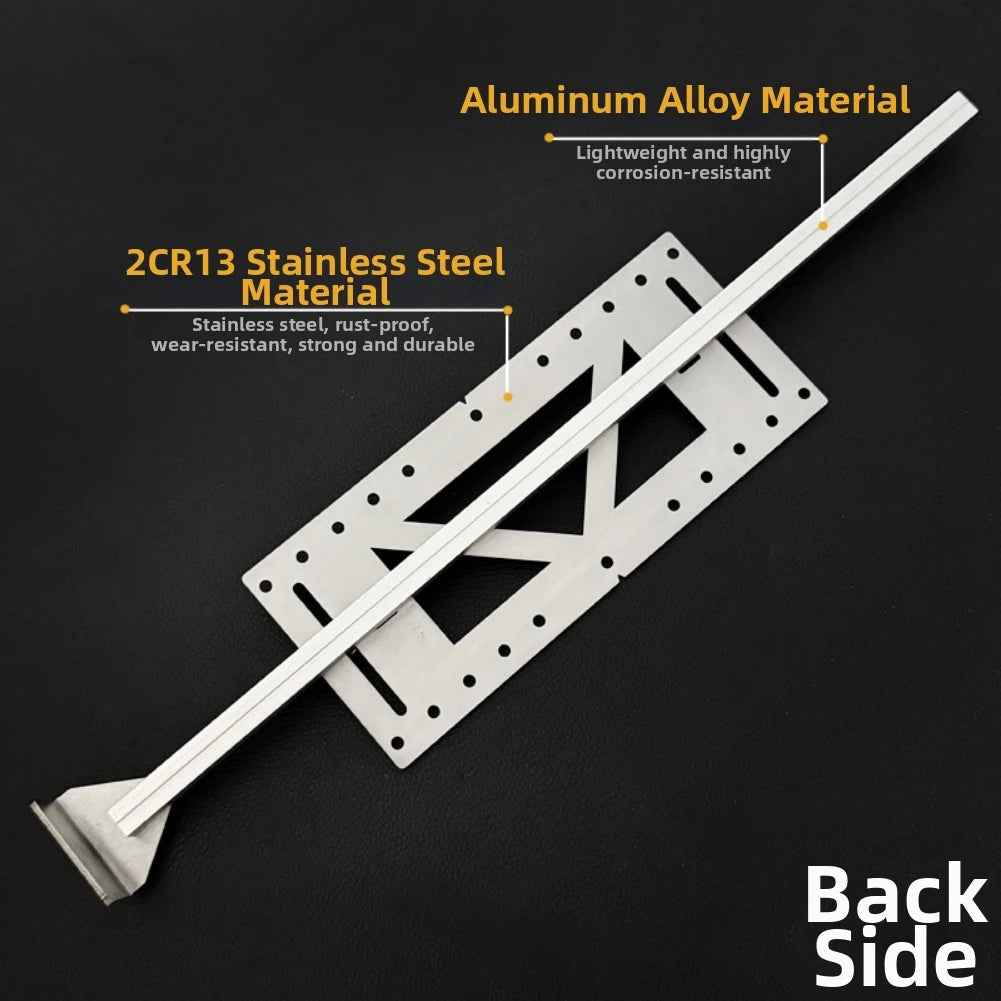

Material: Aluminum (Metal)
Color: Silver

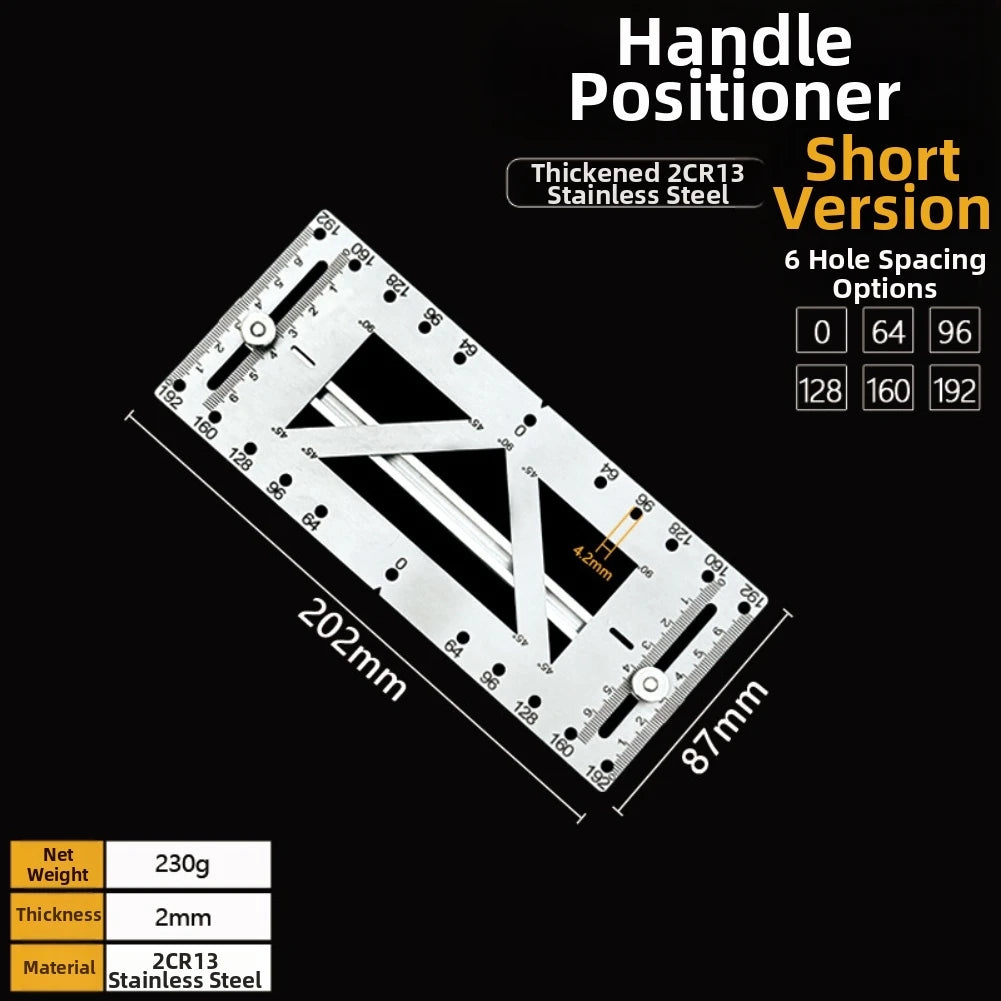

Short Locator Size: 20.2 × 8.7 × 0.2 cm

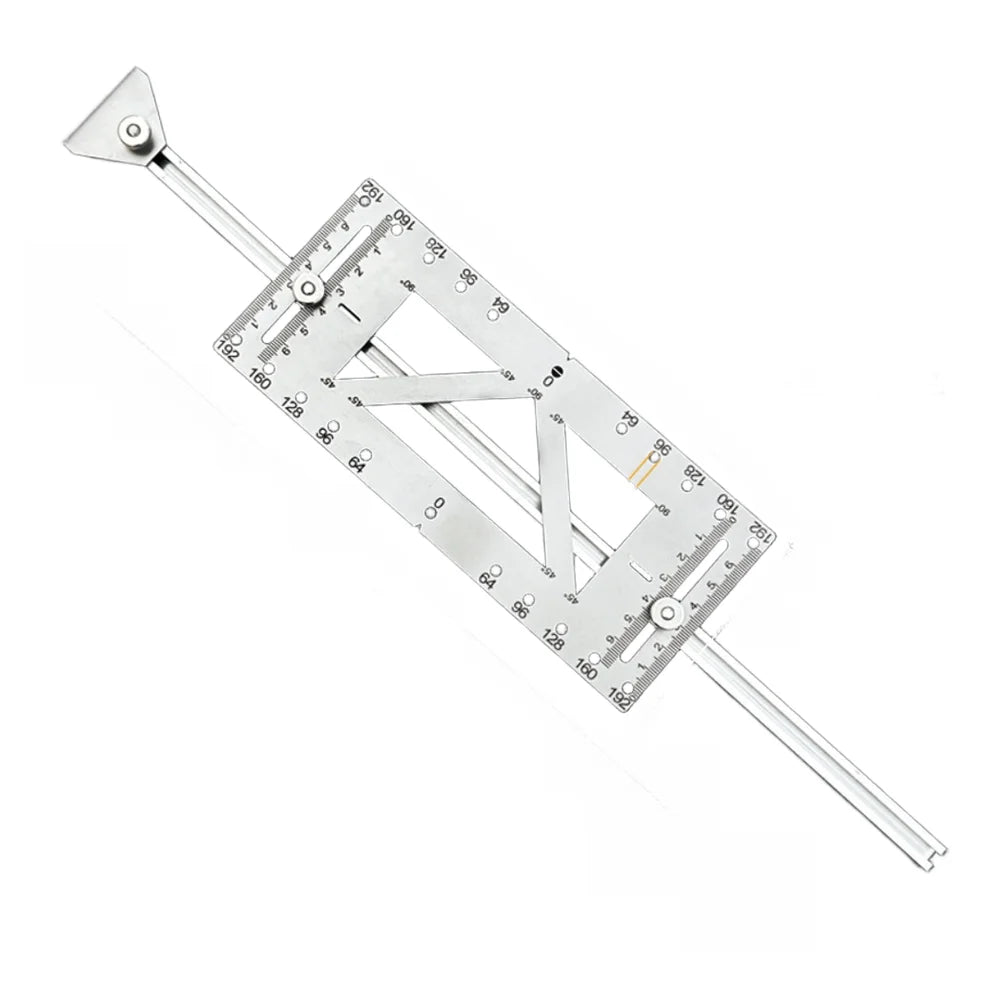

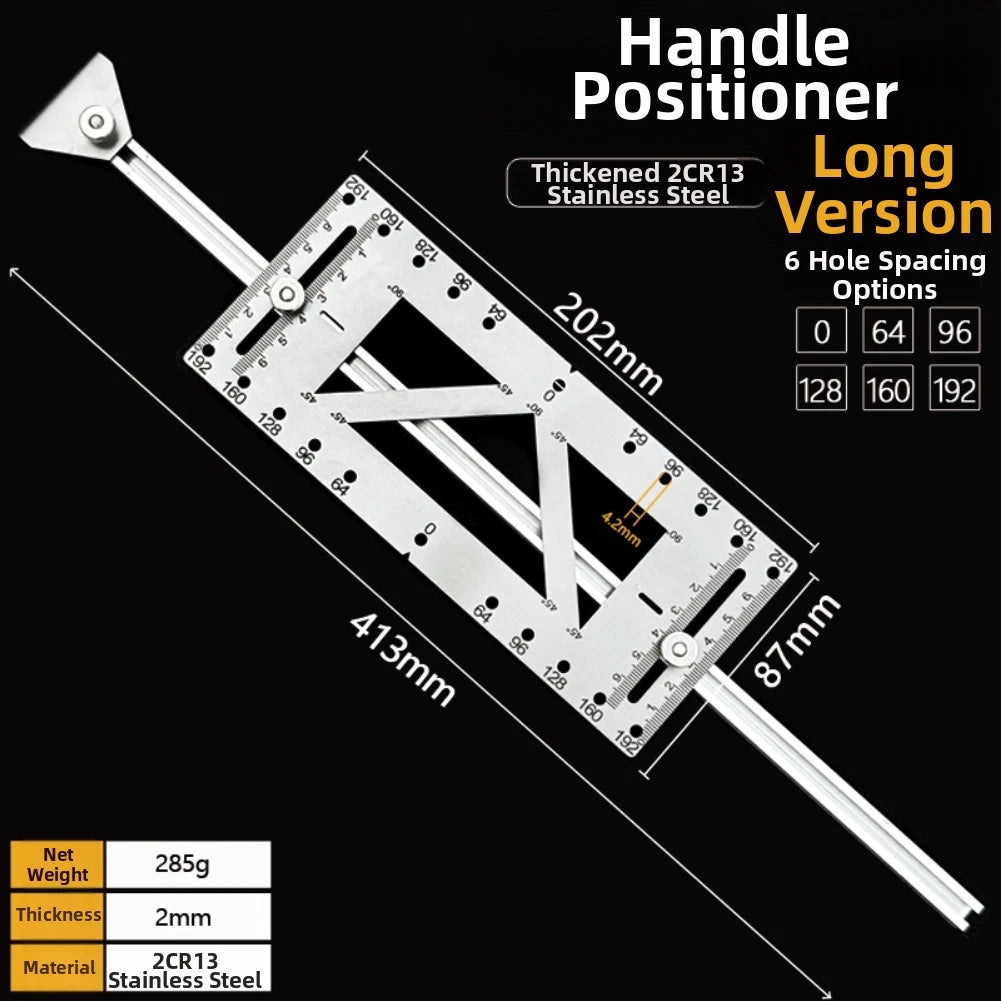

Long Locator Size: 41.3 × 20.2 × 8.7 cm
Scale Type: Metric & Inch

Package Contents

Package 1: 1 × Short Locator Template
Package 2: 1 × Long Locator Template

Made in Mainland China.

Note: Actual color may vary slightly from images due to monitor brightness and lighting conditions. Please allow minor manual measurement deviation.

Frequently Asked Questions

Q: What hole spacings does this cabinet handle drilling template support?

A: This cabinet handle drill template offers 6 precise hole spacing options to accommodate a wide variety of standard drawer knobs, pulls, and cabinet handles. The etched metric and inch scales make it easy to select and mark the correct spacing for your specific hardware before drilling.

Q: Is this drilling template suitable for both metric and imperial measurements?

A: Yes! The template features dual-scale etched markings in both metric (millimeters) and inch measurements, making it compatible with hardware from any brand or region — no conversion needed.

Q: What materials are compatible with this hole positioning jig?

A: This aluminum positioning fixture is designed primarily for woodworking applications including cabinet doors, drawer fronts, and furniture panels. Its rigid, flat construction ensures stable placement on both solid wood and board materials for accurate drill guidance.

Q: What is the difference between the short and long locator versions?

A: The short locator (20.2 × 8.7 × 0.2 cm) is ideal for standard cabinet handles and smaller hardware, while the long locator (41.3 × 20.2 × 8.7 cm) is better suited for larger doors, extended pulls, or projects requiring a wider measurement range. Choose based on the scale of your project.
