Brushless Water Pump for Ice Machine HZB-12A/25BF | 5V–12V

Brushless Circulating Water Pump for Household Ice Machines

Keep your countertop or household ice machine running smoothly with this compact, efficient brushless DC water pump. Compatible with popular HZB-12A and HZB-25BF ice machine models, this built-in drive pump delivers reliable water circulation with minimal noise and long service life — ideal for replacement or upgrade projects.

Key Specifications

• Voltage & Current (5V): ~0.08A operating current; max flow rate ~1.5 L/min
• Voltage & Current (12V): ~0.21A operating current; max flow rate ~2.5 L/min
• Motor Type: Brushless DC (built-in drive)
• Structure: Surface pumping station
• Certification: CE certified (EU LVD — low voltage below 50Vac / 75Vdc)
• Package Contents: 1 × Brushless Water Pump
• Batteries: Not included
• Made in Mainland China

Why Choose This Brushless Pump?

• ✅ Brushless Motor Technology — Longer lifespan and quieter operation compared to conventional brushed pumps

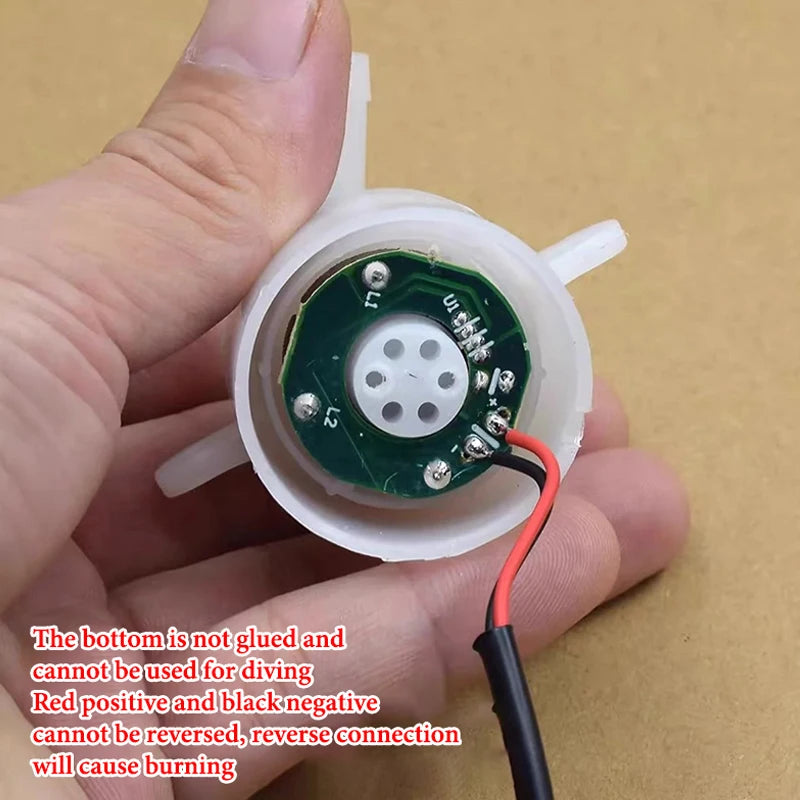

• ✅ Simple Wiring — Connect red wire to positive (+) and black wire to negative (−) for immediate high-speed operation
• ✅ Compact & Lightweight — Designed to fit neatly inside household ice machine housings
• ✅ CE Certified — Meets European low-voltage safety standards
• ✅ Dual Voltage Compatible — Operates at both 5V and 12V for flexible installation options

Important Usage Notes

• ⚠️ Not a self-priming pump — The pump must be fully filled with water before starting. Never run it dry; dry running causes noise and significantly shortens the pump's lifespan.
• ⚠️ Observe correct polarity — Incorrect wire connection will permanently damage the internal drive circuit.

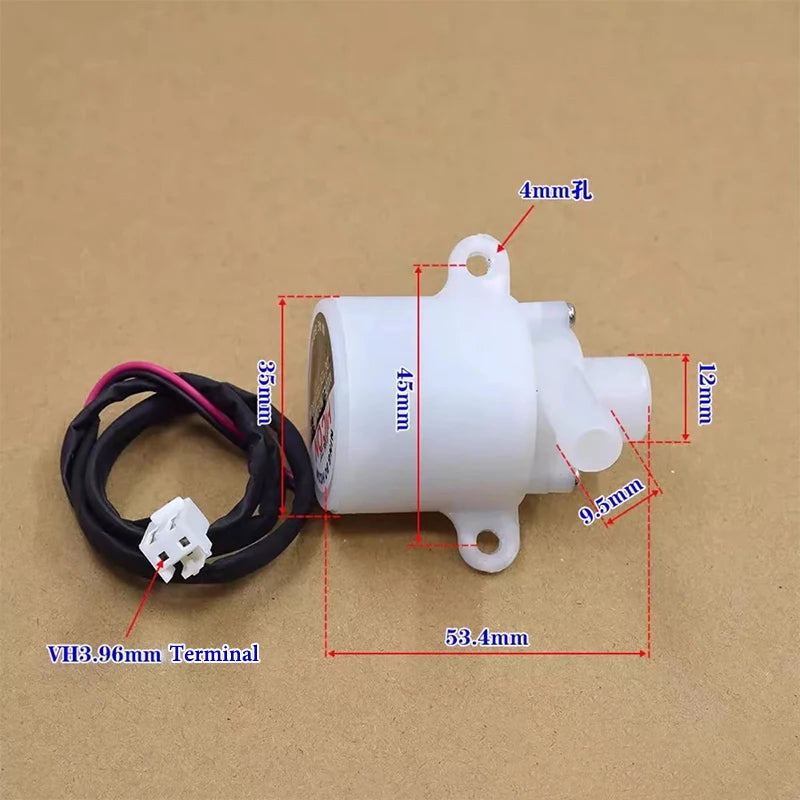

• ⚠️ Dimensions listed are for reference; please allow ±2–3% variance due to manual measurement.
• ⚠️ Product color may vary slightly from images due to monitor display differences.

Explore Related Products

Looking for more useful tools and home accessories? Check out our BALASHOV 2500W Handheld Steam Cleaner – Kitchen, Car & Home or our Air Compressor Pressure Gauge – DIY Tool for your workshop and home needs.

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: Is this brushless water pump compatible with all ice machines?

A: This pump is specifically designed for household ice machines, particularly models HZB-12A and HZB-25BF. It operates at 5V or 12V DC and is suitable for machines requiring a small circulating pump with a flow rate up to 2.5 L/min at 12V. Always verify your machine's pump specifications before purchasing.

Q: Does the brushless water pump require priming before use?

A: Yes — this is not a self-priming pump. You must fully fill the pump with water before operation. Dry running is strictly prohibited as it generates noise and will shorten the pump's lifespan considerably.

Q: How do I wire the brushless DC pump correctly?

A: Wiring is straightforward: connect the red wire to the positive (+) terminal and the black wire to the negative (−) terminal. Reversing polarity is strictly prohibited and will burn out the internal drive circuit. Always double-check connections before powering on.
