Brushless Water Pump for Ice Machines – HZB-12A/25BF Circulating
Brushless Water Pump for Ice Machines – HZB-12A/25BF Circulating

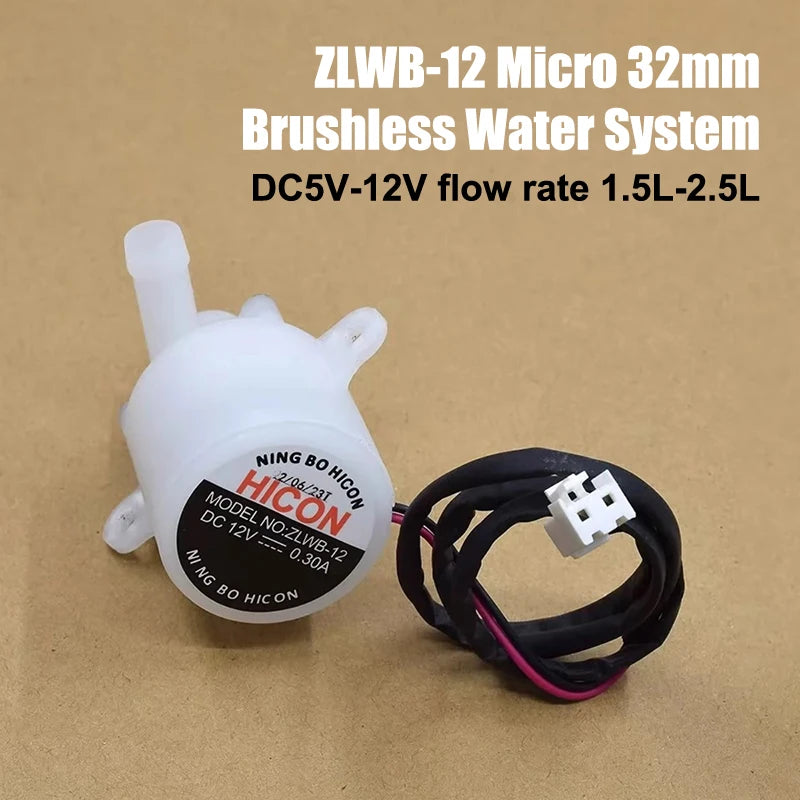

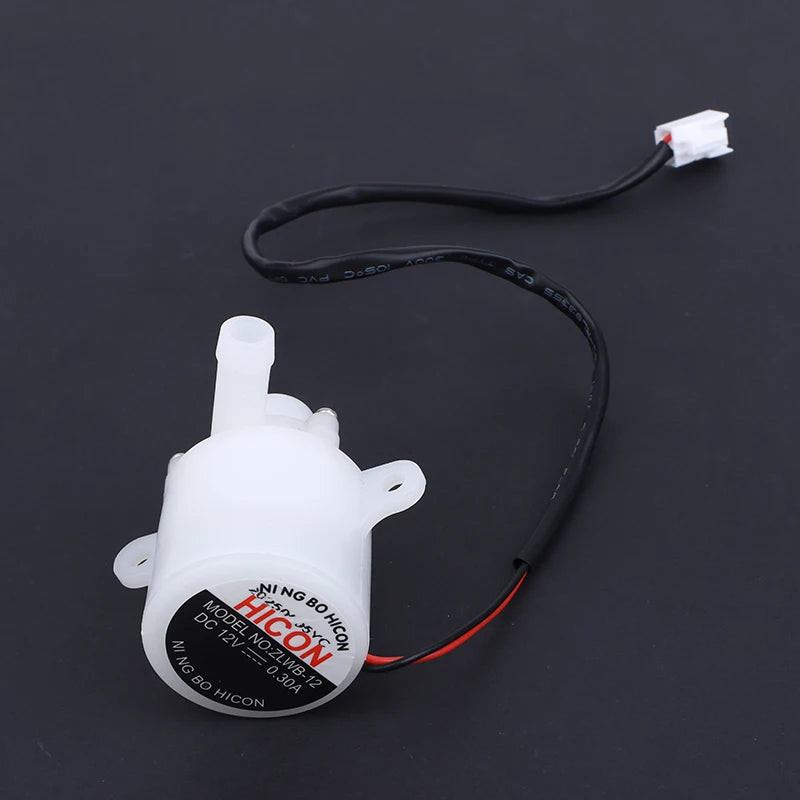

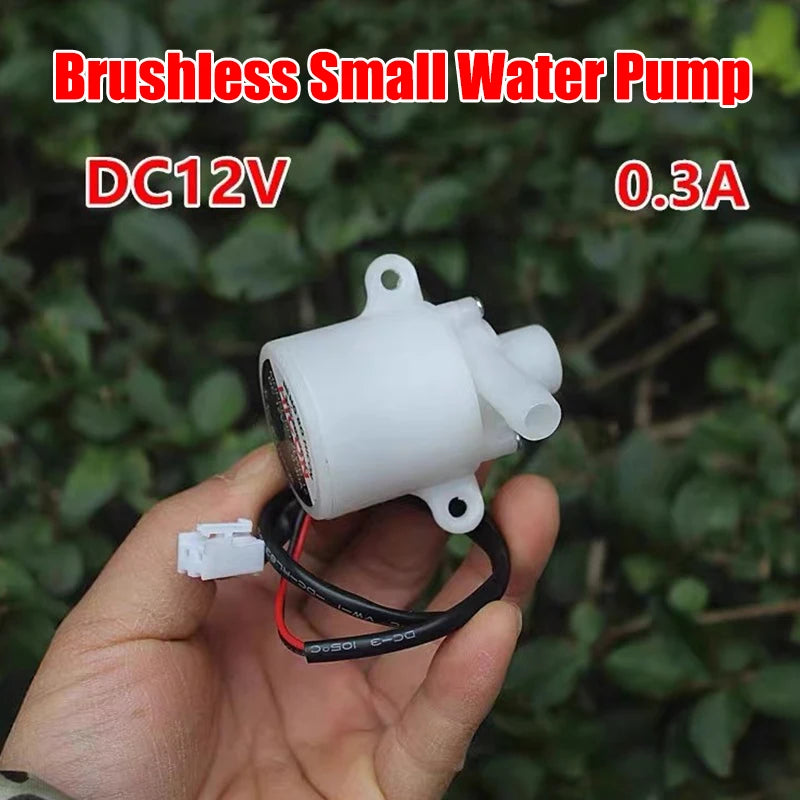

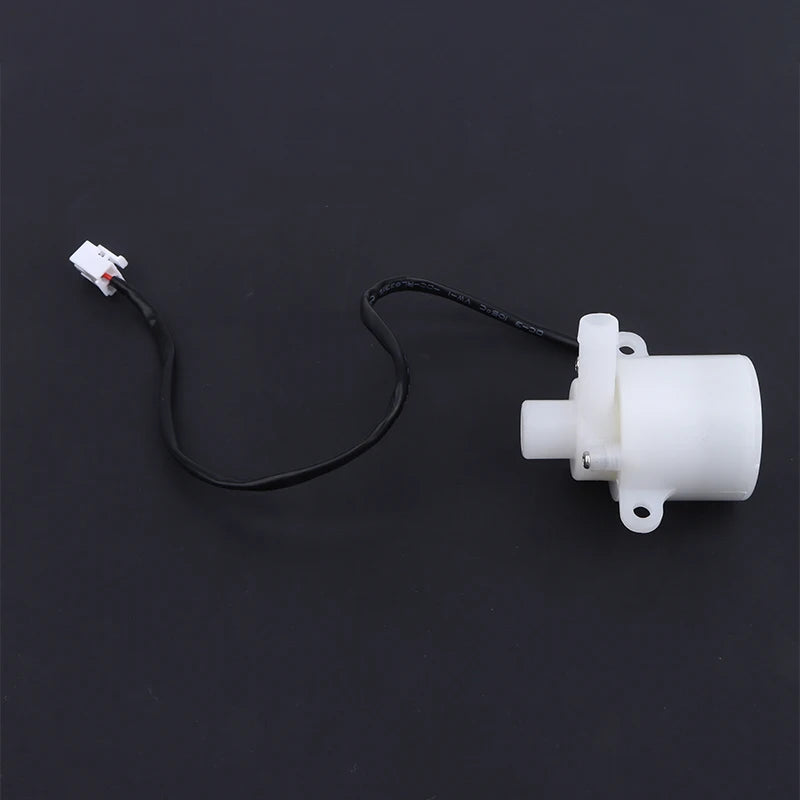

Brushless Circulating Water Pump for Household Ice Machines
Keep your countertop or household ice machine running smoothly with this compact, built-in drive brushless water pump. Compatible with popular models including the HZB-12A and 25BF, this low-voltage pump delivers quiet, efficient water circulation — making it the ideal replacement or upgrade for small ice machine systems.
Key Specifications
- Voltage Options: 5V DC or 12V DC (low-voltage operation below 50Vac / 75Vdc)
- At 5V: Operating current ~0.08A | Max flow rate ~1.5 L/min
- At 12V: Operating current ~0.21A | Max flow rate ~2.5 L/min
- Pump Type: Brushless, built-in drive (surface pumping station)
- Certification: CE
- Package Contents: 1 × Brushless Water Pump
- Made in Mainland China
Why Choose This Brushless Pump?
Brushless motors offer a longer service life and quieter operation compared to traditional brushed motors. With a simple two-wire connection — red wire to positive (+), black wire to negative (−) — setup is straightforward. The pump is designed for continuous circulating use, ensuring a steady and reliable water flow inside your ice machine.
Important Usage Notes
- Not a self-priming pump: The pump must be fully submerged or primed with water before operation.
- No dry running: Running without water will cause excessive noise and will shorten the pump's lifespan — always ensure water is present before powering on.

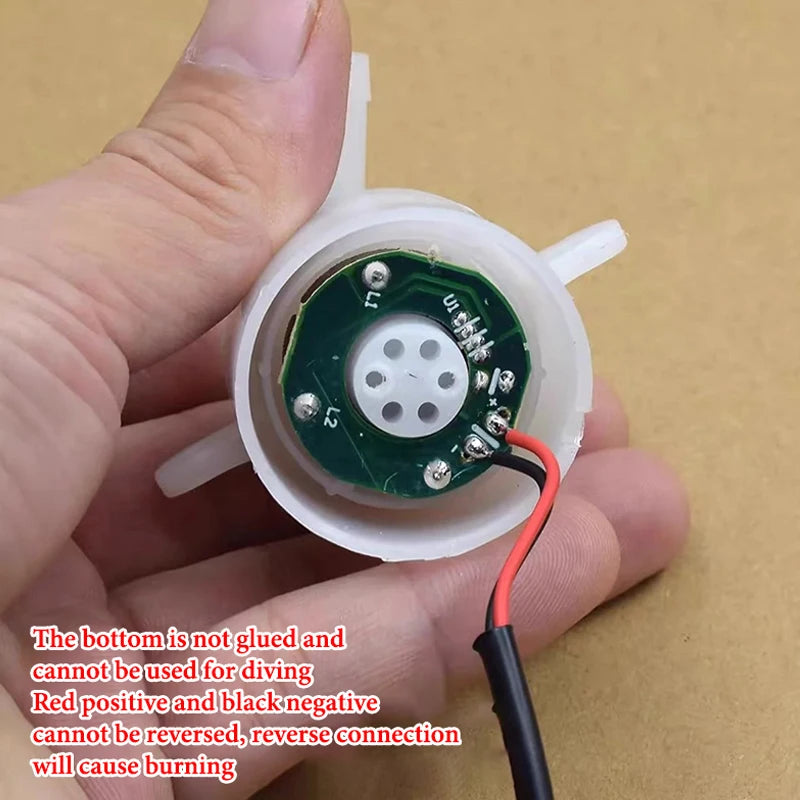

- Correct polarity is essential: Reversing the wiring polarity will damage the internal drive circuitry. Double-check connections before powering on.
- Batteries not included.
Compatible Applications
While designed for household ice machines (HZB-12A / 25BF), this pump is also suitable for small water circulation systems, DIY cooling setups, desktop fountains, and other low-voltage fluid circulation projects.
Related Products You May Like
- BALASHOV 2500W Handheld Steam Cleaner – Kitchen, Car & Home
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Cordless Rechargeable Milk Frother – Coffee Foam & Egg Whisk

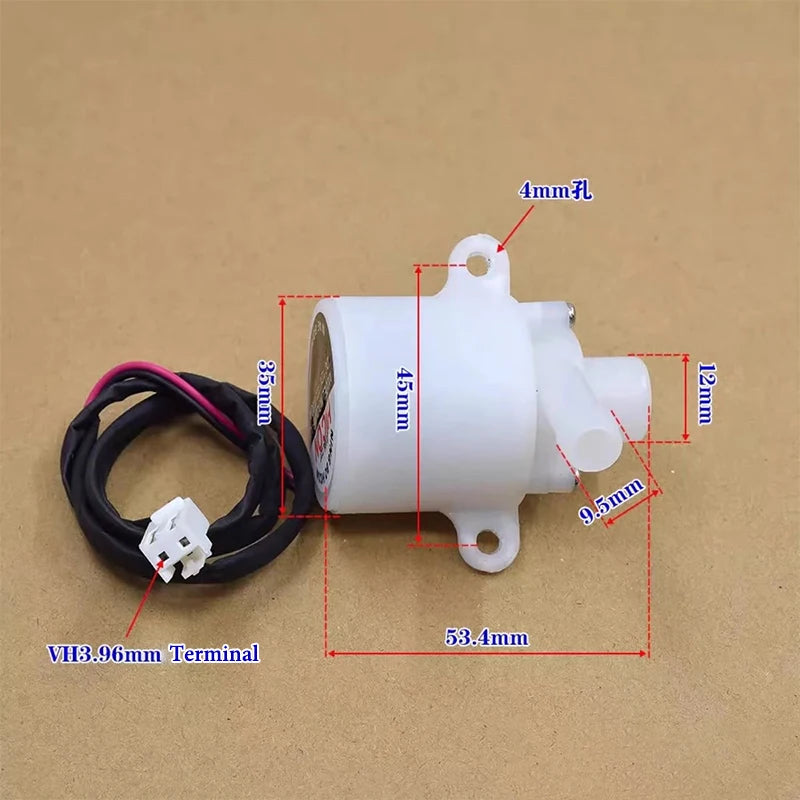

Please allow 2–3% dimensional variance due to manual measurement. On-screen colors may vary slightly from the actual product.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Is this brushless water pump compatible with the HZB-12A and 25BF ice machines?
A: Yes, this brushless circulating pump is specifically designed for household ice machine models HZB-12A and 25BF. It can also be used in other small water circulation applications that operate within its 5V–12V DC voltage range.
Q: Does this pump work without being filled with water first?
A: No — this is not a self-priming pump. It must be fully filled with water before operation. Running it dry (without water) will generate excessive noise and cause premature wear, significantly reducing the pump's lifespan.
Q: What happens if I connect the wires in reverse polarity?
A: Incorrect polarity will permanently damage the internal drive electronics of the pump. Always connect the red wire to the positive terminal and the black wire to the negative terminal before powering the unit.
Q: What is the maximum water flow rate of this pump?
A: At 5V DC, the maximum flow rate is approximately 1.5 L/min with an operating current of ~0.08A. At 12V DC, the flow rate increases to approximately 2.5 L/min with an operating current of ~0.21A.
