BM580 Car Battery Tester – CCA Analyzer for 6V/12V Lead-Acid
BM580 Car Battery Tester – CCA Analyzer for 6V/12V Lead-Acid
BM580 Digital Car Battery Tester & CCA Circuit Analyzer
Keep your vehicle's electrical system in peak condition with the BM580 Car Battery Analyzer. Using advanced conductance testing technology, this professional-grade tool delivers fast, accurate readings on battery health, cold cranking amps (CCA), charging system performance, and cranking output — all in under a minute. Suitable for beginners and seasoned mechanics alike, it works on 6V and 12V lead-acid batteries in or out of the vehicle.
Made in Mainland China.
Key Features

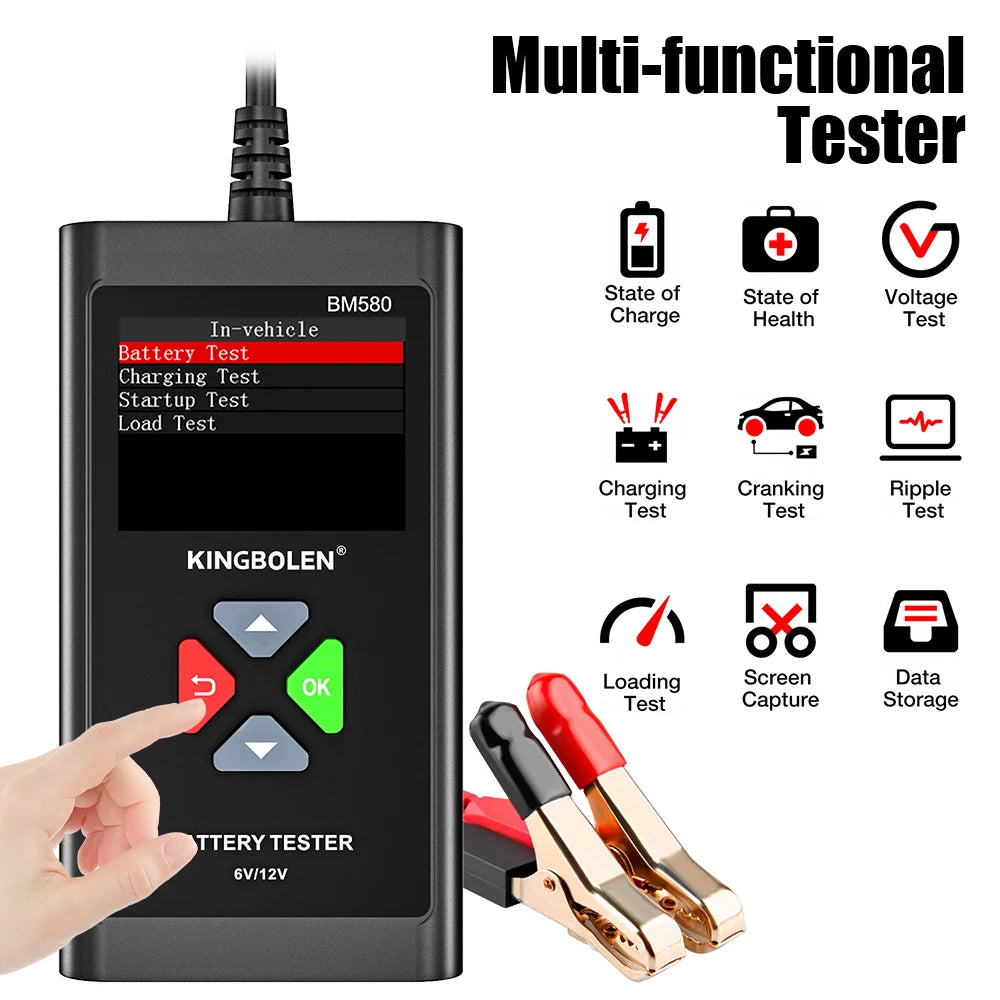

- 4-in-1 Testing Modes: Battery Health Test, Cranking Test, Charging Test & Load Test — switch between them instantly.
- Wide CCA Range: Supports 100–2000 CCA and 2 Ah–220 Ah batteries.
- 10 International Standards: CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, and GB — covers virtually every global battery standard.
- Multiple Battery Types: Regular flooded (wet), AGM flat plate, AGM spiral, EFB, and GEL batteries. Note: Cannot test lithium batteries. UPS, electric vehicle, and motorcycle batteries are limited to internal resistance, charge level, and voltage readings only.
- Voltage Waveform Monitoring: Real-time battery voltage tracking with automatic storage and playback.
- Ripple Test: Evaluates engine charging system stability for a complete electrical overview.
- Screenshot Function: Long-press Up/Down buttons to capture and store up to 10 test result screens.
- Mini USB Port – Lifetime Free Updates: No driver installation needed; firmware upgrades are quick and simple.
- 11 Language Support: English, Spanish, French, German, Italian, Polish, Portuguese, Russian, Japanese, Simplified & Traditional Chinese.

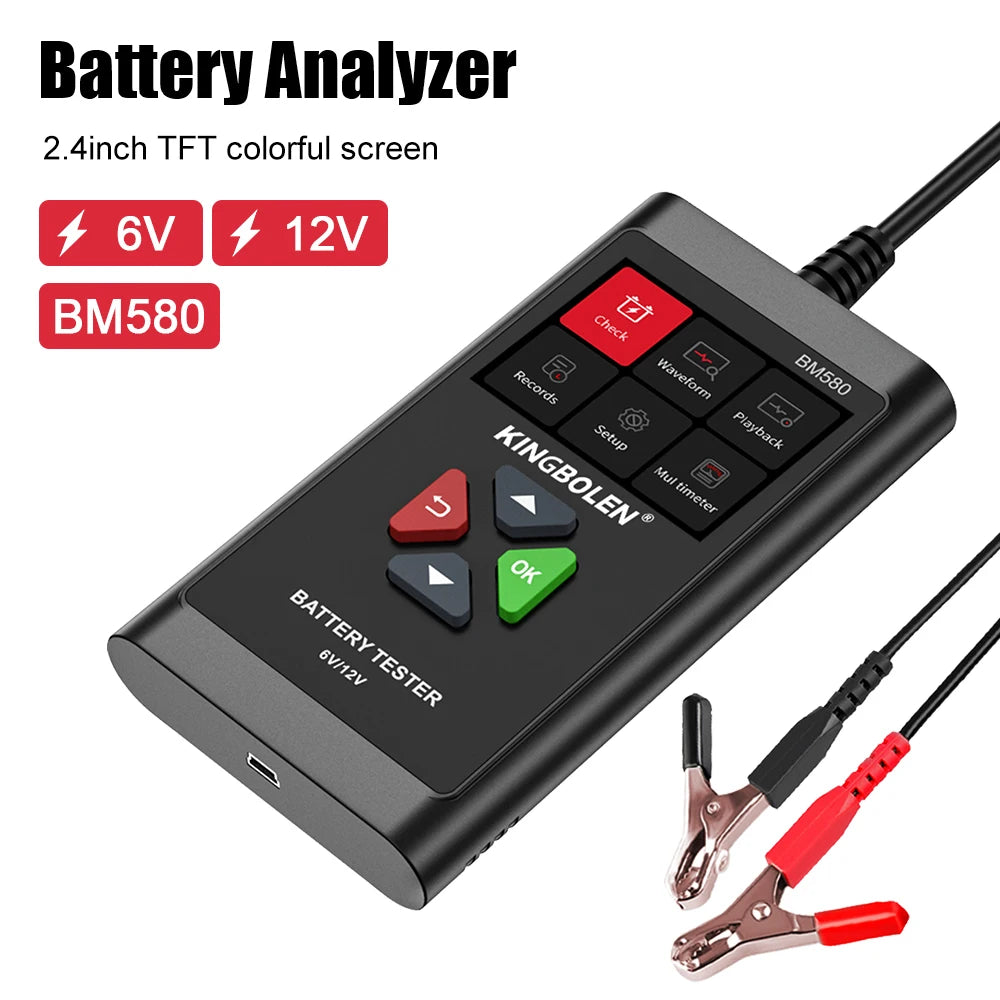

- Clear 2.4" LCD Display: Easy-to-read results with Good / Recharge / Replace outcome indicators.
Quadruple Protection System
- 🔒 Overvoltage Input Protection — Safe operation up to 20V without internal circuit damage.
- 🔒 Reverse Polarity Protection — Device and battery remain undamaged if leads are connected incorrectly.
- 🔒 Poor Contact Prompt — On-screen alert when clips aren't properly secured to terminals.
- 🔒 Built-in Audible Buzzer — Alerts you when battery condition requires attention during testing.
Premium Build Quality
- Non-Slip Grip — Designed for confident one-handed use.
- Integrated Cable Design — Stable connection that resists disconnection and wire breakage.
- Physical Buttons — Responsive tactile buttons for reliable operation in any environment.
- Pure Copper Alligator Clips — Wide jaw opening and strong bite force for a secure, precise connection.
Specifications
| Model | BM580 |
| Material | PVC, ABS, Copper |
| Display | 2.4" LCD |
| Application | 6V / 12V batteries |
| Test Range | 100–2000 CCA; 2–220 Ah |
| Operating Voltage | 5–20V |
| Operating Temperature | -20°C to 65°C |
| Certification | CE |

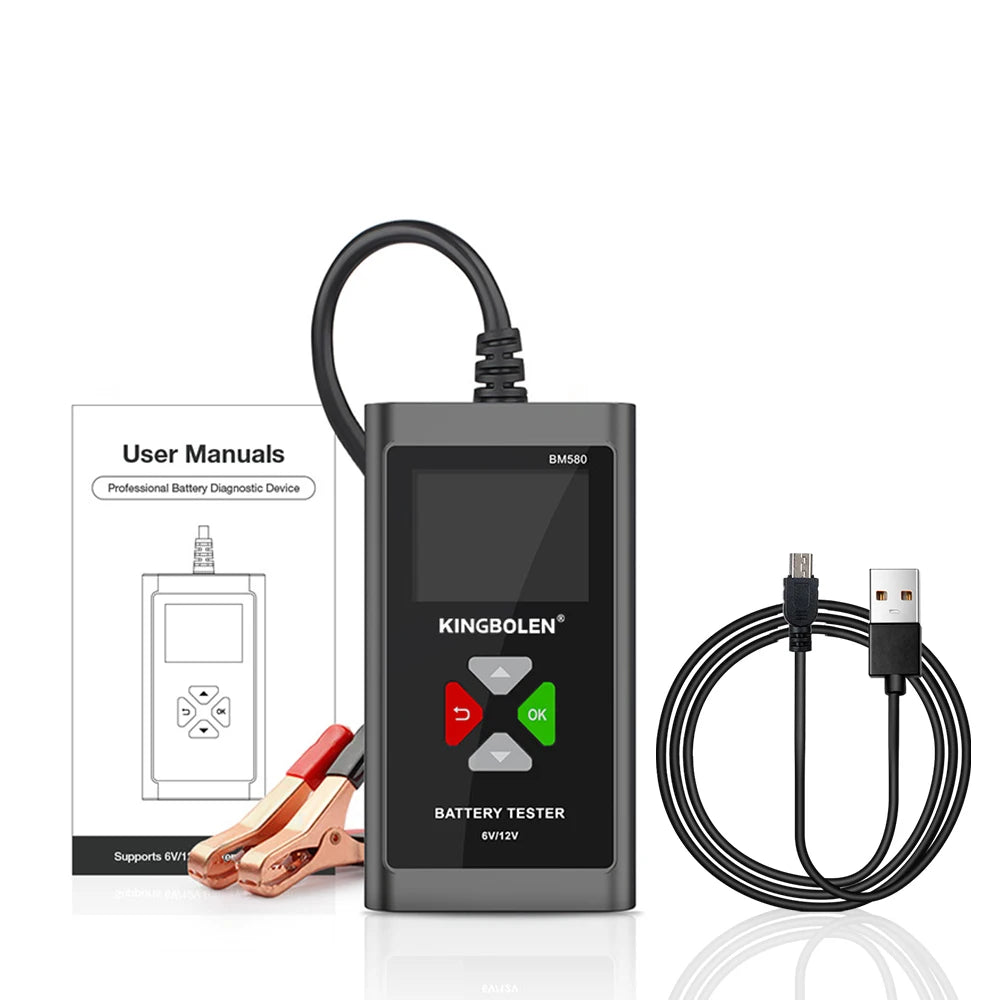

What's in the Box
- 1× BM580 Car Battery Tester
- 1× Mini USB Update Cable
- 1× User Manual
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- 60cm Motorcycle Luggage Strap – Elastic Helmet Bungee Net
Learn more: FuelEconomy.gov driving efficiency guidance
Frequently Asked Questions
Q: What battery types can the BM580 car battery tester test?
A: The BM580 supports regular flooded (wet), AGM flat plate, AGM spiral, EFB, and GEL 6V/12V lead-acid batteries. It can also measure internal resistance, charge level, and voltage on UPS, electric vehicle, and motorcycle batteries. Note: it cannot test lithium batteries.
Q: Can I use the BM580 battery analyzer while the battery is still in the vehicle?
A: Yes! The BM580 is designed to test batteries both in and out of the vehicle. Simply clamp the pure copper alligator clips to the battery terminals and follow the on-screen prompts for instant results.
Q: What international battery standards does the BM580 support?
A: The BM580 supports 10 global standards: CCA, BCI, CA, MCA, JIS (Japan), DIN (Germany), IEC, EN (European), SAE (USA), and GB (China). This makes it compatible with virtually any car battery manufactured worldwide.
Q: How do I update the firmware on the BM580?
A: Connect the included Mini USB cable to a computer. No driver installation is required — simply follow the update instructions. Firmware updates are free for the lifetime of the device, ensuring your tester stays current with new battery standards.
