BGA169/BGA153 eMMC Adapter V2.5 for RT809H Programmer

RT-BGA169-01 eMMC Adapter V2.5 — Compatible with BGA169 & BGA153

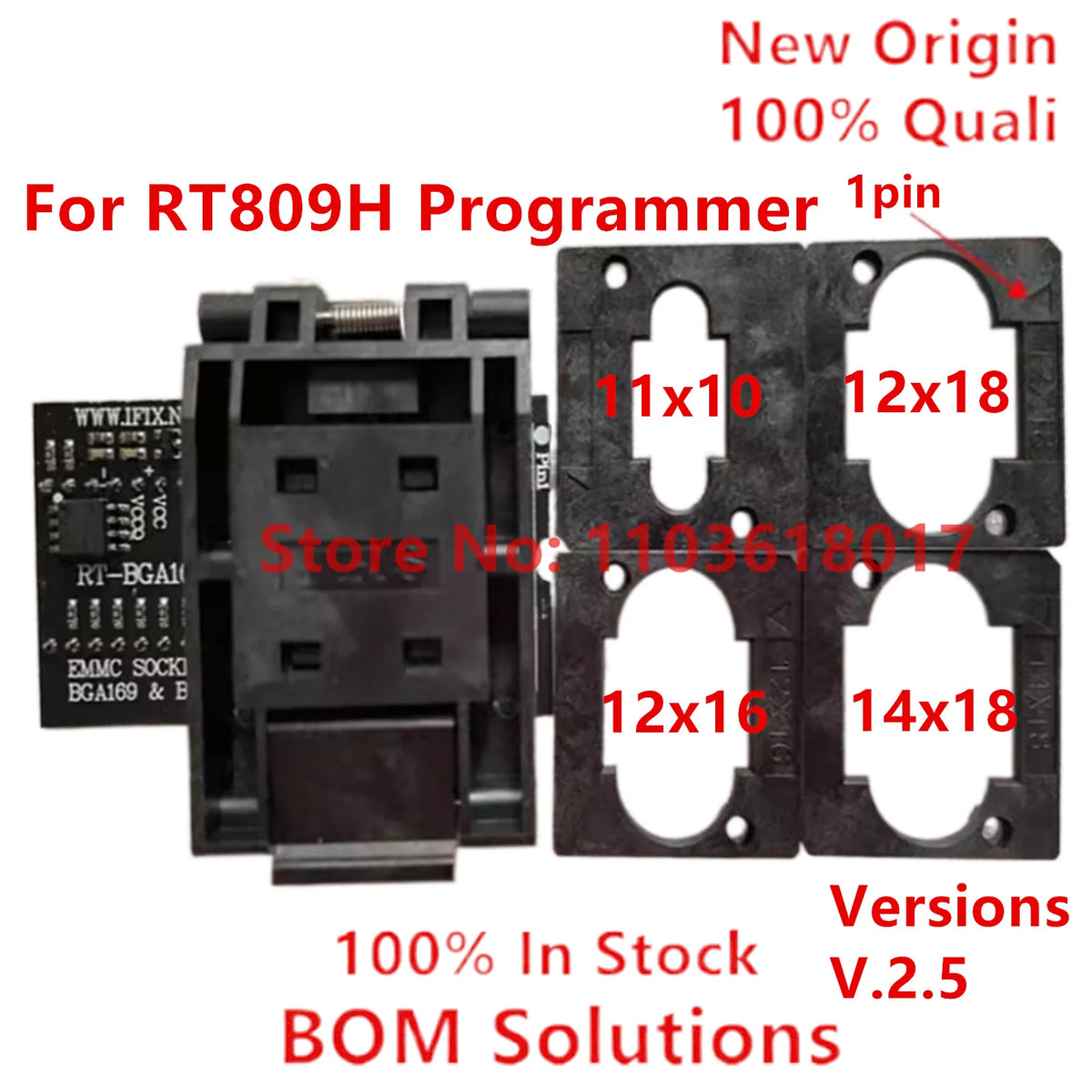

The RT-BGA169-01 BGA169/BGA153 eMMC Adapter V2.5 is a precision-engineered socket adapter designed for use with the RT809H universal programmer. Whether you're a professional technician or a dedicated electronics enthusiast, this adapter streamlines eMMC chip reading, writing, and programming with maximum reliability. The kit includes 4 BGA bounding boxes to help you accurately align and secure BGA169 and BGA153 footprint chips during programming operations.

Key Features

• Dual Compatibility: Supports both BGA169 and BGA153 eMMC chip footprints in a single adapter.
• Version 2.5: Updated design for improved contact reliability and chip seating accuracy.
• 4 BGA Bounding Boxes Included: Simplifies chip alignment during programming — reduces errors and saves time.
• RT809H Ready: Purpose-built for seamless integration with the RT809H smart programmer.
• Sturdy Construction: High-quality PCB and socket contacts for consistent, stable connections.
• Professional Grade: Ideal for eMMC data recovery, firmware flashing, chip testing, and device repair workflows.
• New Condition: Supplied brand new, ready to use right out of the box.

What's in the Box

• 1 × RT-BGA169-01 BGA169/BGA153 eMMC Adapter V2.5
• 4 × BGA Bounding Box (alignment aids)

Specifications

Related Products You May Like

• Electromagnetic Induction Tester – Coil & Circuit Fault Detector
• Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: Which programmer is the RT-BGA169-01 eMMC adapter compatible with?

A: The RT-BGA169-01 BGA169/BGA153 eMMC Adapter V2.5 is specifically designed for use with the RT809H universal smart programmer. It provides a secure and reliable socket interface for programming BGA169 and BGA153 footprint eMMC chips.

Q: What are the BGA bounding boxes used for?

A: The 4 included BGA bounding boxes are chip alignment aids. They help you precisely position BGA169 or BGA153 eMMC chips onto the adapter socket, ensuring correct pin alignment before programming — reducing the risk of misalignment and failed read/write operations.

Q: Can this adapter be used for eMMC data recovery?

A: Yes. When paired with the RT809H programmer, this adapter supports eMMC chip reading and writing, making it well-suited for tasks such as firmware flashing, data recovery, chip testing, and device repair for computers and mobile devices using BGA169 or BGA153 eMMC storage chips.
