BGA Reballing Stencil – K3LKBKB0BM LPDDR5 Laptop Chipset

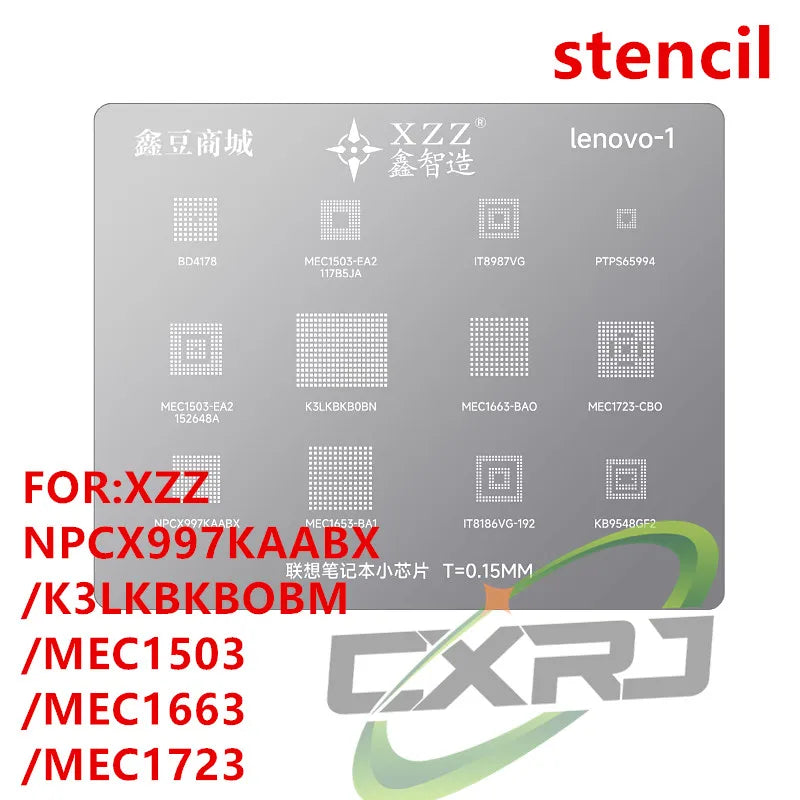

XZZ BGA Reballing Stencil for Laptop Chipsets

Precision-engineered for professional laptop board repair, this BGA reballing stencil is compatible with a range of common laptop chipsets including K3LKBKB0BM, NPCX997KAABX, MEC1503, MEC1723, and LPDDR5 memory chips. Whether you're a seasoned board-level technician or a dedicated electronics repair enthusiast, this stencil delivers the accuracy needed for clean, reliable solder ball placement every time.

Why Choose This Reballing Stencil?

• Precise Alignment: Laser-cut openings ensure perfect solder ball placement, reducing the risk of bridging or misalignment on fine-pitch BGA pads.
• Wide Chipset Compatibility: Designed specifically for K3LKBKB0BM, NPCX997KAABX, MEC1503, MEC1723, and LPDDR5 laptop chipsets — ideal for common laptop motherboard repairs.
• Durable Construction: Made from high-quality stainless steel for repeated use, heat resistance, and long service life.
• Professional-Grade Results: Helps achieve consistent solder height across all balls for reliable electrical connections after reflow.
• Easy to Use: Fits standard BGA reballing jigs and fixtures for a streamlined workflow.

Product Specifications

• Compatible Chipsets: K3LKBKB0BM / NPCX997KAABX / MEC1503 / MEC1723 / LPDDR5
• Application: Laptop / Computer Motherboard Repair
• Package: SOP (1 stencil per pack)
• Condition: Brand New
• Country of Origin: Made in China

Who Is This For?

This stencil is ideal for laptop repair technicians, electronics hobbyists, and board-level rework shops that regularly service laptops with LPDDR5 memory or embedded controller chips. It pairs perfectly with your existing BGA rework station and solder balls for a complete reballing workflow.

Looking for more tools to support your repair bench? Check out our Electromagnetic Induction Tester – Coil & Circuit Fault Detector or the Air Compressor Pressure Gauge for your DIY toolkit.

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: Which chipsets is this BGA reballing stencil compatible with?

A: This stencil is specifically designed for K3LKBKB0BM, NPCX997KAABX, MEC1503, MEC1723, and LPDDR5 laptop chipsets. Always verify your chip's exact BGA footprint before ordering to ensure proper fit.

Q: Is this stencil suitable for reuse?

A: Yes. The stencil is constructed from durable stainless steel, making it heat-resistant and suitable for multiple reballing sessions when properly cleaned and stored after each use.

Q: What solder ball size should I use with this stencil?

A: The appropriate solder ball size depends on the specific chipset's BGA pad pitch. Consult your chip's datasheet for the recommended ball diameter before starting your rework process.
