BGA Reballing Stencil Kit – PS5 CXD90060GG CXD90061GG CXD90062GG

$17.77 $21.53

BGA Reballing Stencil Template Station Kit for PS5 South Bridge & Graphics IC

Precision-engineered for professional and DIY electronics repair technicians, this BGA Reballing Stencil Kit provides a reliable solution for reworking PS5 south bridge and graphics integrated circuits — including the CXD90060GG, CXD90061GG, and CXD90062GG chipsets. The positioning plate holds your stencil firmly in place, ensuring perfect ball alignment every time for clean, consistent solder joints.

Made in Mainland China.

Key Features

Precise Fit: Designed specifically for PS5 CXD90060GG, CXD90061GG, and CXD90062GG south bridge and graphics ICs — no guesswork, no improvising.
Positioning Plate Included: The integrated station/positioning plate locks the stencil securely to prevent shifting during the reballing process, delivering accurate ball placement.
Professional-Grade Stencil: Laser-cut stencil openings ensure uniform solder ball deposition across all BGA pads for reliable reflow results.
Reusable & Durable: Built to withstand repeated use in workshop environments — clean after each use and reuse across multiple repair jobs.
New Condition: Shipped brand new, ready to use straight out of the package.
Broad Application: Ideal for computer and console motherboard repair shops, electronics hobbyists, and BGA rework specialists.

What's in the Box?

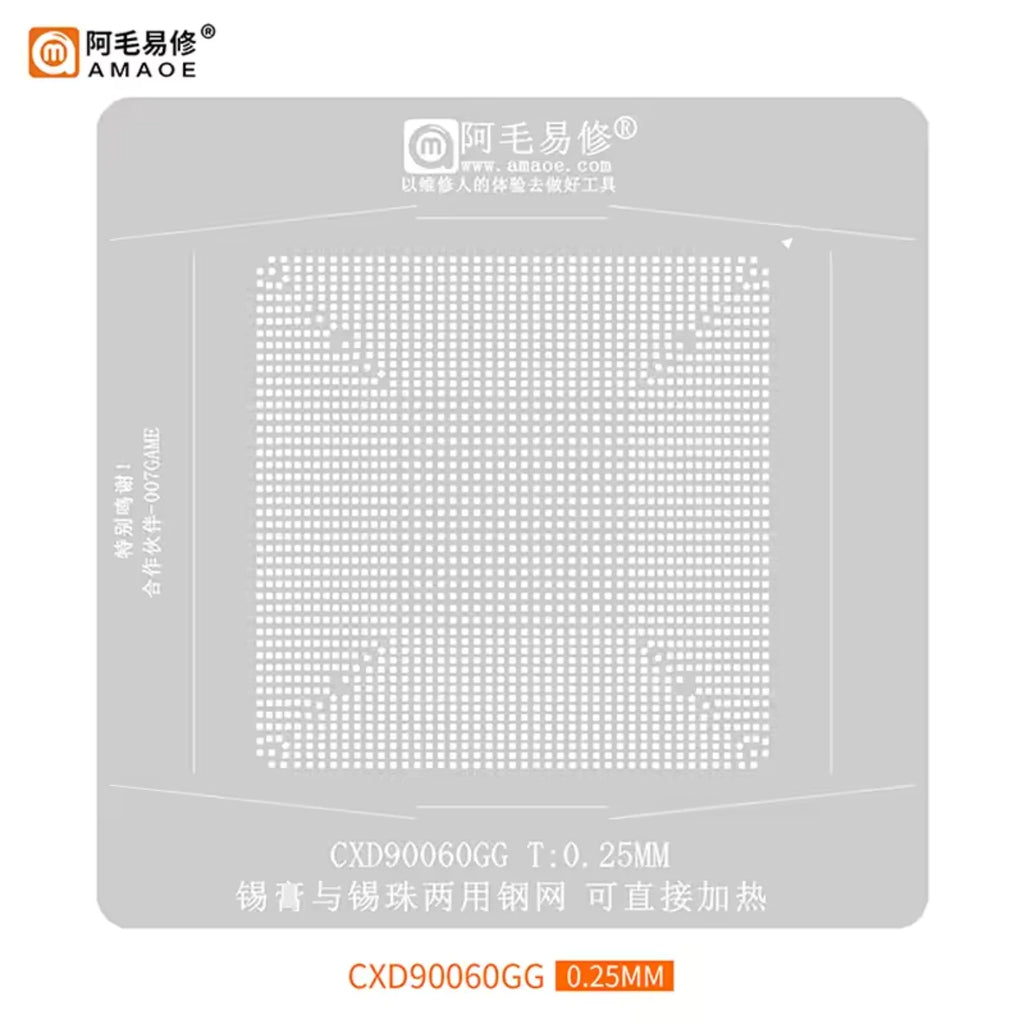

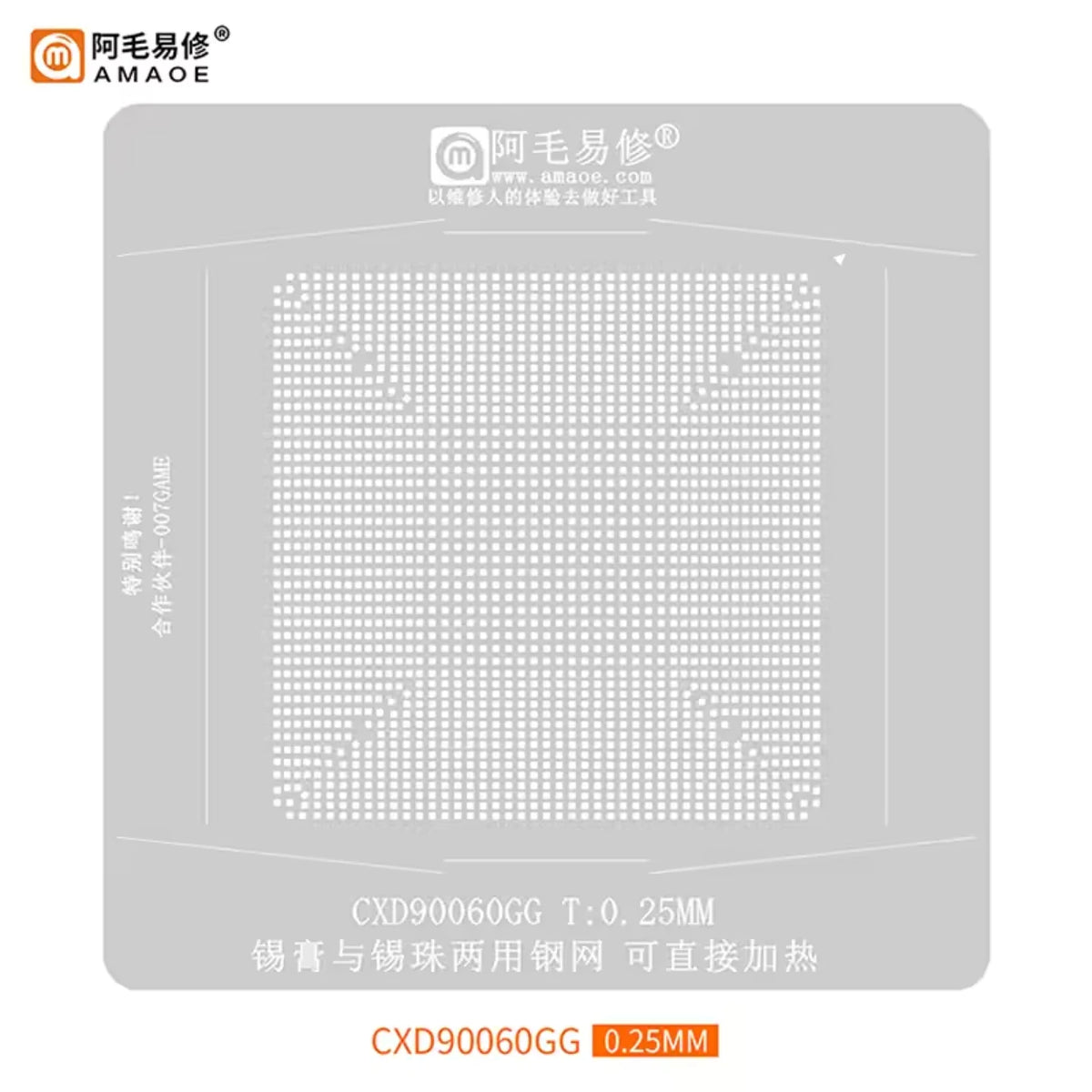

1× BGA Reballing Stencil Template
1× Positioning Plate / Station

Compatible IC Models

CXD90060GG (PS5 South Bridge)
CXD90061GG (PS5 Graphics IC)
CXD90062GG (PS5 Graphics IC)

Who Is This For?

Whether you run a professional electronics repair shop or tackle console motherboard rework as a passionate hobbyist, this kit gives you the accuracy and repeatability needed for successful BGA reballing. Stop struggling with misaligned balls and inconsistent joints — this dedicated template station makes the process straightforward and repeatable.

Related Products You May Like

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: Which PS5 IC chips is this BGA reballing stencil kit compatible with?

A: This stencil kit is specifically designed for the PS5 south bridge and graphics integrated circuits: CXD90060GG, CXD90061GG, and CXD90062GG. The laser-cut stencil openings are precisely matched to these chipsets for accurate solder ball placement.

Q: What is included in the BGA reballing template station kit?

A: The kit includes one BGA reballing stencil template and one positioning plate (station). The positioning plate secures the stencil in place during the reballing process to prevent movement and ensure consistent, accurate results.

Q: Is this BGA stencil kit reusable?

A: Yes. The stencil and positioning plate are designed for repeated use. Simply clean the stencil thoroughly after each reballing session to remove excess solder and flux, and it will be ready for your next repair job.
