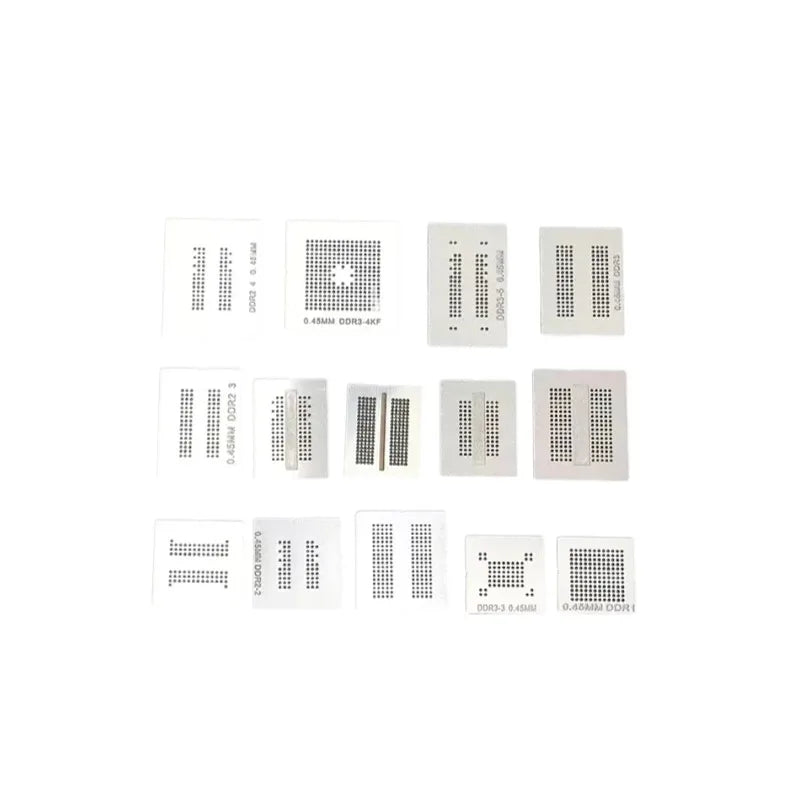

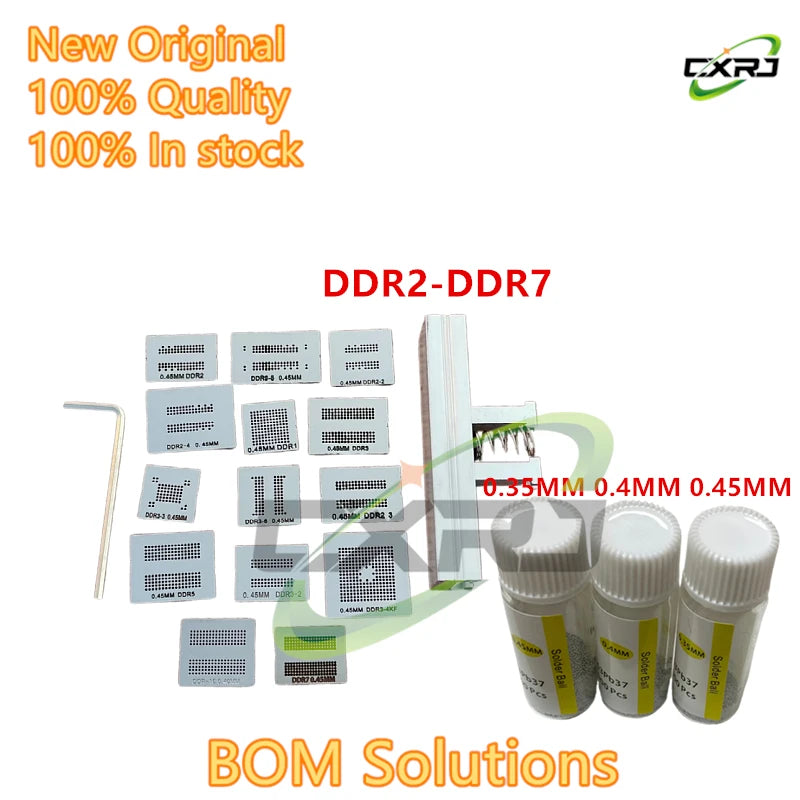

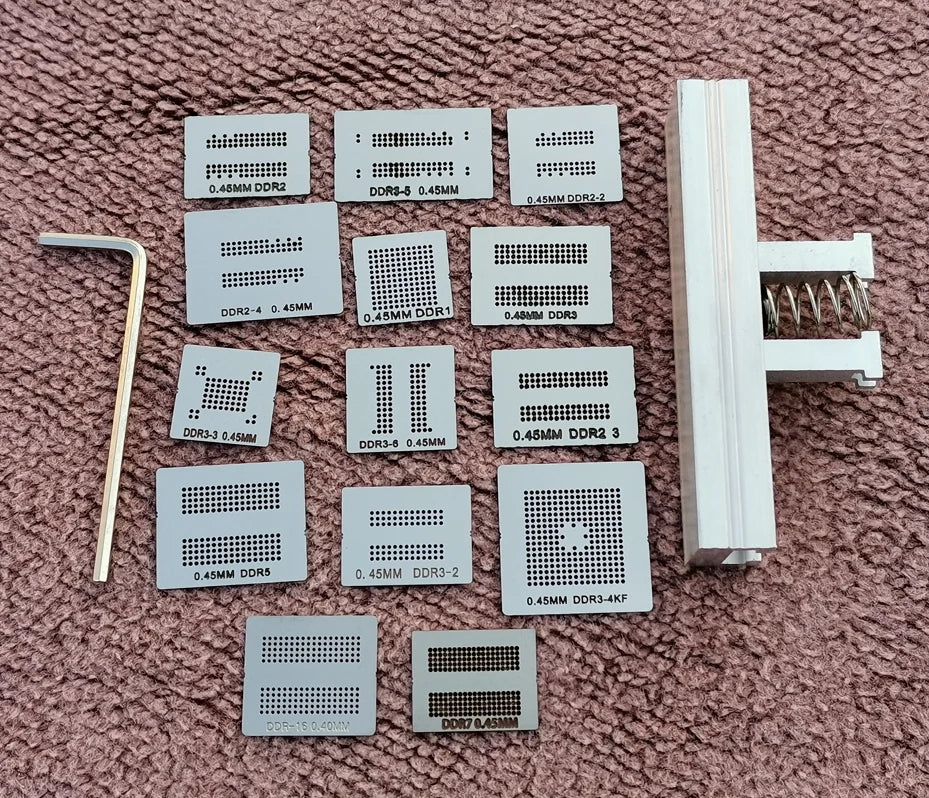

BGA Reballing Stencil Kit – DDR Memory Dedicated Set
Achieve precise, professional-grade BGA (Ball Grid Array) reballing results with this dedicated stencil kit, engineered specifically for DDR, DDR2, DDR3, DDR5, DDR6, and DDR7 memory chips. Whether you're a seasoned electronics repair technician or a dedicated hobbyist, this comprehensive kit delivers the accuracy and versatility you need for reliable solder ball placement on computer memory ICs.
Kit Highlights
- Comprehensive DDR Coverage: Includes stencils for DDR, DDR2 (variants 1, 2 & 3), DDR3 (variants 2 & 3), DDR5, DDR6, and DDR7 memory chips — one kit for virtually all common memory generations.
- Multiple Ball Pitch Options: Available in 0.35mm, 0.40mm, and 0.45mm aperture sizes to match the exact solder ball specification of your target chip.
- High-Precision Laser-Cut Stencils: Laser-cut openings ensure consistent, accurately aligned solder ball deposition every time, minimising bridging and misalignment.
- Durable Stainless Steel Construction: Thin yet rigid stainless steel plates resist warping and withstand repeated use through multiple reballing sessions.
- Flexible Quantity Options: Available in set sizes from 1 to 15 pieces, letting you choose exactly the coverage you need — ideal for occasional repairs or high-volume workshop use.
- Dedicated Design: Each stencil is purpose-built for its specific DDR memory type, ensuring the correct ball layout and pitch without the need for improvisation.
Specifications
- Compatible Chip Types: DDR, DDR2, DDR2-2, DDR2-3, DDR3-2, DDR3-3, DDR5, DDR6, DDR7
- Ball Pitch / Aperture Sizes: 0.35mm | 0.40mm | 0.45mm
- Material: Stainless Steel
- Condition: Brand New
- Application: Computer / Laptop Memory IC Reballing & Rework
- Set Size: 1 – 15 Pieces
- Country of Origin: Made in China
Who Is This Kit For?
This stencil kit is an essential addition to any electronics repair bench. It's ideal for:
- PC and laptop motherboard repair technicians
- BGA rework and reballing professionals
- Electronics hobbyists performing memory chip rework
- Repair shops handling a wide range of DDR memory generations
Related Tools & Products
Complete your repair toolkit with these related items from our store:
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector — quickly locate faults on motherboards and circuit boards.
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool — a handy gauge for any workshop environment.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What DDR memory types are compatible with this BGA reballing stencil kit?
A: This dedicated kit covers DDR, DDR2, DDR2-2, DDR2-3, DDR3-2, DDR3-3, DDR5, DDR6, and DDR7 memory chips, making it one of the most comprehensive DDR-focused BGA stencil sets available for electronics repair and rework.
Q: Which ball pitch sizes are available, and how do I choose the right one?
A: The stencils are offered in 0.35mm, 0.40mm, and 0.45mm aperture sizes. The correct pitch depends on the specific memory chip you are reballing — always check the chip's datasheet or reference the original solder ball diameter before selecting your stencil size.
Q: How many stencils are included in the set?
A: You can choose a set size ranging from 1 to 15 pieces. Selecting a larger set gives you stencils across multiple DDR generations and/or pitch sizes, which is recommended for repair shops handling a variety of memory chip types.
Q: Are these stencils reusable?
A: Yes. The stainless steel construction makes these stencils durable and reusable across many reballing sessions. After each use, clean residual flux and solder paste from the stencil to maintain aperture accuracy for future use.
