XZZ BGA Reballing Stencil – Direct Heating Template for Laptop & Desktop GPUs
Achieve precise, professional-grade GPU reballing with this high-quality BGA direct heating stencil from XZZ. Engineered for technicians and repair professionals who demand accuracy, this stencil is compatible with a wide range of popular GPU and CPU chipsets — including the GTX1650, RX580, RTX4070, RTX3050, RX5700XT, GTX1080Ti, and SR2WB — making it one of the most versatile reballing tools in your kit.
Made in Mainland China.
Why Choose This BGA Stencil?
- Direct Heating Design: Compatible with direct heating reballing stations — no need for universal holders in most setups, saving time and reducing alignment errors.
- Laser-Cut Precision: Fine, accurate apertures ensure consistent solder ball placement for reliable, clean joints on every reflow.
- Broad GPU Compatibility: Supports a wide lineup of NVIDIA and AMD chipsets including GTX1650, RX580, RTX4070, RTX3050, RX5700XT, GTX1080Ti, and SR2WB.
- Durable Stainless Steel Construction: Built to withstand repeated use across multiple reballing sessions without warping or degrading.
- New Condition: Ships brand new, ready to use straight out of the package.
- Compact & Reusable: Lightweight and easy to store — a must-have for any electronics repair workbench.
Compatible Chipsets Include:
- NVIDIA: GTX1650, RTX4070, RTX3050, GTX1080Ti

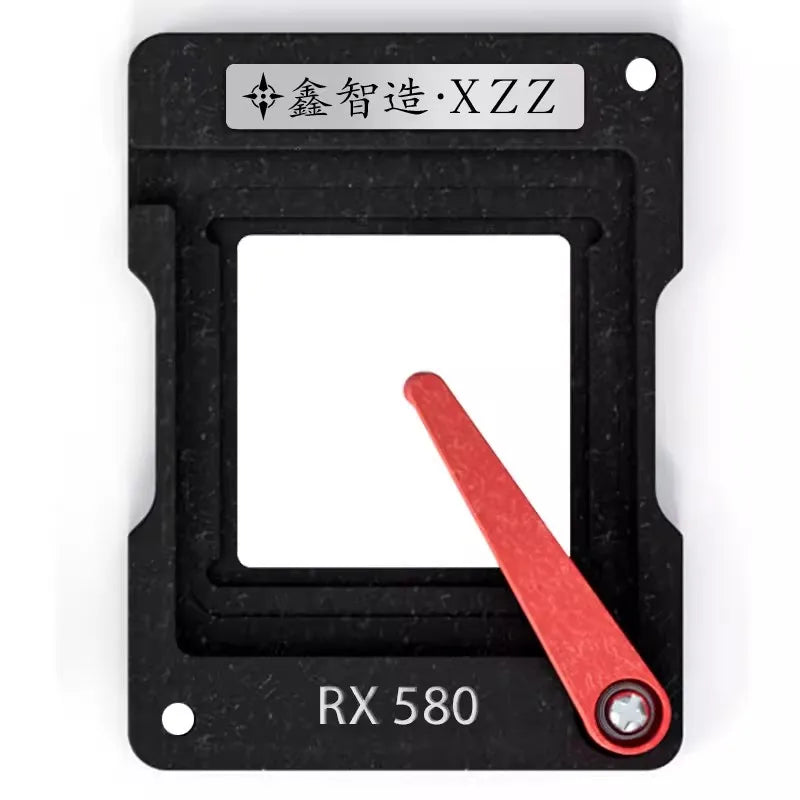

- AMD: RX580, RX5700XT
- Intel: SR2WB
Product Specifications
- Type: BGA Direct Heating Reballing Stencil / Template
- Application: Laptop & Desktop GPU / CPU Chip Reballing
- Condition: New
- Quantity: 1 Stencil
- Origin: Mainland China
Related Tools You May Like
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What is a BGA reballing stencil and how does it work?

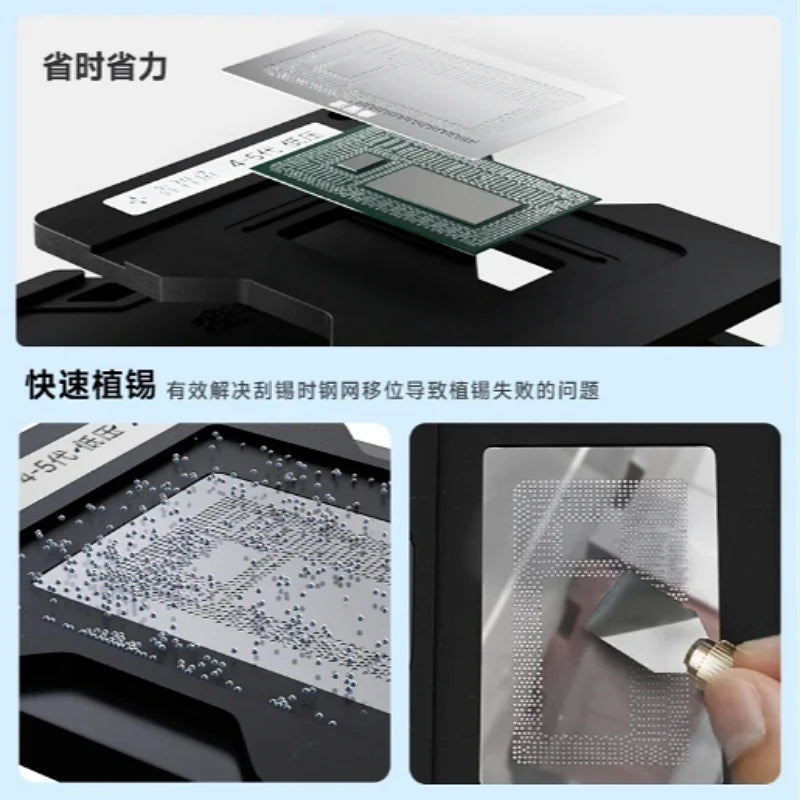

A: A BGA (Ball Grid Array) reballing stencil is a precision-cut metal template used to evenly place solder balls onto GPU or CPU chip pads during a reballing process. The stencil is aligned over the chip, solder balls or paste are applied through the apertures, and heat is used to reflow and seat the new solder balls — restoring reliable electrical connections.
Q: Is this stencil compatible with my GPU model?
A: This stencil is designed for a wide range of popular NVIDIA and AMD GPUs including the GTX1650, RX580, RTX4070, RTX3050, RX5700XT, GTX1080Ti, and the Intel SR2WB chipset. Please verify your specific chip's BGA footprint matches the stencil aperture layout before purchasing.
Q: Does this stencil work with direct heating reballing stations?
A: Yes — this is a direct heating BGA template, designed to be used directly with hot air or IR reballing stations without requiring a universal stencil holder, streamlining your workflow for faster, more accurate results.
Q: How durable is this reballing stencil?
A: Constructed from high-quality stainless steel, this stencil is built for repeated use. With proper cleaning and storage after each session, it can be used across many reballing jobs without loss of accuracy or structural integrity.
