12V 24V 48V Battery Charge Discharge Controller XY-CD60

$54.16 $67.16

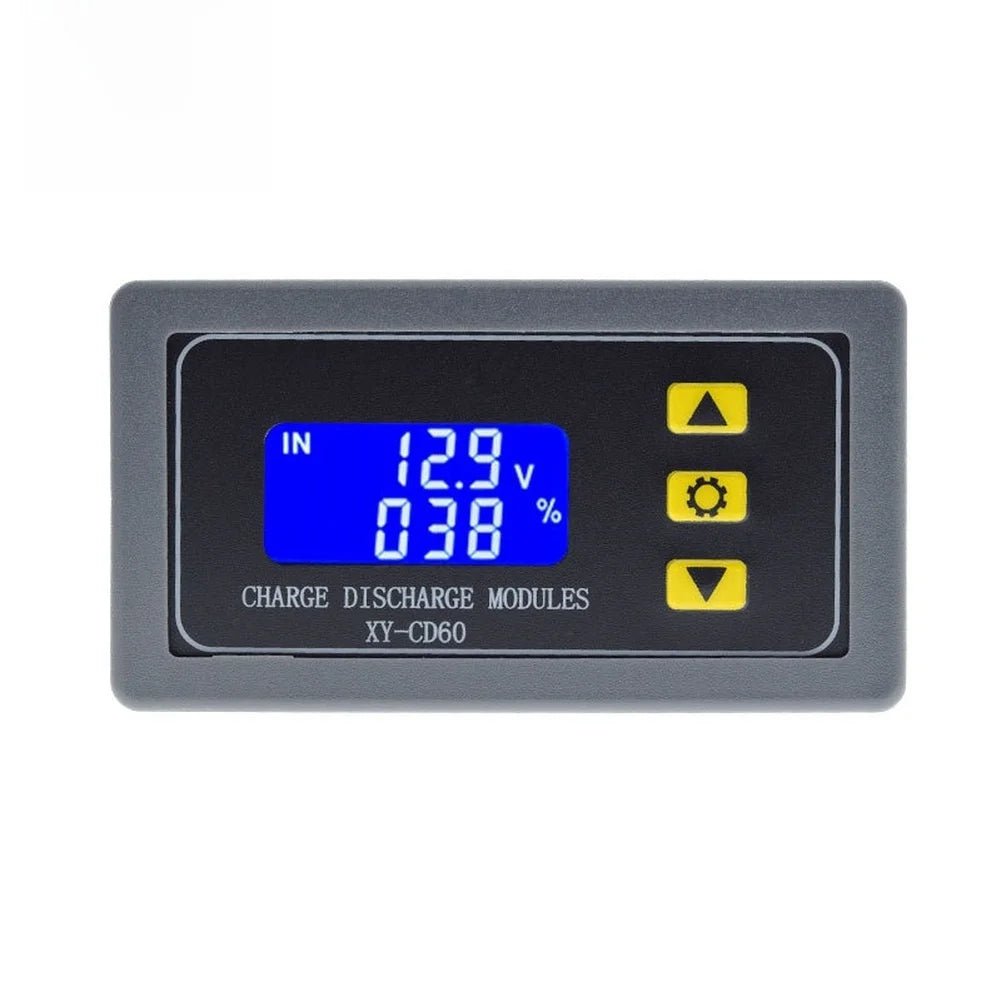

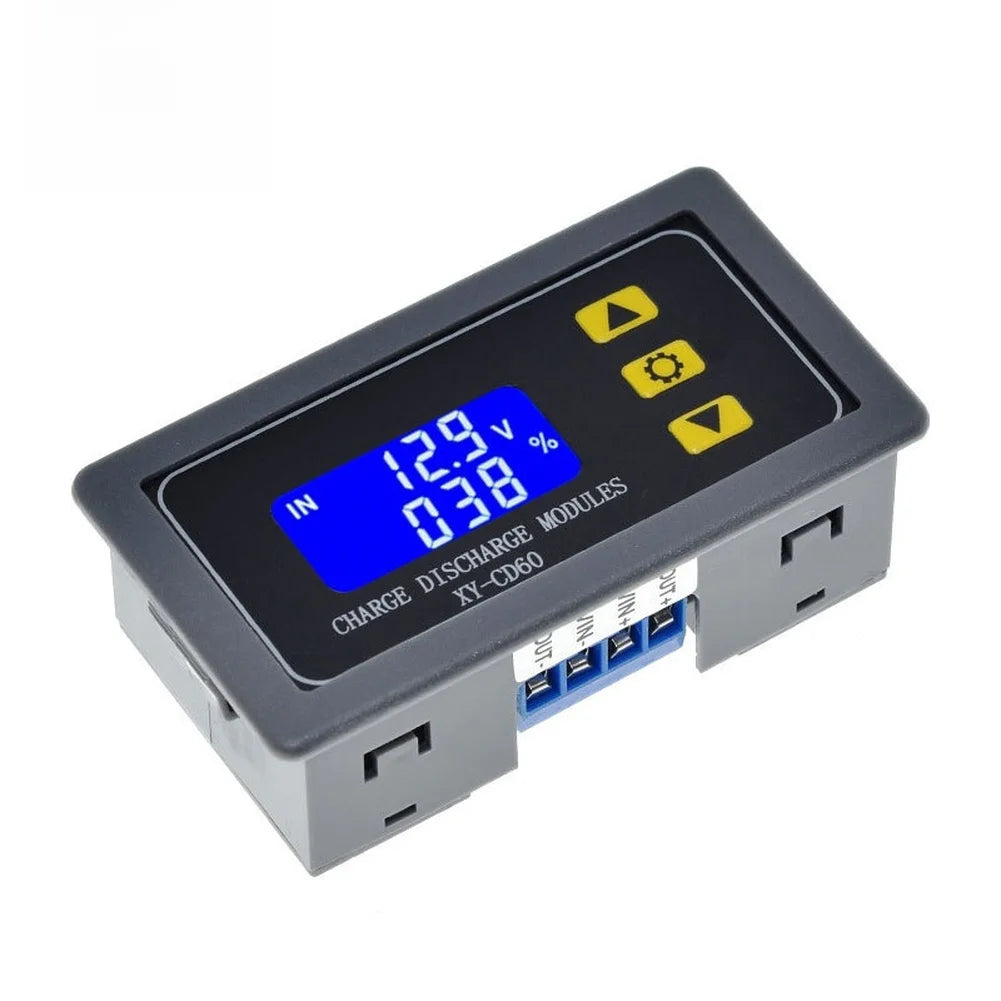

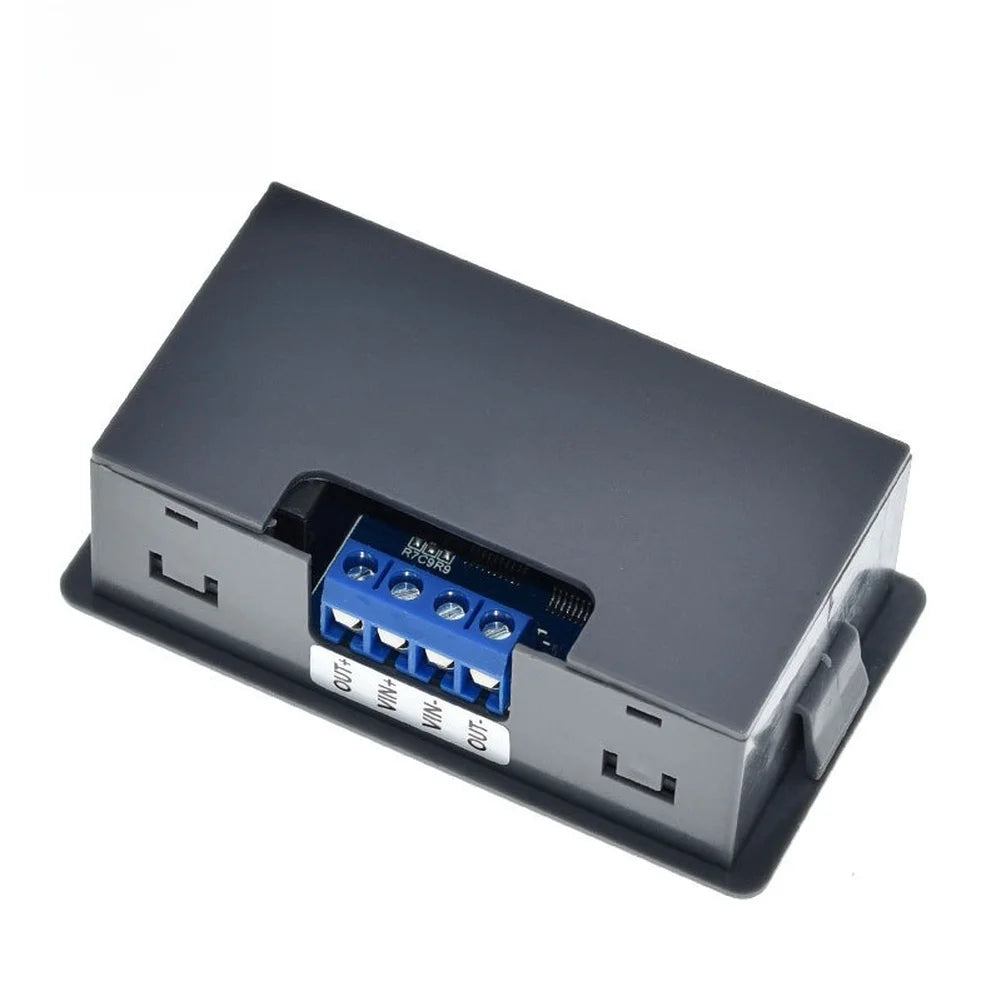

XY-CD60 Battery Charge & Discharge Controller – 6V to 60V Auto Cut-Off Module

Take full control of your battery charging and discharging cycles with the XY-CD60 Battery Charge Discharge Controller. Compatible with 12V, 24V, and 48V systems (and any DC voltage from 6V to 60V), this compact module automatically cuts power when your battery reaches its programmed voltage threshold — protecting both lithium and lead-acid batteries from overcharging or over-discharging. Whether you're building a solar storage system, an off-grid power bank, or an automated charging station, this versatile relay controller delivers precise, programmable battery management.

Made in Mainland China.

Key Features

Automatic Charge Cut-Off: Instantly disconnects charging current when the battery reaches full capacity, extending battery lifespan and preventing overcharge damage.

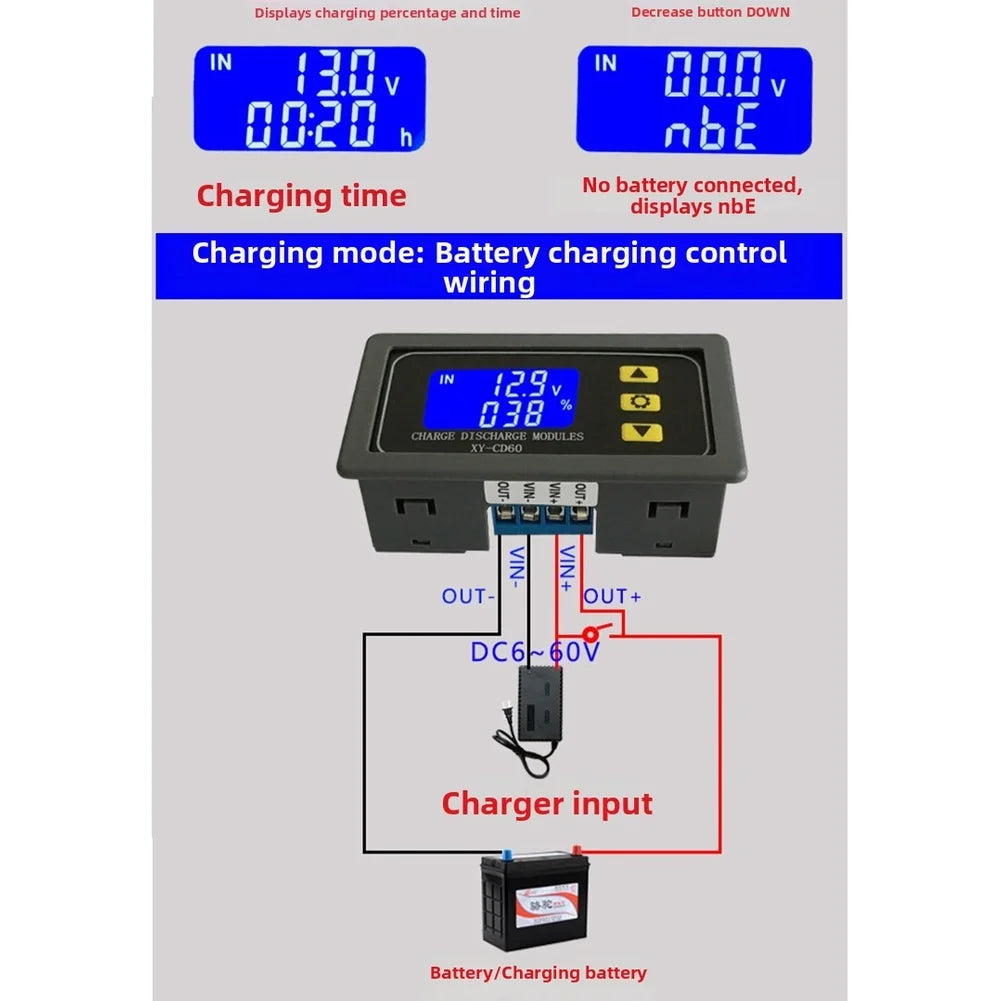

Dual Mode – Charge (IN) & Discharge (OUT): Independently control both charging and discharging circuits from a single module for complete battery management flexibility.
Wide Voltage Range (6V–60V): Works seamlessly with 6V, 12V, 24V, 36V, 48V, and 60V systems — compatible with lithium, LiFePO4, and lead-acid battery types.
Fully Adjustable Voltage Thresholds: Set custom upper and lower voltage cut-off points to match the exact specifications of your battery pack.
Programmable Time Control: Schedule charging or discharging durations from 00:00 up to 99:59 hours, with an added delay function (0–999 seconds) for smart relay sequencing.
Wide Operating Temperature: Rated for -40°C to 85°C (-40°F to 185°F), making it suitable for both indoor installations and harsh outdoor environments.

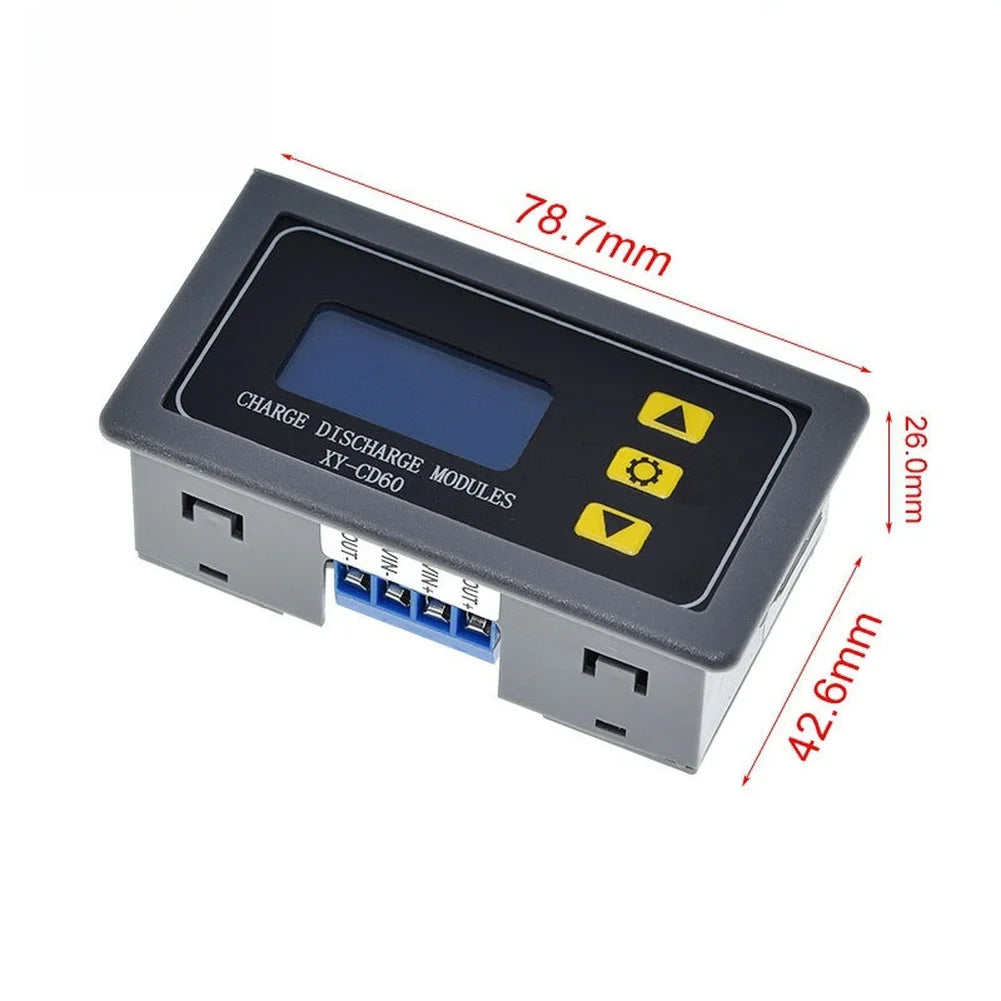

Compact & Lightweight: Measures just 78.8 × 42.9 × 38 mm and weighs approximately 43g — easy to integrate into enclosures, control panels, or DIY builds.

Technical Specifications

Model	XY-CD60
Operating Voltage	DC 6V – 60V
Charging Time Control	00:00 – 99:59 hours
Discharging Time Control	00:00 – 99:59 hours
Delay Range	0 – 999 seconds
Operating Temperature	-40°C to 85°C
Operating Humidity	0% – 95% Relative Humidity
Dimensions	78.8 × 42.9 × 38 mm
Weight	Approx. 43g
Country of Origin	Mainland China

What's in the Box

1× XY-CD60 Battery Charge Discharge Controller Module

Note: Battery not included. Colors may vary slightly from images due to monitor brightness and lighting conditions. Allow ±1–2 mm measurement tolerance.

Great for DIY Electrical Projects?

If you enjoy hands-on builds, you might also find these useful in your workshop:

Learn more: ENERGY STAR product efficiency guidance

Frequently Asked Questions

Q: What battery types is the XY-CD60 battery charge discharge controller compatible with?

A: The XY-CD60 is compatible with a wide range of battery chemistries including lithium-ion, LiFePO4, and lead-acid batteries. It operates across DC 6V to 60V, covering common system voltages of 12V, 24V, 36V, and 48V.

Q: Can I use this controller for both charging and discharging control?

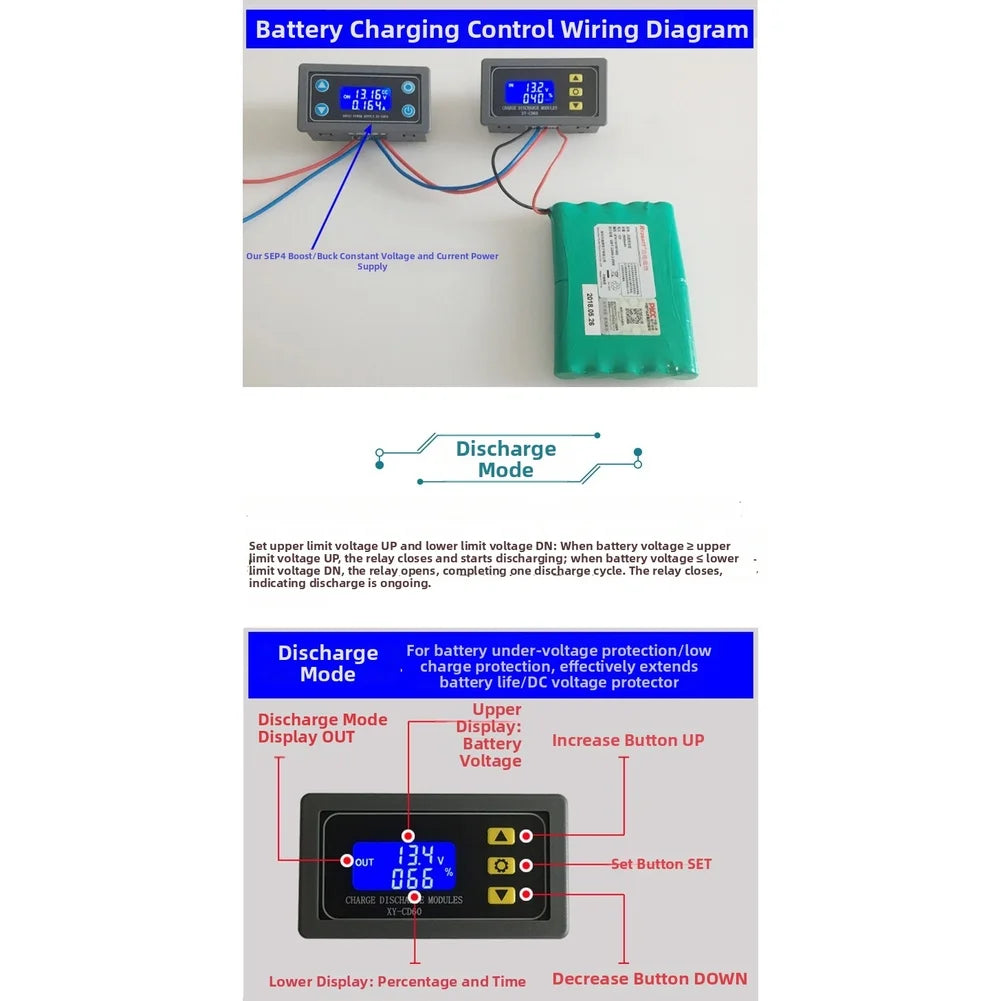

A: Yes. The XY-CD60 features dual-mode operation with independent IN (charging) and OUT (discharging) relay channels. You can program voltage thresholds and time durations for each channel independently, making it ideal for complete battery management systems.

Q: How do I set the voltage cut-off thresholds on the XY-CD60?

A: The XY-CD60 features adjustable upper and lower voltage limit settings via its onboard interface. You set your desired charge cutoff (upper) and discharge cutoff (lower) voltages to match your specific battery pack requirements, ensuring precise protection against overcharging and deep discharge.

Q: Is this controller suitable for solar or off-grid power applications?

A: Absolutely. With its wide 6V–60V input range, programmable time control (up to 99:59 hours), and automatic relay cut-off, the XY-CD60 is well-suited for solar battery storage systems, off-grid setups, backup power installations, and automated DIY charging stations.
