Auto Range Digital Multimeter – NCV, LED Flashlight & Data Hold

$54.37 $67.43

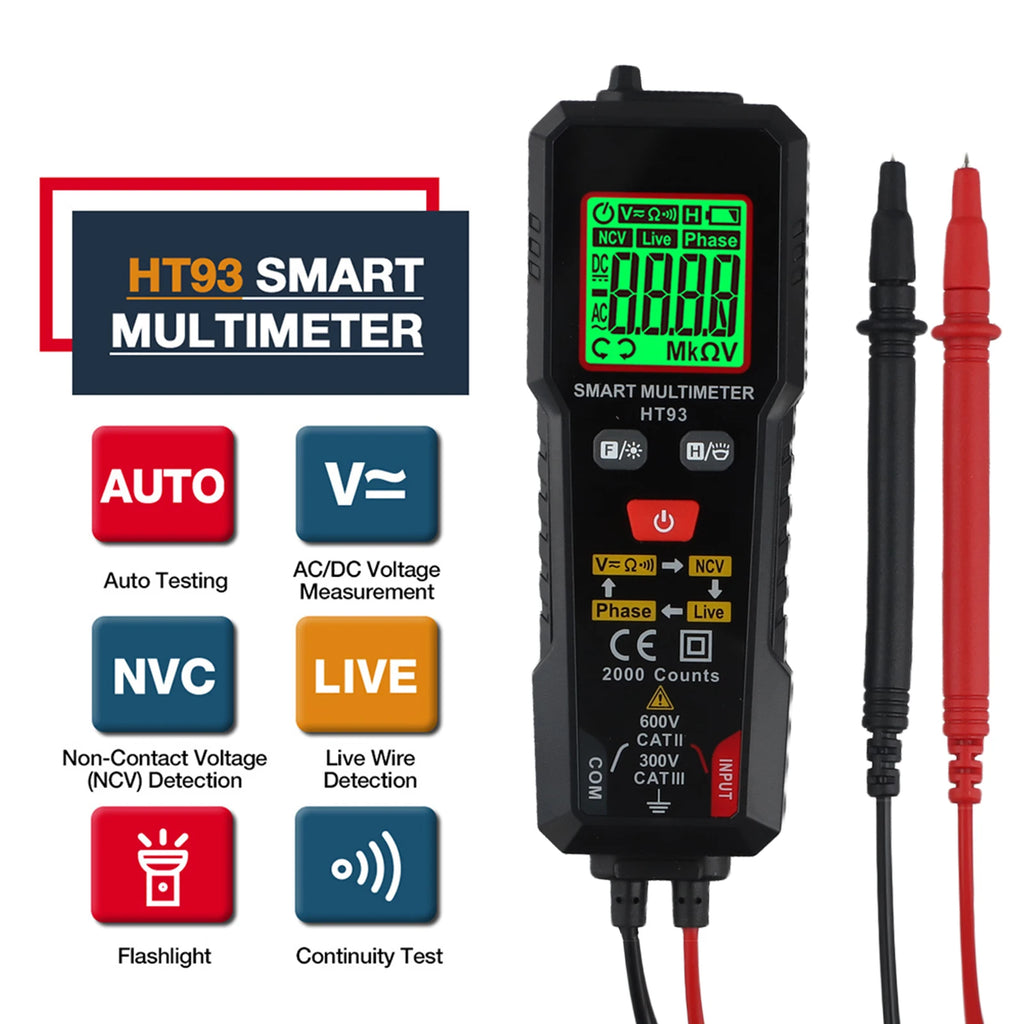

HT93 Smart Auto Range Digital Multimeter – The DIY Electrician's Essential Tool

Meet the HT93 Smart Multimeter — a feature-packed, auto-ranging digital multimeter designed for DIY enthusiasts, electricians, and hobbyists who need accurate, reliable readings in a compact, easy-to-use device. Whether you're testing home wiring, troubleshooting electronics, or checking circuit continuity, this multimeter puts professional-grade performance right in your hands.

Made in Mainland China.

Key Features

NCV Detection: The Non-Contact Voltage (NCV) sensing probe detects electric field signals without direct contact. A green backlight and "---L" display indicates a weak signal; a red backlight, audible beep, and "--H" display signal a strong field — keeping you informed and aware at every step.
Auto Range: In AUTO mode, the multimeter automatically identifies measurement signals for voltage, resistance, and continuity — no manual range-switching required.
LED Flashlight: The built-in LED work light illuminates hard-to-reach test points, making probe measurements easy even in dim or low-light environments.
Data Hold: Freeze any reading on the display with a single press so you can record measurements without rushing.
Auto Shutdown: Automatically powers off after 15 minutes of inactivity to conserve battery life.
Low Battery Indication: A dedicated icon appears in the top-right corner of the screen when it's time to swap out the batteries.
True RMS Measurement: Delivers accurate readings for both pure sine and non-sine waveforms.
High-Resolution HTN LCD Display: Clear, easy-to-read screen with backlight for precise measurement data and function symbols.
Phase Test & Continuity Check: Quickly verify circuit phase sequence and test for continuity with an audible beep.
Safety Rated: Meets EN61010-2-030, EN61010-2-033, CAT III 600V safety standards.

Full Specifications

Material	ABS Plastic
DC Voltage	2.000V / 20.00V / 200.0V / 600V, ±(0.5%+3)
AC Voltage	2.000V / 20.00V / 200.0V / 600V, ±(1.0%+3)
Resistance	2000Ω / 20.00kΩ / 200.0kΩ / 2.000MΩ / 20.00MΩ, ±(1.0%+3)
Display Counts	2000
Bandwidth	40~1KHz
Voltage Range (Battery Input)	6–24V DC
Power Supply	2 × 1.5V AAA Batteries (not included)
Weight	Approx. 66.9g
Dimensions	136.2 × 44.5 × 32mm (Lead length: 60mm)
Safety Rating	EN61010-2-030 / EN61010-2-033 / CAT III 600V

What's in the Box

1 × HT93 Smart Multimeter
1 × Detection Pen (Test Leads)
1 × English User Manual

Related Products You May Like

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: Does the HT93 digital multimeter come with batteries included?

A: The HT93 Smart Multimeter requires 2 × 1.5V AAA batteries for operation, which are not included in the package. Standard AAA batteries are widely available and easy to source locally.

Q: What does the NCV detection feature do on this auto range multimeter?

A: NCV (Non-Contact Voltage) detection allows the multimeter to sense live voltage without touching the wire or terminal directly. Simply move the NCV probe near the area being tested — a green backlight with "---L" indicates a weak field, while a red backlight, quick beep, and "--H" on screen indicate a strong electric field signal. It's a fast, safe way to check whether a circuit is live before working on it.

Q: Is this multimeter suitable for home DIY electrical projects?

A: Absolutely. The HT93 is designed with DIY enthusiasts in mind. Its auto-range feature eliminates guesswork, the built-in LED flashlight helps in poorly lit spaces, and the clear HTN LCD display makes readings easy to interpret. It is CAT III 600V safety rated, making it suitable for standard household and light commercial electrical testing.

Q: How does the auto shutdown feature work?

A: The auto shutdown function automatically powers off the multimeter after 15 minutes of inactivity. This conserves battery life and ensures the device is ready to use next time you need it — no more dead batteries from accidentally leaving it on.
