AS5600 12-Bit Magnetic Encoder – High-Precision Angle Measurement Sensor Module
The AS5600 Magnetic Encoder Module delivers ultra-precise, contactless angle measurement using 12-bit magnetic induction technology. Whether you're building robotics, motor control systems, CNC machines, or DIY Arduino projects, this sensor module offers reliable 360° rotational position sensing with minimal interference and exceptional repeatability.
Key Features
- 12-Bit Resolution: Provides up to 4096 distinct positions per full rotation for highly accurate angle detection.
- Contactless Sensing: Uses magnetic induction to detect rotation without physical contact, ensuring long-lasting durability and wear-free operation.
- 3.3V Operating Voltage: Ideal for low-power microcontroller environments, including Arduino, ESP32, and STM32 platforms.
- Wide Operating Temperature Range: Functions reliably from -40°C to +85°C, suitable for both indoor lab use and demanding environments.
- SMD Package: Compact surface-mount design makes it easy to integrate into custom PCB layouts or breadboard setups.
- I²C Interface: Simple two-wire communication protocol for easy integration with any compatible microcontroller.
- No High-Concern Chemicals: Safe and compliant for maker and educational environments.
Specifications
| Resolution | 12-bit (4096 positions/revolution) |
| Supply Voltage | 3.3V |
| Interface | I²C |
| Package Type | SMD |
| Operating Temperature | -40°C to +85°C |
| Quantity | 1 Module |
| Origin | Made in Mainland China |
What's in the Box?

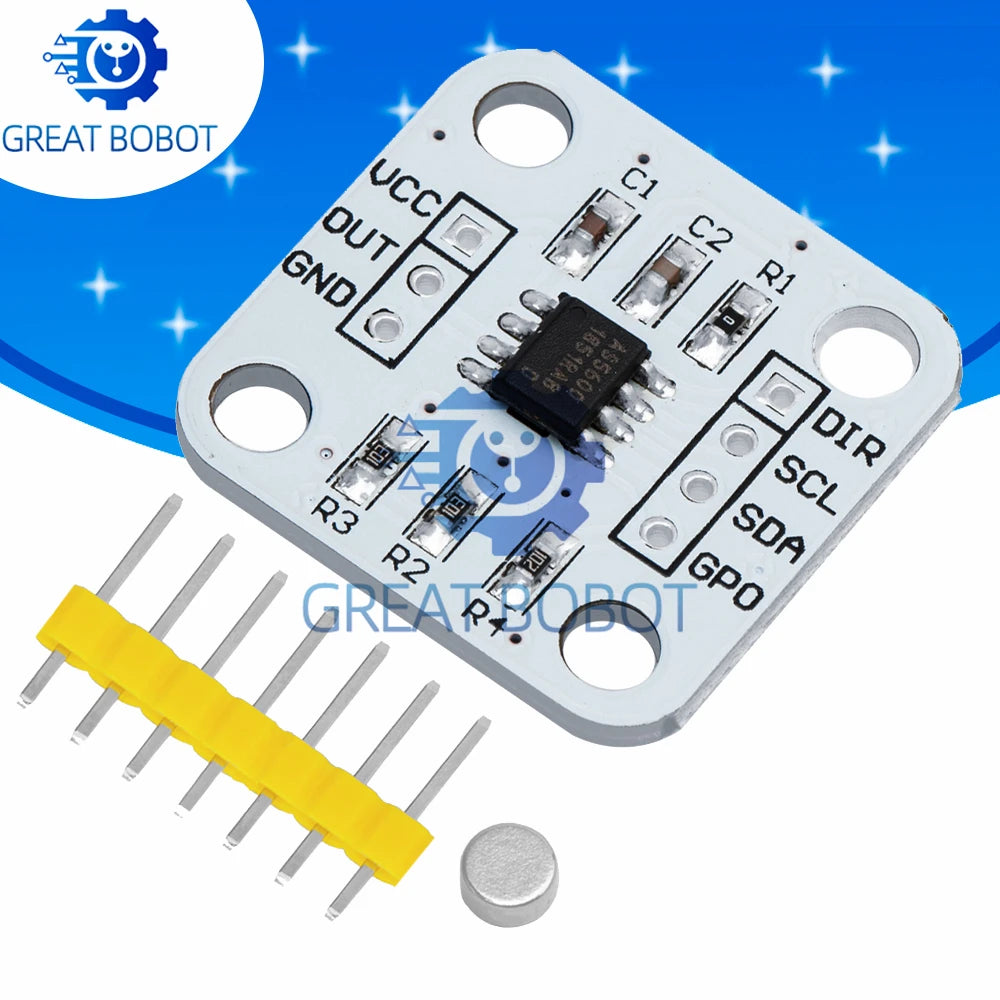

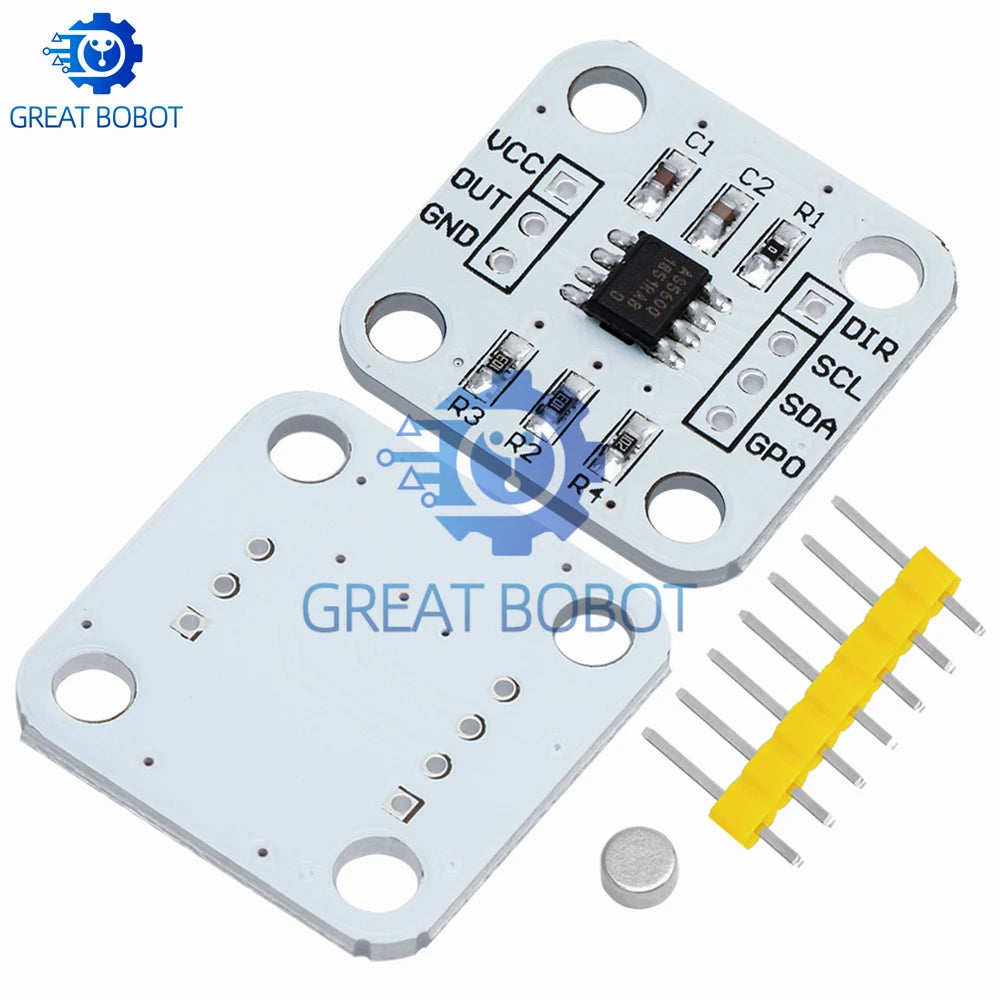

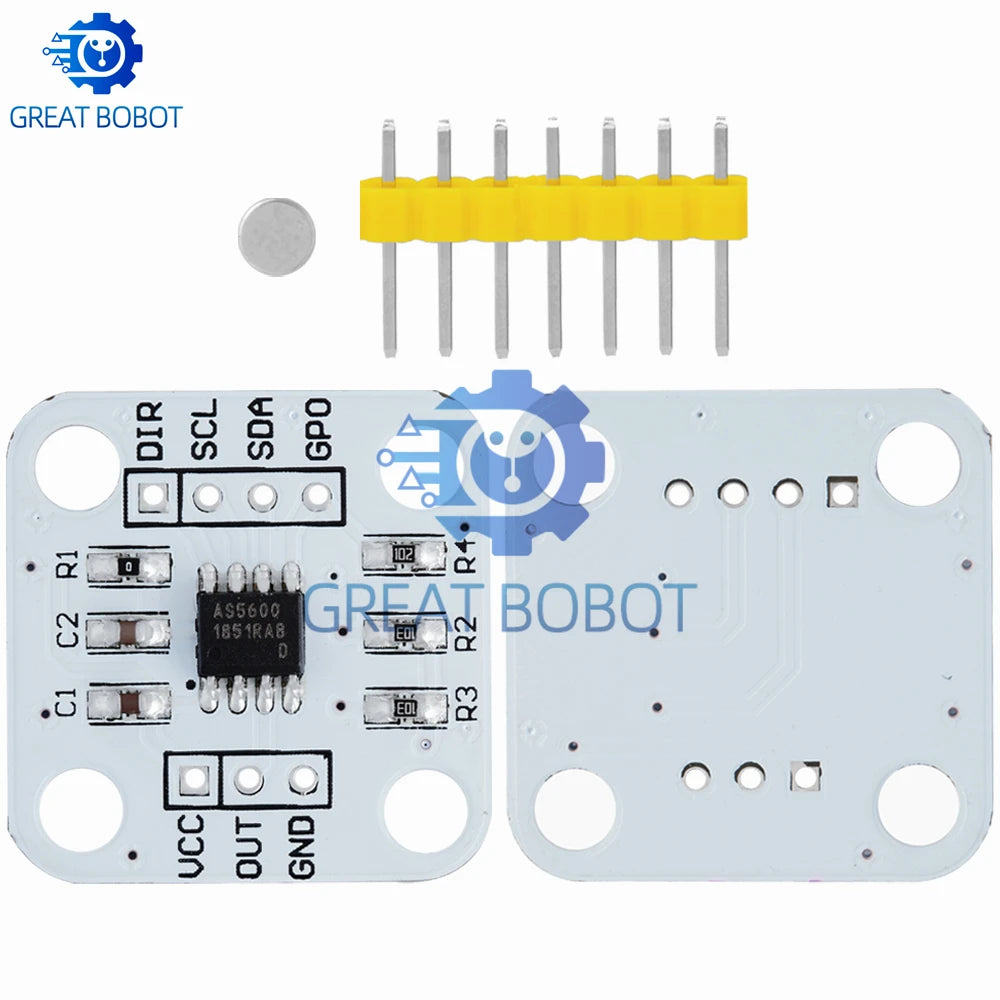

- 1 × AS5600 12-Bit Magnetic Encoder Sensor Module
Who Is This For?
This module is perfect for electronics hobbyists, engineers, students, and makers who need precise rotary position sensing in their projects. Compatible with Arduino UNO, Mega, Nano, ESP8266, ESP32, Raspberry Pi, and more.
Related Products You May Like
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Is the AS5600 magnetic encoder module compatible with Arduino?
A: Yes! The AS5600 magnetic encoder module communicates via the I²C protocol and is fully compatible with Arduino UNO, Nano, Mega, as well as ESP32, ESP8266, STM32, and most other popular microcontrollers. Numerous open-source libraries are available to get you started quickly.
Q: What magnet do I need to use with the AS5600 sensor?
A: The AS5600 works best with a diametrically magnetized disc or ring magnet placed directly above the chip. The magnet should be positioned centrally for optimal accuracy. A 6mm × 2mm diametrically magnetized neodymium magnet is commonly recommended for most applications.
Q: What is 12-bit resolution and why does it matter?
A: 12-bit resolution means the sensor can detect 4096 unique positions within a single 360° revolution. This level of precision is essential for robotics, servo motor feedback, rotary encoders, and any application where fine angular measurement is critical.
Q: Can this module operate in harsh temperature conditions?
A: Yes. The AS5600 module is rated for an operating temperature range of -40°C to +85°C, making it suitable for a wide range of environments including outdoor installations and industrial setups.
