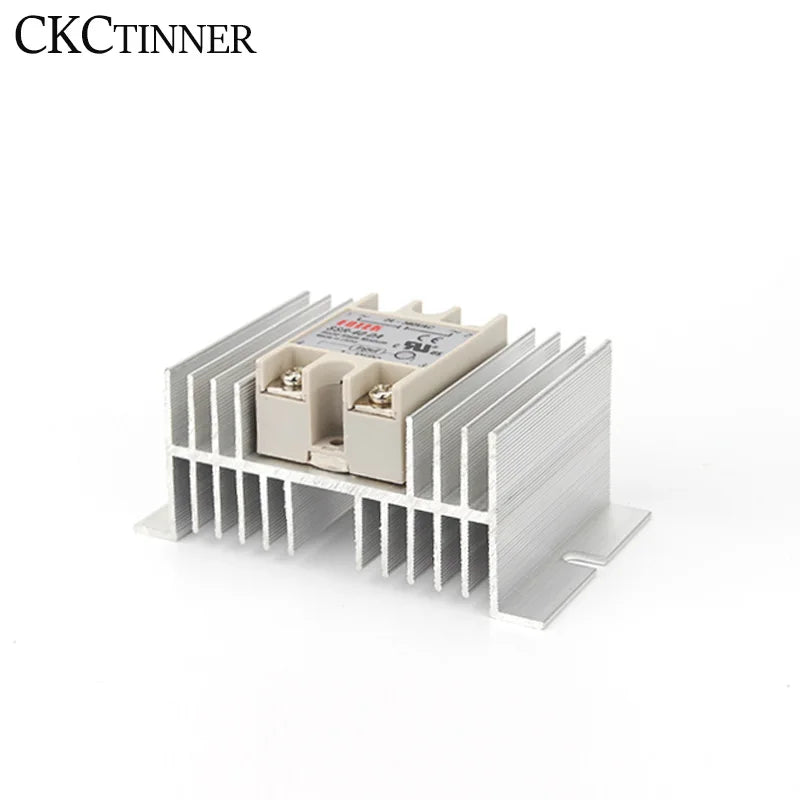

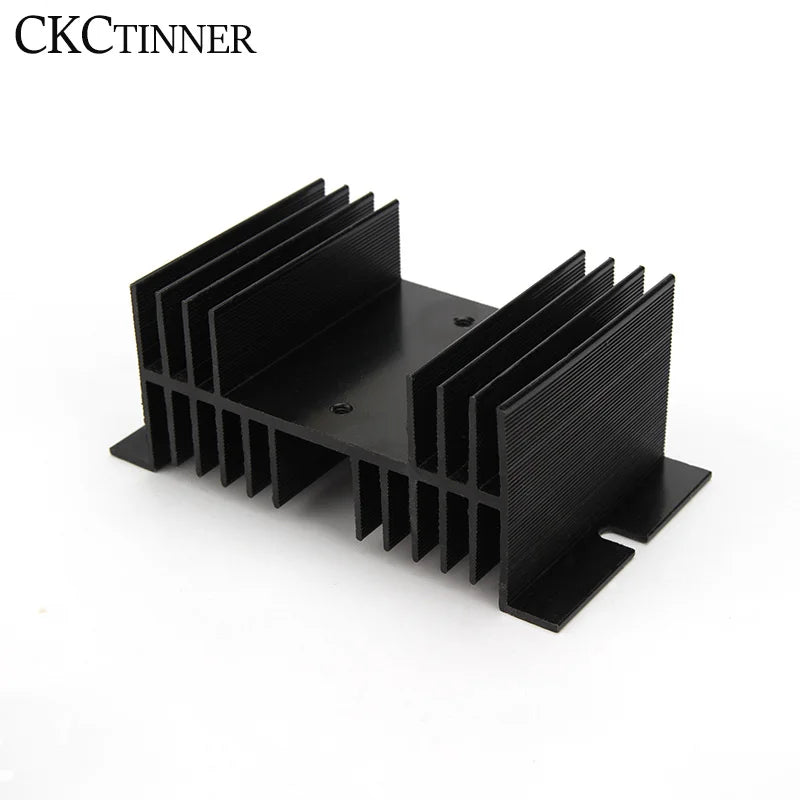

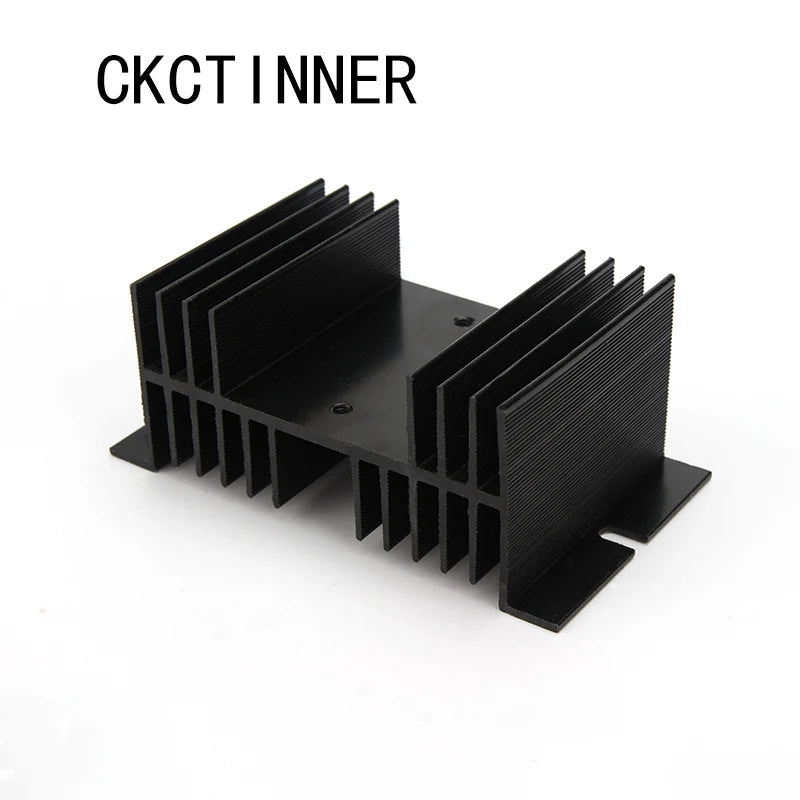

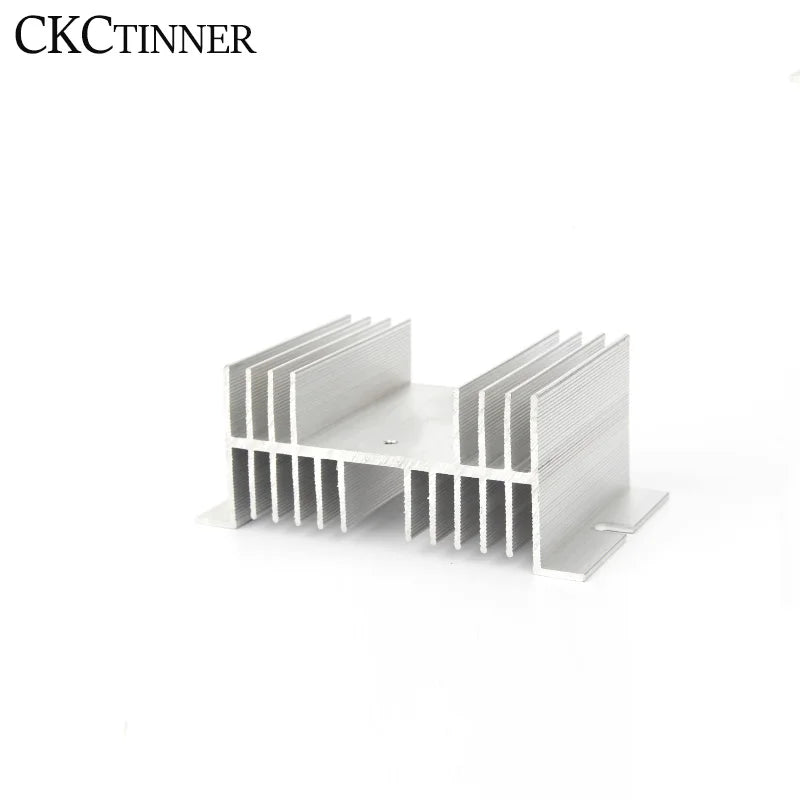

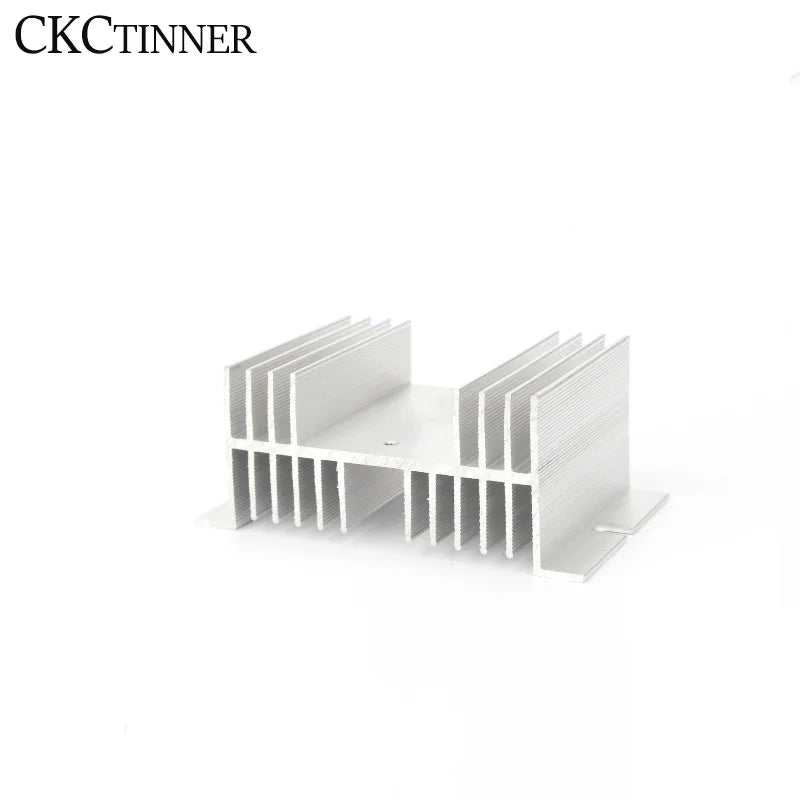

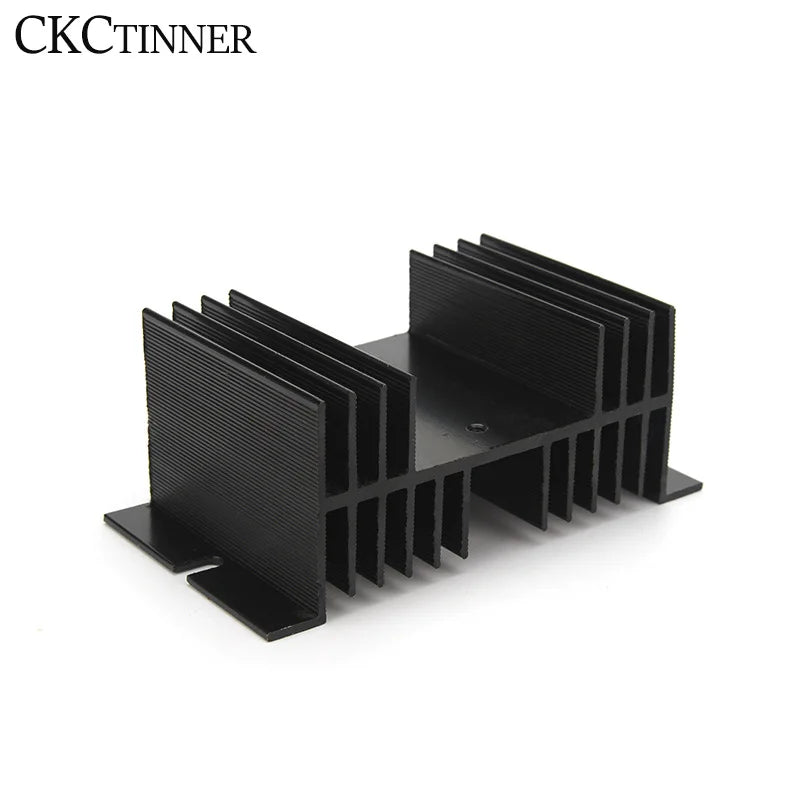

Aluminum Heat Sink for Single Phase Solid State Relay (SSR) – 10A to 100A
Keep your solid state relay running efficiently with this compact aluminum heat sink base. Engineered for single-phase SSR applications, this small-profile heat radiator dissipates thermal energy effectively, helping your relay maintain stable performance across a wide current range — from 10A all the way up to 100A.
Whether you're working on industrial automation, DIY electronics, or control panel builds, this general-purpose heat sink offers a reliable cooling solution in a space-saving design. The aluminum construction ensures excellent thermal conductivity and long-lasting durability.
Key Features
- Wide Compatibility: Suitable for single-phase solid state relays rated 10A to 100A
- Aluminum Construction: High thermal conductivity for efficient heat dissipation
- Compact / Small Type: Space-saving design ideal for control panels and enclosures
- General Purpose Use: Compatible with most standard SSR base mounting configurations
- DC Power Source Compatible: Designed for DC-driven SSR applications
- Wholesale Ready: Available for bulk purchase — great value for professionals and hobbyists alike

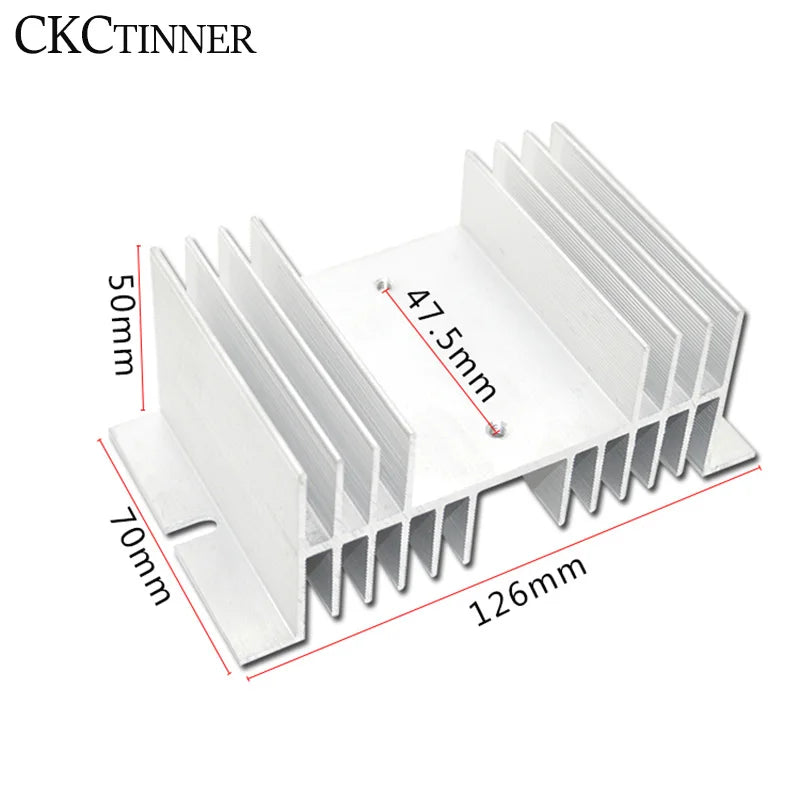

Specifications
| Material | Aluminum |
| Type | Single Phase SSR Heat Sink Base |
| Compatible Current Range | 10A to 100A |
| Power Source | DC |
| Contact Load | Low Power |
| Customized | No |
| Country of Origin | Made in Mainland China |
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What solid state relay sizes is this aluminum heat sink compatible with?
A: This SSR heat sink base is designed for single-phase solid state relays ranging from 10A to 100A. It uses a standard mounting footprint suitable for most common SSR form factors in that current range.
Q: Why do I need a heat sink for my solid state relay?
A: Solid state relays generate heat during operation, especially under higher current loads. An aluminum heat sink dissipates this thermal energy away from the relay body, helping maintain stable operation, extending the life of the SSR, and preventing thermal shutdown or component damage.
Q: Is this heat sink suitable for both indoor control panels and DIY projects?
A: Yes. Its compact, small-type profile makes it ideal for use inside electrical enclosures, control panels, automation boards, and DIY electronics builds where space is limited but effective thermal management is still required.
