Aluminum Profile Hinge Jig Kit – Hole Drilling Guide Locator

Aluminum Profile Hole Punching Guide & Hinge Jig Kit

Take the guesswork out of precise hole drilling with this professional-grade Aluminum Profile Hole Punching Guide Hinge Jig Kit. Engineered for woodworkers, metalworkers, and DIY enthusiasts, this versatile locator kit delivers accurate, repeatable holes in aluminum profiles, door frames, cabinet panels, and similar materials — every single time.

Made in Mainland China.

Key Features

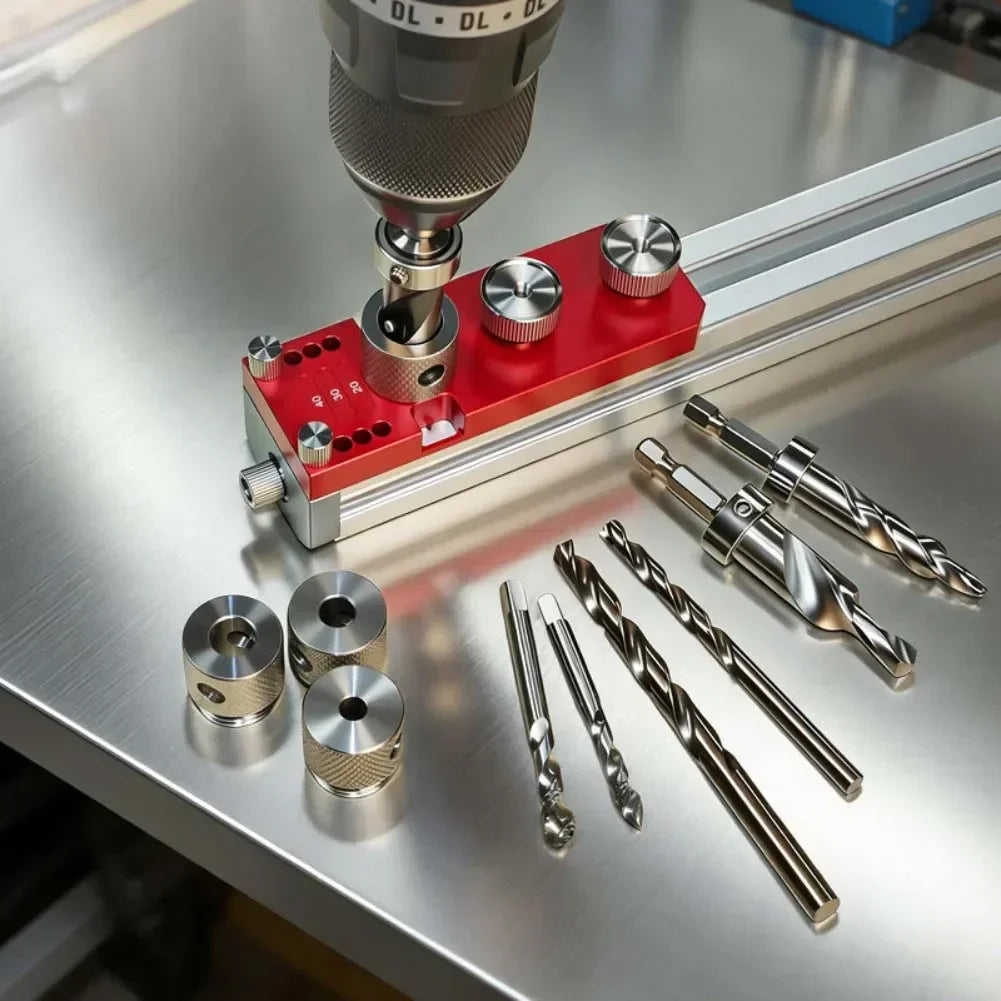

• Precision Engineering: Includes both countersink and regular drill options for smooth, efficient hole punching and tapping in aluminum profiles and similar materials.
• High-Quality Construction: Main body crafted from durable aluminum alloy; drill bits made from hardened stainless steel for long-lasting performance across countless DIY projects.
• Versatile Hole Sizes: Accommodates 6mm, 8mm, 10mm, and 14mm hole sizes, covering a wide range of project requirements with one compact kit.
• Ergonomic & Lightweight: Compact design is easy to handle and position, making it an excellent choice for beginners and seasoned professionals alike.
• Simplified Setup: Comprehensive fixture design allows straightforward application — save time and reduce errors on every job.

Specifications

Package Contents

• 1 × Aluminum Profile Hole Punching Guide Hinge Jig Kit (complete set)

Notes

• Colors may vary slightly from images due to monitor brightness and lighting conditions.
• Please allow slight manual measurement deviations for listed dimensions.

Related Products You May Like

• Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
• 18 Pc Basswood Carving Blocks – Whittling Wood Kit for Carvers
• Garden Pruner Shears – Secateurs for Bonsai & Fruit Trees

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What materials can this aluminum profile hole punching jig kit be used on?

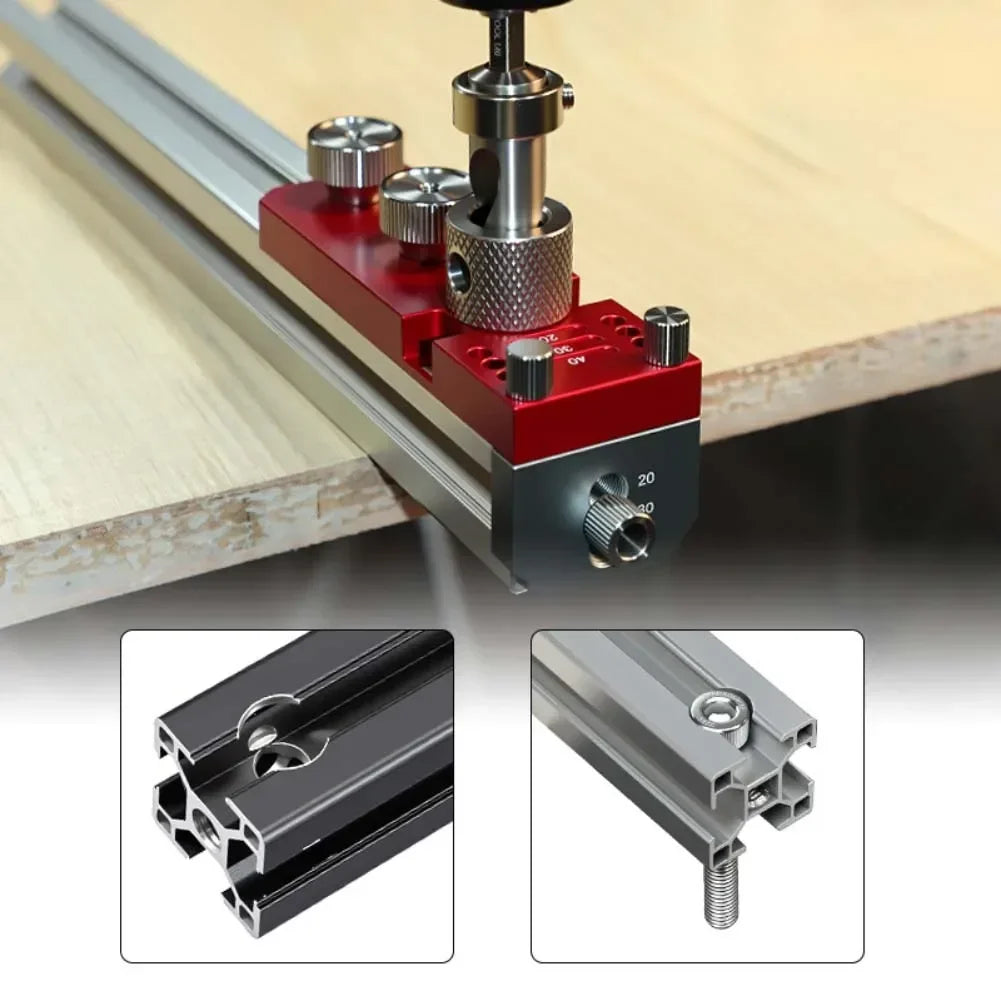

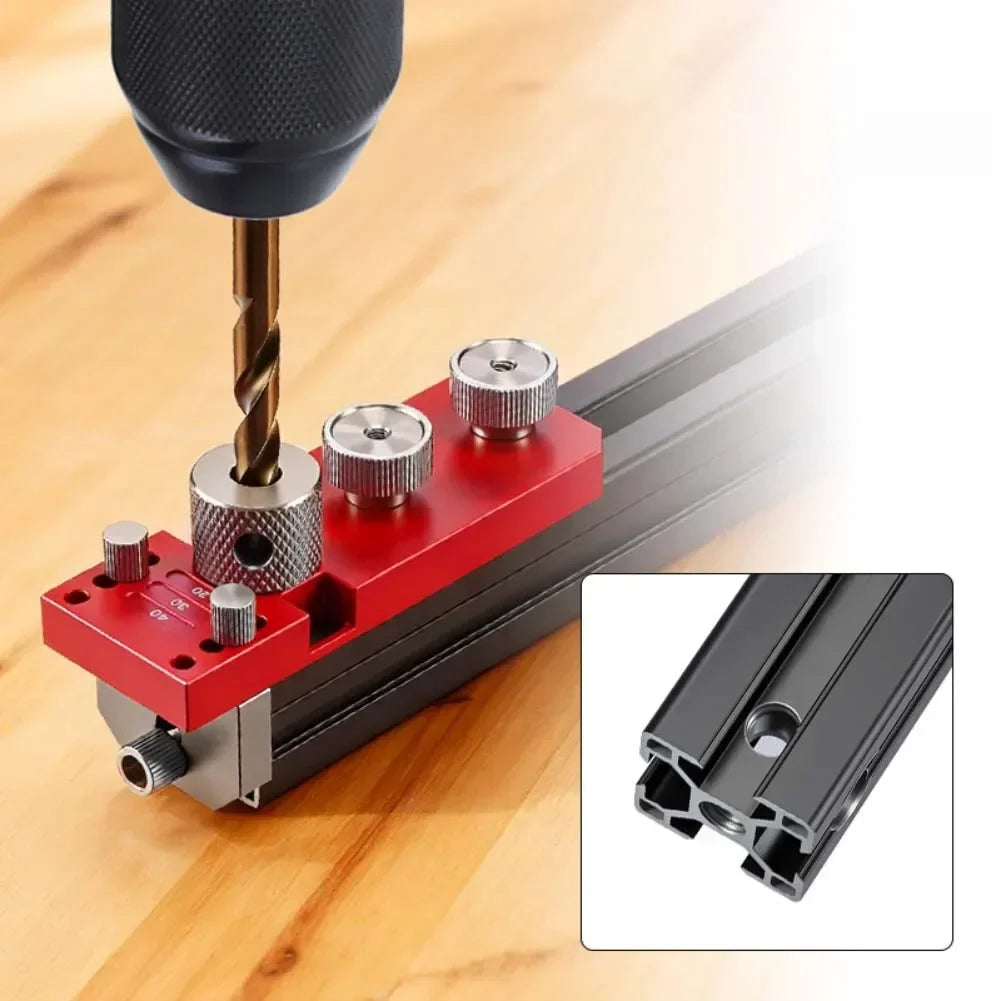

A: This hinge jig kit is primarily designed for aluminum profiles but is also suitable for similar lightweight metalwork and woodworking materials such as cabinet door panels, door frames, and extruded aluminum sections. It works best on materials compatible with M6/M8 countersink drills.

Q: What hole sizes does this drilling guide locator support?

A: The kit supports four hole sizes: 6mm, 8mm, 10mm, and 14mm, making it highly versatile for a wide range of hinge installation, fastener, and connector drilling tasks.

Q: Is this hinge jig kit suitable for beginners?

A: Yes! The ergonomic, lightweight, and compact design makes it easy to position and use, even for those new to woodworking or metalworking. The fixture guide ensures accurate hole placement without advanced measuring skills.

Q: What is included in the package?

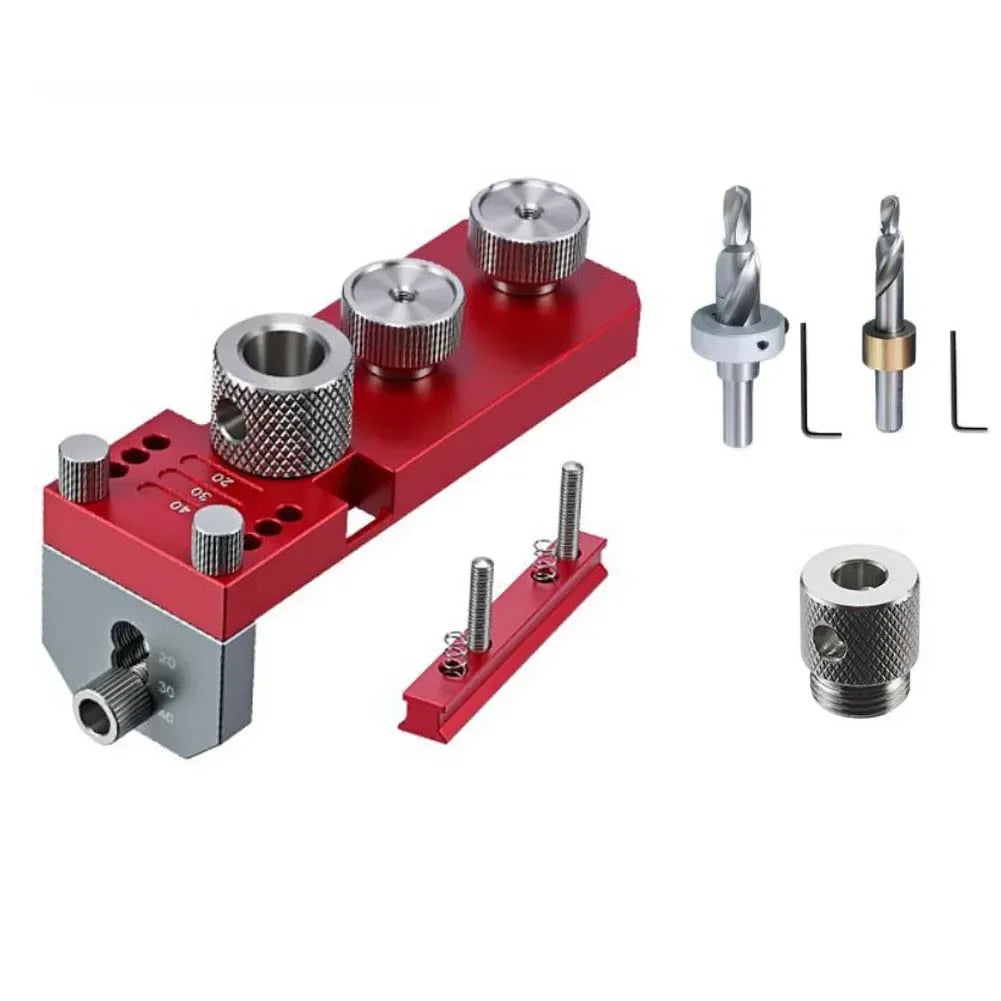

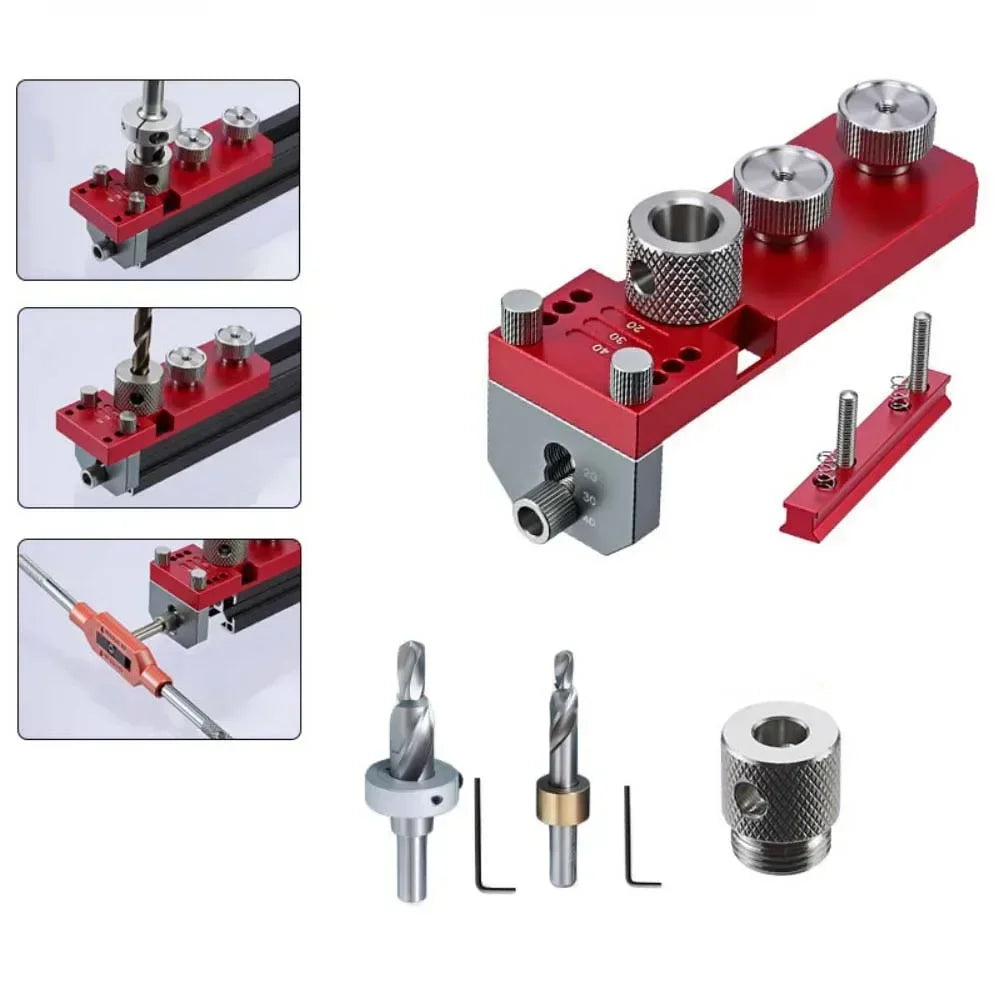

A: You receive one complete Aluminum Profile Hole Punching Guide Hinge Jig Kit set, including the aluminum alloy guide body and stainless steel drill bits (M6/M8 countersink drills).
