Aluminum Profile Hinge Jig Kit – Hole Drilling Guide Locator

Aluminum Profile Hole Punching Guide & Hinge Jig Kit

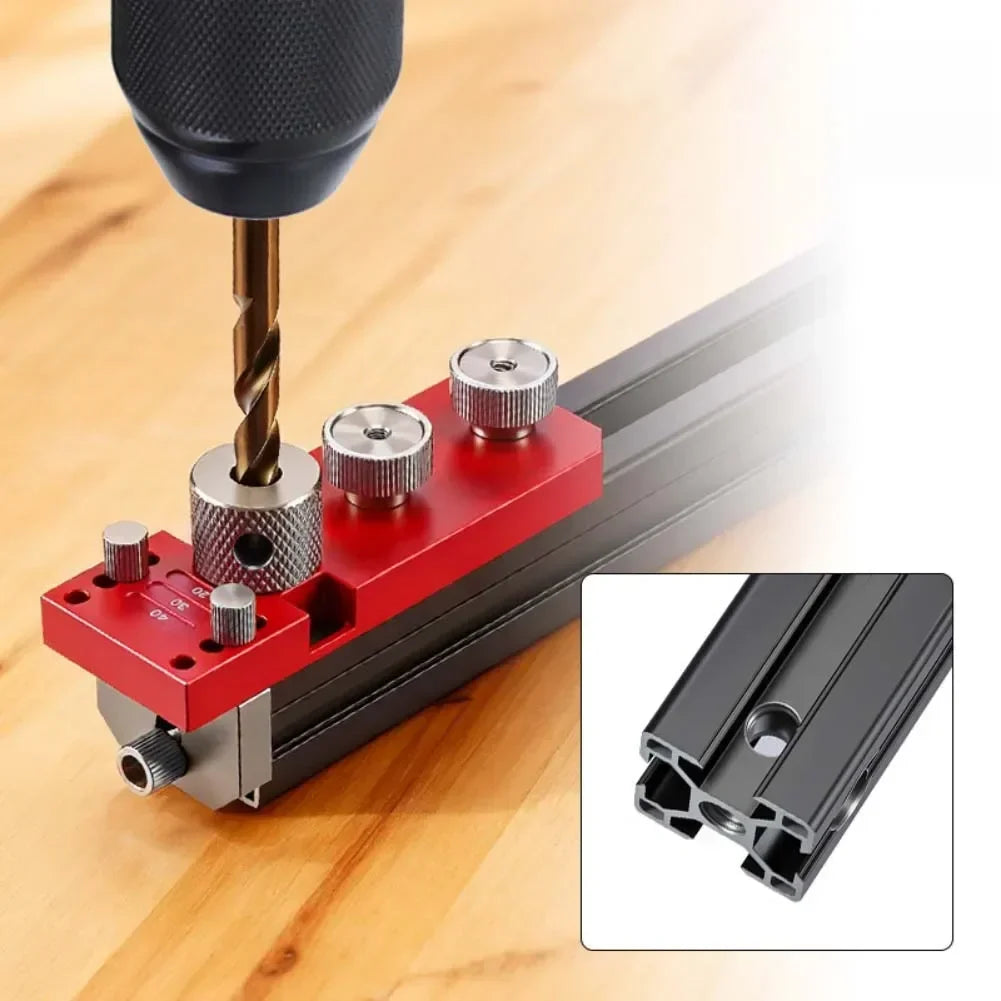

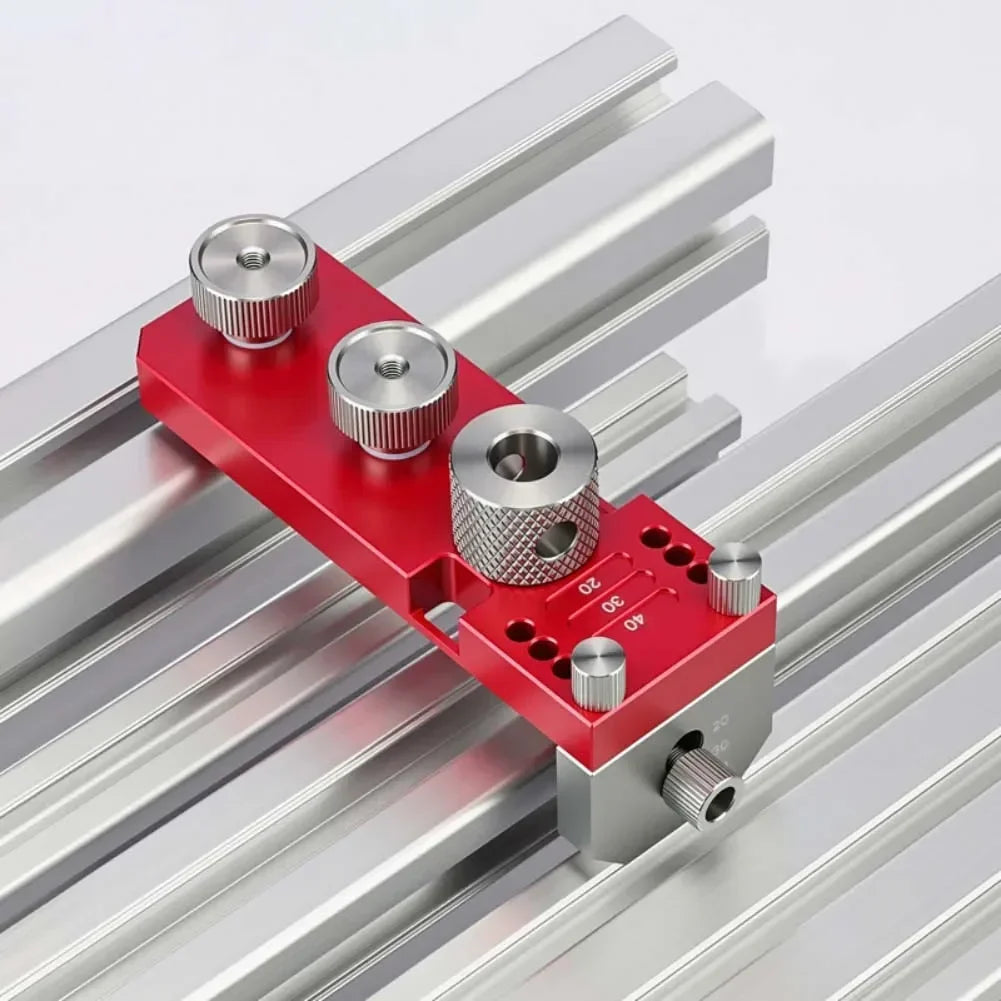

Take the guesswork out of precision drilling with this professional-grade Aluminum Profile Hinge Jig Kit. Whether you're a seasoned woodworker, a cabinet maker, or a hands-on DIY enthusiast, this comprehensive hole drilling guide and locator delivers accurate, repeatable results every time. Made in Mainland China.

Key Features

• Precision Engineering: Includes both countersink and standard drill options for smooth, efficient hole punching and tapping on aluminum profiles and similar materials — no slipping, no guessing.
• High-Quality Materials: The main body is crafted from durable aluminum alloy while the drill bits are made from stainless steel, ensuring exceptional performance and long-lasting durability across countless DIY projects.
• Versatile Hole Sizes: Accommodates 6mm, 8mm, 10mm, and 14mm hole sizes to suit a wide range of project requirements and material thicknesses.
• Ergonomic & Lightweight Design: Compact and easy to handle, this jig is beginner-friendly while still meeting professional standards — perfect for any skill level.
• Time-Saving Setup: The all-in-one design simplifies complex drilling tasks, helping hobbyists and professionals complete projects faster and with greater accuracy.

Specifications

Package Contents

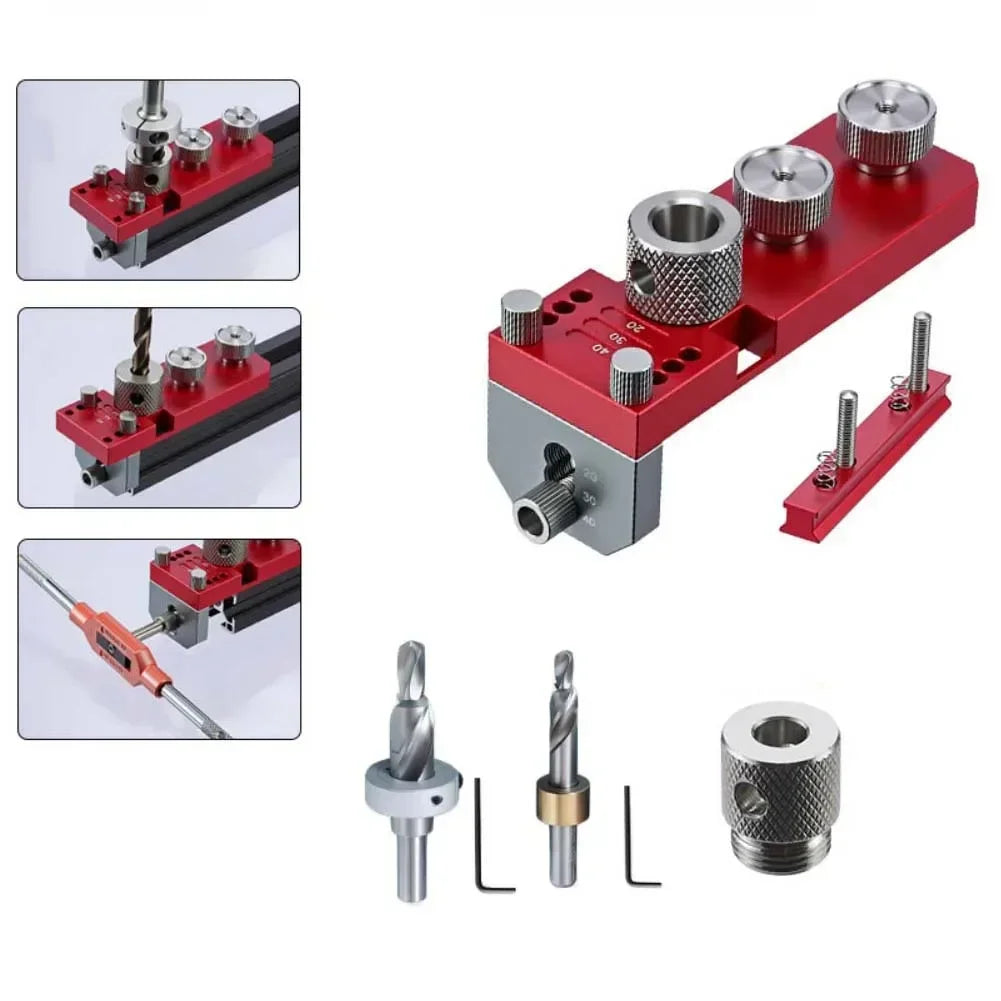

• 1 x Aluminum Profile Hole Punching Guide & Hinge Jig Kit (complete set)

Related Tools You May Like

• Garden Pruner Shears – Secateurs for Bonsai & Fruit Trees
• Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
• 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit

Note: Actual product color may vary slightly from images due to monitor brightness and lighting conditions. Please allow for minor manual measurement deviations.

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What materials can this aluminum profile hole punching jig be used on?

A: This hinge jig kit is primarily designed for aluminum profiles but is also compatible with a wide range of DIY materials including wood, MDF, and similar substrates commonly used in woodworking and door installation projects.

Q: What hole sizes does this drilling guide kit support?

A: The kit supports four hole sizes — 6mm, 8mm, 10mm, and 14mm — making it highly versatile for concealed hinge installation, bolt holes, and other common woodworking and metalworking tasks.

Q: Is this hinge jig kit suitable for beginners?

A: Yes! The ergonomic, lightweight design and straightforward setup make this aluminum profile hole drilling guide an excellent choice for beginners and seasoned DIYers alike. The built-in locator fixture ensures precise hole placement with minimal effort.
