Aluminum Cabinet Handle Hole Locator & Drill Mounting Jig
Aluminum Cabinet Handle Hole Locator & Drill Mounting Jig
Aluminum Alloy Cabinet Handle Hole Locator & Mounting Jig
Achieve perfectly aligned cabinet handles, pulls, and knobs every single time with this precision-engineered Aluminum Alloy Cabinet Handle Hole Locator. Whether you're a professional carpenter, DIY enthusiast, or home renovator, this compact drill guide jig eliminates guesswork and delivers consistently accurate results — no measuring tape required.
Key Features
- Premium 6061 Aluminum Alloy Construction: Crafted with a sandblasted finish for long-lasting durability and resistance to wear, ensuring reliable performance over countless repeated uses.
- Precise Hole Positioning: Provides exact measurements for drilling handle, pull, and knob placements, guaranteeing perfectly aligned holes every time for a clean, professional finish.

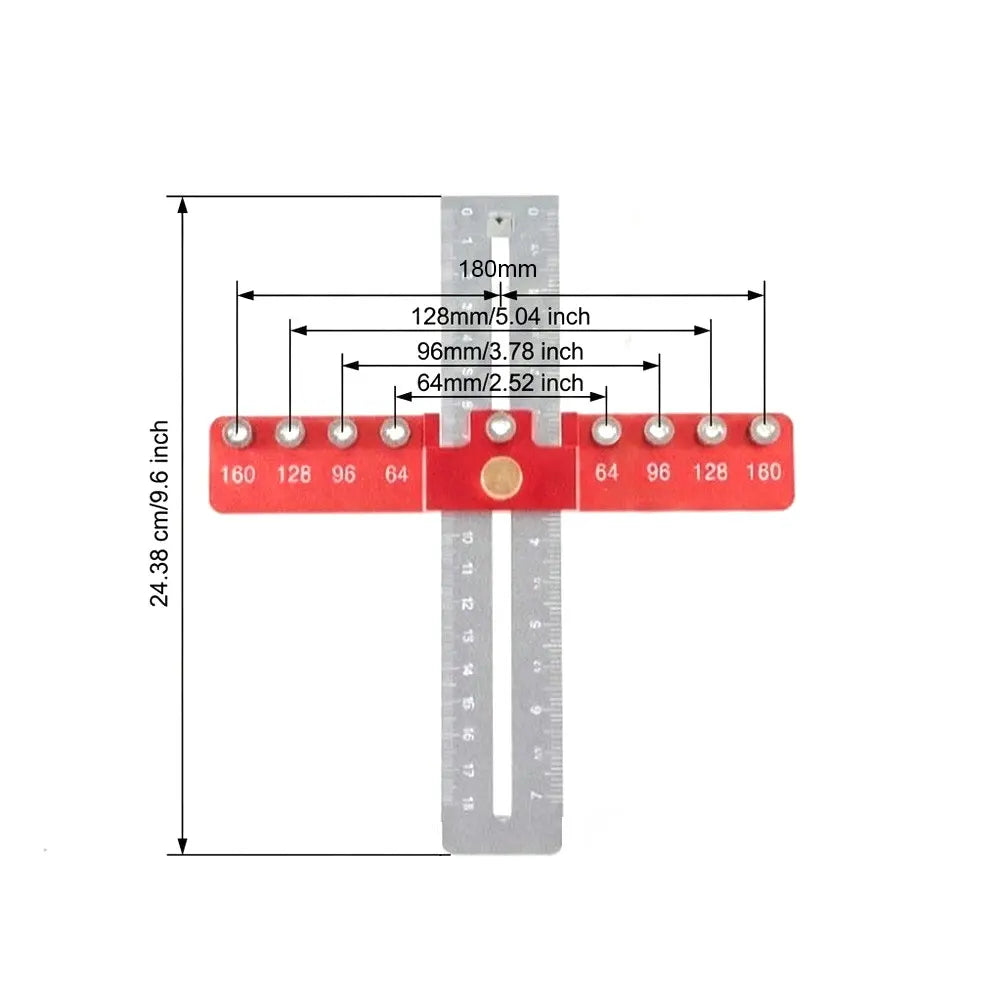

- Versatile Double-Hole Drilling: Supports adjustable hole spacing of 64 / 96 / 128 / 160 mm with a 4 mm punch size, accommodating most standard pull and handle sizes available on the market.
- Quick & Easy Setup: Designed for fast, repeatable use without needing to measure each time. Compact and portable — ideal for architects, contractors, and woodworking enthusiasts alike.
- Wide Compatibility: Perfect for kitchen drawer handles, cabinet doors, wardrobe panels, and shelf hinges. Compatible with any cabinet door frame and rail, including panel-style doors and recessed drawer fronts.
Specifications
- Material: 6061 Aluminum Alloy
- Dimensions: 24.5 × 8 × 5 cm
- Color: Red
- Punch Size: 4 mm
- Adjustable Hole Spacing: 64 / 96 / 128 / 160 mm
- Country of Origin: Made in Mainland China
Package Contents
- 1 × Aluminum Alloy Hole Locator Mounting Jig
Notes
- Actual color may vary slightly from screen images due to monitor brightness and lighting conditions.
- Please allow for slight manual measurement deviations in the listed dimensions.
