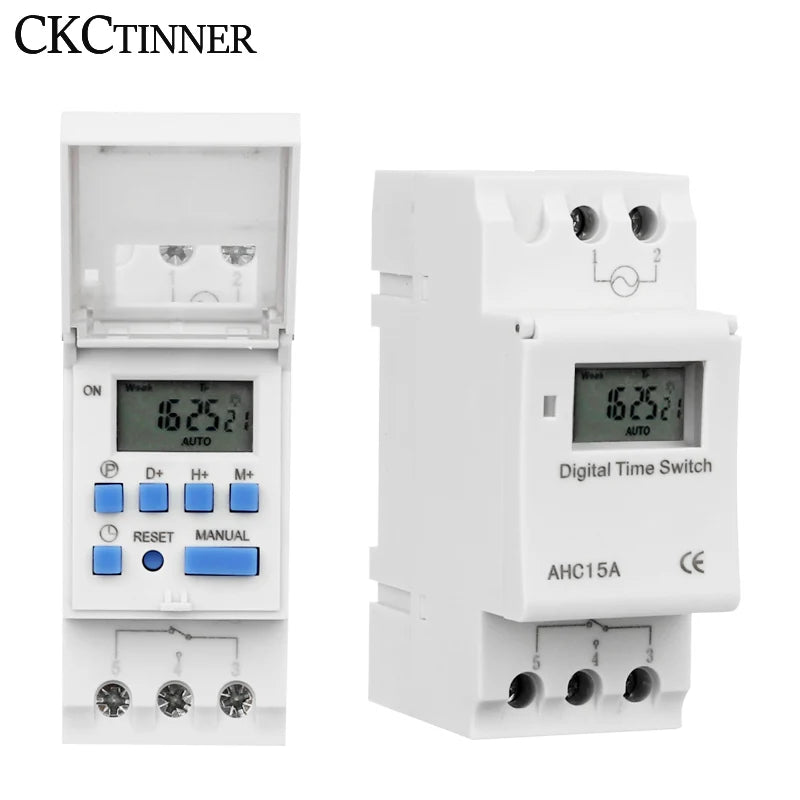

CKCTINNER AHC15A LCD Digital Programmable Timer Relay Switch
Take full control of your electrical circuits with the CKCTINNER AHC15A LCD Digital Timer Relay Switch. This versatile weekly programmable timer supports a wide voltage range — 12V DC, 24V DC, 48V DC, 110V AC, and 220V AC — making it compatible with virtually any residential, commercial, or industrial application. DIN Rail mounted and CE certified, it's built for reliable, long-term use.
Key Features
- Wide Voltage Compatibility: Works with 12VDC, 24VDC, 48VDC, 110VAC, and 220VAC power supplies.
- High Load Capacity: Rated at 16A — suitable for a broad range of loads and devices.

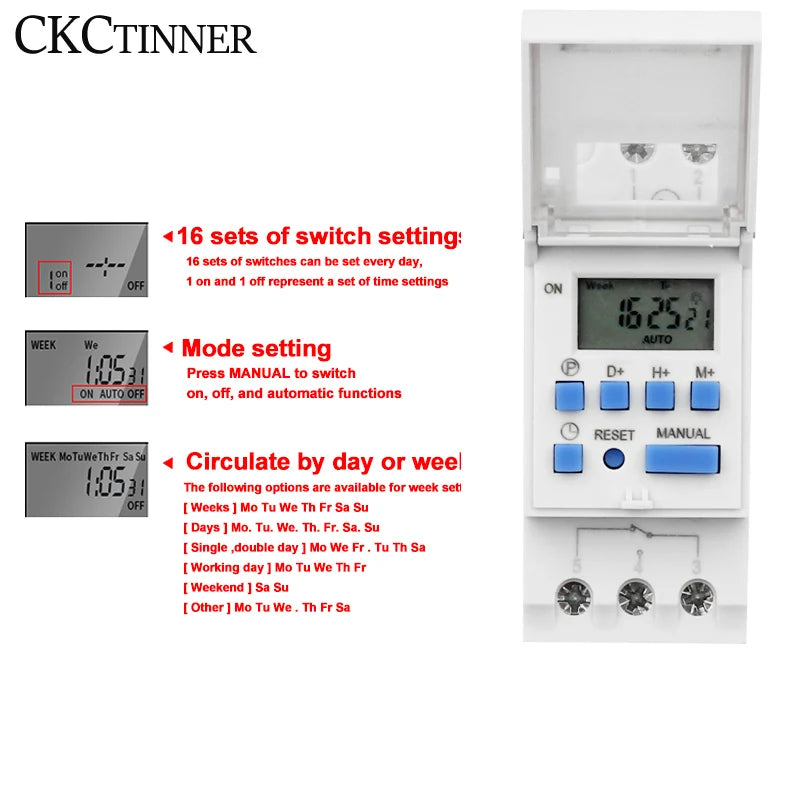

- Flexible Programming: Set up to 16 ON/OFF programs per day across a full 7-day weekly schedule.
- Wide Timing Range: Minimum programmable interval of 1 minute; maximum of 168 hours.
- Reliable Accuracy: Average error of less than 2 seconds per day for precise, dependable scheduling.
- Power Outage Memory: Retains settings for up to 90 days during a power blackout — no reprogramming needed.
- Low Power Consumption: Uses less than 5VA, keeping your energy costs low.

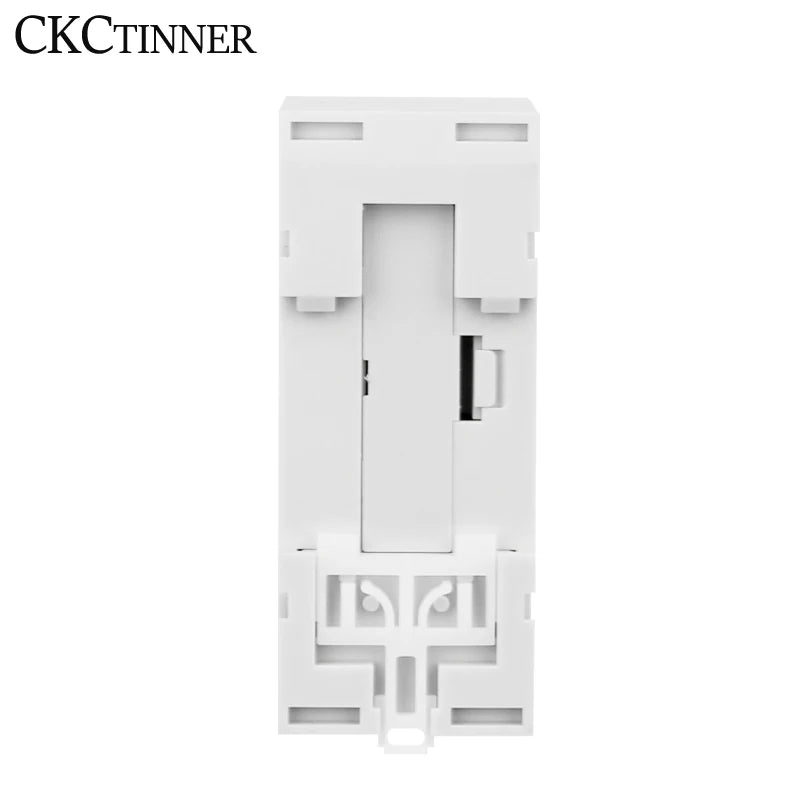

- DIN Rail Mounting: Easy panel or enclosure installation on standard DIN Rail.
- CE Certified: Meets European safety and performance standards.
- Operating Range: Functions in temperatures from -10°C to 50°C and humidity up to 95%.
Specifications
| Model | AHC15A (THC15A) |

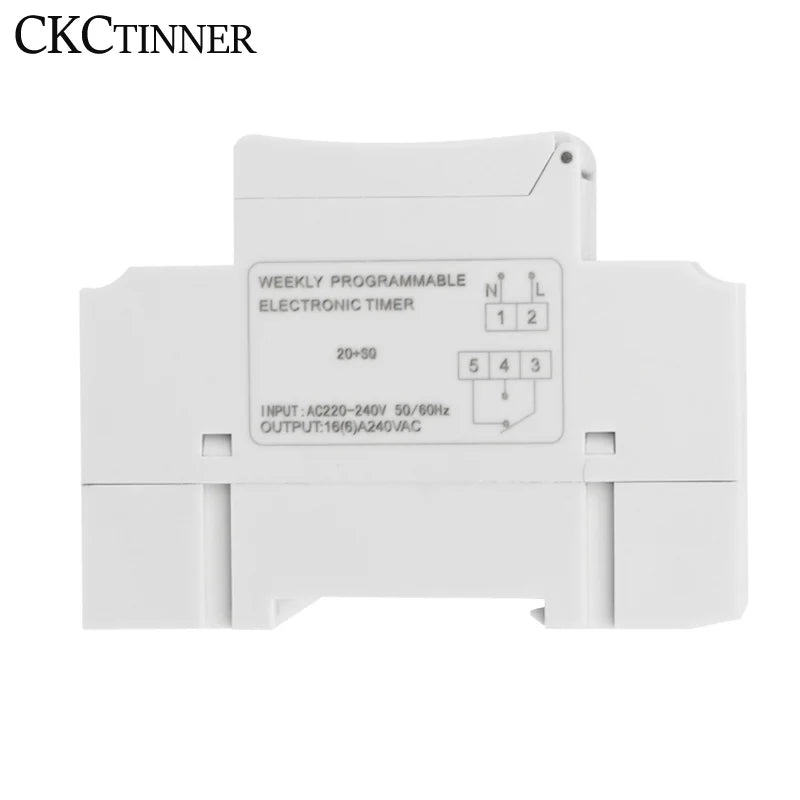

| Power Supply | 12VDC / 24VDC / 48VDC / 110VAC / 220VAC |
| Load Capacity | 16A |
| Timing Range | 1 minute – 168 hours |
| Programs | 16 ON/OFF per day (weekly) |
| Power Consumption | <5VA |
| Blackout Retention | 90 days |
| Average Error | <2 sec/day |
| Temperature Range | -10°C to 50°C |
| Humidity | <95% |

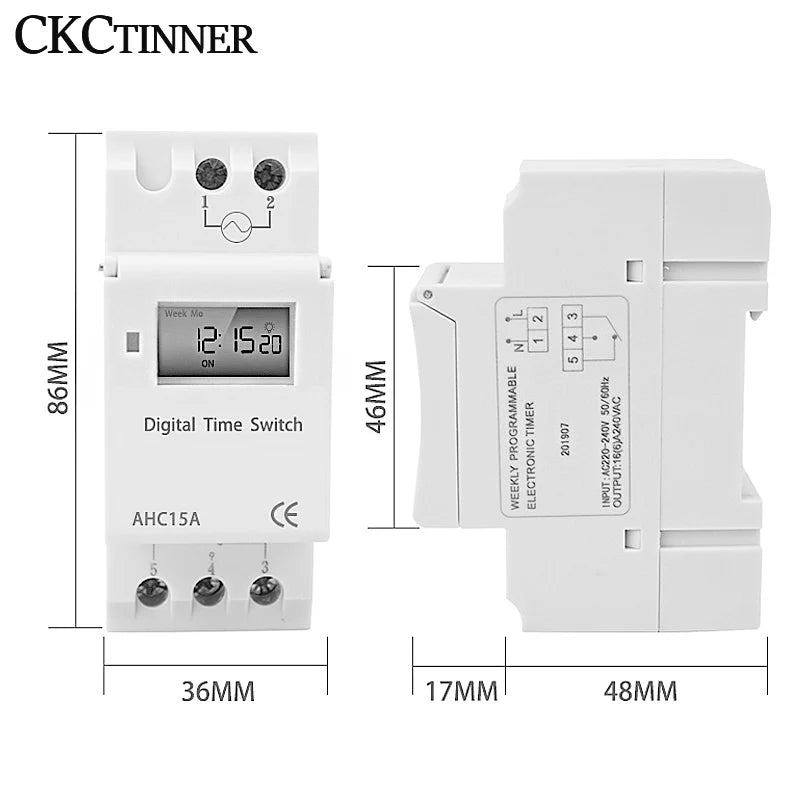

| Installation | DIN Rail Mounted |
| Certification | CE |
| Country of Origin | Made in Mainland China |
Helpful Tip: Screen Lock "a" Indicator
If you notice a lowercase "a" in the lower-left corner of the LCD screen, this means the timer control is locked and buttons will not respond. To unlock, press the "C/R MANUAL" button on the right side 4 times until the "a" disappears and normal operation resumes.
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What voltages does the AHC15A programmable timer relay switch support?
A: The AHC15A supports 12V DC, 24V DC, 48V DC, 110V AC, and 220V AC, making it compatible with a wide variety of electrical systems for both residential and industrial use.
Q: How many ON/OFF programs can I set on this digital timer switch?
A: You can program up to 16 ON/OFF events per day across a full 7-day (168-hour) weekly schedule, giving you precise control over any connected device or circuit.
Q: Will the timer lose its settings during a power outage?

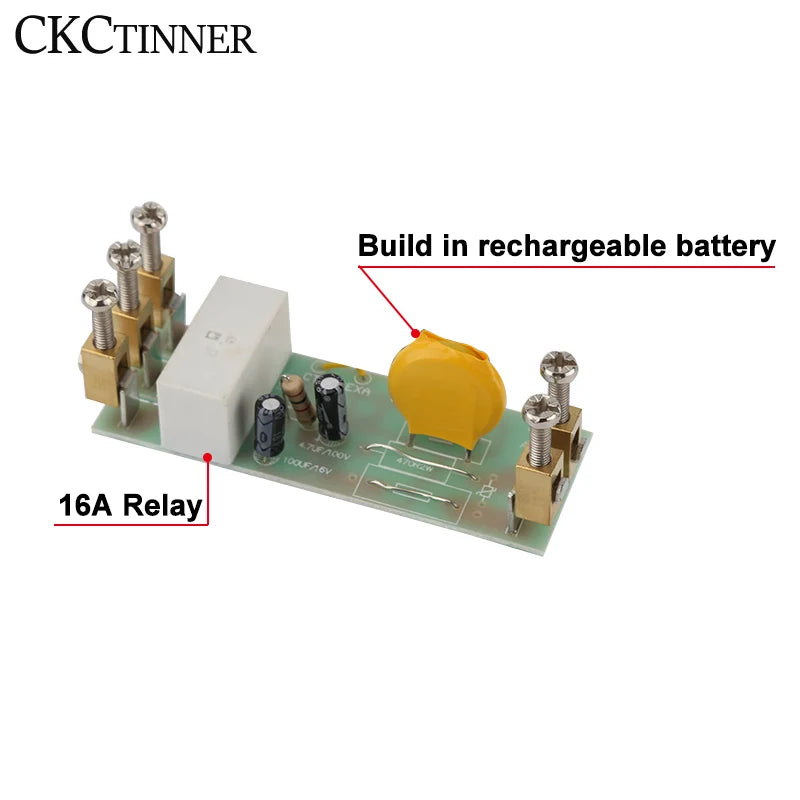

A: No. The AHC15A features a built-in memory backup that retains all programmed settings for up to 90 days during a power blackout, so you won't need to reprogram it after an outage.
Q: How is the AHC15A timer installed?
A: It uses standard DIN Rail mounting, making it straightforward to install inside electrical panels or enclosures. No special tools are required beyond standard electrical installation equipment.
