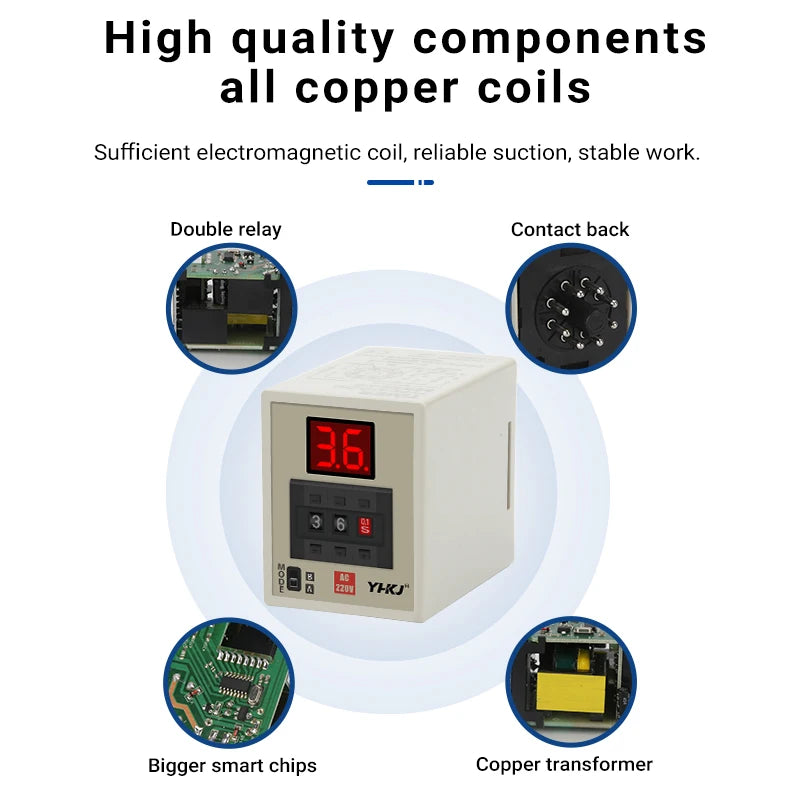

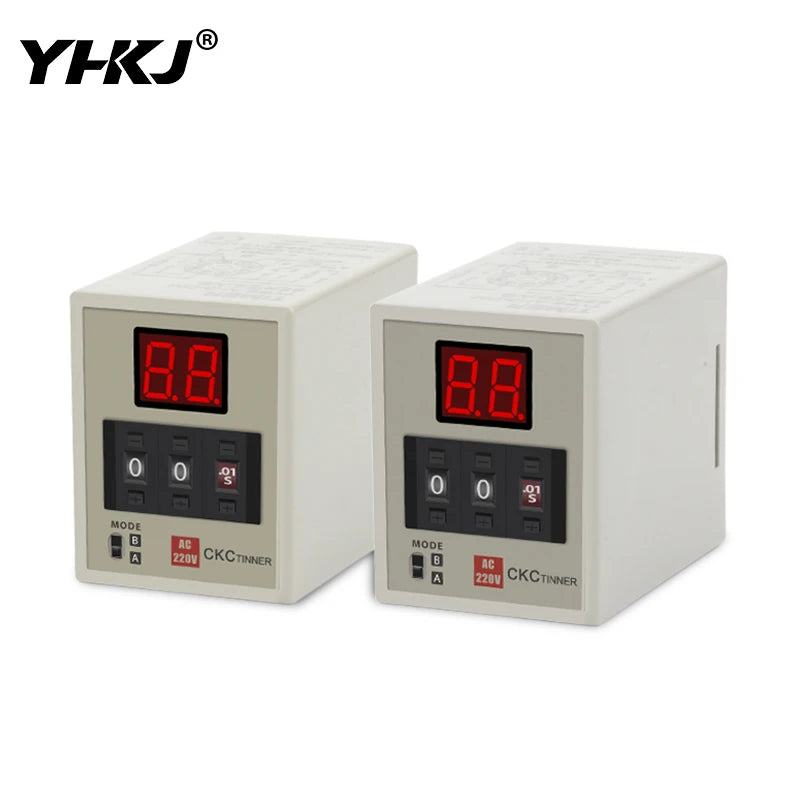

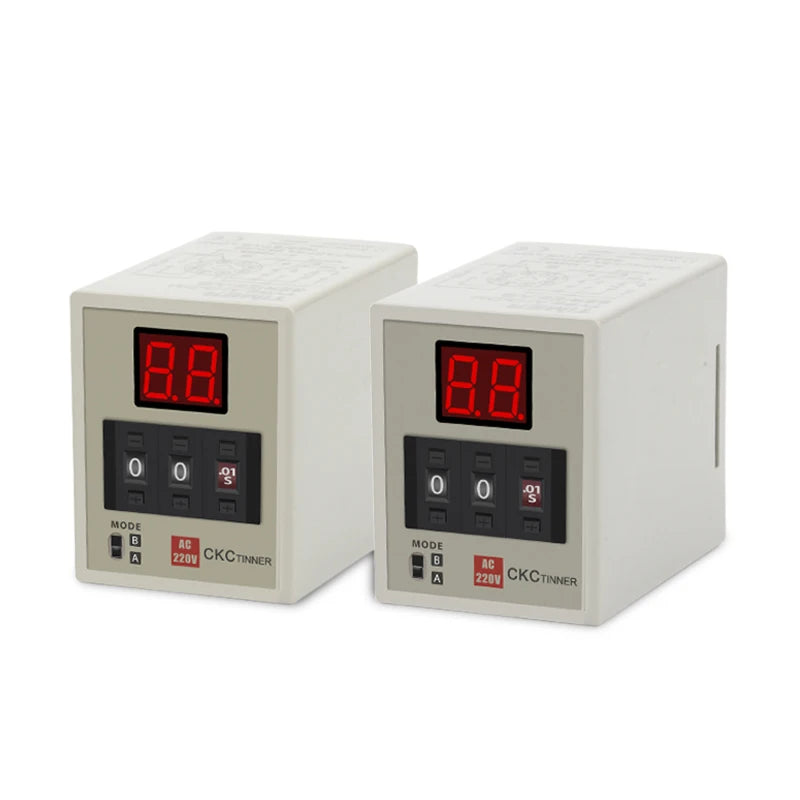

AH3-DM Digital Display Time Relay – Precision Dual-Mode LED Delay Timer
Take full control of your electrical control systems with the AH3-DM Digital Display Time Relay. Featuring a bright LED display, dual operating modes, and an ultra-wide timing range of 0.01 seconds to 990 hours, this relay delivers the accuracy and flexibility that engineers, electricians, and automation enthusiasts demand. Compatible with a broad voltage range of 12V to 380V, it fits seamlessly into industrial panels, automation setups, and DIY electrical projects.
Key Features
- Dual Operating Modes: Switch between two timing modes to suit a variety of control applications — on-delay and interval timing made easy.

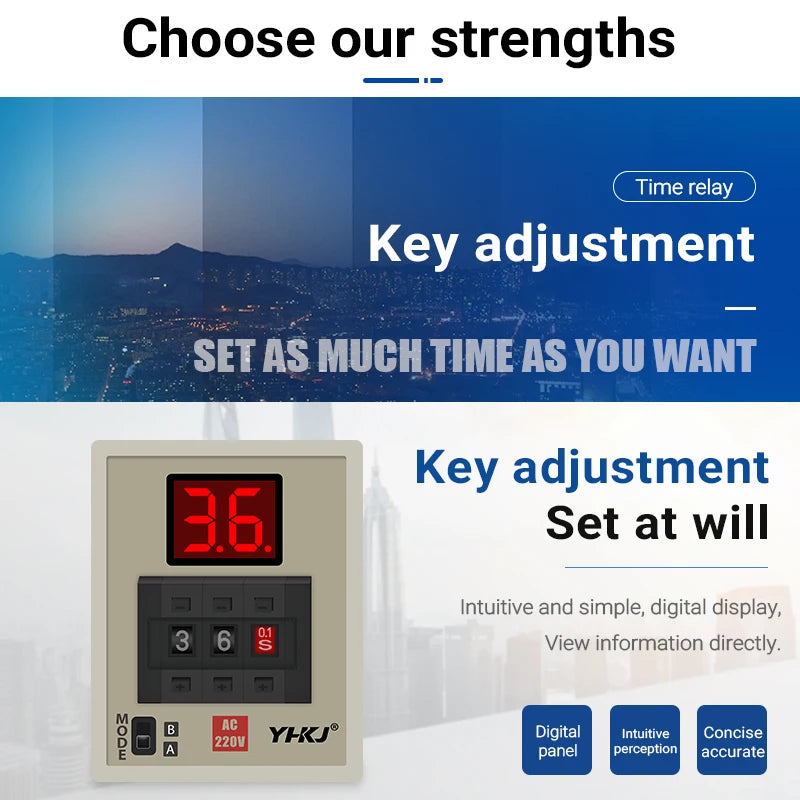

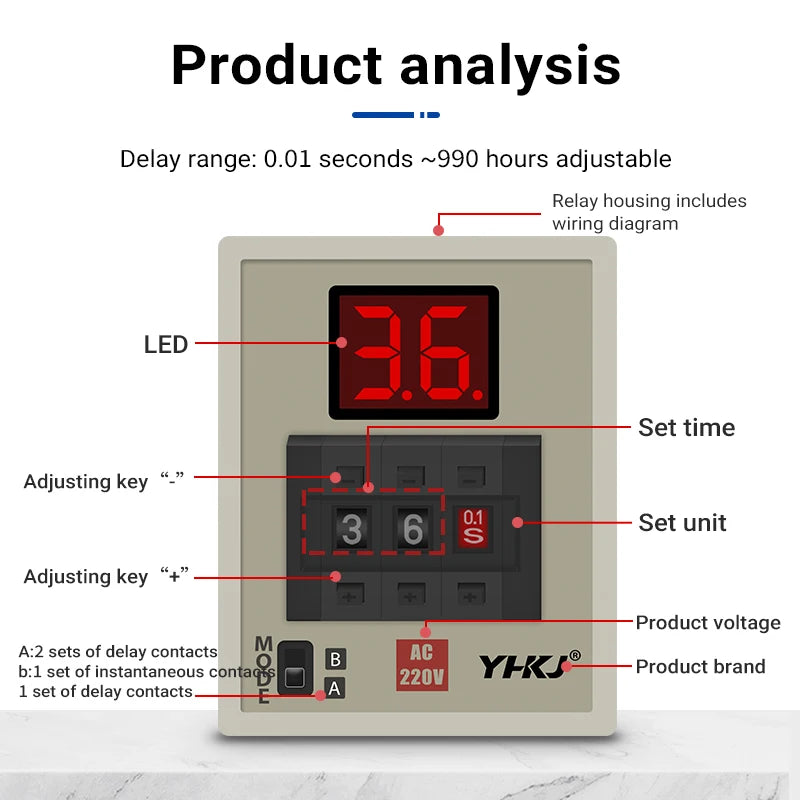

- High-Accuracy LED Display: A clear digital readout shows the current time setting at a glance, reducing setup errors and saving time on the job.
- Ultra-Wide Timing Range: Program delays anywhere from 0.01 seconds to 990 hours, making it suitable for both rapid-cycle tasks and long-duration control sequences.
- Wide Voltage Compatibility: Operates across 12V to 380V (AC/DC), ensuring compatibility with a wide range of industrial and commercial electrical systems.
- CE Certified: Meets European conformity standards for safety and electromagnetic compatibility.
- Model AH3-DM: A robust, industry-recognized form factor that fits standard DIN rail or panel-mount enclosures.

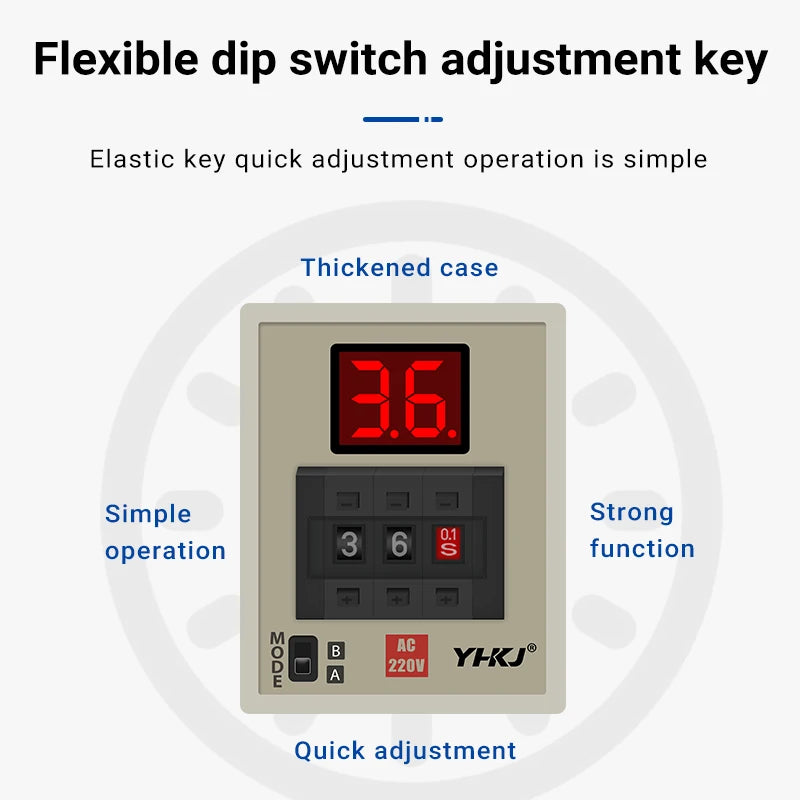

- Customizable Settings: Supports customized timing configurations to meet specific project requirements.
- Made in Mainland China.

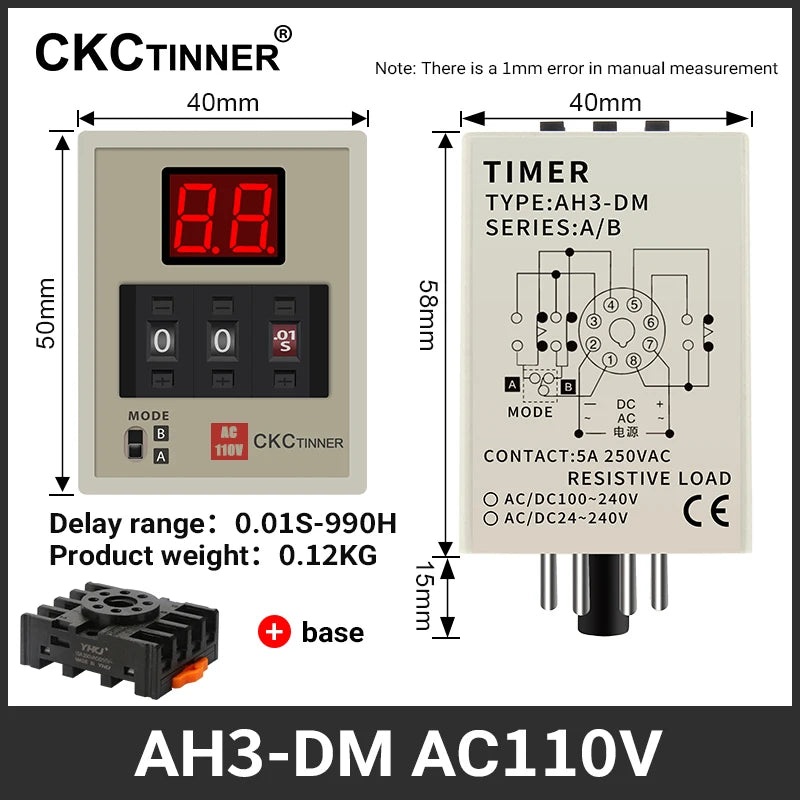

Specifications
- Model: AH3-DM
- Brand: CKCTINNER
- Timing Range: 0.01S – 990H
- Operating Voltage: 12V ~ 380V (AC/DC)
- Modes: Dual Mode (On-Delay / Interval)
- Display: LED Digital Display
- Certification: CE
- Origin: Made in Mainland China
Ideal Applications
- Industrial automation and motor control panels
- HVAC and ventilation system timing
- Lighting delay and sequential control circuits
- Pump and conveyor belt automation
- DIY electrical and home automation projects
Related Products You May Like
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What voltage ranges does the AH3-DM digital time relay support?
A: The AH3-DM time relay supports a wide operating voltage range of 12V to 380V (AC/DC), making it compatible with most industrial, commercial, and residential electrical control systems.
Q: What are the two timing modes on the AH3-DM relay?
A: The AH3-DM features dual modes — on-delay timing (the output activates after a set delay once power is applied) and interval/cyclic timing (the relay switches the output on and off repeatedly at set intervals). This versatility covers a broad range of automation and control applications.
Q: What is the timing accuracy and range of this LED delay timer?
A: The AH3-DM offers high-accuracy timing across an ultra-wide range of 0.01 seconds to 990 hours. The LED digital display allows you to set and verify your timing parameters quickly and accurately, minimizing the risk of setting errors in critical control circuits.
Q: Is the AH3-DM time relay certified for safety compliance?
A: Yes. The AH3-DM digital time relay is CE certified, confirming it meets European standards for electrical safety and electromagnetic compatibility, making it suitable for use in professional and industrial environments.
