ATDV-Y Dual Repeat Cycle Time Relay 220V – 10 Timing Ranges

ATDV-Y Dual Repeat Cycle Time Relay 220V – 10 Timing Ranges

$46.09 $57.04
Size

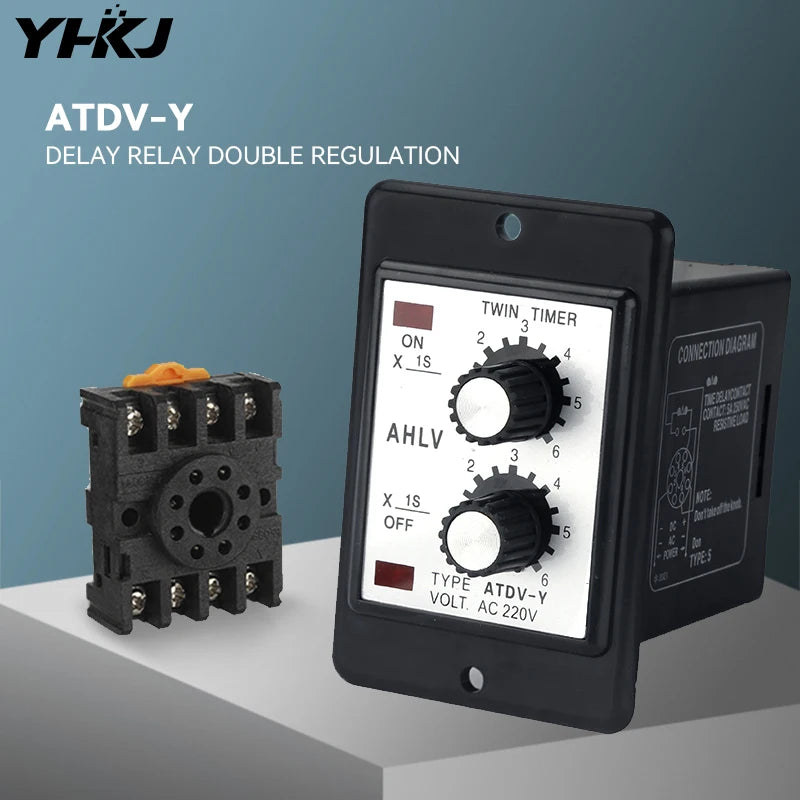

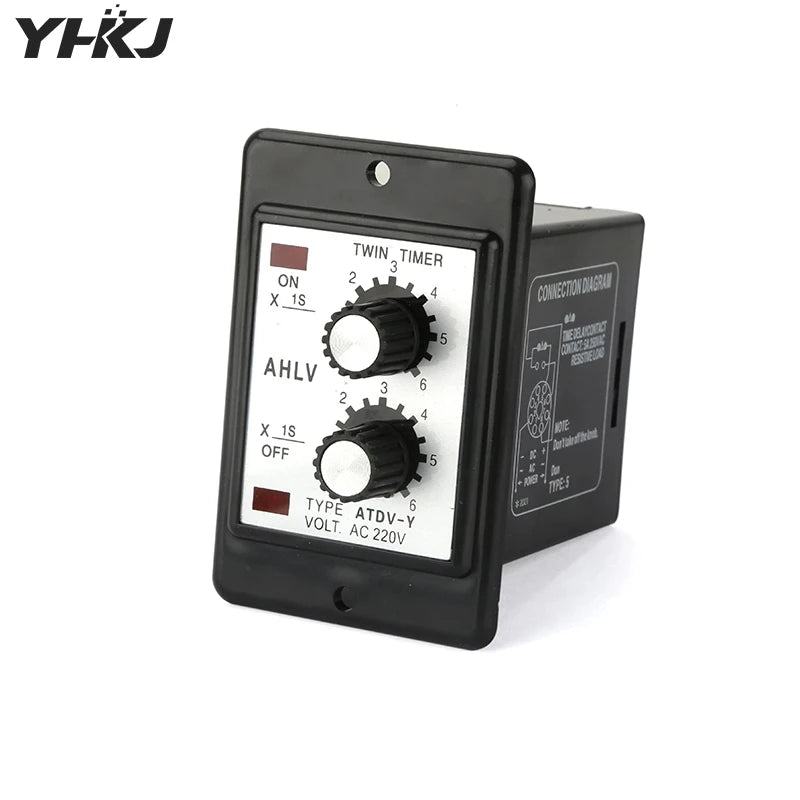

CKCTINNER ATDV-Y Adjustable Dual Cycle Time Relay – 220V with Socket Base

Take precise control of your electrical circuits with the CKCTINNER ATDV-Y Adjustable Repeat Cycle Timer Relay. Featuring a wide selection of ON/OFF timing intervals and a convenient plug-in socket base, this dual-function time relay is the ideal solution for industrial automation, irrigation systems, lighting control, HVAC equipment, and any general-purpose timed switching application.

Made in Mainland China.

Key Features

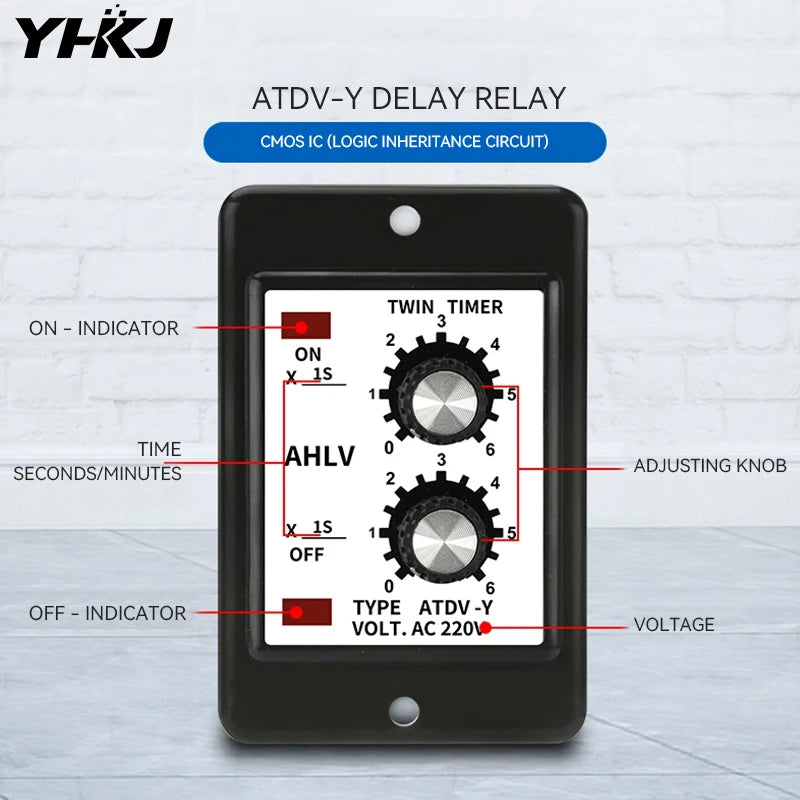

  • Dual Adjustable Timing: Independently set both ON and OFF delay times across 10 selectable ranges: 3S / 6S / 12S / 30S / 60S / 3M / 6M / 12M / 30M / 60M
  • Repeat Cycle Operation: Automatically repeats the ON/OFF cycle continuously — no manual reset needed
  • 220V AC Power Supply: Designed for standard industrial and domestic 220V AC circuits
  • High Contact Capacity: Rated at 250V / 5A — suitable for a wide range of low-to-medium load applications
  • Precision Timing: Delay tolerance of ≤0.5% ensures consistent, reliable switching cycles
  • CE Certified: Meets European safety and electromagnetic compatibility standards

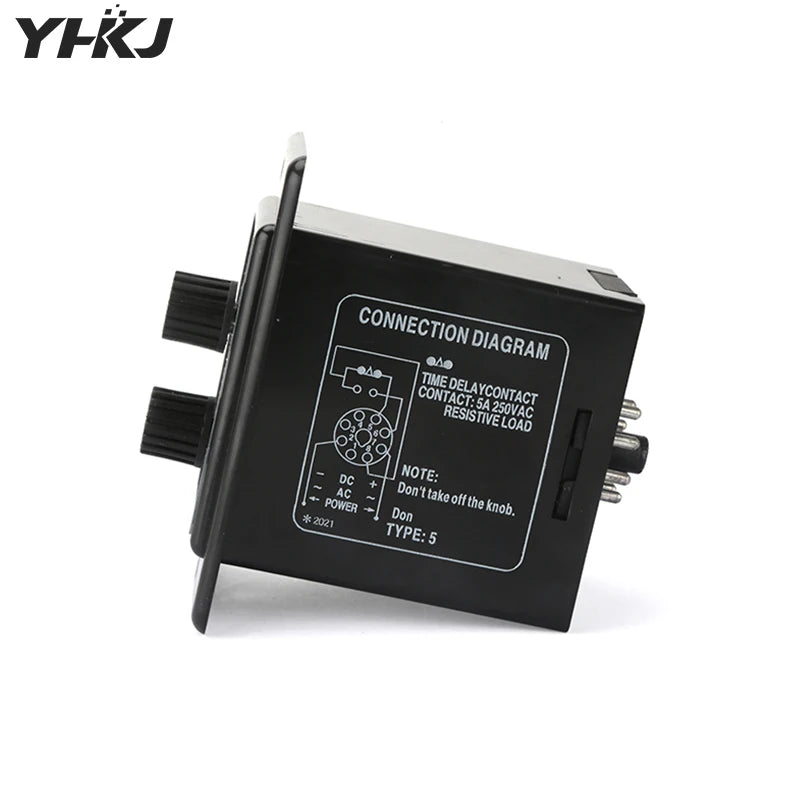

  • One Group Delay Contacts: Includes both NC (Normally Closed) and NO (Normally Open) contact outputs

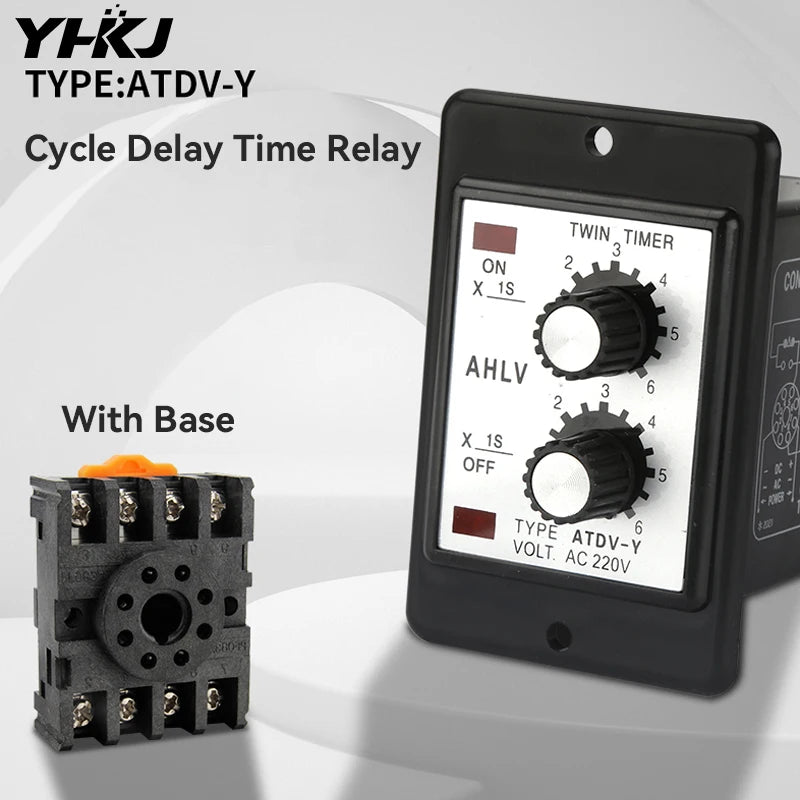

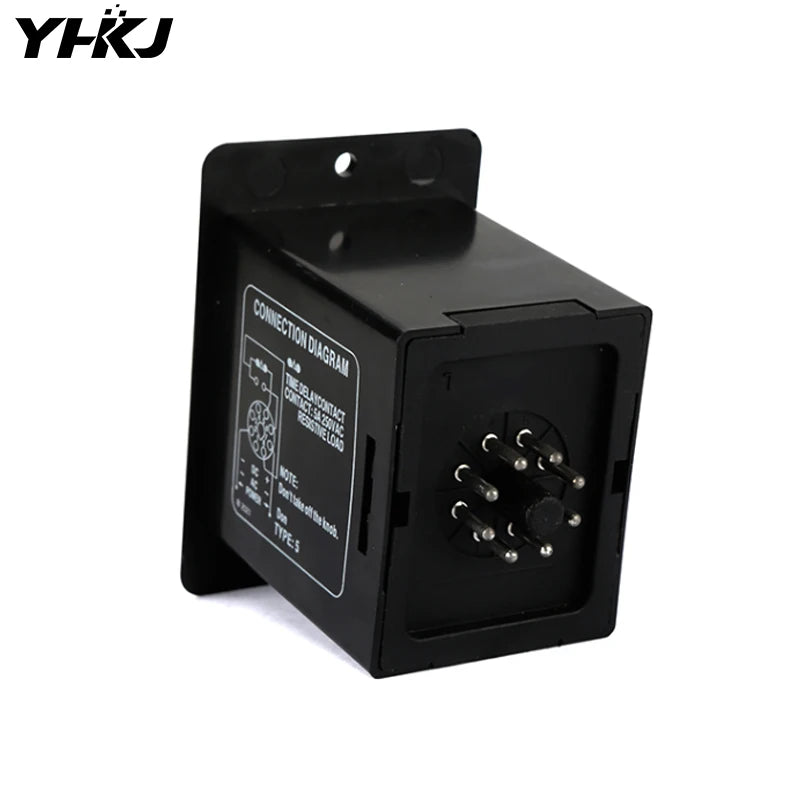

  • Socket Base Included: Plug-in socket base for easy installation and quick replacement — no hardwiring required
  • Compact & Durable: Solid black plastic housing, dimensions 87×57×96mm, weighing just 227g

Specifications

Brand CKCTINNER
Model ATDV-Y
Certification CE
Voltage 220V AC
Contact Capacity 250V / 5A
Timing Ranges 3S / 6S / 12S / 30S / 60S / 3M / 6M / 12M / 30M / 60M
Delay Tolerance ≤0.5%
Contact Type 1 Group Delay NC & NO

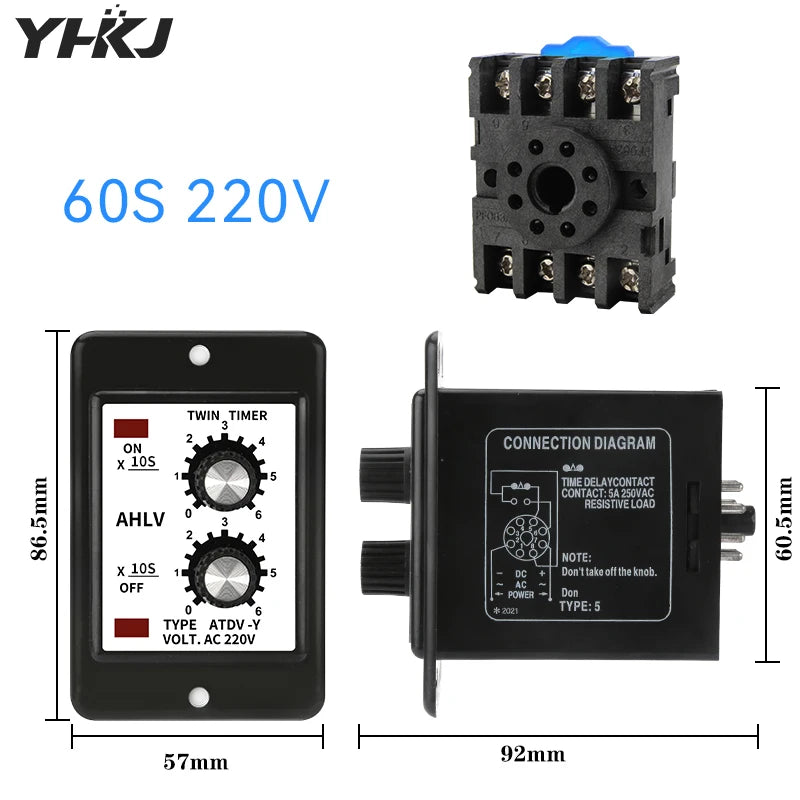

Dimensions 87 × 57 × 96 mm
Weight 227g
Color Black
Material Plastic
Country of Origin Mainland China

What's in the Box

  • 1 × CKCTINNER ATDV-Y AC 220V Repeat Cycle Time Relay
  • 1 × Plug-in Socket Base

Related Products You May Like

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What timing intervals does the ATDV-Y cycle timer relay support?

A: The CKCTINNER ATDV-Y supports 10 selectable timing intervals: 3 seconds, 6 seconds, 12 seconds, 30 seconds, 60 seconds, 3 minutes, 6 minutes, 12 minutes, 30 minutes, and 60 minutes. Both the ON and OFF durations can be set independently, giving you full control over the repeat cycle.

Q: Does the ATDV-Y time relay require hardwiring, or does it plug in?

A: The ATDV-Y comes with a dedicated plug-in socket base, so installation is quick and straightforward — simply insert the relay module into the socket base. This also makes it easy to swap out or replace the relay without rewiring your panel.

Q: What types of applications is the ATDV-Y repeat cycle timer suitable for?

A: This 220V AC repeat cycle time relay is suitable for a wide range of general-purpose applications including automated lighting control, irrigation and water pump cycling, industrial machinery sequencing, HVAC equipment timing, and any system that requires regular, repeating timed ON/OFF switching cycles.

Q: Is the ATDV-Y timer relay CE certified?

A: Yes, the CKCTINNER ATDV-Y carries CE certification, confirming it meets European safety and electromagnetic compatibility requirements for general-purpose electrical control equipment.
