90x90mm BGA Reballing Stencil – GK110 GM200 GPU Reball Kit

$10.50 $12.41

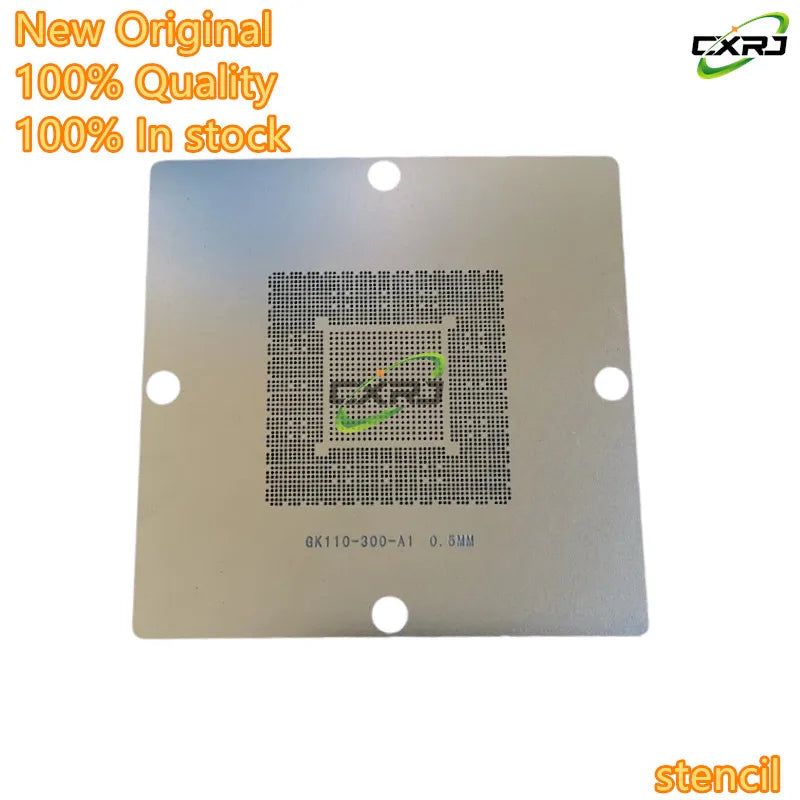

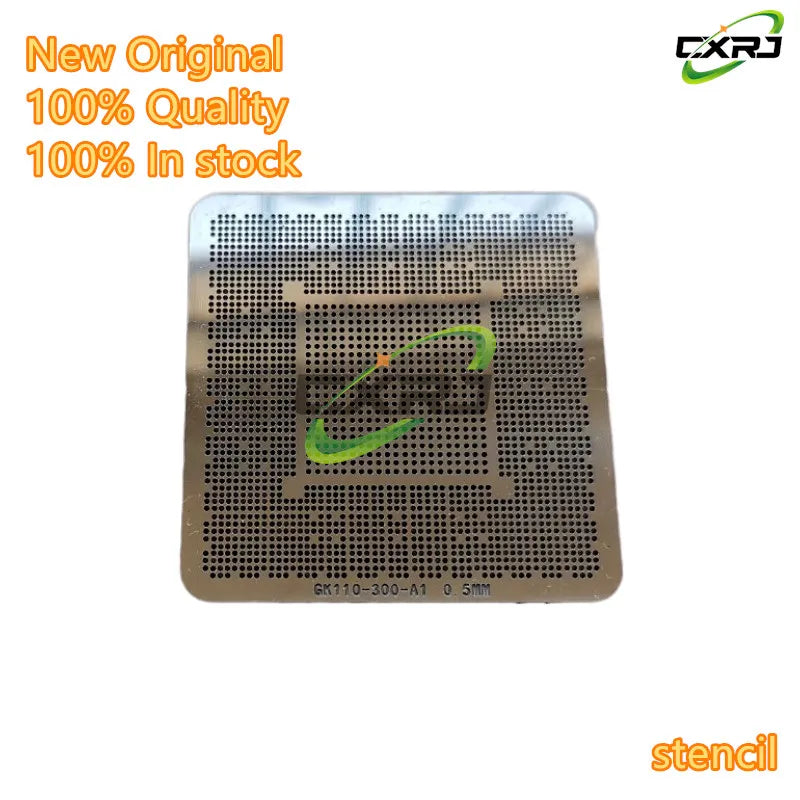

90×90mm BGA Reballing Stencil for GK110 & GM200 Series GPUs

Achieve precise, professional-grade solder ball placement with this high-quality 90×90mm BGA reballing stencil. Engineered for a wide range of GK110 and GM200 series GPU chipsets, this stencil delivers clean, consistent results for electronics repair technicians and hobbyists alike.

Compatible Models

GK110-300-A1
GK110-400-A1
GK110-425-A1
GK110-425-B1
GK110-300-B1
GK110-400-B1
GK110-430-B1
GM200-310-A1

Key Features

Universal 90×90mm Size: Fits standard BGA reballing stations and fixtures for easy alignment.
Drive IC / SMD Compatible: Designed for SMD package types and Drive IC chipsets used in computer graphics processing units.
New Condition: Each stencil ships brand new for consistent, reliable performance right out of the box.
Precision Laser-Cut Apertures: Ensures accurate solder ball positioning for clean joints and fewer rework cycles.
Durable Construction: Maintains shape and tension through repeated use in professional repair environments.
No High-Concern Chemicals: Free from regulated high-concern chemical substances.

Specifications

Size: 90 × 90 mm
Type: BGA Reballing Stencil (Drive IC / SMD)
Package: SMD
Condition: New
Country of Origin: Made in China

Who Is This For?

This stencil is ideal for electronics repair professionals, GPU reball technicians, soldering enthusiasts, and anyone performing BGA rework on GK110 or GM200 series chips in computers and workstations.

Related Products You May Like

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: Which GPU chipsets is this BGA reballing stencil compatible with?

A: This 90×90mm stencil is compatible with the following chipsets: GK110-300-A1, GK110-400-A1, GK110-425-A1, GK110-425-B1, GK110-300-B1, GK110-400-B1, GK110-430-B1, and GM200-310-A1. These are commonly found in high-performance desktop and workstation computer graphics cards.

Q: What size reballing station does this stencil fit?

A: This stencil measures 90×90mm, which is a standard size compatible with most BGA reballing stations and fixtures available on the market. Always verify your station's stencil slot dimensions before purchasing.

Q: Is this stencil reusable?

A: Yes. The stencil is made from durable material designed to withstand repeated use. With proper care — gentle cleaning after each use and careful storage — it can be used across multiple reball sessions.
