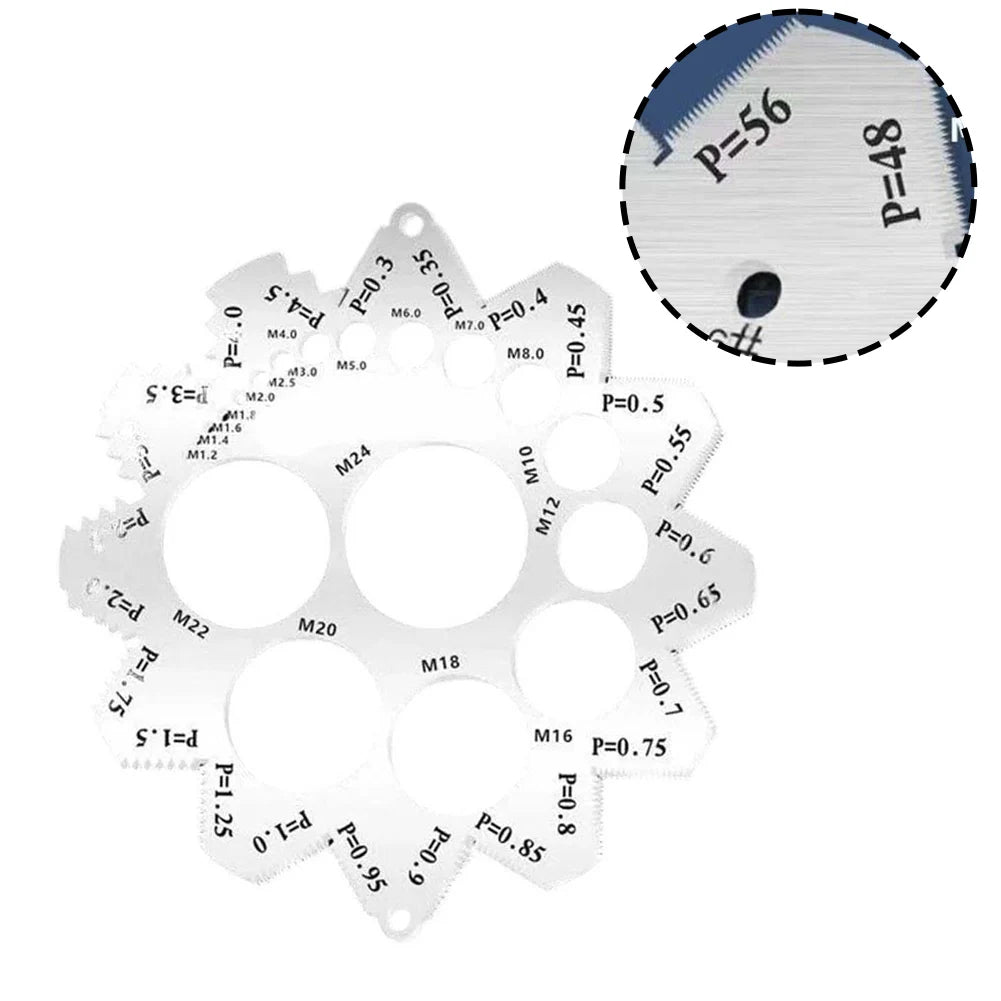

90-Tooth Serrated Thread & Screw Diameter Measuring Gauge
Identify any screw specification in seconds with this compact, all-in-one thread pitch and diameter gauge. Made from 1.5mm thick 304 stainless steel, this 90mm tool handles 24 pitches and 19 diameter measurements — covering both coarse and fine thread standards — so you never have to guess or reach for a caliper again.
Key Features
- All-in-one screw inspection: Supports 24 pitch measurements and 19 diameter sizes in a single compact gauge, providing a one-stop solution for screw identification in workshops, garages, and field repairs.
- 304 stainless steel construction: 1.5mm thick plate resists rust, wear, and deformation so it stays accurate even under heavy daily use — indoors or outdoors.
- Serrated pitch scale + circular diameter markings: Simply place the screw against the notch, align the thread teeth, and read the spec instantly. No complex calculations, no learning curve.
- Mini & portable (90 × 90 × 1.5 mm): Slim enough to slip into any tool bag or pocket. Built-in hanging hole lets you keep it on a pegboard or keyring for instant access.
- Wide application: Ideal for industrial maintenance, machinery repair, automotive work, DIY projects, and parts procurement. A practical addition to any toolbox or workshop bench.
Specifications
| Material | 304 Stainless Steel |
| Color | Silver |
| Size | 90 × 90 × 1.5 mm |
| Pitch Measurements | 24 pitches (coarse & fine thread) |
| Diameter Measurements | 19 sizes |
| Country of Origin | Made in China |
Package Contents
- 1 × Thread Pitch & Diameter Gauge
Notes
Actual color may vary slightly from images due to monitor brightness settings. Minor manual measurement deviations may occur.
You May Also Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What thread standards does this screw pitch gauge support?
A: This 90-tooth stainless steel gauge supports both coarse and fine thread standards, covering 24 different pitches and 19 screw diameter measurements — making it compatible with the most common metric and imperial screw specifications used in machinery, automotive, and DIY applications.
Q: Do I need any tools or experience to use this thread gauge?
A: No experience is required. Simply hold the gauge up to your screw, align the serrated teeth with the thread, and read the pitch and diameter from the clearly marked scale. There are no complex caliper calculations — it's designed for beginners and professionals alike.
Q: Is this gauge durable enough for workshop and outdoor use?
A: Yes. The gauge is cut from 1.5mm thick 304 stainless steel, which is rust-resistant, wear-resistant, and deformation-resistant, ensuring reliable accuracy over extended use in both indoor workshop environments and outdoor field conditions.
