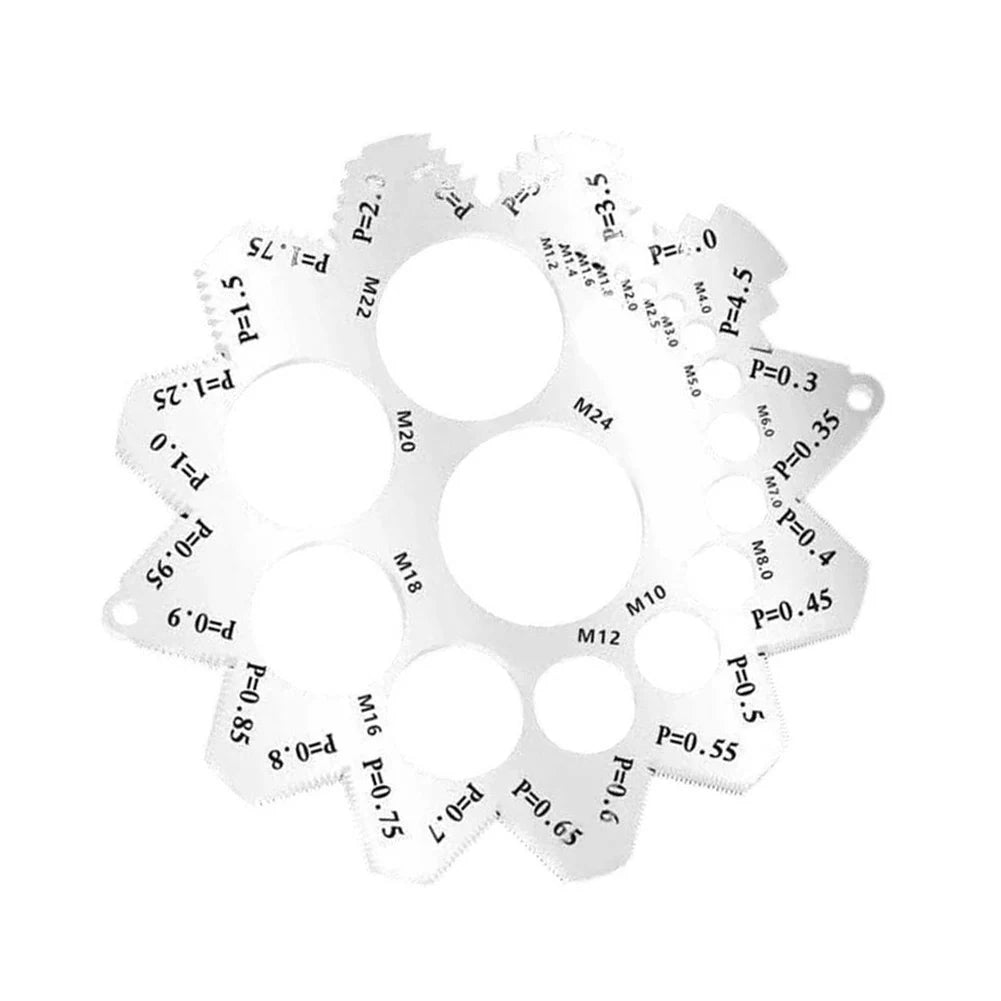

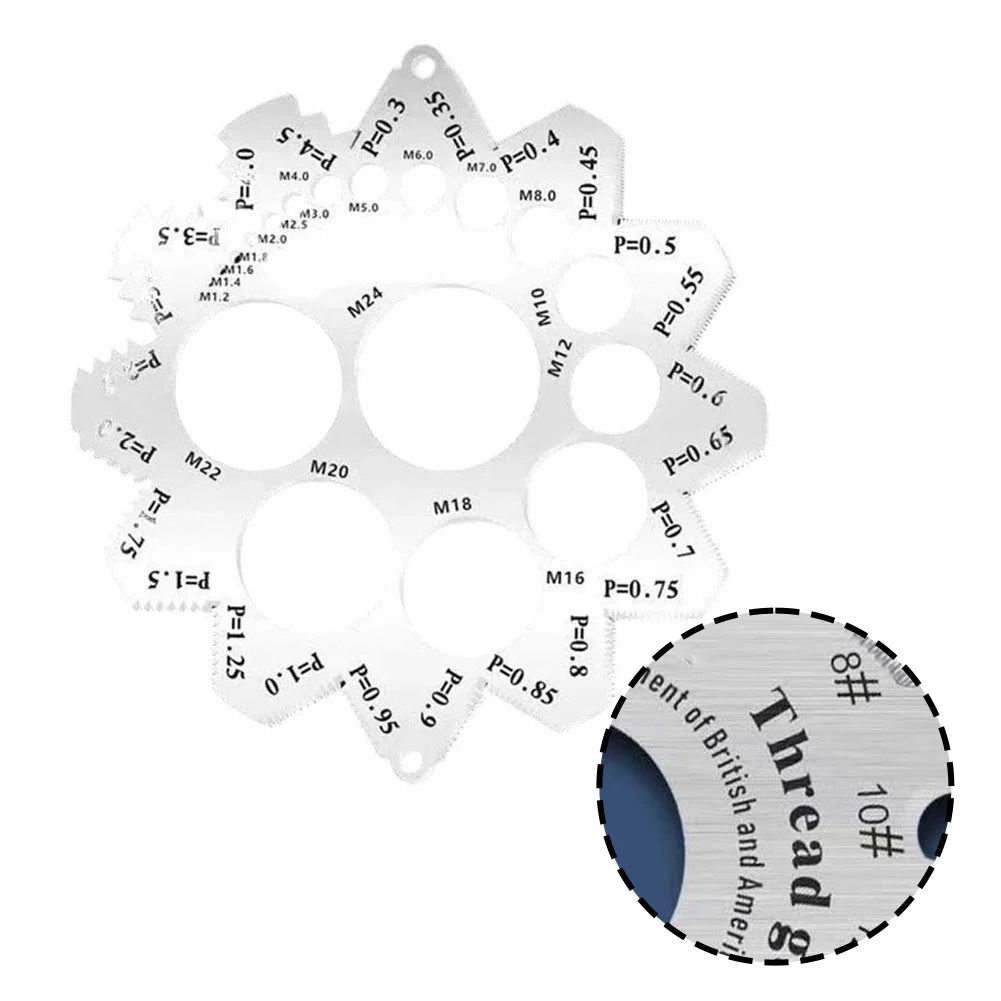

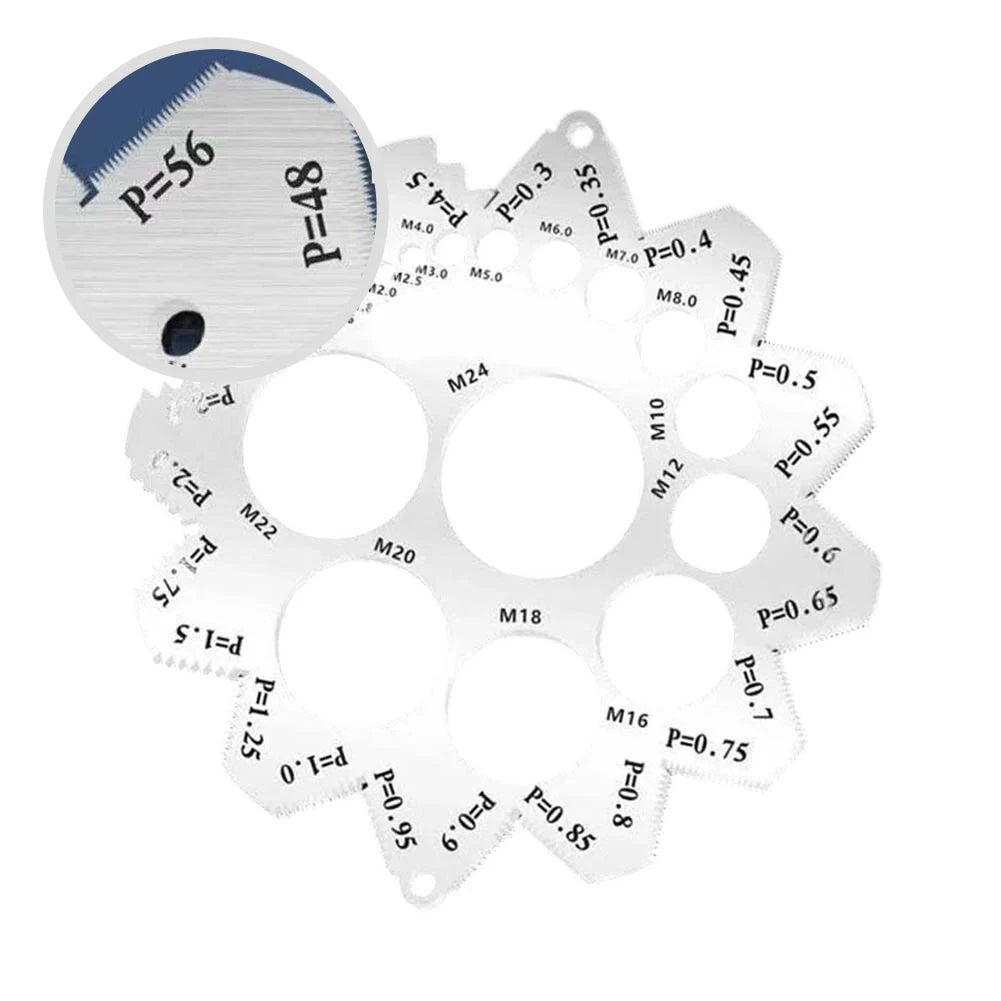

90-Tooth Serrated Thread & Screw Diameter Gauge – All-in-One Measuring Tool
Identify any screw specification in seconds with this compact, professional-grade 90-tooth serrated thread gauge. Built from 1.5mm thick 304 stainless steel, this durable measuring tool handles 24 pitches and 19 diameter measurements in one slim, portable device — no calipers or guesswork required. Whether you're in a workshop, on a job site, or tackling a DIY project at home, this gauge makes screw identification fast, accurate, and effortless. Made in Mainland China.
Key Features
- All-in-One Measurement: A single gauge covers 24 thread pitches (coarse and fine) and 19 screw diameter sizes, giving you a complete one-stop solution for all screw specification checks.
- Premium 304 Stainless Steel Construction: Made from 1.5mm thick 304 stainless steel for outstanding rust resistance, wear resistance, and deformation resistance — stays accurate even with daily heavy use.
- Instant Read — No Learning Curve: Features clear serrated pitch scales and circular diameter markings. Simply place the screw against the gauge and read the specification instantly — no complex caliper calculations needed.
- Compact & Portable (90mm): At just 90 × 90 × 1.5mm and with a built-in hanging hole, this gauge slides effortlessly into any tool bag or hangs on your workshop pegboard for quick access anywhere.
- Versatile Applications: Ideal for industrial maintenance, machinery repair, mechanical engineering, automotive work, and DIY projects — an essential tool for both professionals and hobbyists.
Specifications
| Material | 304 Stainless Steel |
| Color | Silver |
| Dimensions | 90 × 90 × 1.5mm |
| Thread Pitches Supported | 24 |
| Diameter Measurements | 19 |
| Origin | Mainland China |
Package Contents
- 1 × 90-Tooth Serrated Thread & Screw Gauge
Notes
- Displayed colors may vary slightly from the actual product due to monitor brightness and lighting conditions.
- Please allow for minor measurement deviations due to manual production tolerances.
Explore More Tools from Our Store
Looking for more precision and DIY tools? Check out our Air Compressor Pressure Gauge 0–10/0–12/0–25 Bar | DIY Tool for your workshop. You may also find our Electromagnetic Induction Tester – Coil & Circuit Fault Detector a valuable addition to your toolkit.
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What thread types does this 90-tooth screw thread gauge support?
A: This thread gauge supports both coarse and fine thread types, covering 24 different thread pitches and 19 screw diameter sizes — making it a comprehensive one-tool solution for virtually all standard screw specification measurements.
Q: Is this thread gauge suitable for outdoor or on-site use?
A: Absolutely. The gauge is made from 1.5mm thick 304 stainless steel, which is rust-resistant and deformation-resistant. Its compact 90mm size and built-in hanging hole make it easy to carry in a tool bag or clip to your workbelt for convenient on-site use.
Q: Do I need any prior experience or special tools to use this screw gauge?
A: No experience needed. The serrated pitch scale and circular diameter markings allow you to identify a screw specification simply by placing the screw against the gauge — no calipers, calculators, or technical training required. It's beginner-friendly and fast to use.
