6-Gang Car LED Switch Panel – 12V–30V Auto-Dimming Control
6-Gang Car LED Switch Panel – 12V–30V Auto-Dimming Control

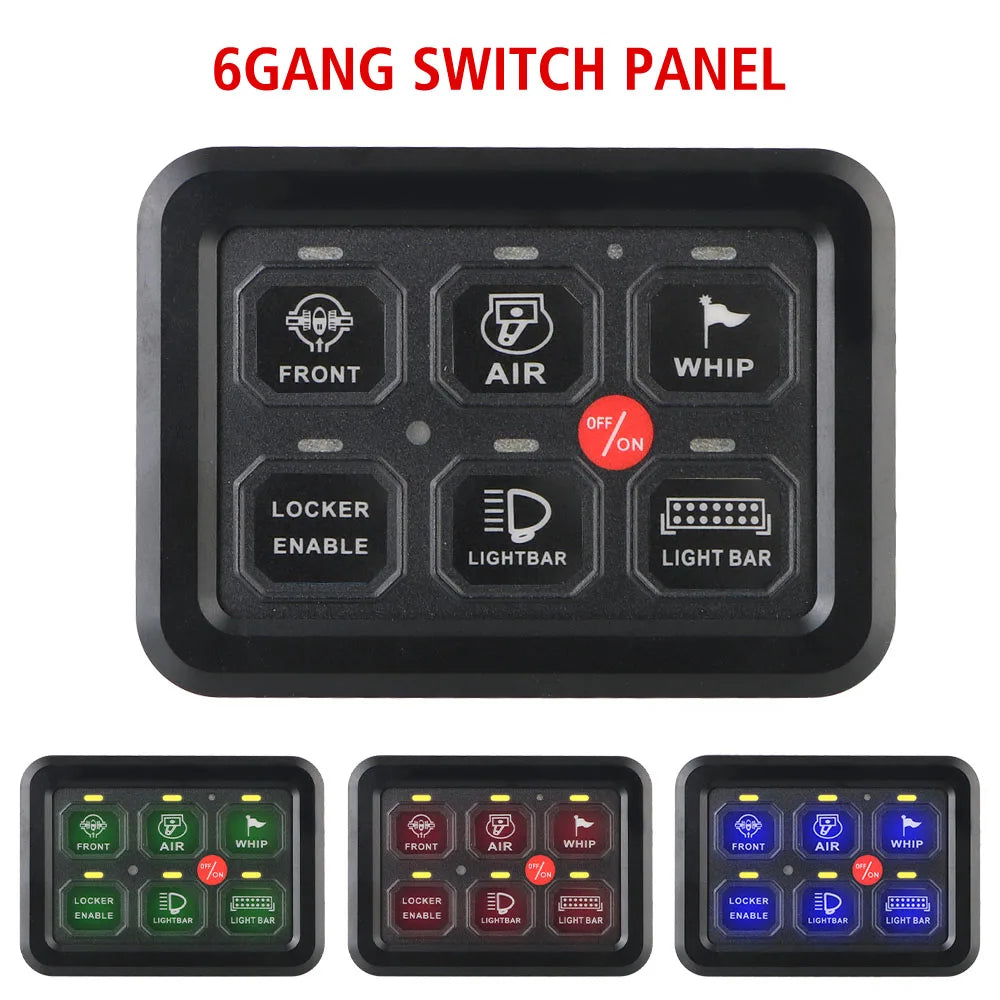

6-Gang Car LED Switch Panel with Auto-Dimming Backlight
Take full command of your vehicle's lighting and accessories with this versatile 6-Gang Car LED Switch Panel. Designed for 12V–30V DC systems, this all-in-one control panel lets you power up to six lights or accessories from a single, neatly organised dashboard location. The smart auto-dimming backlight automatically adjusts brightness based on ambient light conditions — brighter in daylight, dimmer in tunnels — keeping your visibility comfortable at all times.
Made in Mainland China.
Why You'll Love This Switch Panel
- 6-Channel Control: Independently manage up to 6 lights or accessories from one compact panel.
- Smart Auto-Dimming Backlight: Light-sensitive technology brightens or dims the backlight automatically, so it never distracts you while driving.
- 7 Backlight Colours: Choose from blue, green, red, yellow, magenta, cyan, or white to match your interior style.
- 3 Button Modes: Switch between self-reset mode, double-flash mode, and standard switch mode to suit any accessory type.
- Wide Voltage Range: Compatible with 9–30V DC systems — works in cars, trucks, UTVs, off-road rigs, and boats.
- Durable Aluminium Alloy Control Box: Slim 91 × 66 × 15.5 mm profile built to handle operating temperatures from -40°C to 105°C.
- Overvoltage & Overcurrent Protection: Built-in safeguards plus anti-reverse connection protection for worry-free installation.
- 50 Custom Switch Stickers Included: Personalise each switch label to match your exact accessory layout.
- Flexible Mounting: Fixed bracket and double-sided EVA tape allow installation in virtually any position on your dash or console.
- Everything Included: No extra parts to buy — comes fully kitted out for immediate installation.

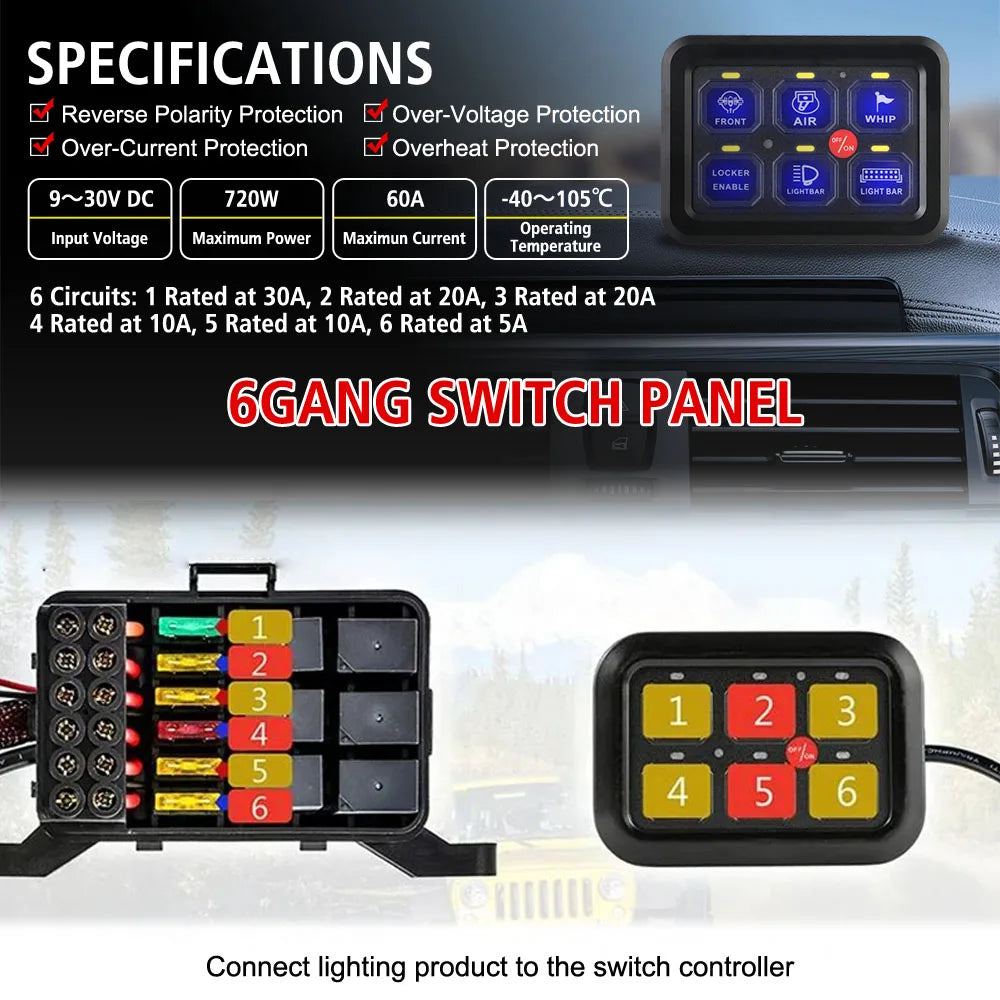

Technical Specifications
- Input Voltage: 9–30V DC
- Maximum Output Power: 720W
- Maximum Input Current: 60A
- Control Box Size: 91 × 66 × 15.5 mm
- Control Box Material: Aluminium Alloy

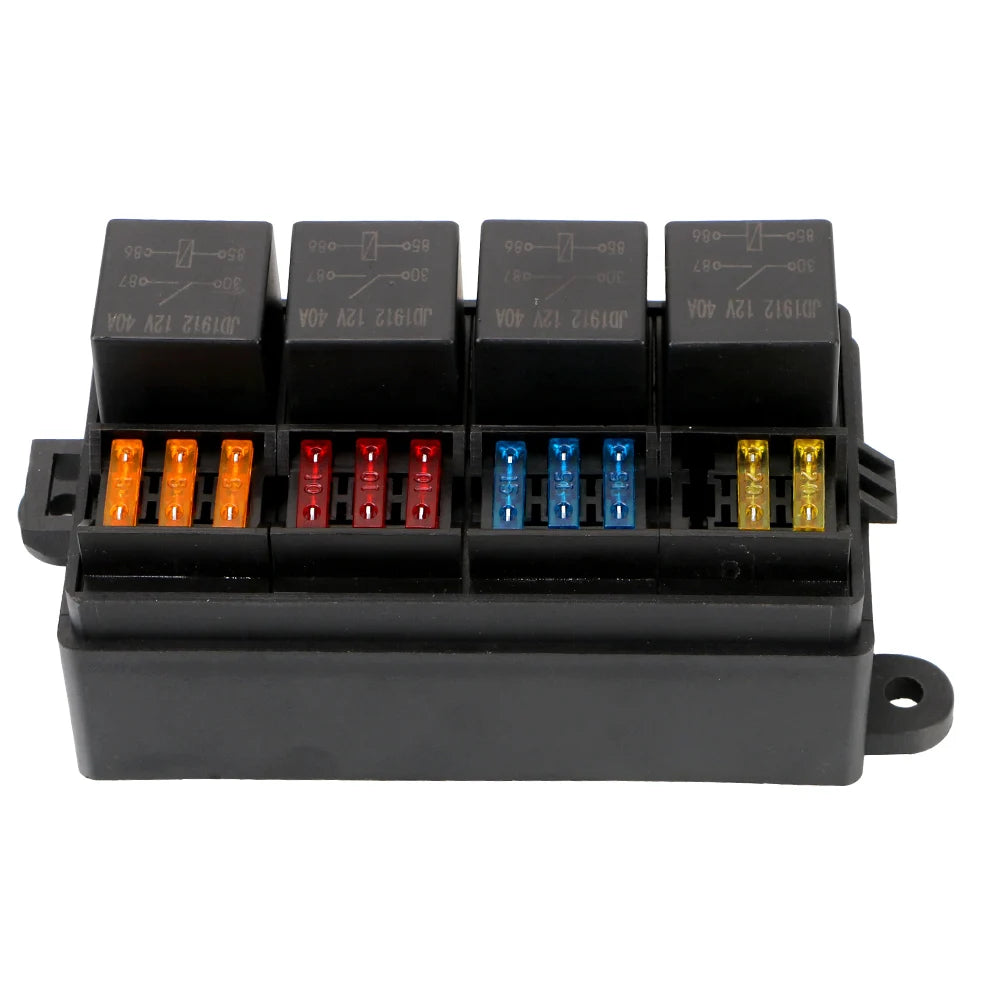

- Relay Box Size: 160 × 89 × 83 mm
- Relay Box Material: ABS Plastic
- Operating Temperature: -40°C to 105°C
- Backlight: Automatic brightness adjustment (light-sensitive)
What's in the Box
- 1 × Car LED Switch Panel (Control Box + Relay Box)
- 1 × Fixed Bracket
- 1 × Double-Sided EVA Tape
- 1 × Fuse Set
- 1 × Fixing Screw Set
- 1 × Installation Wrench
- 1 × Light Window Label Set (50 custom stickers)
- 1 × Zip Tie Set
- 1 × Electrical Connectors
- 1 × Extension Cable
Related Products You Might Like
- Clip-On Car Fan LED Display 199 Speeds | USB & Type-C
- All-Season Cooling Car Seat Cushion – Breathable & Ergonomic
- 60cm Motorcycle Luggage Strap – Elastic Helmet Bungee Net
Learn more: FuelEconomy.gov driving efficiency guidance
Frequently Asked Questions
Q: Is the 6-gang LED switch panel compatible with 24V truck systems?
A: Yes! The panel supports a wide input voltage range of 9–30V DC, making it fully compatible with both standard 12V car systems and 24V truck or heavy-vehicle systems right out of the box.
Q: Can I customise the switch labels on the LED control panel?
A: Absolutely. The kit includes 50 universal switch stickers so you can label each of the 6 gang switches to match your specific accessories — lights, winch, air compressor, or anything else you've wired in.
Q: How does the automatic backlight dimming work on this car switch panel?
A: The control panel features a built-in light sensor. In bright outdoor conditions the backlight increases in brightness so all 6 switches remain clearly visible. In darker environments such as tunnels or night driving, the backlight dims automatically to avoid distracting glare — no manual adjustment needed.
Q: What protection features does the relay switch panel have?
A: The panel is equipped with overvoltage protection, overcurrent protection (max 60A / 720W), and anti-reverse connection protection, helping to safeguard both the unit and your vehicle's electrical system during installation and operation.
