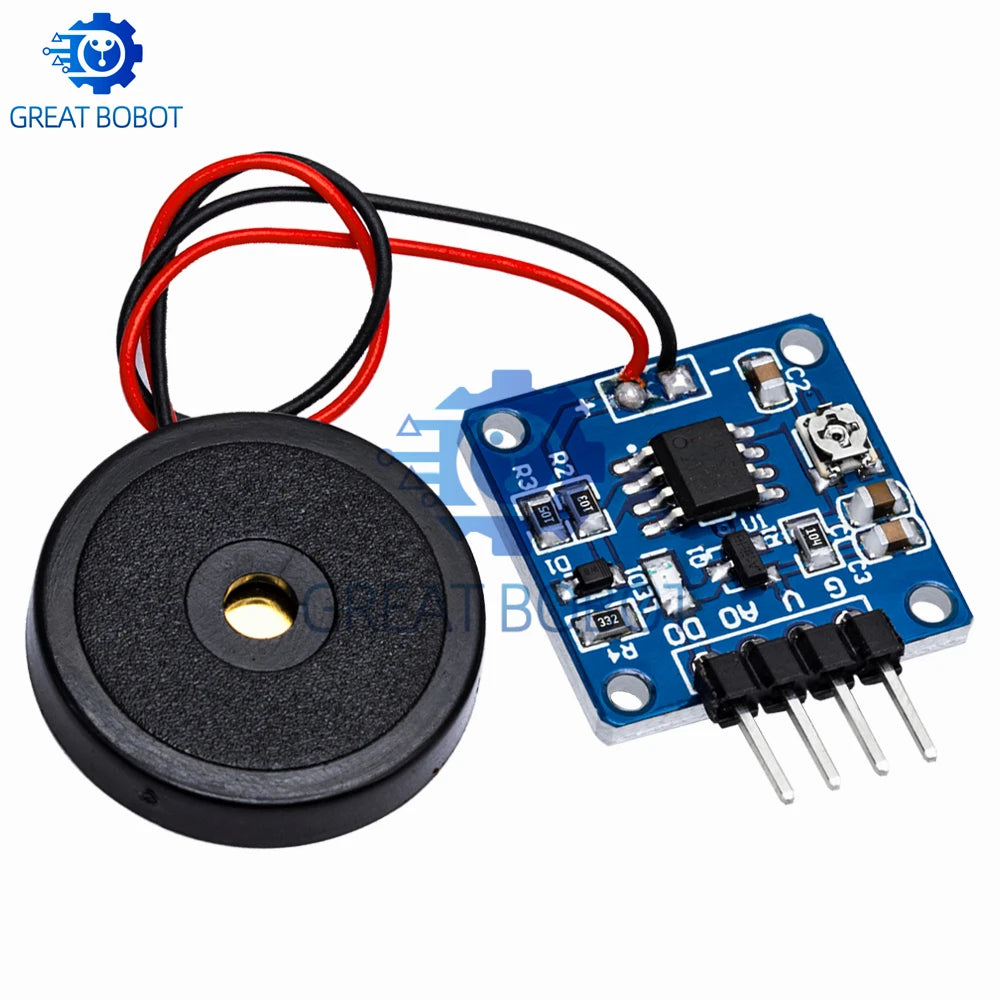

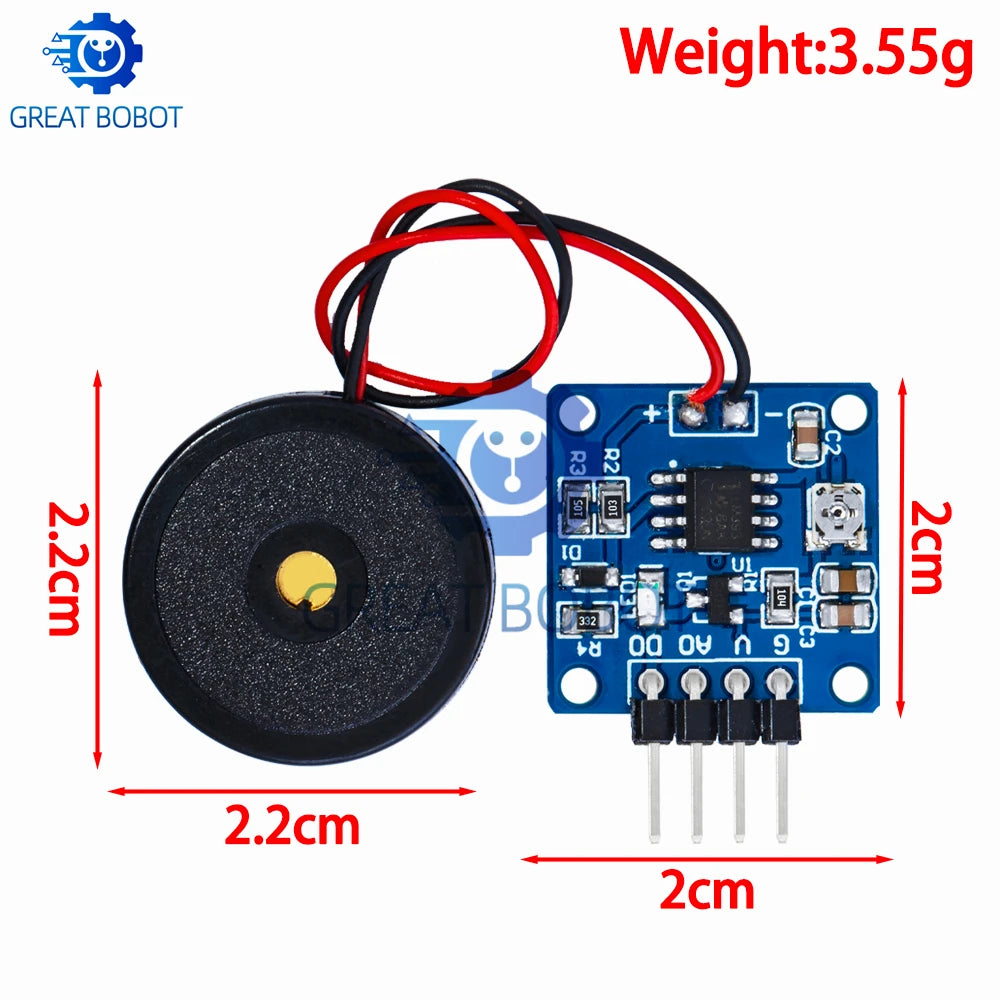

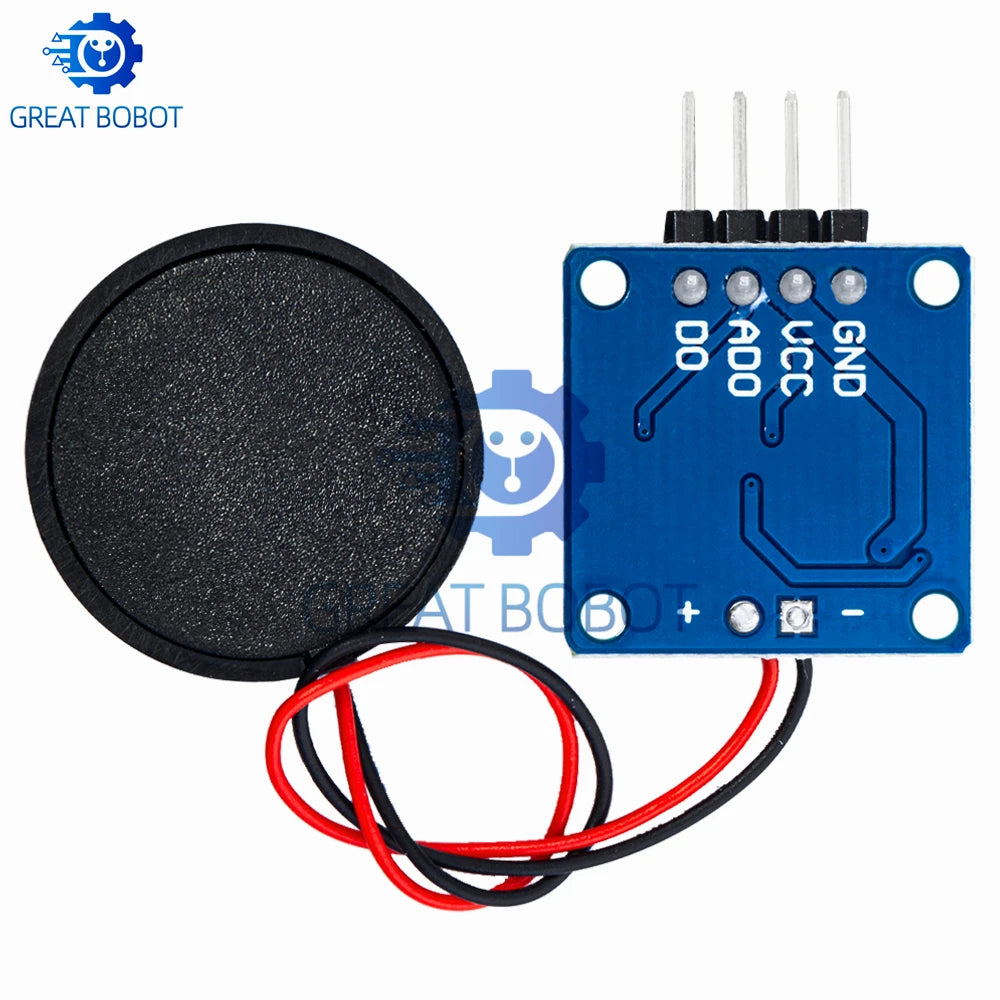

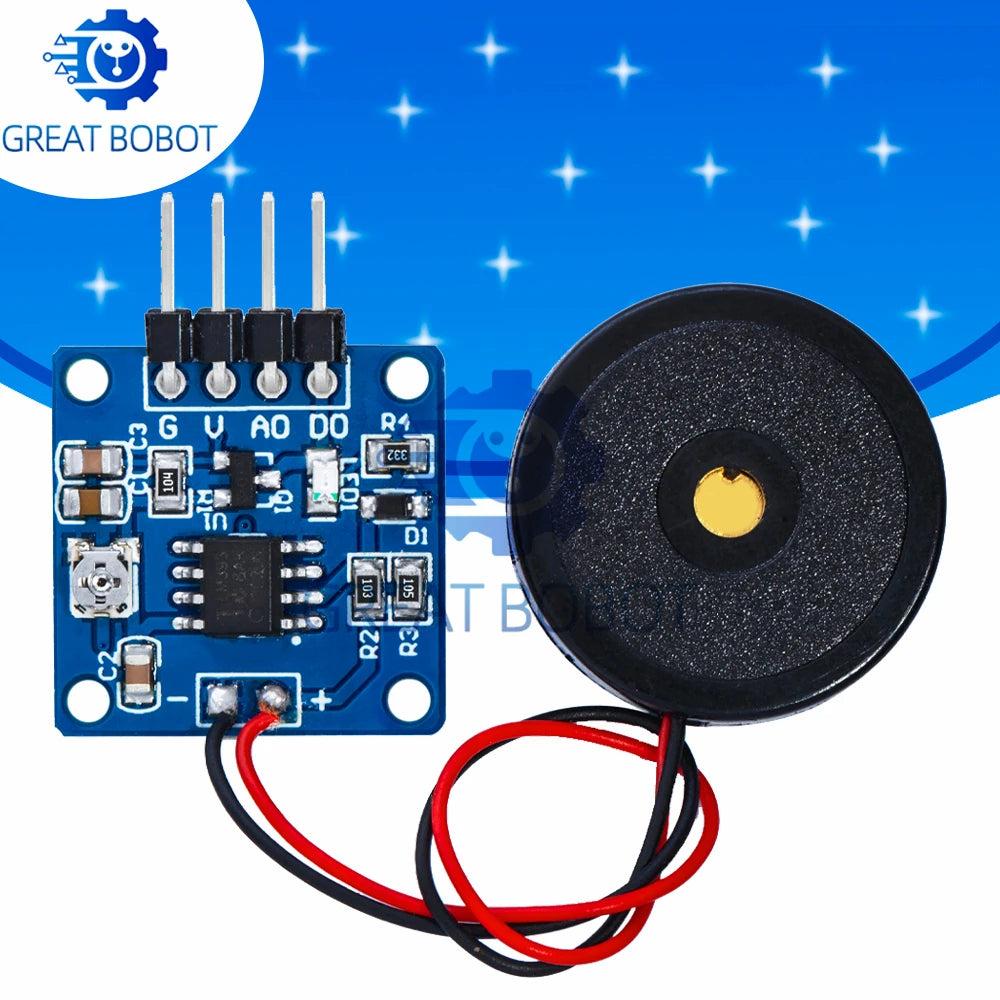

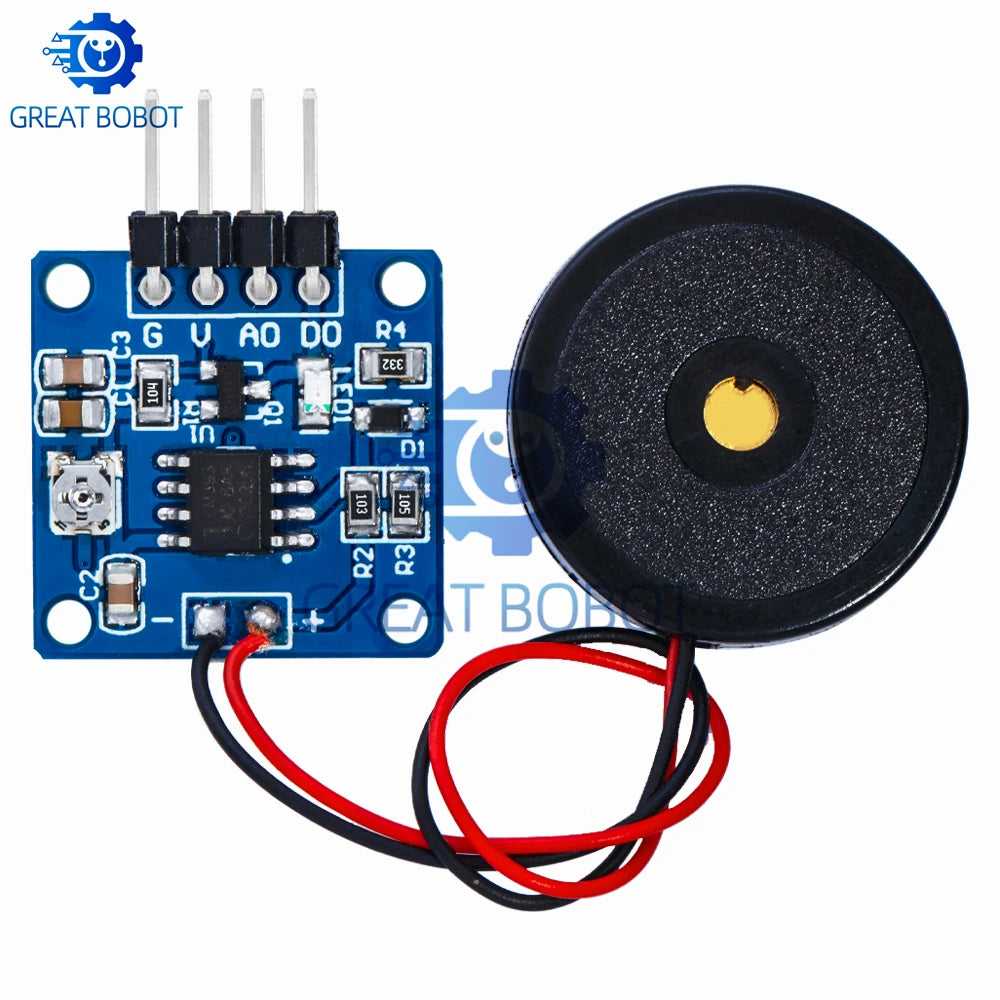

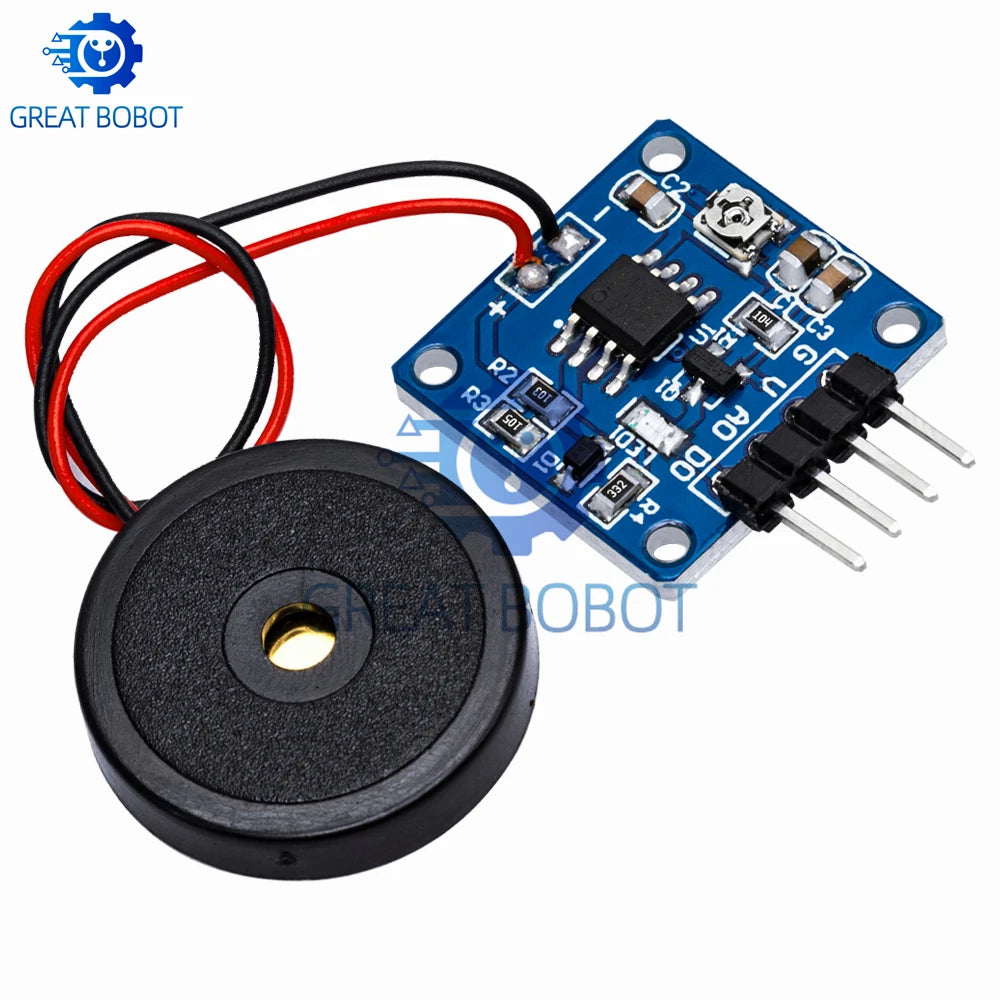

5V Piezoelectric Film Vibration Sensor Switch Module with TTL Level Output
Detect motion, taps, and vibrations with precision using this compact 5V Piezoelectric Film Vibration Sensor Switch Module. Designed for seamless integration with Arduino, Raspberry Pi, and other microcontroller platforms, this module delivers clean TTL-level digital output — making it ideal for hobbyists, engineers, and makers who need a reliable, plug-and-play vibration sensing solution.
Made in Mainland China.
Key Features
- TTL Digital Output: Clean HIGH/LOW signal output for easy interfacing with Arduino and other microcontrollers
- 5V Operating Voltage: Compatible with standard 5V development boards straight out of the box
- Piezoelectric Film Sensor: Highly sensitive to vibration, tapping, knocking, and physical movement
- Switching Transducer Output: Acts as a position and vibration sensor switch — outputs a trigger signal when vibration is detected
- Compact Metal Construction: Durable metal build suited for long-term prototyping and embedded projects
- No High-Concern Chemicals: Safe to handle and integrate into DIY electronics projects
- Customizable: Supports custom configurations for specialized project requirements
Specifications
- Operating Voltage: 5V DC
- Output Type: TTL Level (Switching Transducer)
- Sensor Type: Piezoelectric Film / Sound & Vibration Sensor
- Material: Metal
- Theory: Hall Sensor / Piezoelectric Effect
- Use Case: Position sensing, vibration detection, motion trigger
- Origin: Mainland China
Common Applications
- Arduino and Raspberry Pi vibration detection projects
- Smart home automation triggers
- Security alarm systems
- Knock detection and tap interfaces
- Industrial equipment vibration monitoring prototypes
- Robotics and motion-sensing experiments
Related Products You May Like
If you enjoy electronics and DIY projects, check out these other useful tools in our store:
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Is this vibration sensor module compatible with Arduino?
A: Yes! The 5V Piezoelectric Film Vibration Sensor Switch Module is fully compatible with Arduino boards (Uno, Mega, Nano, etc.) as well as other 5V microcontroller platforms. Its TTL-level digital output makes wiring straightforward — simply connect VCC, GND, and the signal pin to your board.
Q: What kind of vibrations can this sensor detect?
A: This module uses a piezoelectric film element to detect a wide range of physical stimuli including tapping, knocking, shaking, and surface vibrations. It is ideal for applications such as knock detection, motion triggering, security alarms, and vibration-based input systems.
Q: What is the output signal of this module?
A: The module outputs a TTL-level digital signal (HIGH or LOW), functioning as a switching transducer. When vibration is detected above the threshold, it triggers the output — making it simple to read with any standard digital input pin on your microcontroller.
Q: Can this sensor be used in custom or commercial projects?
A: Yes, the module supports customization and is well-suited for both hobbyist prototyping and small-scale commercial or industrial project integrations. Its durable metal construction and clean signal output make it a dependable choice for a variety of sensing applications.
