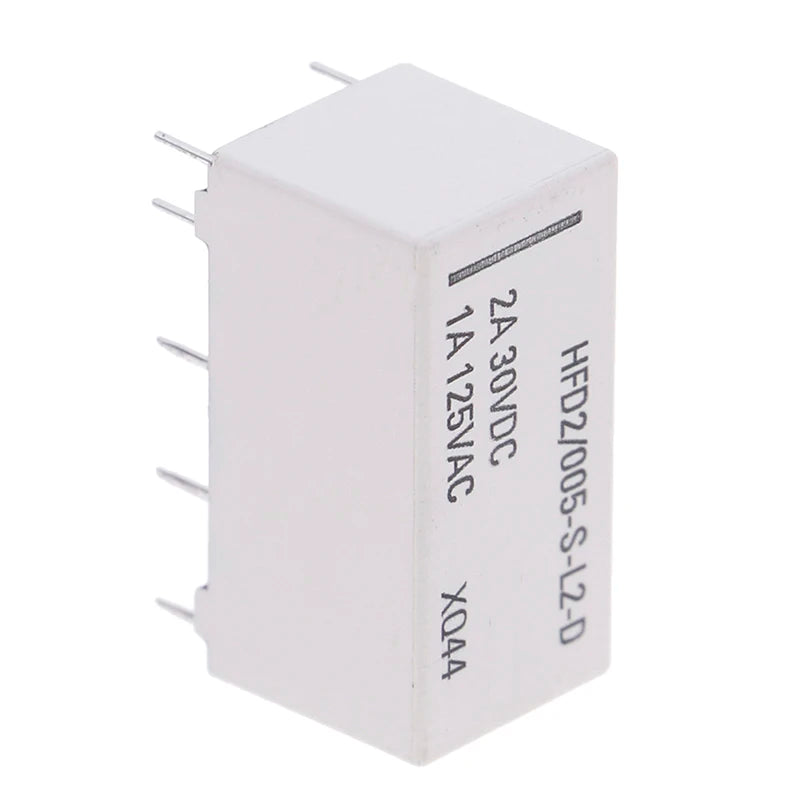

5V Coil Bistable Latching Relay – DPDT HFD2/005-S-L2-D

This compact 5V bistable latching relay (model HFD2/005-S-L2-D) is an essential component for electronics projects, PCB designs, and automation circuits. With a DPDT (Double Pole Double Throw) configuration and a 10-pin layout, this relay holds its switched state without continuous coil power — making it ideal for low-power, energy-efficient applications. Made in Mainland China.

Key Specifications

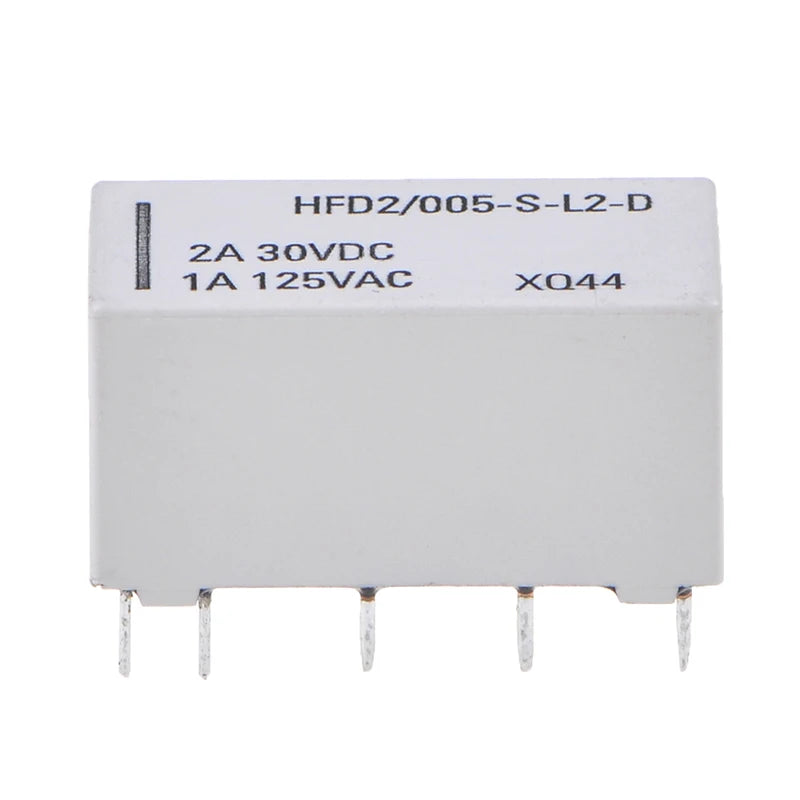

Model: HFD2/005-S-L2-D
Coil Voltage: 5V DC
Contact Form: 2CO (DPDT – Double Pole Double Throw)

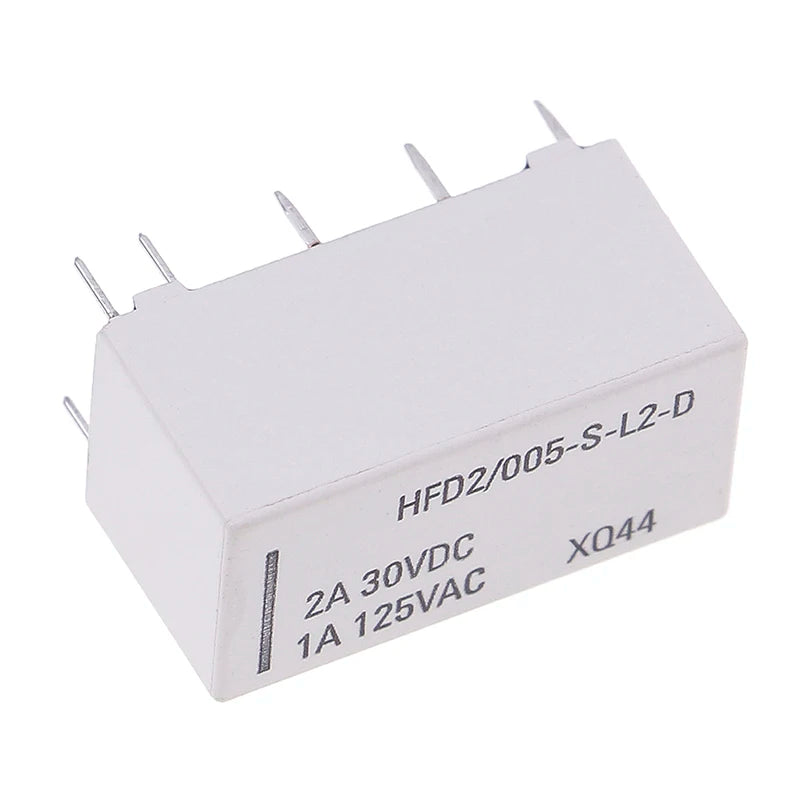

Contact Rating: 1A @ 125VAC / 2A @ 30VDC
Contact Material: Ag-AuAg8 (Silver / Gold-Silver alloy)
Coil Consumption: 150mW
Operate / Release Time: 4ms / 3ms
Operating Temperature: -40°C to +85°C

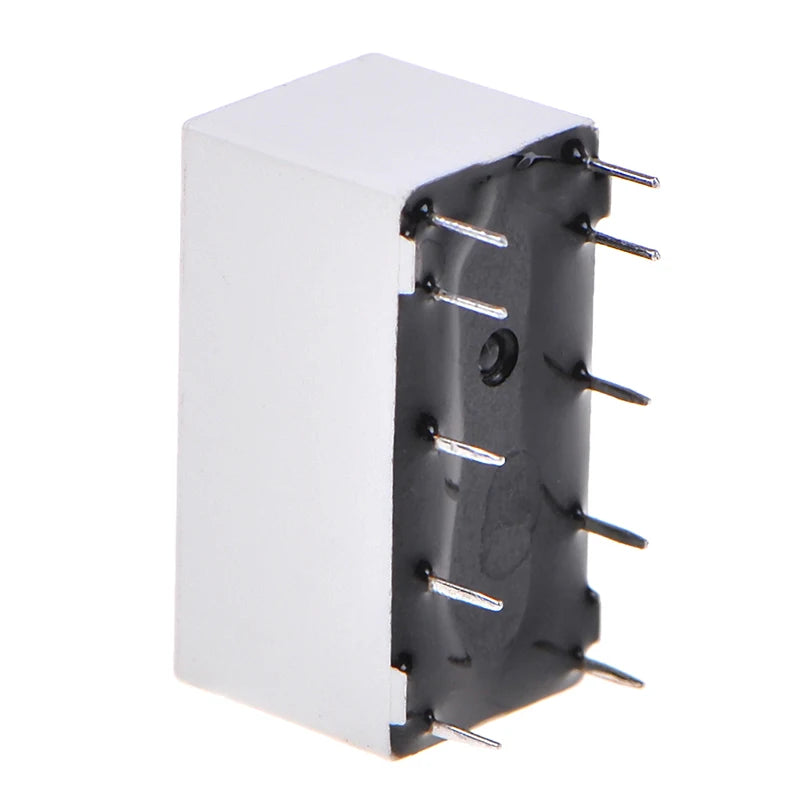

Pin Count: 10 Pins
Color: White

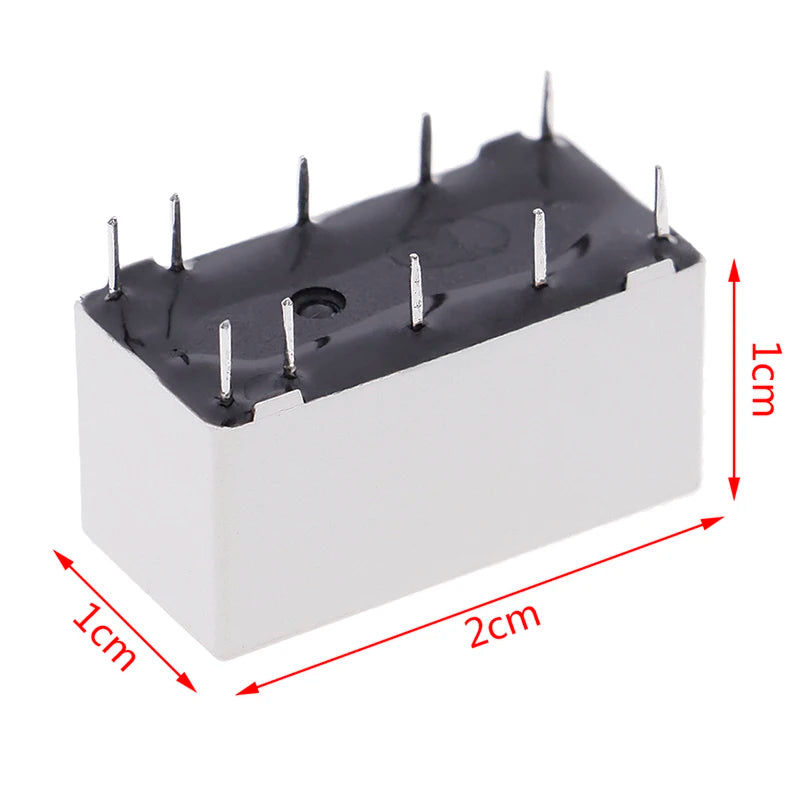

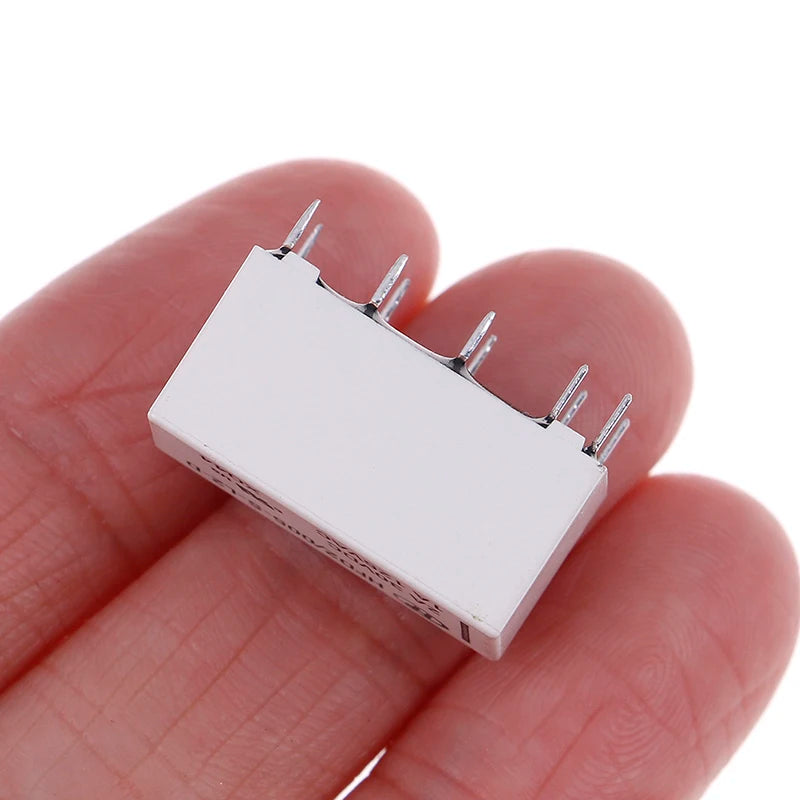

Dimensions (approx.): 2 × 1 × 1 cm (0.79 × 0.39 × 0.39 inch)
Contact Load: Low Power
EU LVD: Low Voltage – Below 50VAC or 75VDC

Why Choose a Bistable Latching Relay?

Unlike standard relays, a bistable (latching) relay maintains its last switched position even after coil power is removed. This means zero standby power consumption once set — perfect for battery-powered devices, smart home automation, remote switching circuits, and any application where power efficiency is critical.

Package Includes

1 × HFD2/005-S-L2-D Bistable Latching Relay

Notes

Please allow 0–3mm measurement tolerance due to manual measuring.
Actual product color may vary slightly from screen images due to monitor differences.

Related Products You May Like

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What does "bistable latching relay" mean and how does the HFD2/005 work?

A: A bistable latching relay has two stable positions — ON and OFF — and holds whichever state it was last set to, even when coil power is removed. The HFD2/005-S-L2-D uses a 5V DC pulse to set or reset the relay position, consuming no ongoing power once switched. This makes it highly efficient for battery-operated and low-power circuit designs.

Q: What is the contact rating of this relay?

A: This DPDT relay is rated at 1A @ 125VAC for AC circuits and 2A @ 30VDC for DC circuits. It is designed for low-power signal switching applications and should not be used to switch heavy loads beyond these ratings.

Q: Is this relay compatible with standard PCB layouts?

A: Yes. The HFD2/005-S-L2-D features a standard 10-pin through-hole configuration that is compatible with most PCB designs that support the HFD2 footprint. Always verify your PCB footprint and pin assignments against the relay's datasheet before soldering.
