5S BMS 21V 20A Li-Ion Battery Protection Board for Power Tools
5S BMS 21V 20A Li-Ion Battery Protection Board for Power Tools
5S BMS 21V 20A Li-Ion Battery Management Protection Board for Electric Drills & Power Tools
Keep your 5-series lithium-ion battery packs running safely and efficiently with this compact, high-quality 5S BMS (Battery Management System) Protection Board. Designed specifically for 21V electric drills and cordless power tools, this PCBA board monitors each cell in real time and provides robust multi-layer protection to extend battery life and ensure safe operation every time.
Made in Mainland China.
Key Features
- 5S Li-Ion Compatible: Designed for 5-series lithium-ion battery packs rated at 3.7V per cell (21V total charge voltage).
- Real-Time Cell Monitoring: Uses a dedicated 5S lithium IC processor to continuously detect voltage, charge/discharge current, and ambient temperature across all cells.
- Multi-Layer Protection: Built-in safeguards include overcharge protection, over-discharge protection, and short-circuit protection for reliable and safe operation.
- Continuous Discharge Current: Handles 8–20A continuous discharge, making it suitable for demanding power tool applications.
- Ultra-Low Power Consumption: Working current of approximately 25µA and quiescent current of approximately 6µA — minimal self-drain when idle.
- Dual MOSFET (2 MOS) Design: Enhanced switching performance for more efficient charge and discharge cycles.

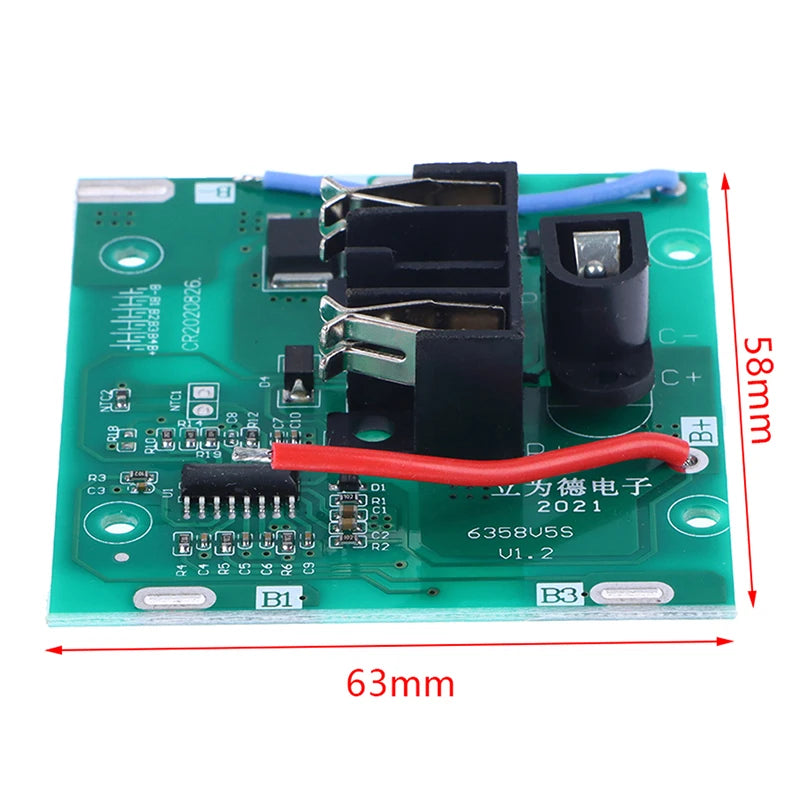

- Compact Form Factor: Measures just 58 × 63 mm — easy to integrate into most battery pack housings.
Technical Specifications
- Configuration: 5S (5 cells in series)
- Charge Voltage: 21V
- Single Cell Charge Voltage: 4.25V
- Overcharge Detection Voltage (per cell): 4.25V
- Continuous Discharge Current: 8–20A
- Working Current: ~25µA
- Quiescent Current: ~6µA
- MOSFET Count: 2 MOS
- Board Size: 58 × 63 mm
- Model Number: 5S21V-2MOS
Package Contents
- 1 × 5S BMS 21V 20A Li-Ion Battery Protection Board (PCBA)
Note: Battery cells, charger, and power tool are NOT included. Due to manual measurement, please allow a tolerance of 1–3 mm. Actual product color may vary slightly from images due to different monitor display settings.
