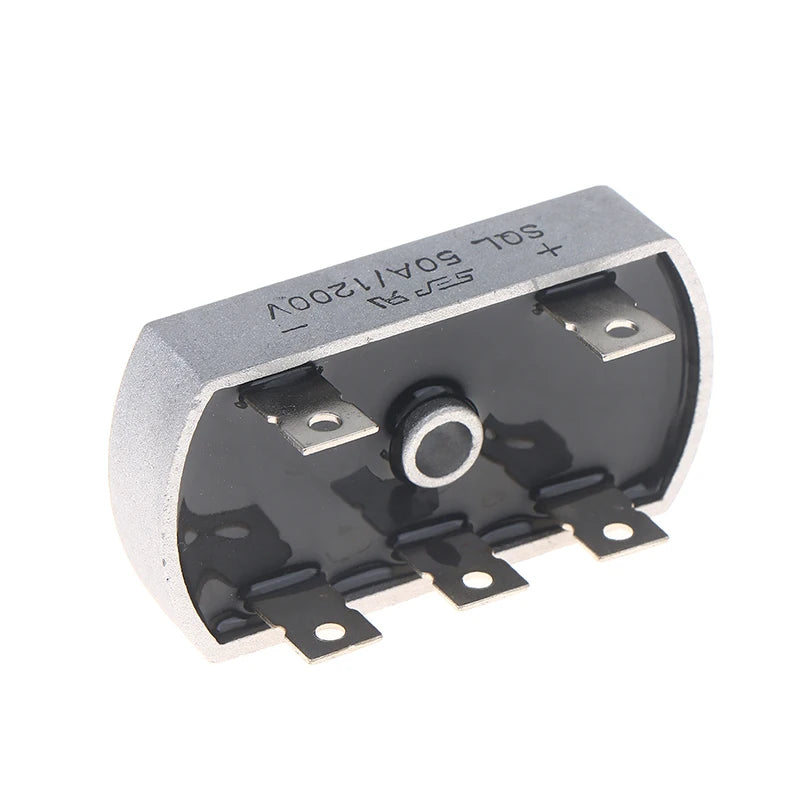

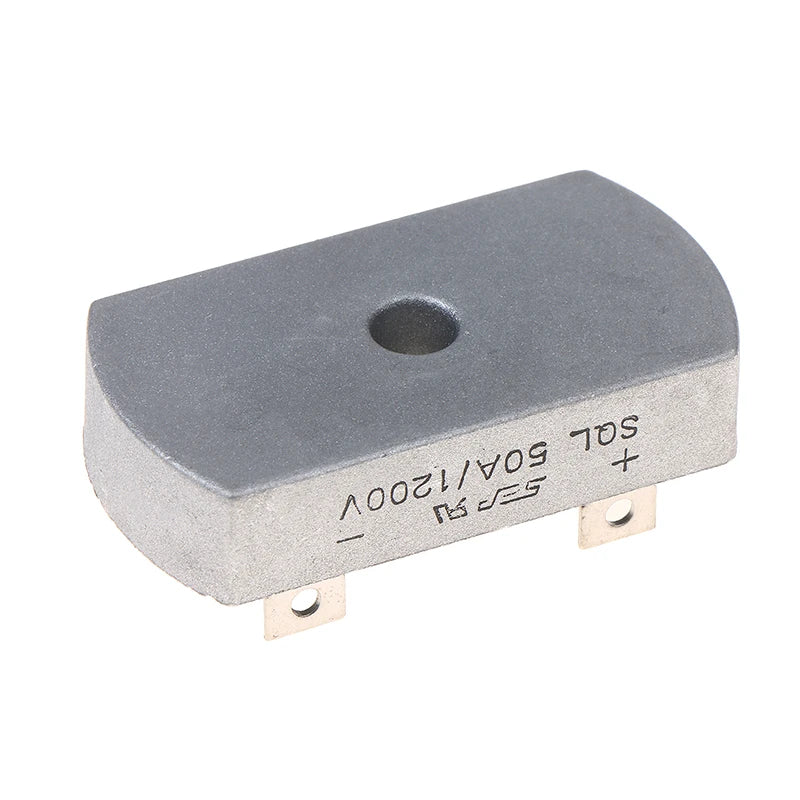

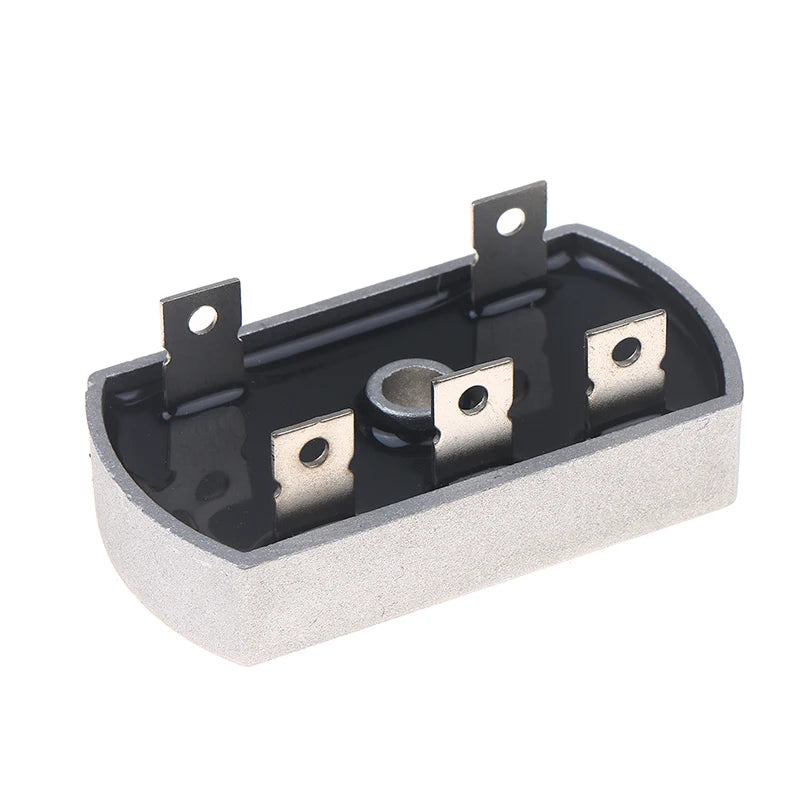

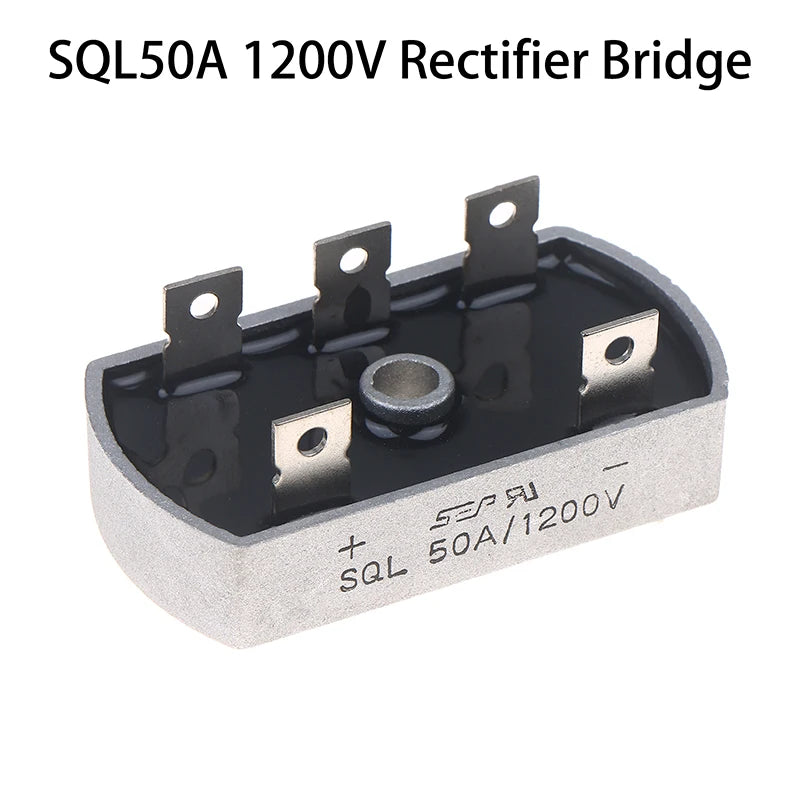

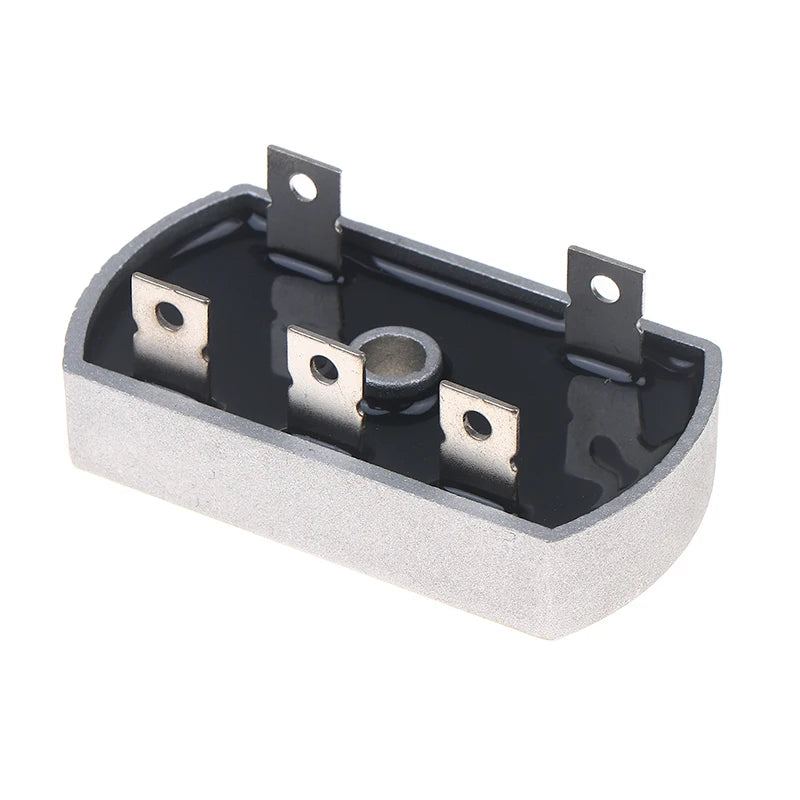

50A 1200V Aluminum Case 3-Phase Diode Bridge Rectifier Module (SQL50A)
The SQL50A 3-Phase Diode Bridge Rectifier is a robust, high-performance electronic component designed for converting three-phase AC power to DC. Built with a durable aluminum metal case, this 50A / 1200V rectifier module is ideal for industrial equipment, power supplies, motor drives, and a wide range of electronic applications that demand reliable and efficient rectification.
Made in Mainland China.
Key Features
- High Current & Voltage Rating: Handles up to 50 Amps and 1200 Volts for demanding power applications.
- 3-Phase Rectification: Converts three-phase AC input to smooth DC output with maximum efficiency.
- Aluminum Metal Case: Provides excellent heat dissipation, mechanical protection, and long-term durability.
- Easy Installation: Compact design with a 6mm fixing hole for straightforward panel or heatsink mounting.
- Exquisite Workmanship: Precision-built for reliable, consistent performance across extended use cycles.
- Silver Finish: Professional-grade appearance suitable for both open and enclosed assemblies.
Specifications
| Current Rating | 50A |
| Voltage Rating | 1200V |
| Phase | 3-Phase |
| Material | Aluminum |
| Color | Silver |

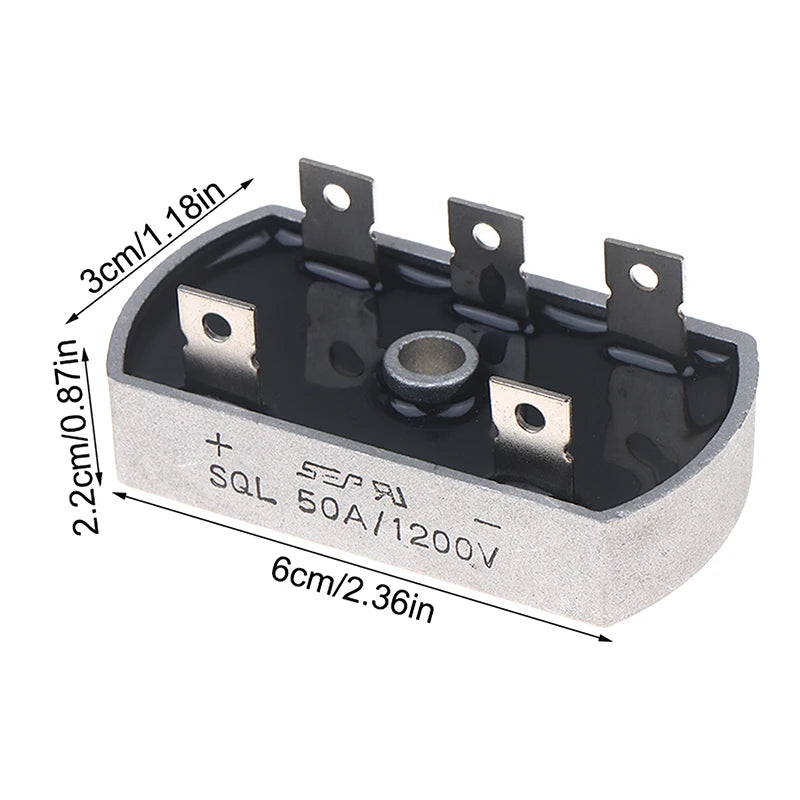

| Dimensions | Approx. 60 × 30 × 22 mm / 2.36 × 1.18 × 0.87" |
| Fixing Hole Diameter | Approx. 6mm / 0.24" |
| Country of Origin | Mainland China |
Package Includes
- 1 × SQL50A 3-Phase Diode Bridge Rectifier Module
Notes
- Please refer to the specifications above for exact dimensions — product photos are not to scale.
- Allow minor measurement differences due to manual measuring.
- Actual color may vary slightly from images due to monitor settings.
Related Products You May Like
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0–10/0–12/0–25 Bar | DIY Tool
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What is a 3-phase diode bridge rectifier module used for?
A: A 3-phase diode bridge rectifier module like the SQL50A converts three-phase alternating current (AC) into direct current (DC). It is commonly used in industrial power supplies, variable frequency drives (VFDs), motor controllers, welding equipment, and other high-power electronic systems that require stable DC output.
Q: Can the SQL50A 50A 1200V rectifier be mounted on a heatsink?
A: Yes. The aluminum case design is optimized for heatsink mounting. The 6mm fixing hole allows easy and secure attachment to a heatsink or chassis panel, ensuring effective thermal management during continuous operation.
Q: What is the maximum current and voltage this bridge rectifier can handle?
A: The SQL50A is rated for a maximum of 50 Amps current and 1200 Volts, making it suitable for high-demand three-phase power conversion applications in both industrial and electronics projects.
