433MHz Wireless Remote Switch – 1-4 Key EV1527 Learning Code

$12.48 $14.89

Color O AB ABC ABCD

Universal 433MHz Wireless Remote Control Switch – EV1527 Learning Code

Take full control of your garage door, gate, car alarm, or any compatible DC 6V system with this versatile 433MHz wireless remote control switch. Available in 1, 2, 3, or 4-button configurations, this universal remote uses the industry-standard EV1527 learning code protocol, making it compatible with a wide range of receivers right out of the box.

Made in Mainland China.

Key Features

Universal Compatibility: Works with any EV1527 learning-code receiver operating at 433MHz — ideal for garage doors, gates, and auto alarm systems.

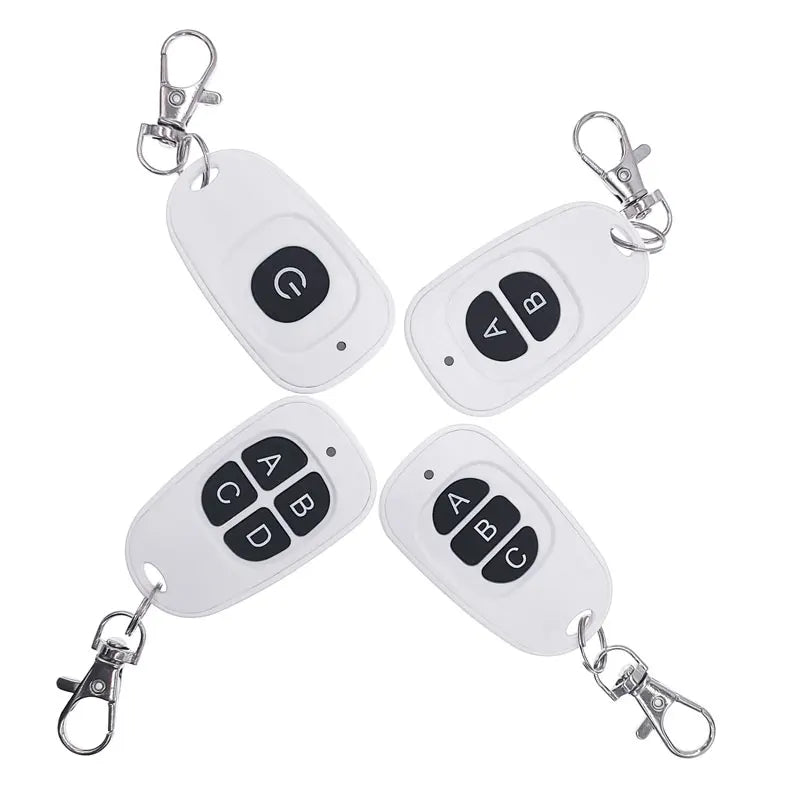

Multiple Button Configurations: Choose from 1-key, 2-key, 3-key, or 4-key models (models O / AB / ABC / ABCD) to match your exact setup.
433MHz Frequency: Reliable signal transmission with a range of up to 50 metres in an obstacle-free environment (15+ metres in standard conditions).
DC 6V / Low Voltage Operation: Safe, low-voltage design (below 75Vdc) suitable for a wide range of home and vehicle applications.
Learning Code (Study Code) Technology: Simple pairing process — this is a learning code type remote, not a copy/clone type. Pairs quickly with compatible receivers.
Compact Plastic Housing: Lightweight, durable white plastic body that's easy to carry on a keychain or store in your vehicle.
1-Year Warranty: Backed by a full 12-month warranty for peace of mind.

Specifications

Frequency: 433 MHz
Voltage: DC 6V (Low voltage: below 50Vac or 75Vdc)
Encoding: EV1527 Learning Code
Remote Distance: Up to 50 metres (obstacle-free); 15+ metres typical
Button Options: 1 / 2 / 3 / 4 keys
Material: Plastic

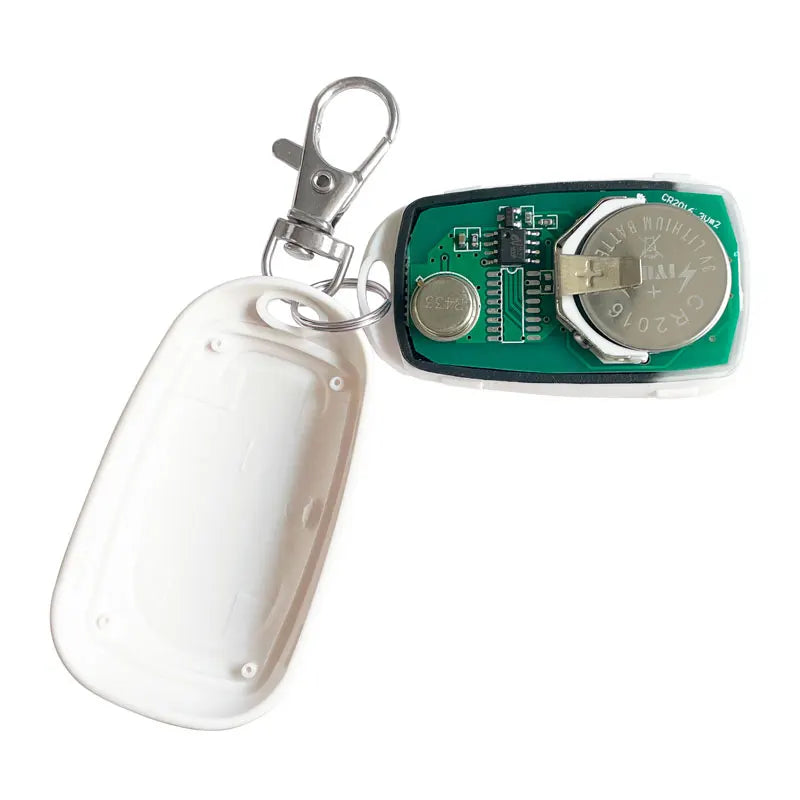

Battery: 2 × CR2016 3V (included — replace if remote does not light up on arrival)
Certification: CE
Warranty: 1 Year

Important Notes for Buyers

This remote uses learning code (study code) technology — it is not a copy/clone type. Please ensure your receiver supports EV1527 learning code pairing.
If the remote does not light up when buttons are pressed upon arrival, the battery may have been inadvertently drained during transit. Simply replace the 2 × CR2016 batteries and the remote will work normally.

Related Products You May Like

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: Is this 433MHz remote compatible with my existing garage door or gate receiver?

A: This remote is compatible with any receiver that supports the EV1527 learning code protocol at 433MHz. Check your receiver's documentation or label for "EV1527" or "learning code" support. It is not a copy/clone-type remote, so it will not replicate fixed-code systems.

Q: Why doesn't my remote light up or respond when I press the buttons?

A: The built-in 2 × CR2016 3V batteries may have been drained during shipping if buttons were accidentally pressed in transit. Simply replace both batteries with fresh CR2016 cells and the remote will function normally.

Q: How many buttons/channels do I need for my application?

A: Choose based on how many independent functions you want to control. A 1-key (Model O) is ideal for a single door or device; 2-key (AB) suits open/close commands; 3-key (ABC) or 4-key (ABCD) models are great for controlling multiple gates, lights, or alarm zones from one remote.

Q: What is the effective range of this wireless remote?

A: In an open, obstacle-free environment, the remote can transmit up to 50 metres. In typical indoor or urban conditions with walls and obstructions, expect reliable operation at 15 metres or more.
