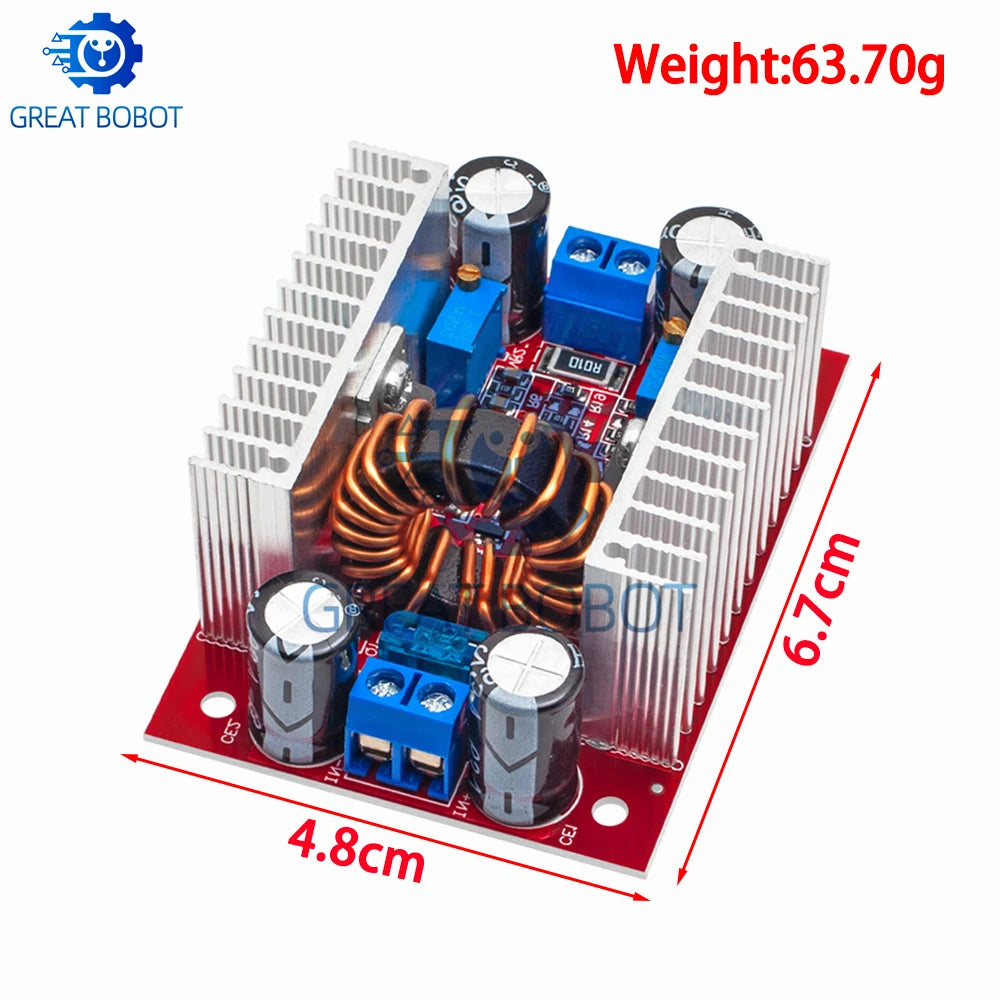

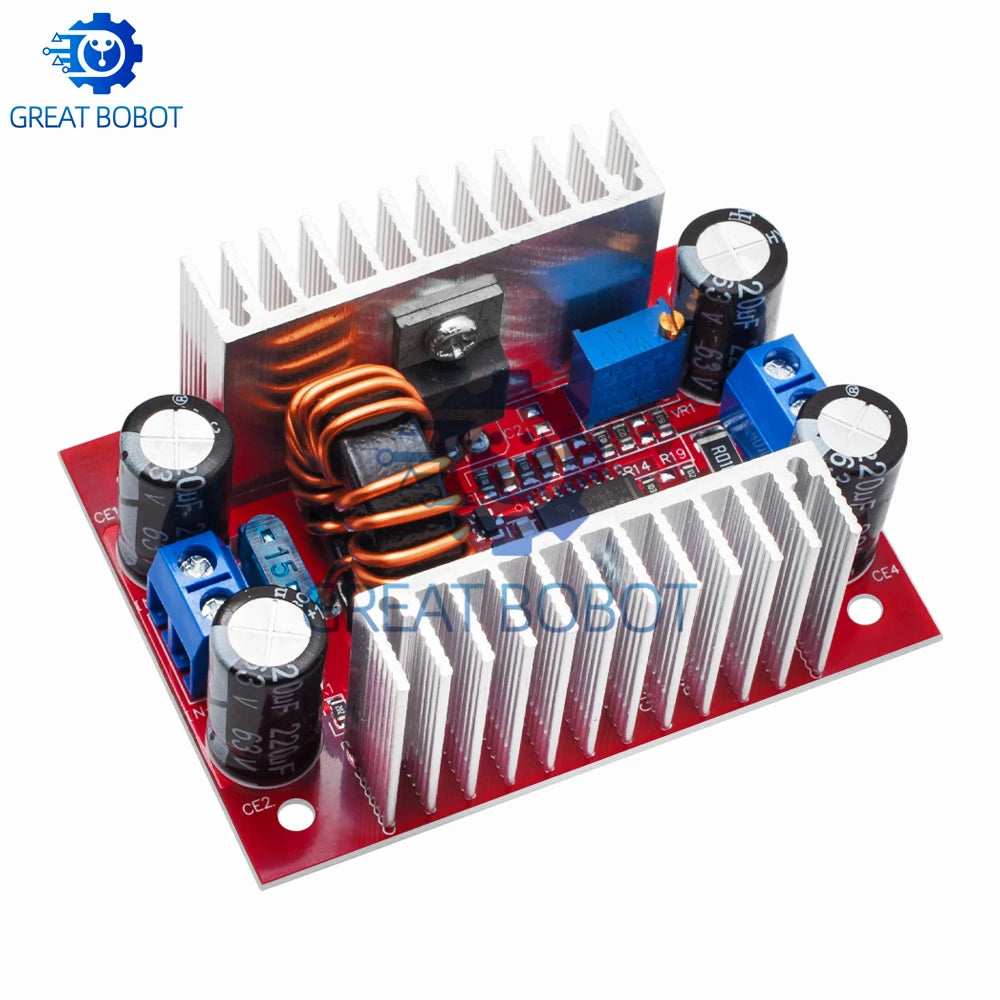

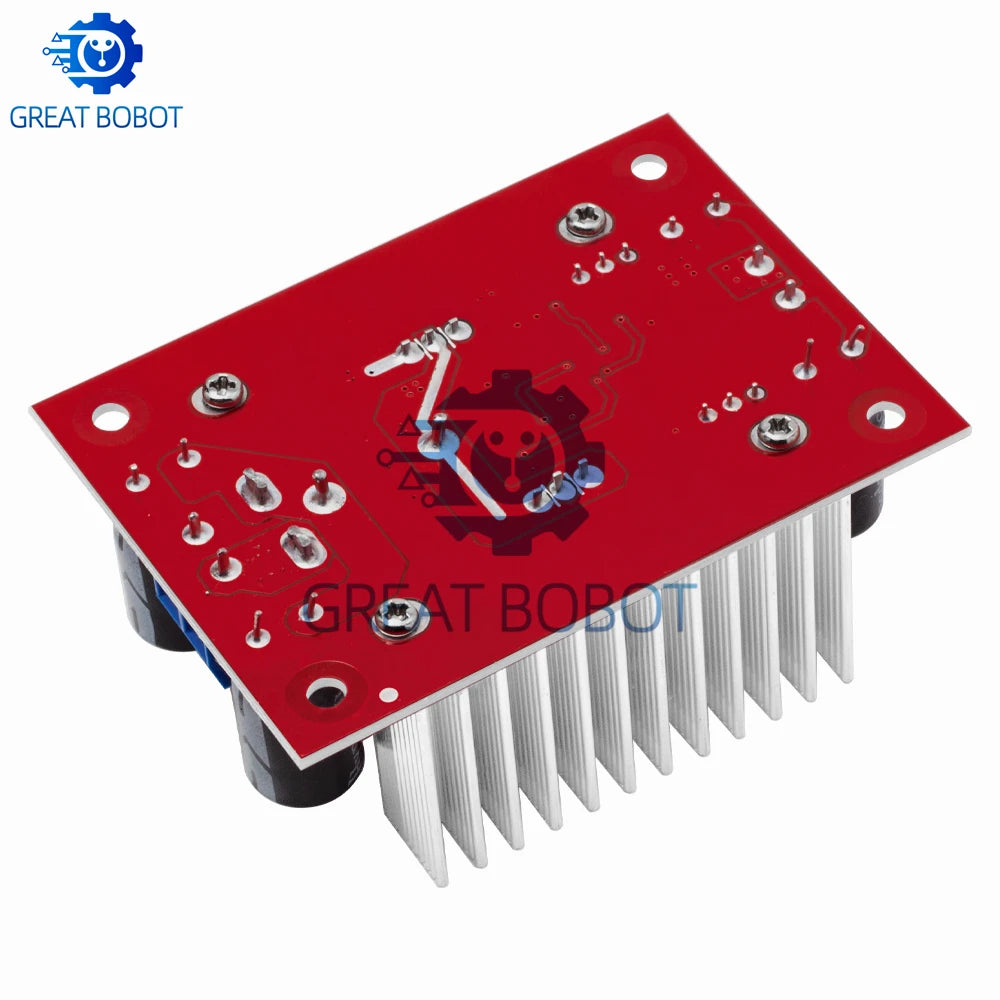

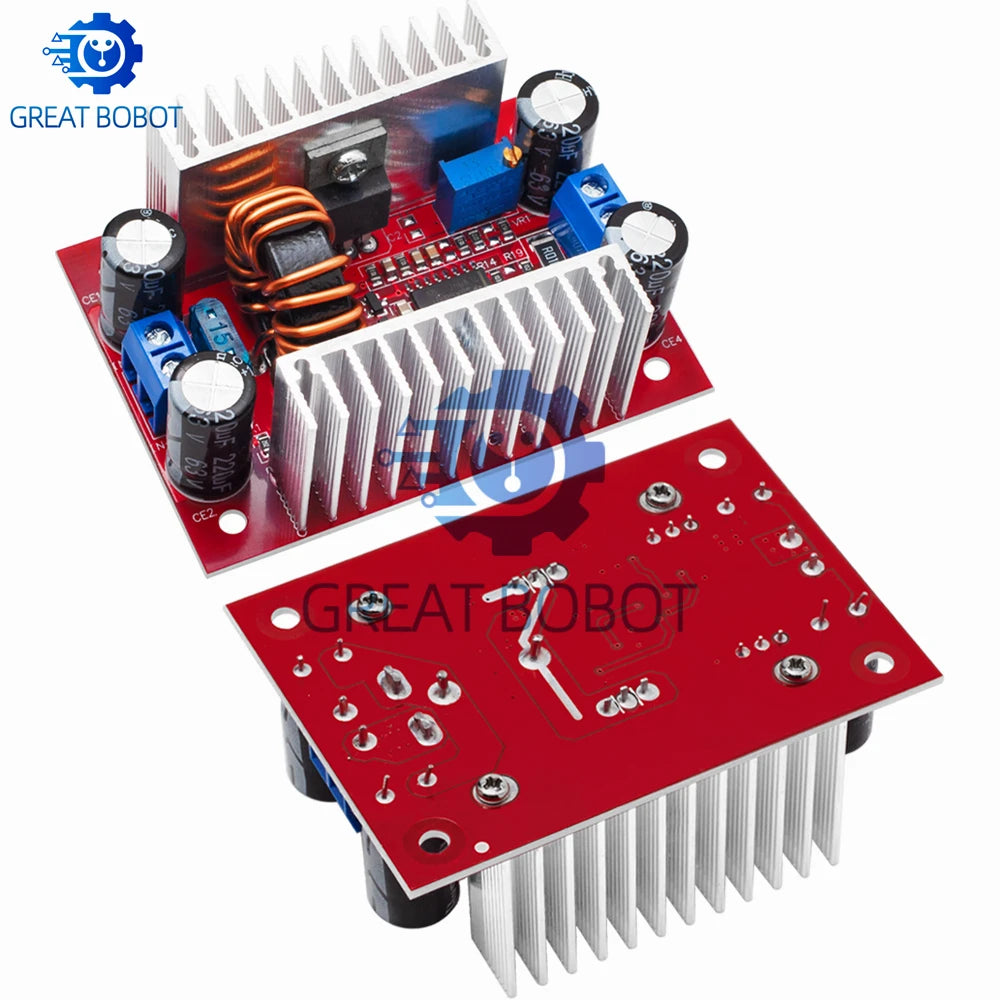

400W 15A DC Step-Up Boost Converter LED Driver Power Module
400W 15A DC Step-Up Boost Converter LED Driver Power Module
400W 15A DC Step-Up Boost Converter – Constant Current Power Supply & LED Driver Module
This high-performance 400W 15A Step-Up Boost Converter is a versatile DC-to-DC voltage regulation module designed for electronics projects, LED driving, battery charging, and power supply applications. With an input range of 8.5V–50V and an adjustable output of 10V–60V, it delivers stable, efficient power conversion in a compact SMD package.
Whether you're powering high-current LED arrays, charging batteries, or building a custom power supply, this boost converter module provides rock-solid constant current and constant voltage control in a single, easy-to-integrate board.
Made in Mainland China.
Key Features
- Wide Input Range: 8.5V to 50V DC input for compatibility with a broad range of power sources
- Adjustable Output: 10V to 60V output, fully adjustable to suit your project requirements
- High Power: Up to 400W dissipation power with a maximum current of 15A
- Constant Current & Constant Voltage: Dual-mode regulation ideal for LED driving and battery charging
- Wide Operating Temperature: Functions reliably from -40°C to +85°C, suitable for demanding environments
- SMD Package: Compact surface-mount design for easy integration into custom builds
- Voltage Regulator Type: Boost (step-up) topology for raising output voltage above input
- New Condition: Ships as a brand-new unit, quantity 1
Specifications
- Power: 400W
- Max Current: 15A
- Input Voltage: 8.5V – 50V DC
- Output Voltage: 10V – 60V DC (adjustable)
- Operating Temperature: -40°C to +85°C
- Package Type: SMD
- Type: Step-Up (Boost) Voltage Regulator
- Country of Origin: Mainland China
What's in the Box?
- 1 × 400W 15A DC Step-Up Boost Converter Module
Related Products You May Like
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What is a step-up boost converter module used for?
A: A step-up (boost) converter module takes a lower input DC voltage and converts it to a higher output DC voltage. This 400W 15A boost converter is commonly used for powering LED arrays, charging lithium or lead-acid batteries, building custom power supplies, and other electronics projects that require a higher output voltage than the available source.
Q: What input and output voltage range does this boost converter support?
A: This DC step-up module accepts an input voltage between 8.5V and 50V and provides an adjustable output voltage between 10V and 60V. The output must always be set higher than the input voltage for proper step-up operation.
Q: Can this module be used as an LED driver?
A: Yes. Thanks to its constant current (CC) and constant voltage (CV) regulation modes, this 400W boost converter is well-suited as an LED driver module for high-power LED lighting applications, ensuring stable, consistent performance.
Q: Is this converter suitable for outdoor or harsh-environment use?
A: The module is rated for an operating temperature range of -40°C to +85°C, making it suitable for a wide variety of environments. However, it should be protected from moisture and physical impact unless housed in an appropriate enclosure.
