Get perfectly aligned cabinet hinges every single time. This compact ABS plastic hinge jig takes the guesswork out of drilling hinge cup holes and screw holes for 35mm straight or semi-overlay hinges — ideal for kitchen cabinets, bathroom vanities, wardrobes, and furniture drawers.
Key Features

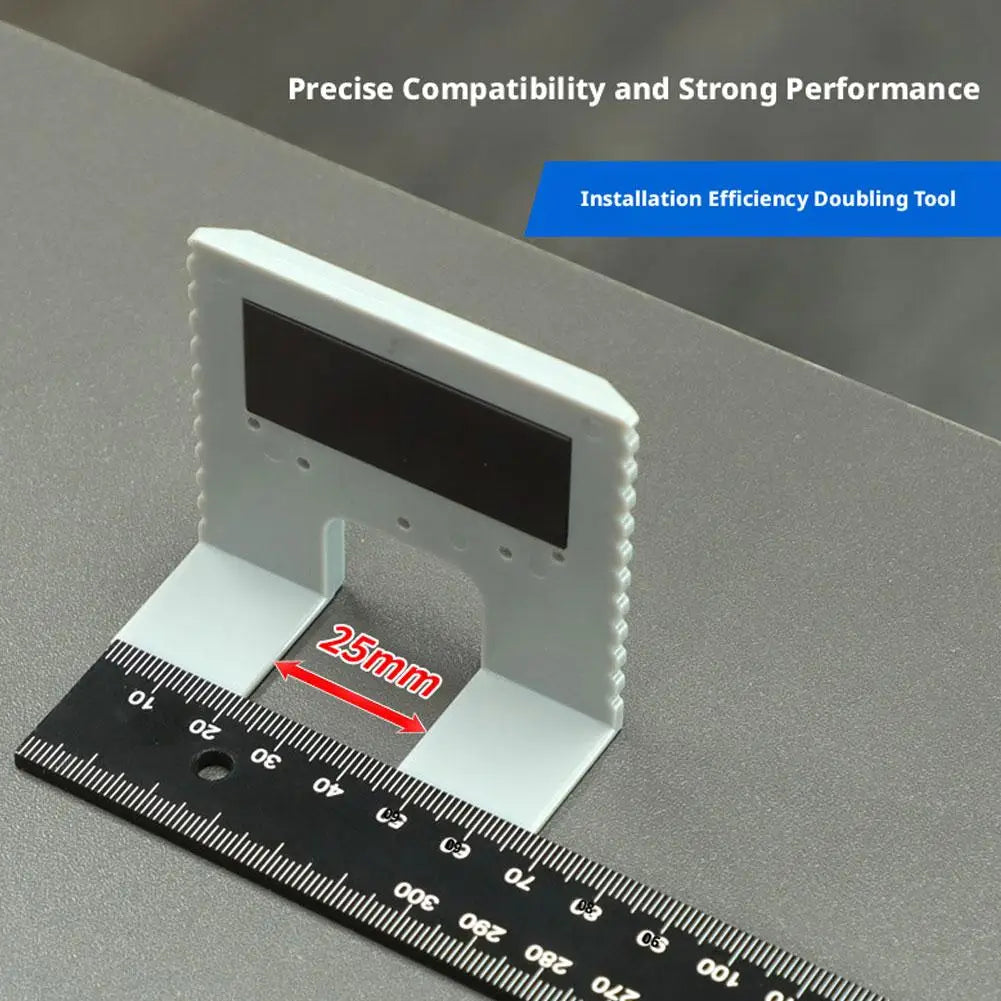

- Premium ABS Construction: Lightweight yet durable plastic body engineered for lasting accuracy. Compact dimensions — approx. 6.8 cm (2.68") W × 6.0 cm (2.36") H × 0.2 cm (0.08") thick — easy to handle and store.

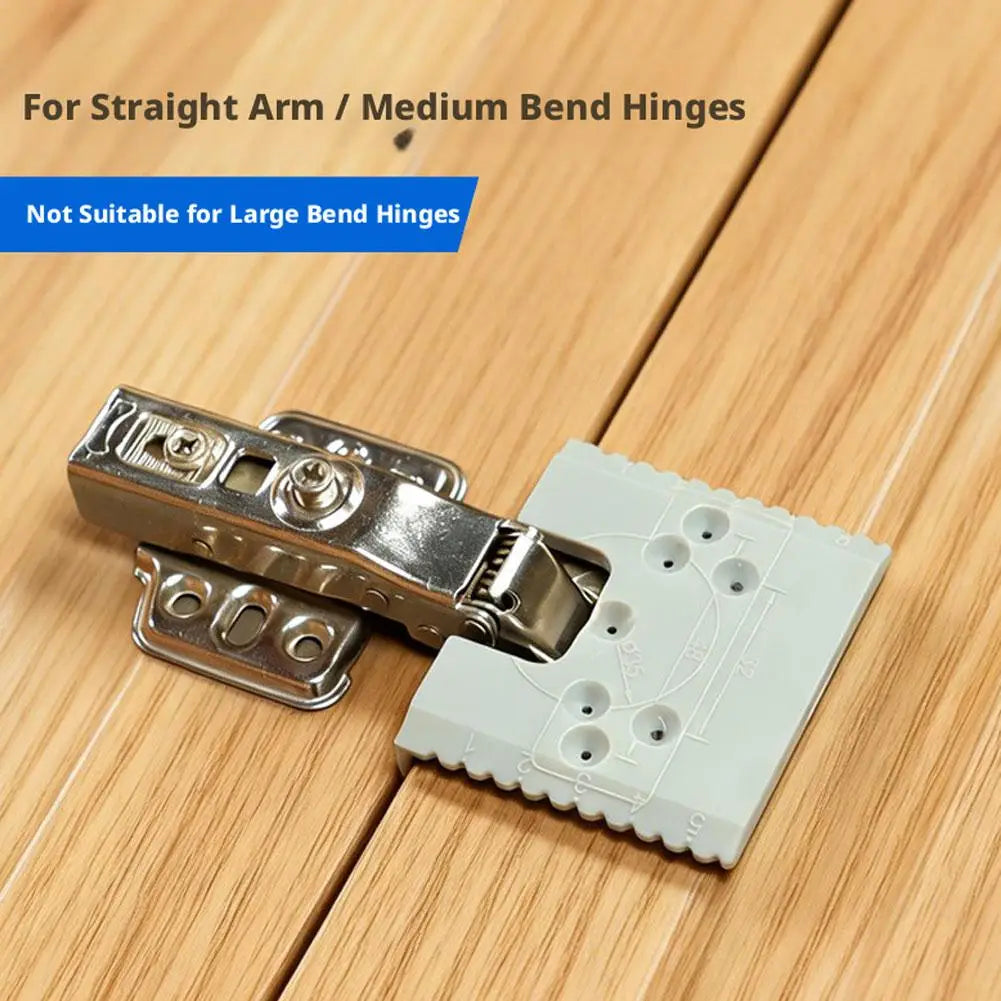

- Precise 35mm Hinge Positioning: Designed specifically for 35mm straight and semi-overlay hinges, enabling accurate marking and drilling of the hinge cup hole and adjacent screw holes in one step.

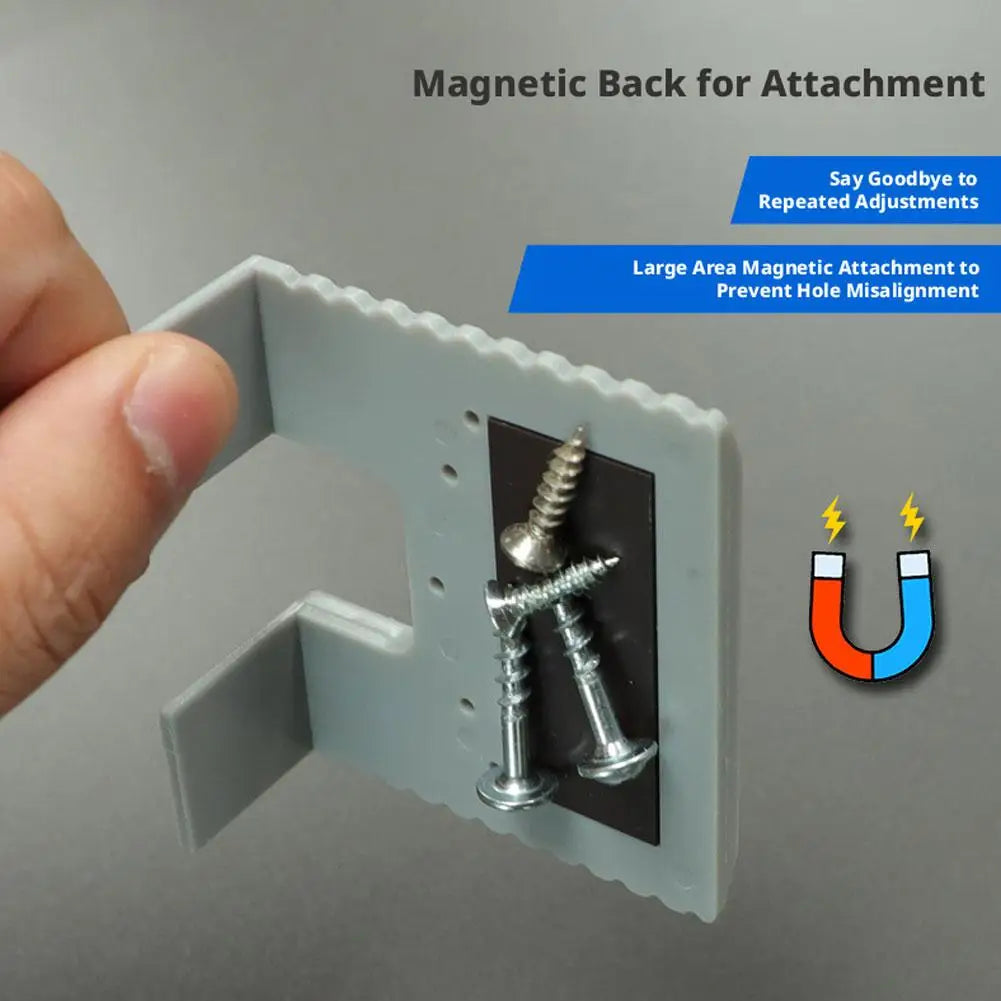

- Magnetic Anti-Displacement Design: The large-area magnetic backing holds the jig firmly against your workpiece while you drill, preventing slipping or shifting and delivering consistent, accurate hole placement every time.
- Guaranteed 2mm Door-to-Hinge Gap: Engineered to maintain a precise 2mm clearance between the door panel and hinge, producing a neat, professional finish and eliminating the need for tedious post-installation adjustments.

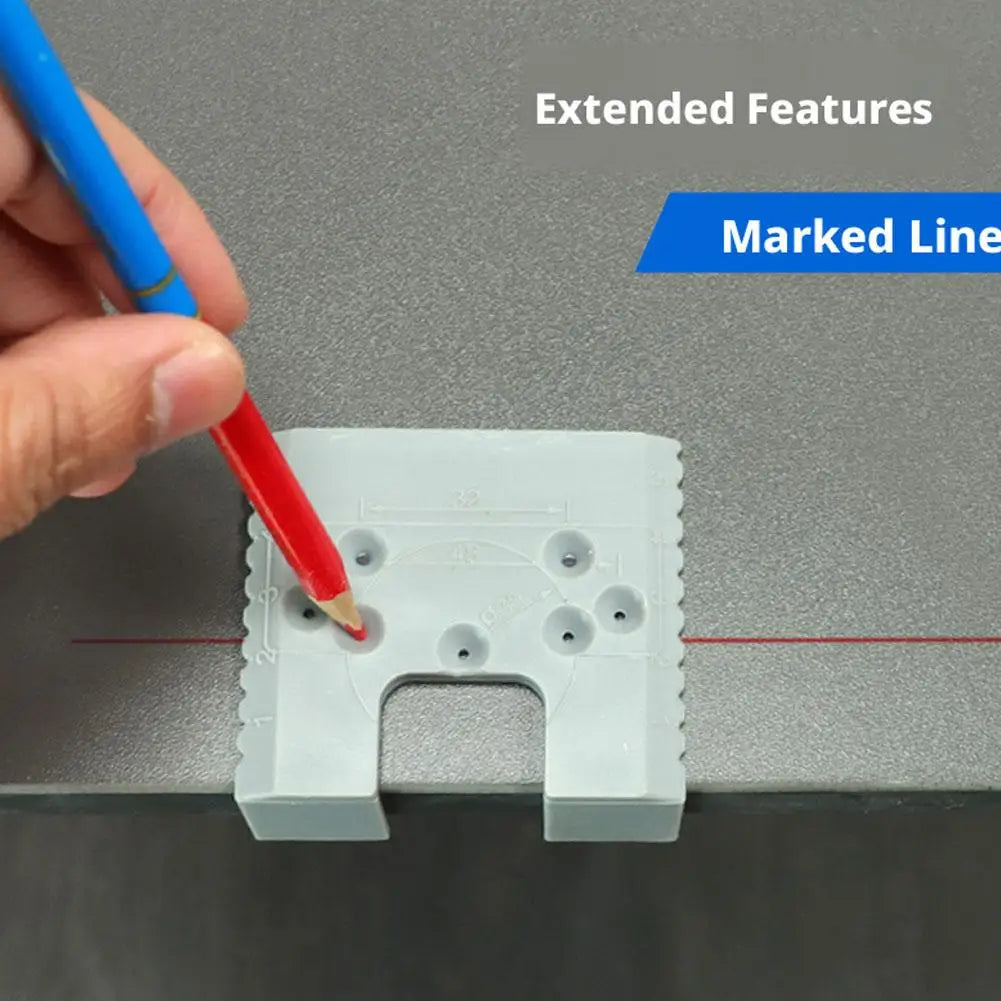

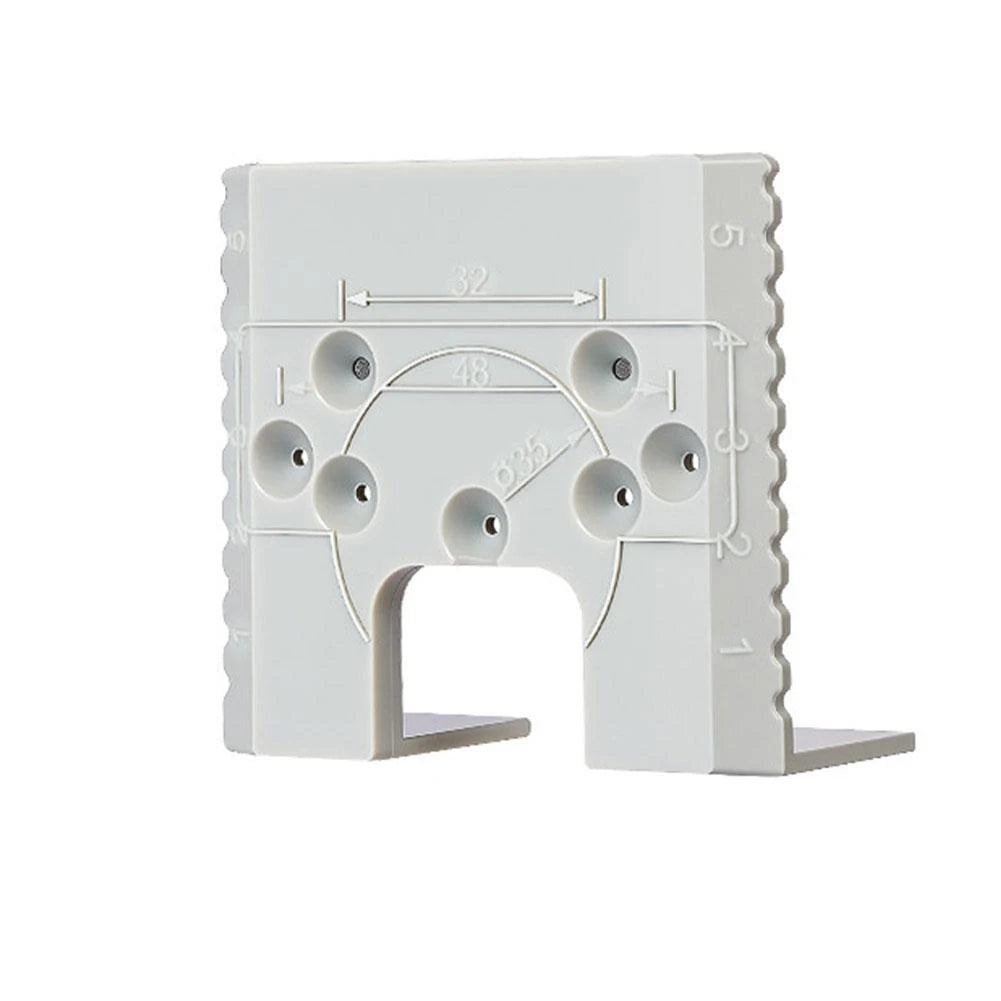

- Multi-Purpose Marking & Layout Tool: Integrated scales and reference points (32mm, 48mm, Ø35mm) let you use the jig as a marking aid for other woodworking layouts, boosting overall project precision.
Specifications
| Material | ABS Plastic |
| Dimensions | 6.8 cm × 6.0 cm × 0.2 cm (2.68" × 2.36" × 0.08") |
| Compatible Hinges | 35mm straight or semi-overlay cup hinges |
| Reference Points | 32mm, 48mm, Ø35mm |
| Country of Origin | Made in Mainland China |
What's in the Box?
- 1 × Grey Hinge Mounting Jig
Perfect For
- Kitchen cabinet door installation
- Bathroom vanity and medicine cabinet hinges
- Wardrobe and furniture cabinet doors
- DIY woodworking projects and carpentry professionals alike
Looking for more DIY and home workshop tools? Check out the Garden Pruner Shears – Secateurs for Bonsai & Fruit Trees or the Air Compressor Pressure Gauge 0–25 Bar | DIY Tool for your next project.
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What size hinges is this hinge installation jig compatible with?
A: This hinge jig is specifically designed for 35mm straight or semi-overlay cup hinges — the standard size used in most kitchen cabinet doors, bathroom cabinets, wardrobe doors, and furniture drawers. Always verify your hinge cup diameter before use.
Q: How does the magnetic backing work and why does it matter?
A: The integrated large-area magnetic backing adheres securely to ferrous metal workpiece surfaces or hardware, holding the jig firmly in position while you mark or drill. This prevents the jig from shifting mid-operation, ensuring each hole lands exactly where it should without the need for clamps or re-measurements.
Q: Can I use this jig on both the door panel and the cabinet frame?
A: Yes. The jig's built-in reference points and 2mm door-gap guide allow you to accurately position and mark holes on both the door panel and the cabinet frame, ensuring perfect hinge alignment and a consistent gap across all doors.
Q: Is this tool suitable for beginners as well as experienced carpenters?
A: Absolutely. The straightforward magnetic-lock design and clearly marked reference points (32mm, 48mm, Ø35mm) make this jig easy to use for first-time DIYers while still delivering the accuracy that professional carpenters expect.
