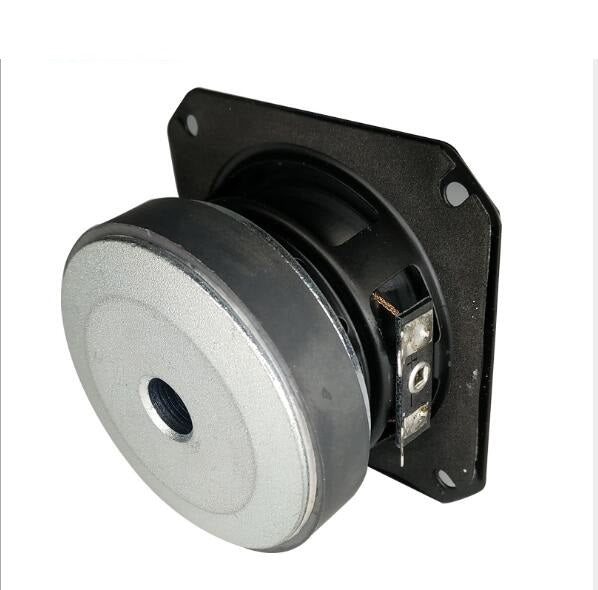

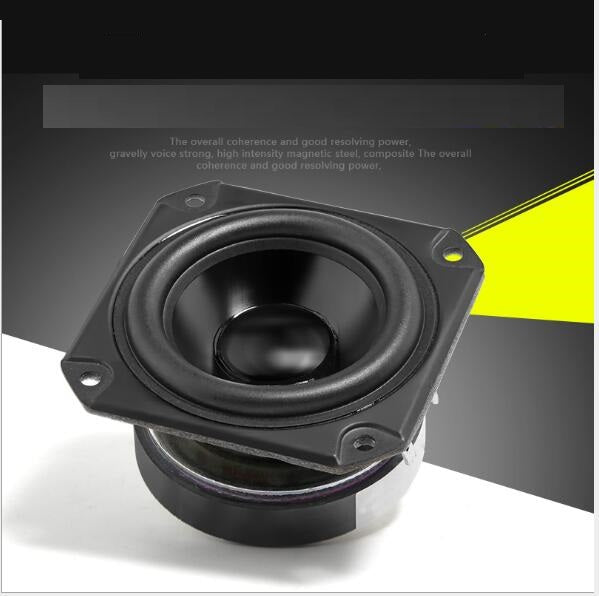

Axl 3-Inch Full-Range Speaker 8Ω 20W – Bluetooth & HiFi

Axl 3-Inch Full-Range Speaker – Rich, Clear Audio for Bluetooth & HiFi Systems

Upgrade your audio setup with the Axl 3-Inch Full-Range Speaker — a precision-engineered 20-watt driver built for Bluetooth smart speakers, multimedia devices, and home HiFi systems. With an 8-ohm impedance and a wide frequency response reaching up to 18 kHz, this compact speaker delivers crisp highs, clear vocal reproduction, and surprisingly robust bass from a 3-inch form factor.

Key Features

• Power Output: 20 Watts for dynamic, room-filling sound
• Impedance: 8 Ohms — compatible with a wide range of amplifiers and receivers
• Frequency Response: Up to 18 kHz for detailed, full-range audio reproduction
• Non-Paper Diaphragm: Advanced diaphragm material ensures consistent clarity and durability
• Aluminum Basin Frame: Lightweight yet rigid construction for improved resonance and longevity
• 25mm Voice Coil: Four-layer line design engineered for maximum efficiency and output accuracy
• Xmax 4mm: Generous excursion for fuller bass response from a compact driver
• Sensitivity: 90 dB/W — delivers great volume without requiring excessive power
• Rectangular Shape: Designed to fit snugly into custom speaker enclosures and multimedia housings
• Versatile Application: Ideal for Bluetooth speakers, smart home audio, portable speakers, and DIY HiFi projects

Why Choose This Speaker?

The Axl 3-inch full-range driver punches well above its size. The non-paper diaphragm resists humidity and temperature changes better than conventional paper cones, making it reliable in a variety of environments. The four-layer voice coil design ensures tight, accurate sound across the full frequency spectrum — from articulate treble detail to warm, grounded mid-bass. Whether you're building a custom enclosure, replacing a driver in an existing system, or developing a smart speaker product, this unit gives you professional-grade performance at an accessible price point.

Compatible Applications

• Bluetooth & wireless smart speakers
• Home HiFi & multimedia audio systems
• DIY speaker cabinet builds
• Portable and desktop audio devices
• Educational and hobbyist electronics projects

Specifications

Looking for more audio and electronics components? Check out these related items from our store:

• 0.1–2000MHz RF Wideband Amplifier 30dB High Gain LNA Board
• 1 Din Car Radio – Bluetooth, FM, MP3, USB & AUX Input
• 0–40V LCD Voltmeter Ammeter – Fast Charge & Ripple Tester

Learn more: Full-range speaker

Frequently Asked Questions

Q: What types of devices is this 3-inch full-range speaker compatible with?

A: This Axl 3-inch full-range speaker is designed for use in Bluetooth smart speakers, home HiFi systems, multimedia devices, portable audio enclosures, and DIY speaker projects. Its 8-ohm impedance makes it broadly compatible with most consumer amplifiers and audio receivers.

Q: What makes the non-paper diaphragm better than a standard paper cone?

A: The non-paper diaphragm material used in this full-range driver offers improved resistance to moisture and environmental changes compared to traditional paper cones. This results in more consistent audio clarity and longer-lasting performance, especially in varying temperature or humidity conditions.

Q: What does Xmax 4mm mean for audio performance?

A: Xmax refers to the maximum linear excursion of the speaker cone — the distance it can travel while maintaining clean, undistorted sound. An Xmax of 4mm for a 3-inch driver is generous, meaning this speaker can reproduce more bass and handle higher volume levels before distortion occurs, giving you fuller, richer audio output.

Q: Can this speaker be used as a replacement driver in an existing speaker cabinet?

A: Yes. The rectangular form factor and standard 8-ohm, 20-watt specifications make this speaker suitable as a replacement driver in compatible enclosures. Always verify the mounting dimensions and power rating of your cabinet before installation to ensure a proper fit and safe operation.
