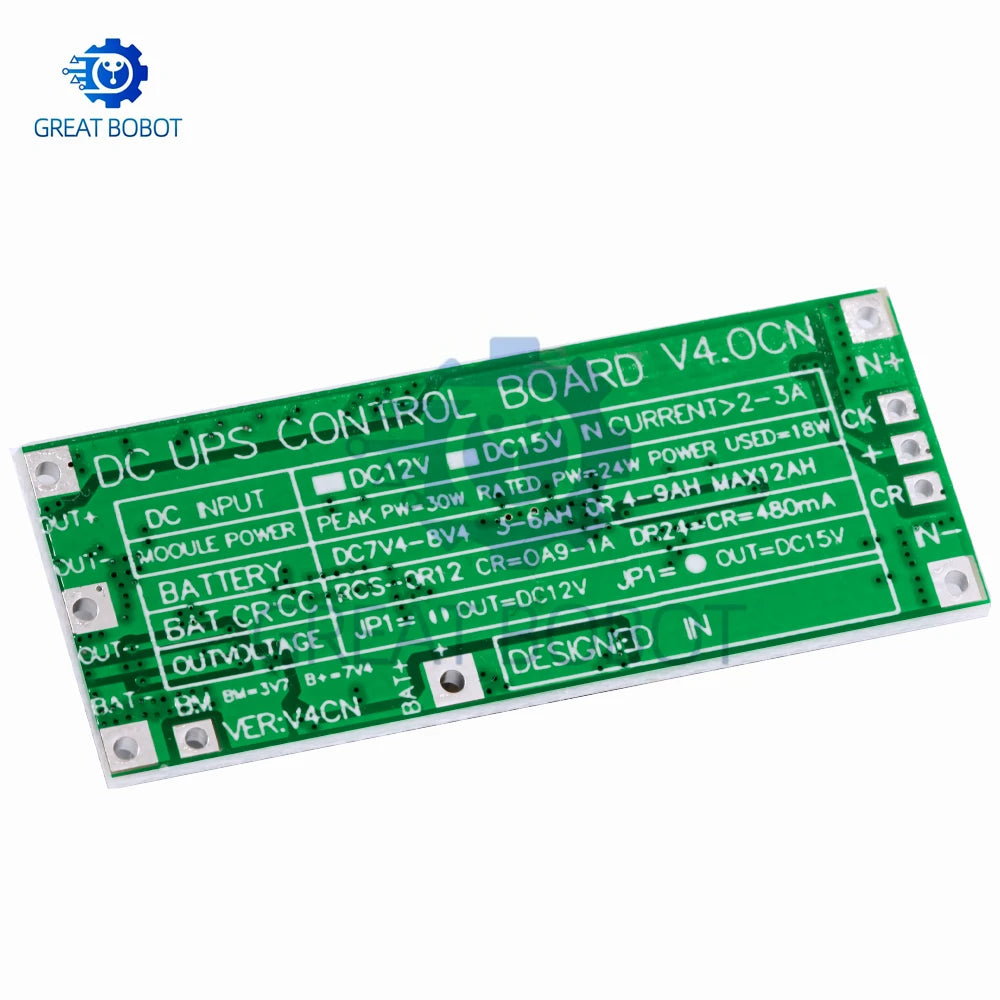

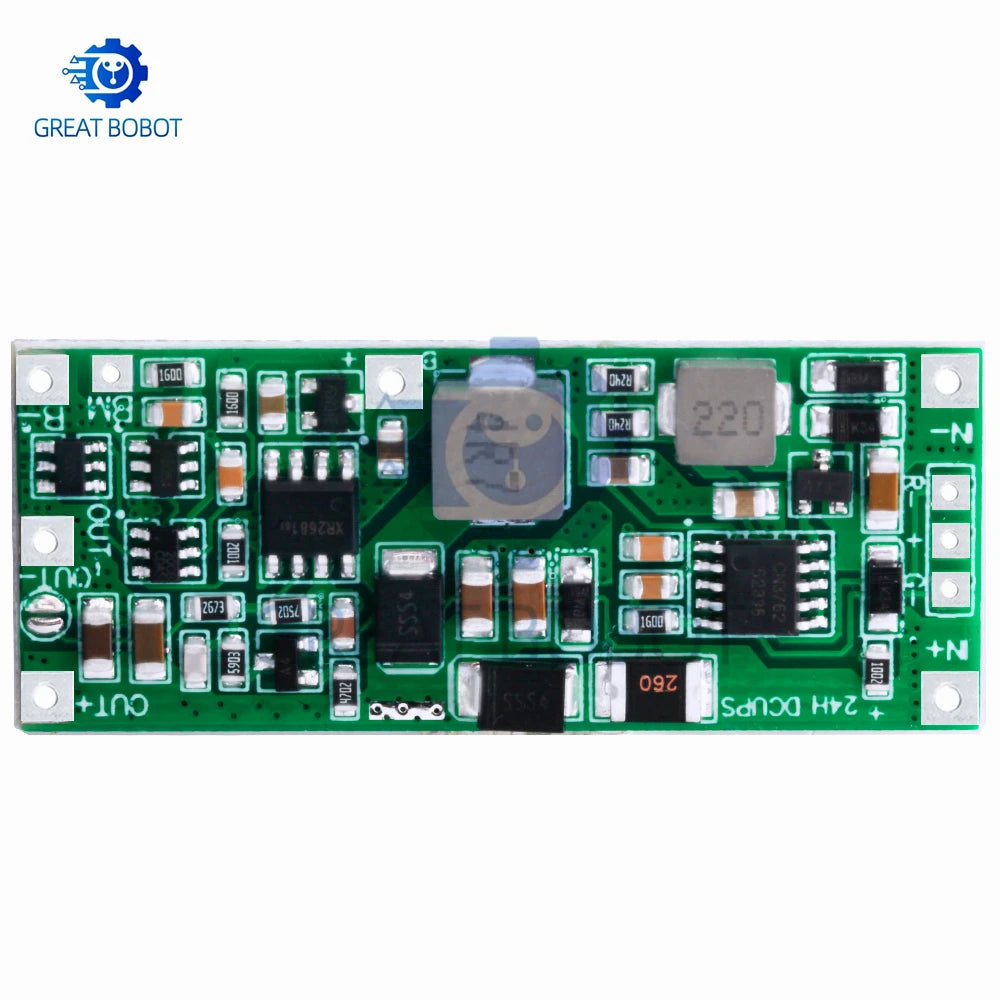

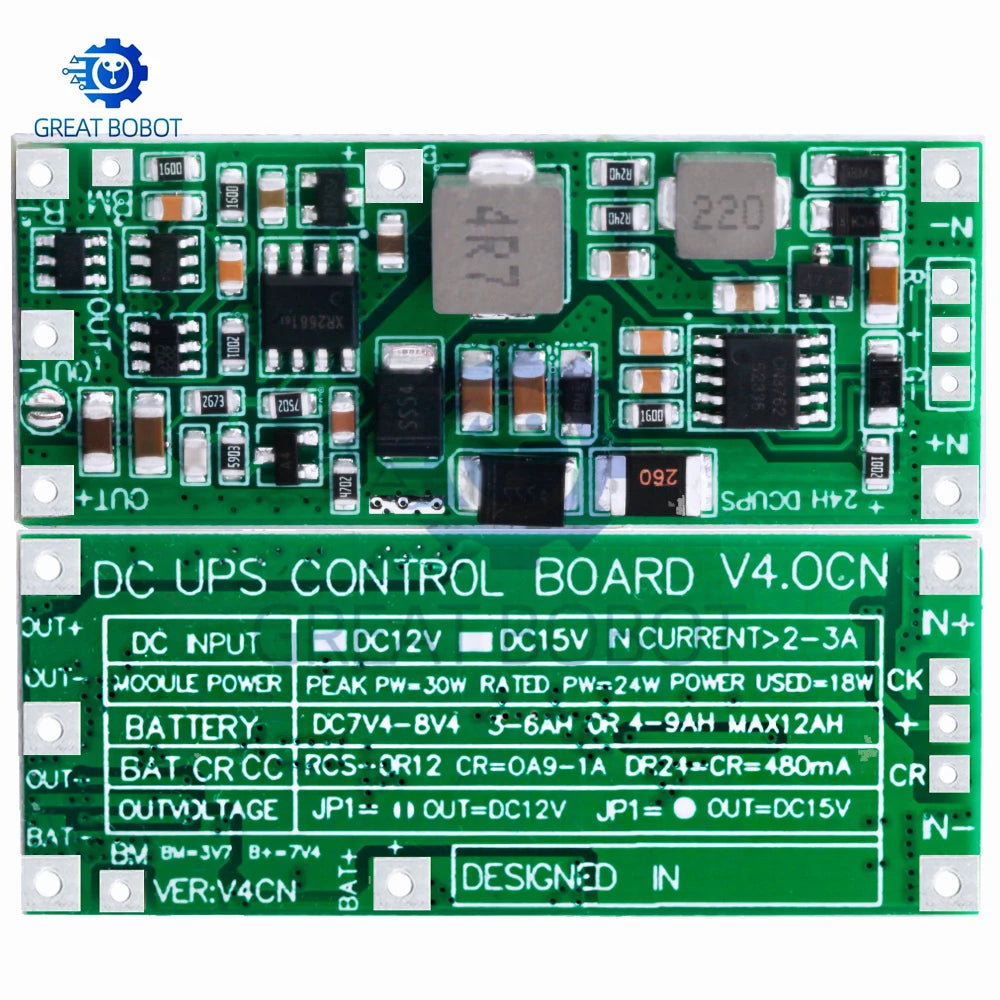

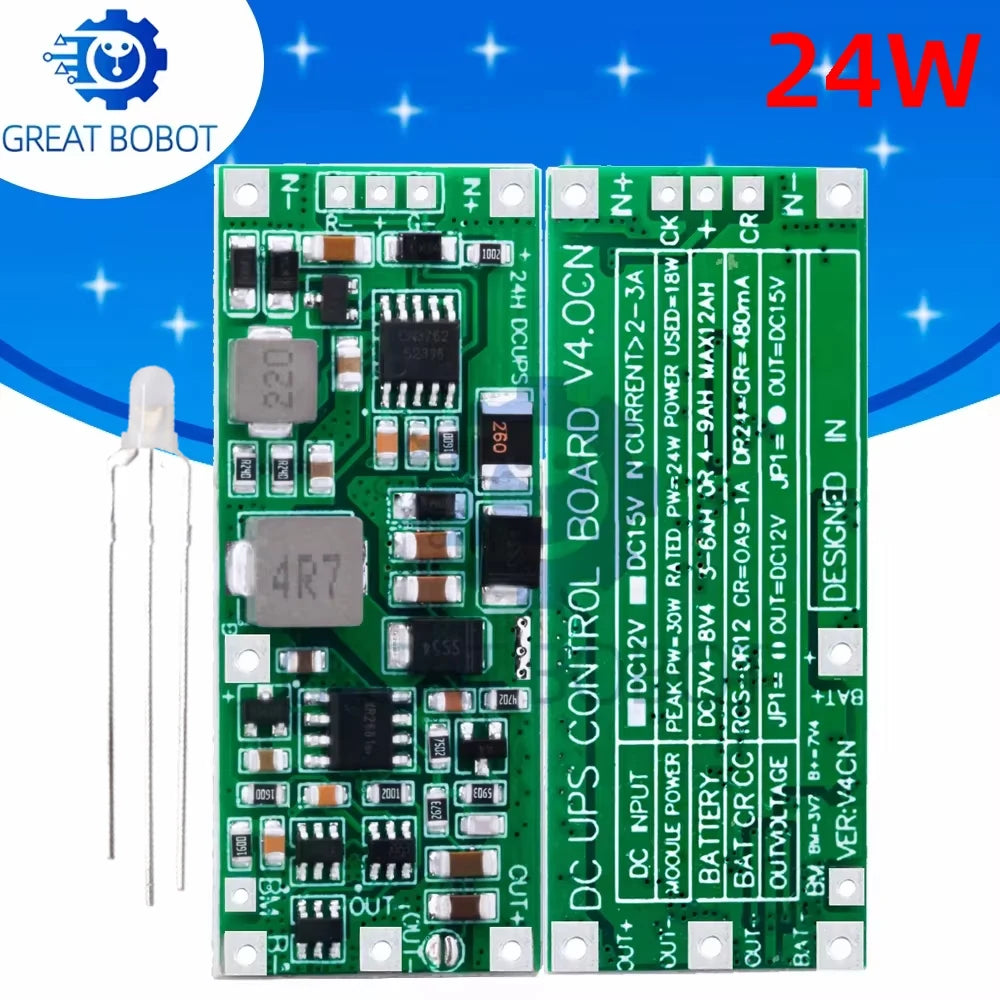

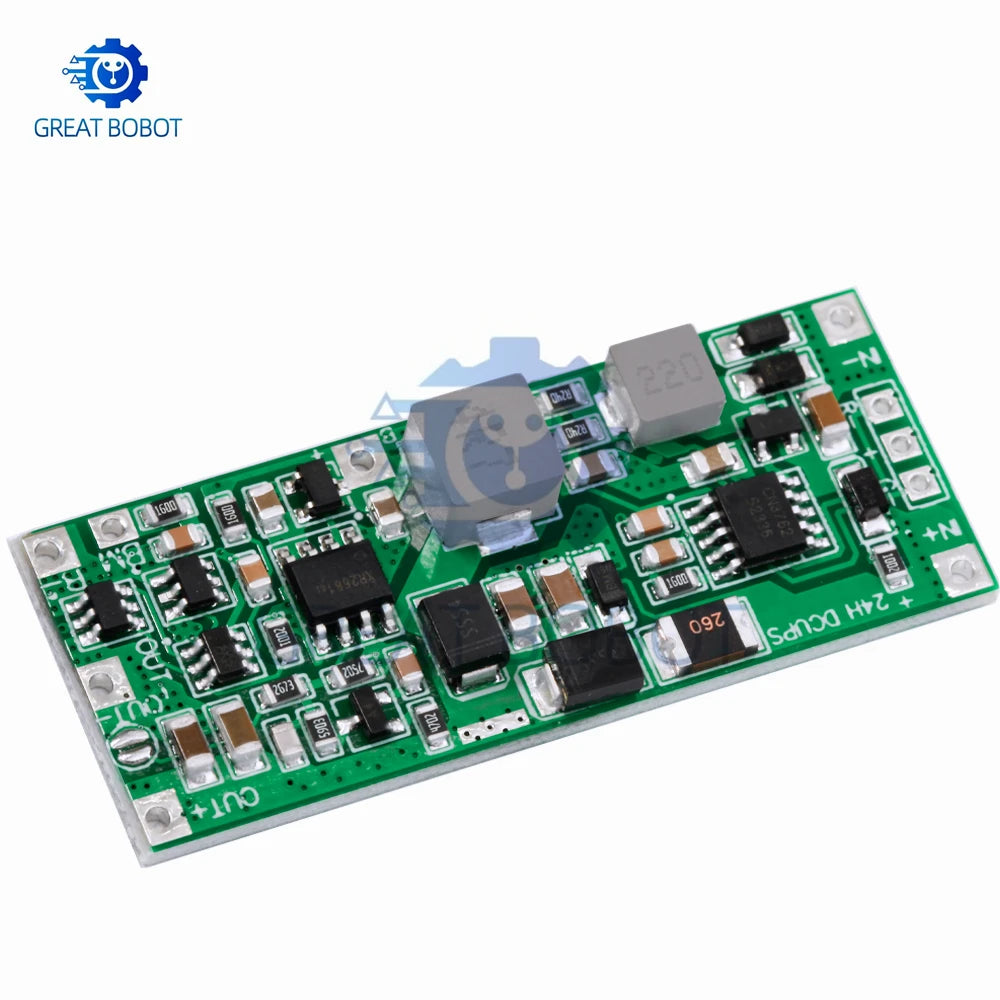

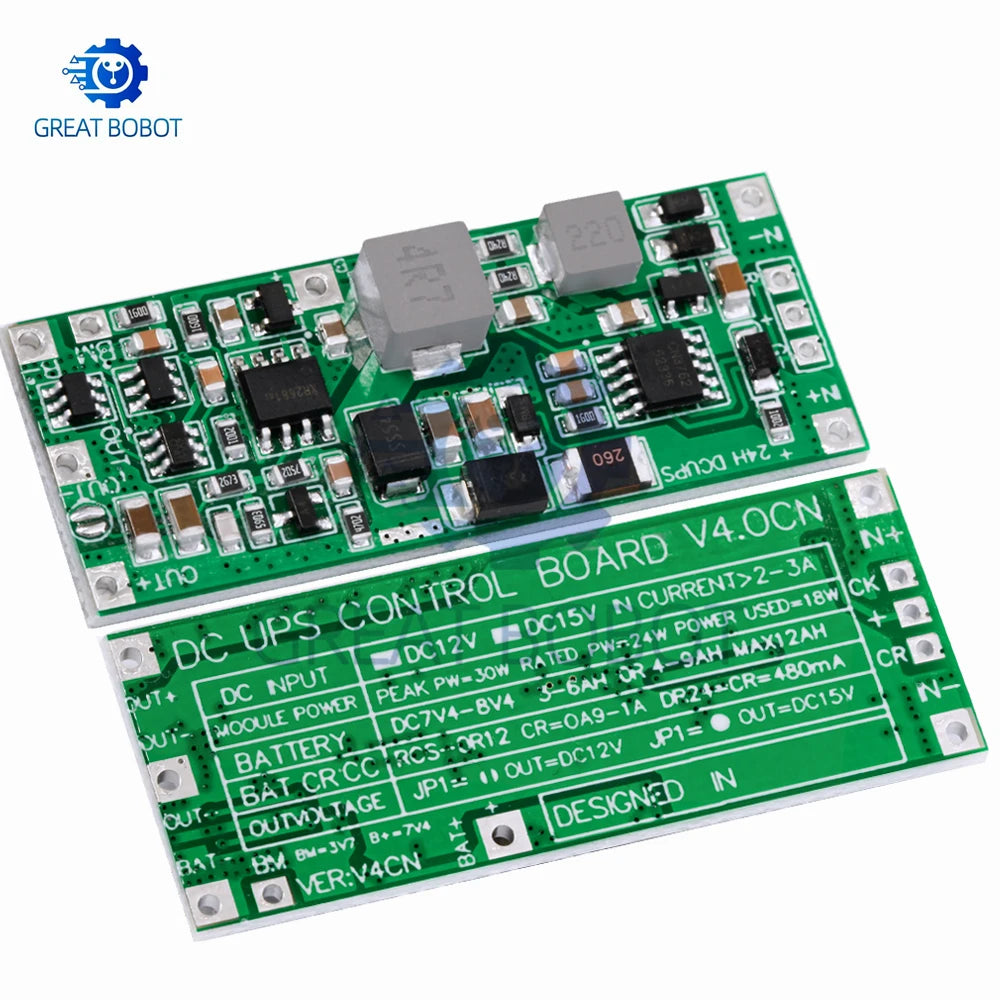

2S DC 12V/15V 24W UPS Power Supply Module – Uninterruptible Control Board V4.0
Keep your electronics running without interruption. This compact 2S UPS Power Supply Module delivers reliable uninterruptible power with built-in step-up boost charging and over-voltage/over-current protection — all on a single SMD control board. Ideal for Raspberry Pi projects, routers, mini PCs, industrial controllers, and any embedded system that demands continuous, stable power.
Key Features
- Dual Output Voltage: Supports 12V and 15V DC output to suit a wide range of devices
- 24W / 1A Rated Power: Stable performance for low-to-mid power embedded applications
- Step-Up (Boost) Charging: Efficiently charges the backup battery while simultaneously powering your load
- Multi-Layer Protection: Built-in over-voltage, over-current, short-circuit, and thermal protection circuits
- Wide Operating Temperature: Functions reliably from -40°C to +80°C — suitable for demanding environments
- Compact SMD Design: Space-saving surface-mount form factor integrates easily into custom enclosures and PCB assemblies
- Version 4.0CN Board: Latest revision featuring improved component layout and enhanced efficiency
- New Condition: Ships as a brand-new, unused module — 1 unit per package
Specifications
| Supply Voltage | 12V / 15V DC |
| Dissipation Power | 24W |
| Output Current | 1A |
| Operating Temperature | -40°C ~ +80°C |
| Package Type | SMD Module |
| Application | Computer / Embedded Systems |
| Quantity | 1 Module |
| Country of Origin | Made in Mainland China |
Who Is This For?
This UPS module is perfect for DIY electronics enthusiasts, hobbyists, engineers, and makers who need a dependable backup power solution for routers, mini servers, Raspberry Pi setups, security cameras, or any project that cannot afford unexpected power loss. Drop it into your build and enjoy seamless switchover with zero downtime.
Related Products You May Like
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: What devices is the 2S UPS Power Supply Module compatible with?
A: This UPS module is designed for use with computers, mini PCs, Raspberry Pi boards, routers, security cameras, and other embedded or low-power electronics that operate on 12V or 15V DC. Its compact SMD form factor makes it easy to integrate into custom PCB assemblies and enclosures.
Q: Does this module charge a backup battery while powering the connected device at the same time?
A: Yes. The 2S V4.0CN board features a step-up (boost) charging circuit that charges the connected 2S lithium battery pack simultaneously while delivering stable output power to the load, ensuring true uninterruptible operation during a power outage.
Q: What protections are built into this UPS power module?
A: The module includes multi-layer protection covering over-voltage, over-current, short-circuit, and thermal conditions. These safeguards help protect both the module itself and the connected devices from damage caused by unexpected electrical events.
