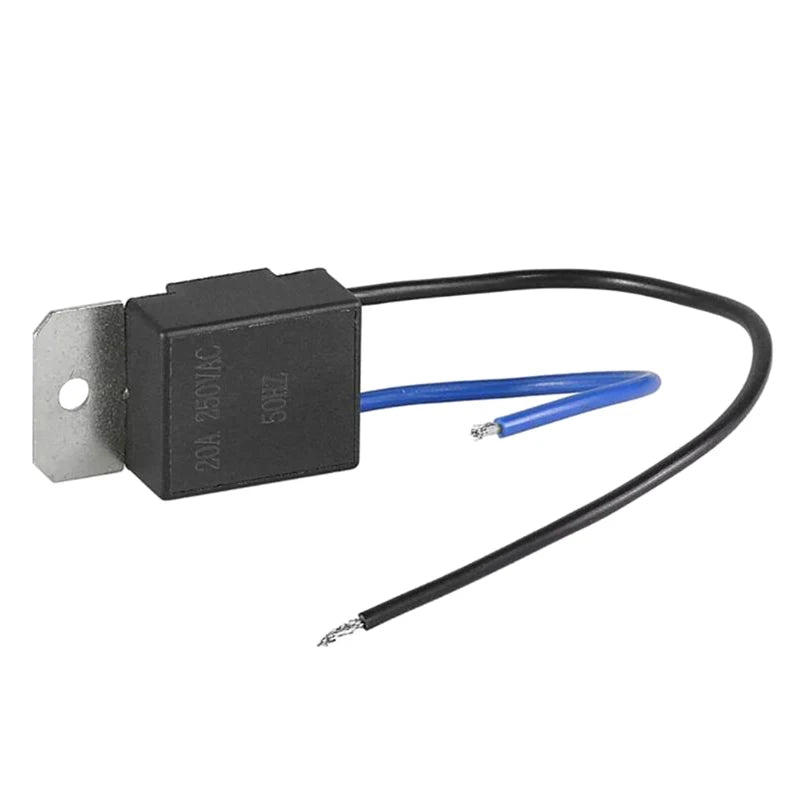

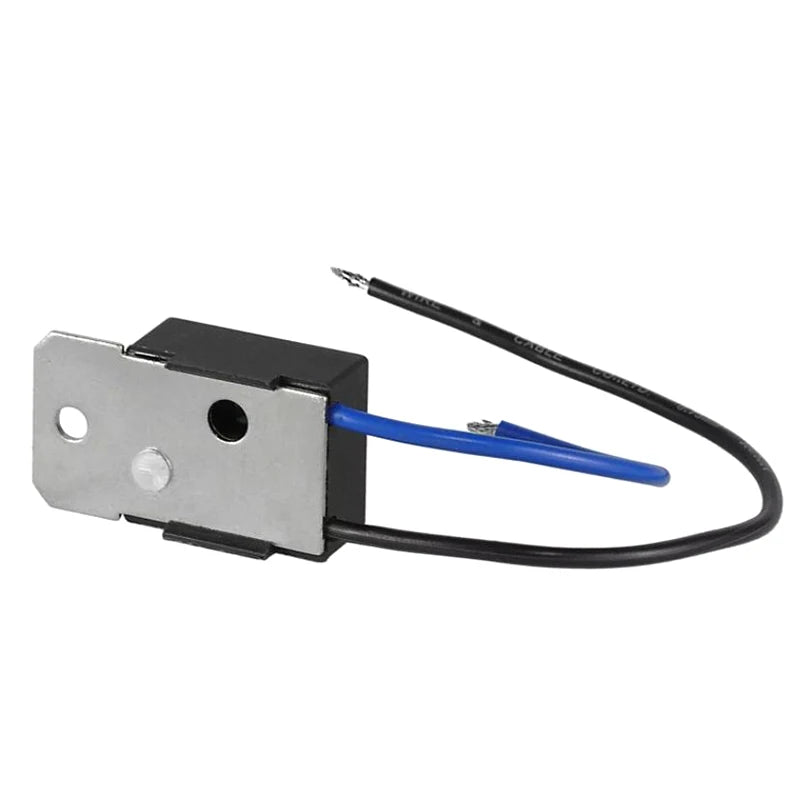

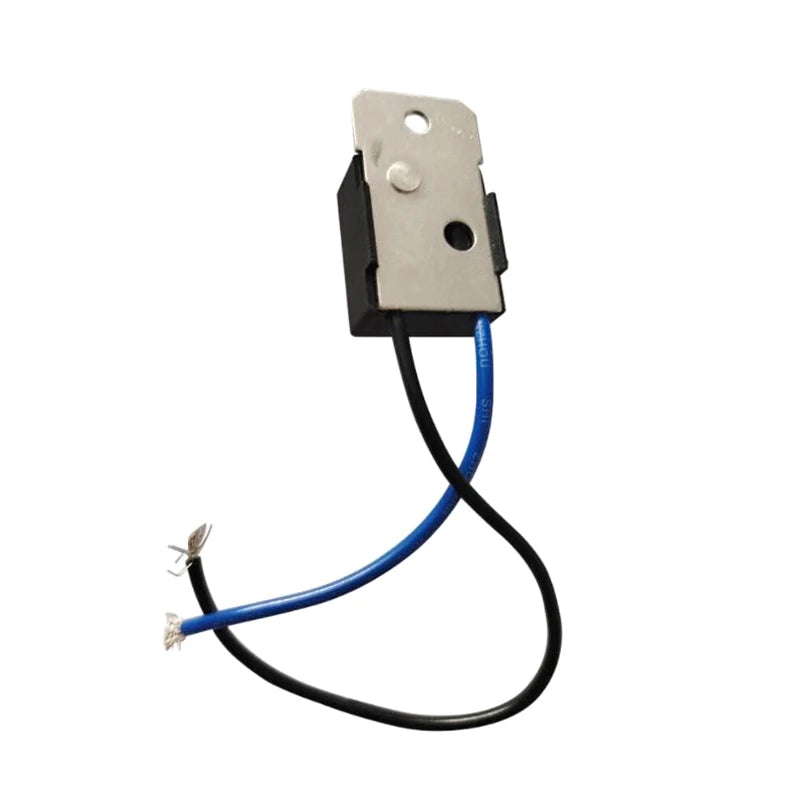

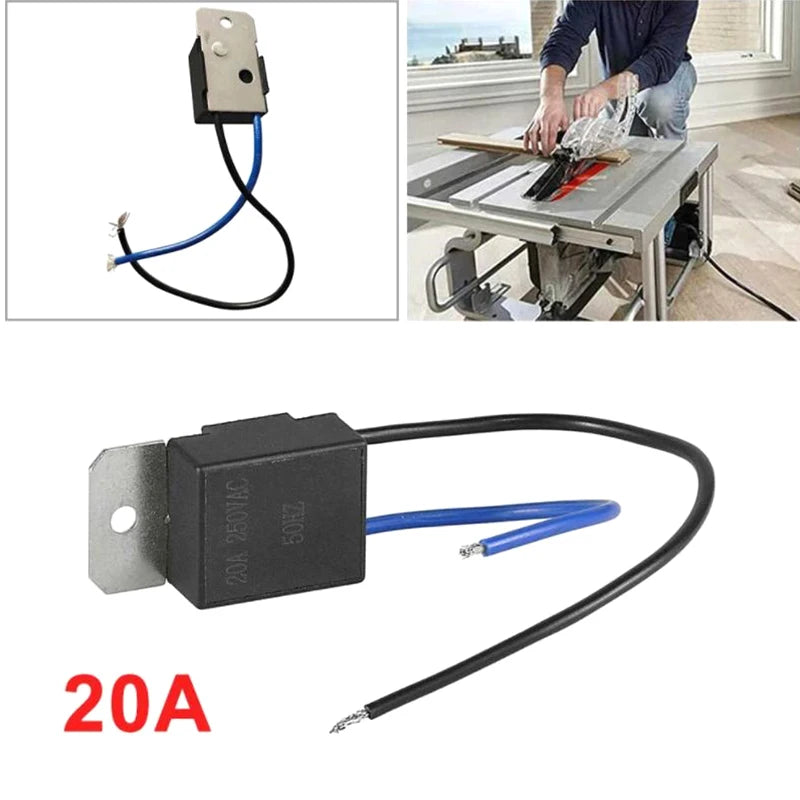

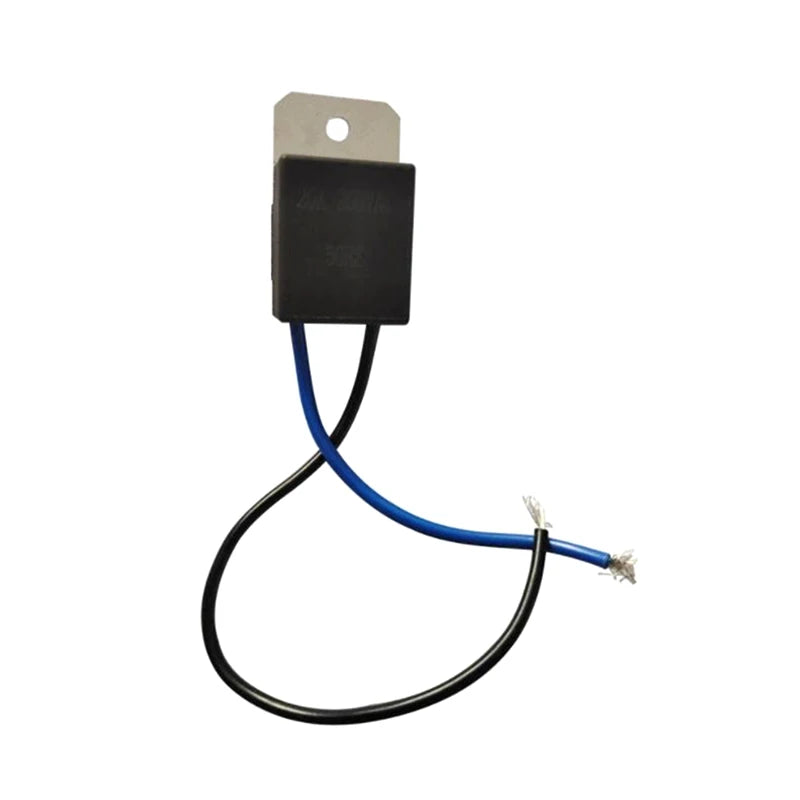

230V Soft Start Drive Module – 20A for Angle Grinders & Power Tools
Upgrade your power tools with this compact 230V Soft Start Drive Module. Engineered to deliver smooth, controlled startup sequences for angle grinders, cutting machines, slotting saws, and other electric tools, this module helps protect your equipment electronics and extends tool lifespan. Made in Mainland China.
Key Features
- Three Compound Start Modes: Choose from current limit start, voltage ramp start, or smooth and stable start mode — giving you full control over how your tool powers up.
- Wide Compatibility: Compact form factor (36×20mm / 36×22mm) designed to fit inside the handles and shells of nearly all common electric tools — quick and easy built-in installation.
- High-Power Rating: Supports 230V input with 20A (or 12A) current output, providing ample power for demanding cutting and grinding applications.
- Enhanced Equipment Protection: The soft-start mechanism limits inrush current on startup, helping safeguard your tool's motor and internal components over time.
- Durable Construction: Built from quality plastic and metal materials, sourced with imported components for reliable, consistent performance.
Specifications
| Input Voltage | 230V |
| Current Rating | 20A / 12A |

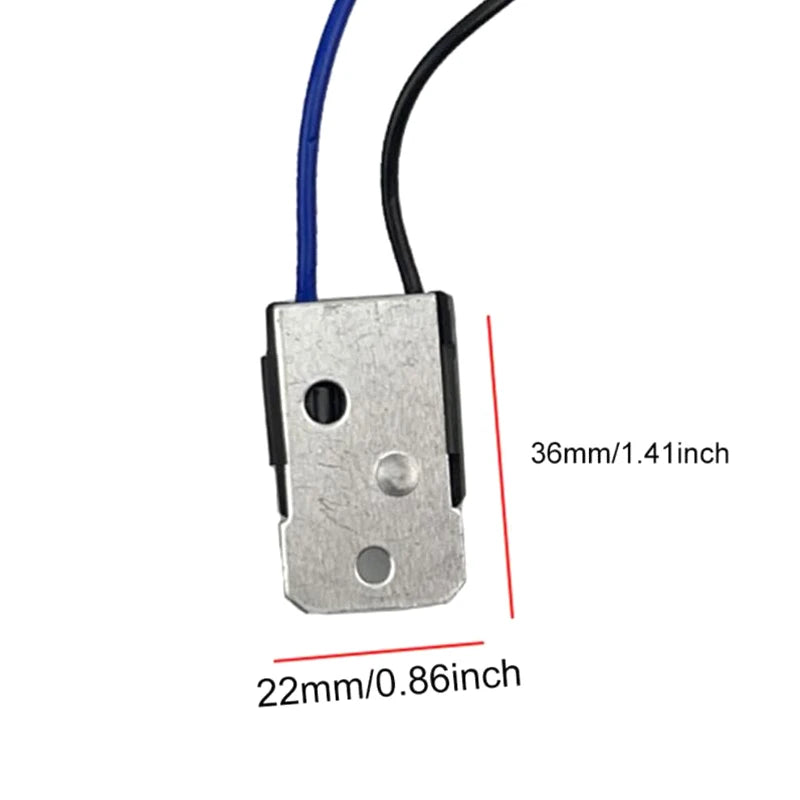

| Dimensions | 36×20mm / 36×22mm |
| Material | Plastic & Metal |
| Start Modes | Current Limit, Voltage Ramp, Smooth & Stable |
| Country of Origin | Made in Mainland China |
Package Contents
- 1× Soft Start Drive Module
Compatible Tools
This module is suitable for use in a wide variety of power tools including:
- Angle Grinders
- Cutting Machines
- Slotting Saws
- Aluminum Cutting Machines
- Other 230V Electric Power Tools
Notes
- Actual color may vary slightly from images due to monitor brightness and lighting conditions.
- Please allow slight measurement deviation (±1–2mm) for stated dimensions.
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What power tools is this 230V soft start drive module compatible with?
A: This soft start drive module is designed for wide compatibility with most 230V electric power tools, including angle grinders, cutting machines, slotting saws, and aluminum cutting machines. Its compact size (36×20mm or 36×22mm) allows it to be installed inside most tool handles and shells with ease.
Q: What are the three start modes offered by this drive module?
A: The module features three compound start modes: (1) Current Limit Start Mode — caps the startup current draw to protect the motor; (2) Voltage Ramp Start Mode — gradually increases voltage for a controlled power-up; and (3) Smooth & Stable Start Mode — delivers a consistent, jolt-free startup for precise tool control.
Q: What is the maximum current rating of this soft start module?
A: This module supports a maximum current output of 20A (with a 12A variant also available), operating at a 230V input. This rating makes it suitable for high-demand power tools used in cutting, grinding, and fabrication tasks.
Q: Is this module easy to install inside a power tool?
A: Yes — the module is specifically designed for built-in installation within electric tool housings. Its small footprint ensures it fits comfortably inside most standard tool handles and shells without requiring major modifications.
