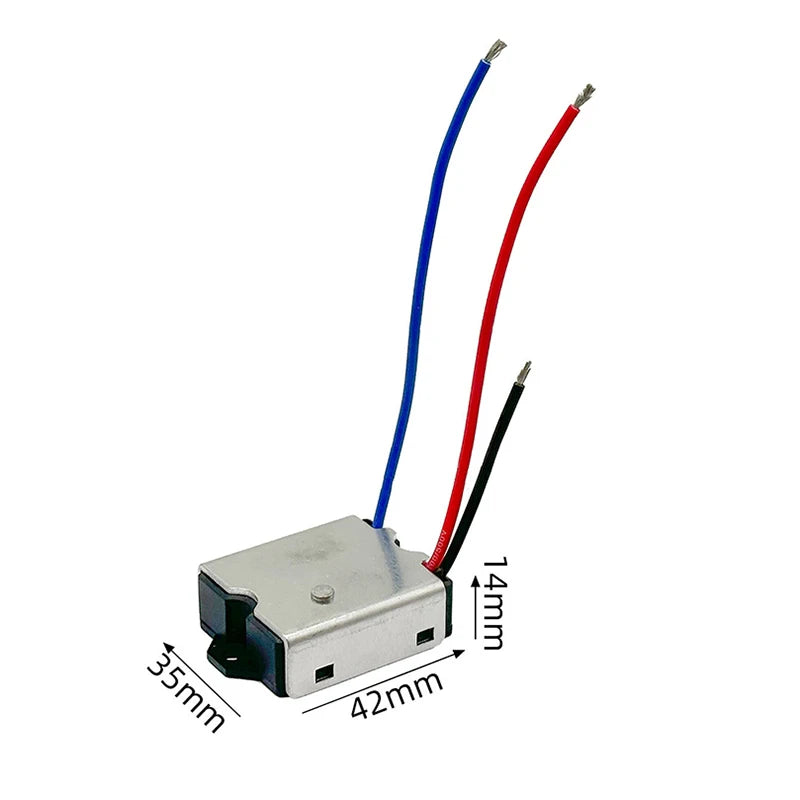

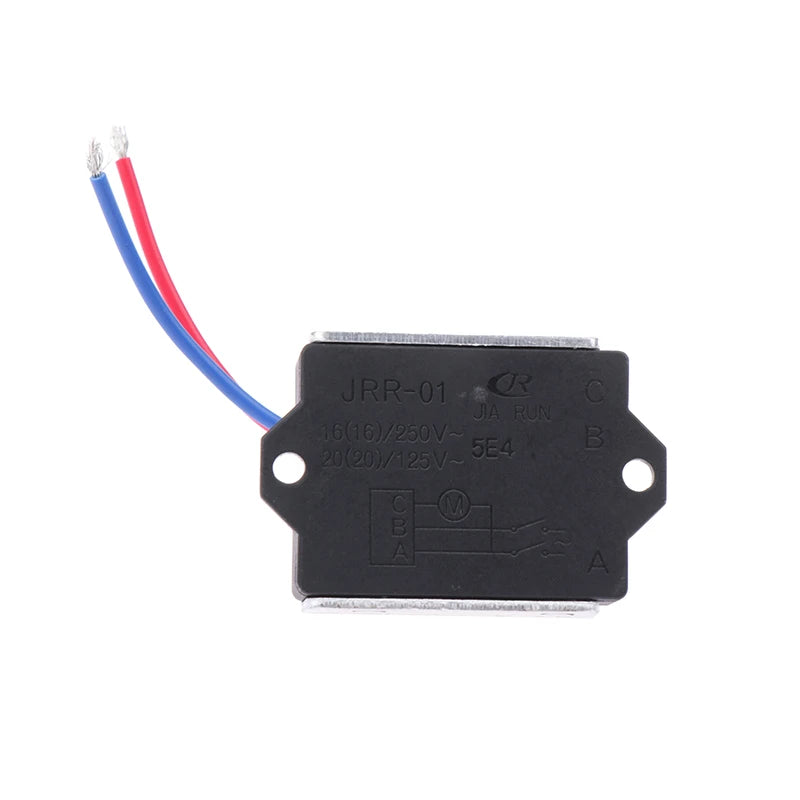

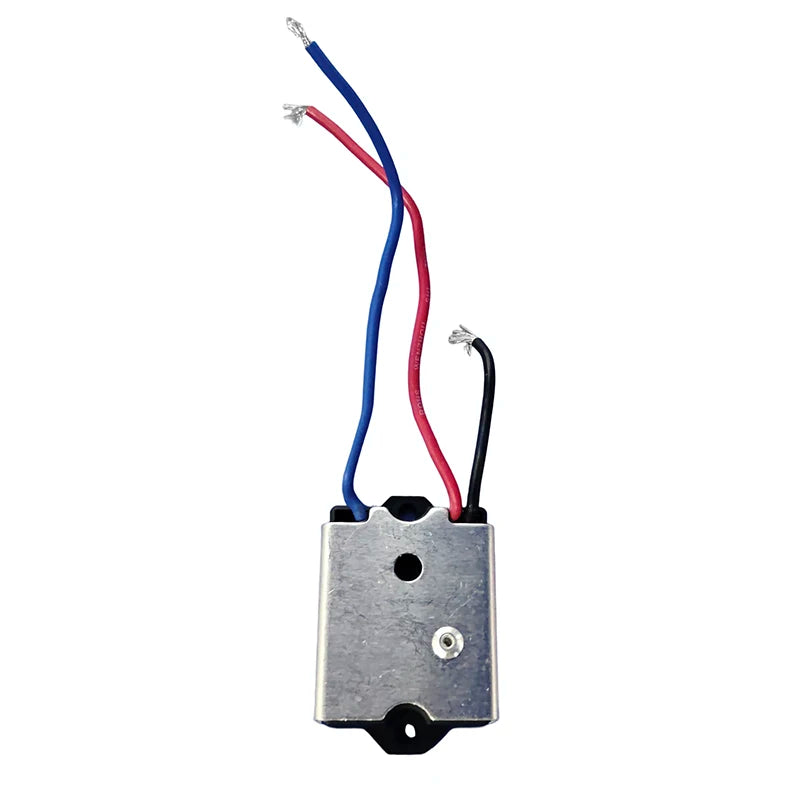

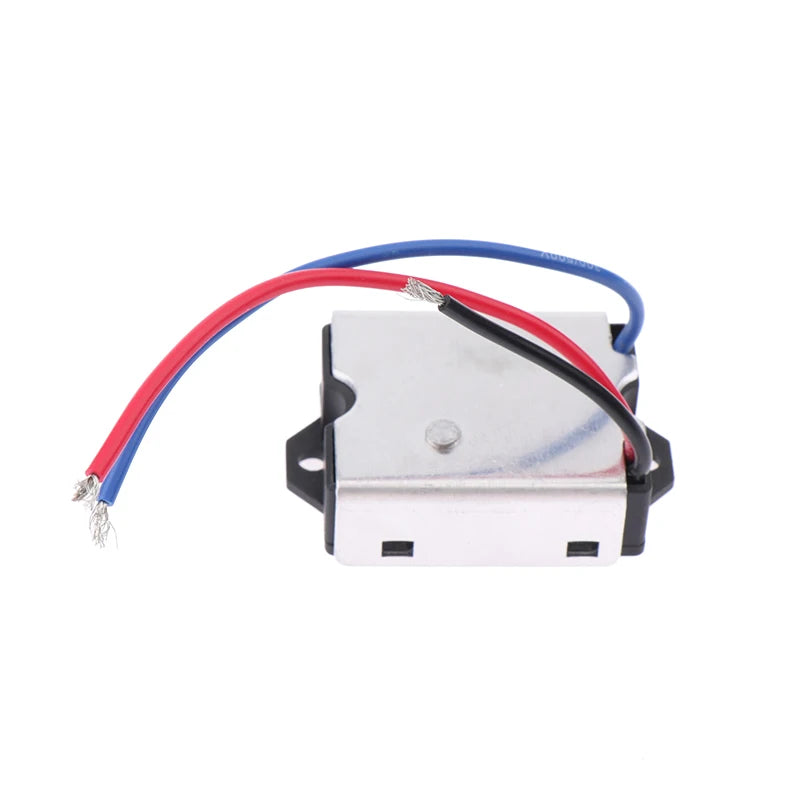

230V 16A Soft Start Switch Module for Angle Grinder & Tools
230V 16A Soft Start Switch Module for Angle Grinder & Tools
230V to 16A Soft Start Switch Module – Angle Grinder Retrofit
Upgrade your angle grinder or power tool with this industrial-grade Soft Start Current Limiter Module. Instead of a jarring sudden startup, the module gradually ramps the tool up to full speed in just 1–2 seconds — giving you smoother, safer operation and reducing wear on both the motor and your electrical circuit.
Made in Mainland China.
Key Features
- Smooth Startup: Eliminates abrupt torque spikes by bringing the tool to full speed gradually (approx. 1–2 seconds), improving control and extending tool life.
- Industrial-Grade Build: Constructed from durable nylon + aluminum — engineered for precision, stability, and long-term wear resistance.
- Wide Compatibility: Designed for 230V power tools up to 16A rated heating current; maximum voltage rating of 600V.
- Broad Temperature Range: Operates reliably from -40°C to +85°C, suitable for workshop, outdoor, and demanding environments.
- Easy Retrofit: Comes with 3 connecting wires for straightforward installation into existing angle grinders and compatible power tools.
- Current Limiting: Reduces inrush current at startup, helping protect fuses, circuit breakers, and the tool's internal components.
Specifications
| Material | Nylon + Aluminum |
| Input Voltage | 230V |
| Rated Heating Current | 16A |
| Maximum Voltage | 600V |
| Working Temperature | -40°C to +85°C |
| Included | 3 connecting wires |
What's in the Box?
- 1 × Soft Start Current Limiter Module
How It Works
Once installed, the soft start module intercepts the power supply to your tool's motor. When you switch the tool on, the module limits and gradually increases the current flow, allowing the motor to reach full operating speed smoothly over approximately 1–2 seconds rather than instantaneously. This reduces mechanical stress, minimises electrical inrush, and improves operator control — especially important for larger angle grinders and high-torque tools.
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Garden Pruner Shears – Secateurs for Bonsai & Fruit Trees
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What power tools is this soft start module compatible with?
A: This 230V to 16A soft start switch module is designed primarily as an angle grinder retrofit module, but it is also compatible with other 230V power tools rated up to 16A, such as circular saws, bench grinders, and similar electric tools. Always verify your tool's voltage and amperage before installing.
Q: How difficult is it to install the soft start current limiter?
A: Installation is straightforward for anyone comfortable with basic electrical DIY. The module comes with 3 pre-attached connecting wires that are wired inline with your tool's power supply. It is recommended that installation be carried out by a competent person familiar with power tool wiring. Always disconnect the tool from mains power before beginning installation.
Q: Will this module work on a 110V or 120V power supply?
A: No — this module is specifically rated for 230V AC systems. It is not suitable for 110V or 120V supplies. Using it on the wrong voltage may result in damage to the module or the tool.
Q: Does the soft start module affect the tool's top speed or power output?
A: No. The module only controls the startup ramp-up time (approximately 1–2 seconds). Once the tool reaches full speed, it operates at its normal rated power and RPM with no reduction in performance.
