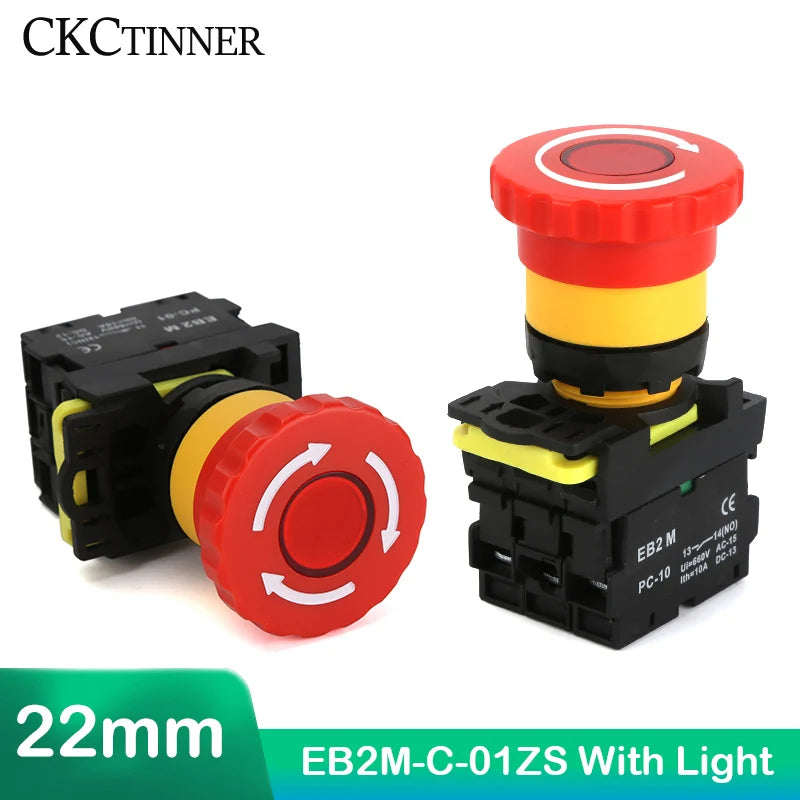

22mm Mushroom Cap Emergency Stop Rotary Switch with Indicator Lamp

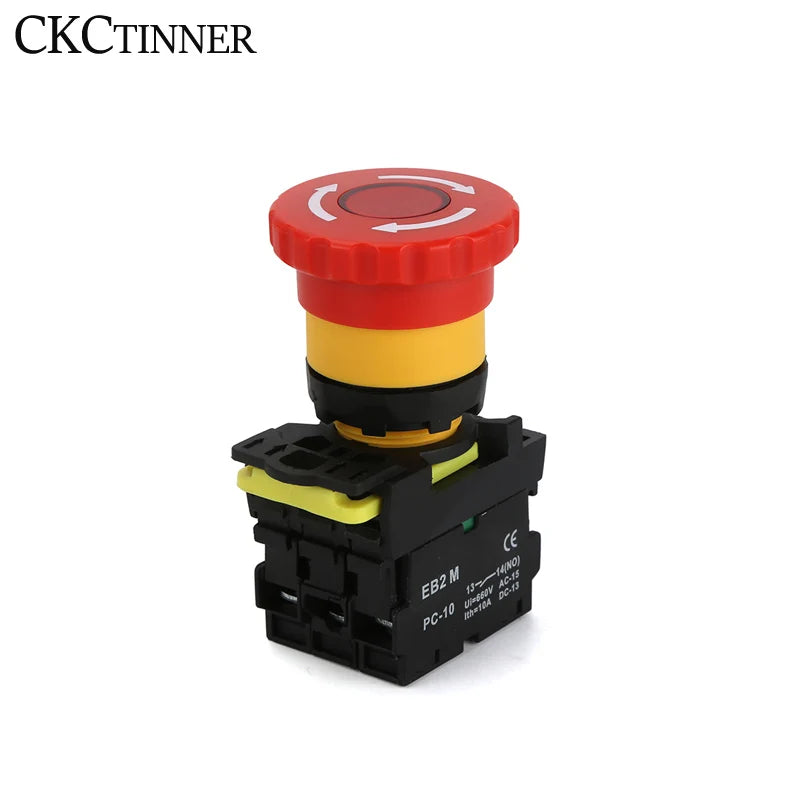

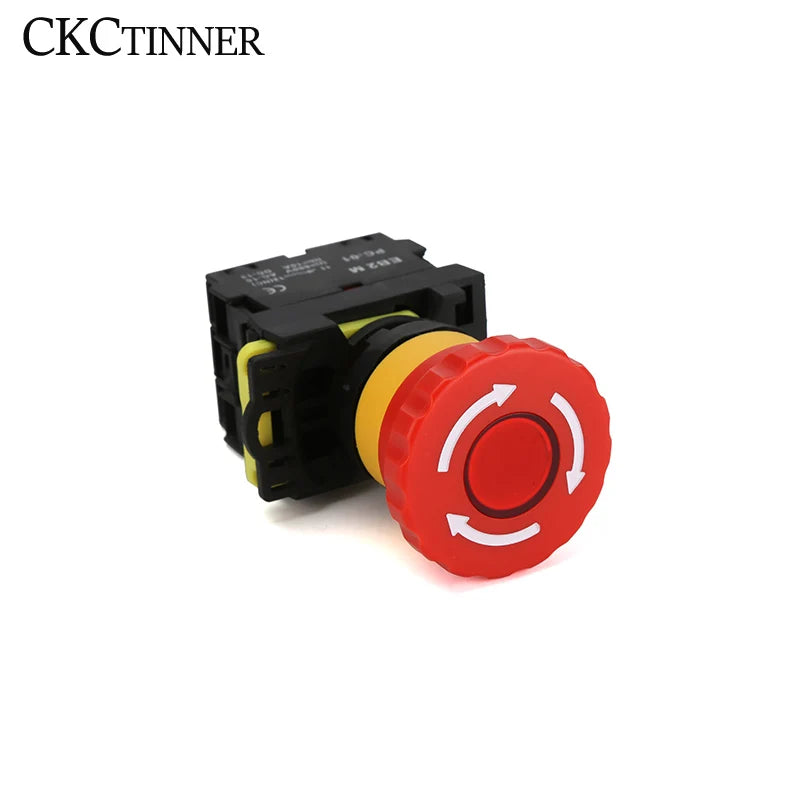

The EB2M-C-01ZS Emergency Stop Rotary Switch is a rugged, CE-certified industrial control switch designed for machines, control panels, and automation equipment. Featuring a bold red mushroom cap head, waterproof construction, and a built-in indicator lamp, this switch provides a reliable, clearly visible emergency shutdown mechanism for any industrial or commercial application.
Key Features

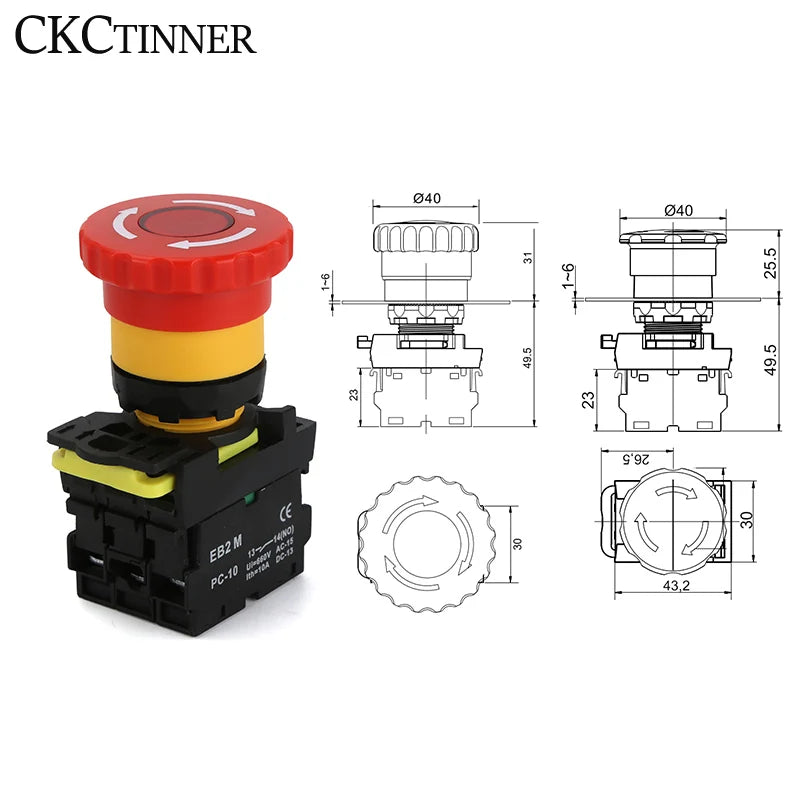

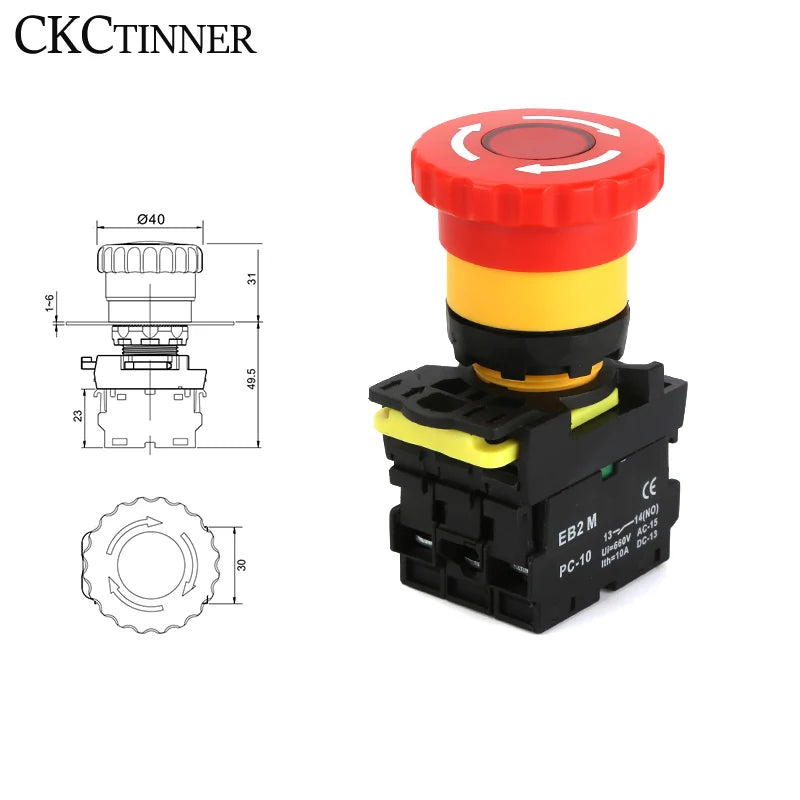

- 22mm Panel Cutout: Industry-standard 22mm mounting hole fits most standard enclosures and control panels with no modification required.
- Self-Locking Operation: Press to engage and lock; rotate to release — ensuring the circuit stays interrupted until deliberately reset.
- Built-In Indicator Lamp: Integrated pilot light gives instant visual confirmation of switch status, improving situational awareness on the floor.
- High-Current Rating: Rated at 10A / AC 660V, suitable for a wide range of industrial machinery and control circuit loads.
- Silver Contacts: Precision silver contact points deliver low-resistance, reliable switching performance even after repeated actuations.
- Waterproof & Dustproof: Sealed housing protects internal components in demanding workshop and factory environments.
- Flame-Retardant Shell: Housing constructed from flame-retardant plastic material for enhanced electrical safety.
- CE Certified: Meets European conformity standards for electrical safety and electromagnetic compatibility.
Specifications
| Model | EB2M-C-01ZS |
| Brand | CKCTINNER |
| Panel Cutout | 22mm |
| Rated Current | 10A |
| Insulation Voltage | AC 660V |
| Contact Type | Silver Contact |
| Shell Material | Flame-Retardant Plastic |
| Operation Type | Self-Locking / Self-Resetting |
| Lamp | Yes (Indicator Lamp Included) |
| Certification | CE |
| Country of Origin | Made in Mainland China |
Ideal Applications
- Industrial machinery and CNC equipment control panels
- Conveyor systems and assembly lines
- Electrical enclosures and distribution boards
- Automation and robotics stations
- Pumps, compressors, and motor starters
You May Also Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What does "self-locking" mean on this emergency stop rotary switch?
A: Self-locking means that when you press the mushroom cap down, the switch latches in the off (open) position and stays there until you deliberately release it by rotating the cap. This ensures the connected machine or circuit cannot accidentally restart — the operator must intentionally reset the switch before power is restored.
Q: Is this 22mm emergency stop switch compatible with standard industrial control enclosures?
A: Yes. The EB2M-C-01ZS uses the industry-standard 22mm panel cutout, which is compatible with the vast majority of commercial and industrial control enclosures, junction boxes, and operator panels available on the market.
Q: What is the maximum load this switch can handle?
A: This switch is rated at 10A and an insulation voltage of AC 660V, making it suitable for a wide range of industrial machinery, motor control circuits, and electrical panel applications within those parameters.
Q: Does the indicator lamp require separate wiring?
A: The integrated indicator lamp is built into the switch assembly. Refer to the wiring diagram included with your switch or contact the manufacturer for specific lamp circuit wiring requirements to ensure correct installation.
